Bankruptcy Auction - Former Schulte & Schmidt: Brother CNC Machines and Inspection and Workshop Equipment

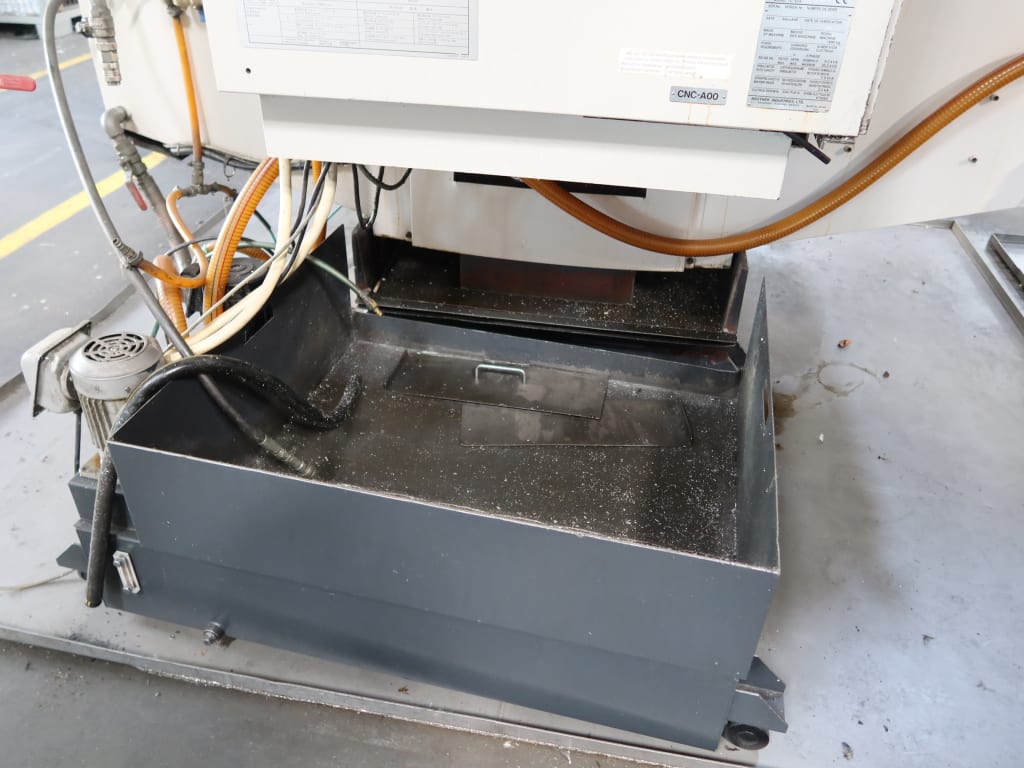

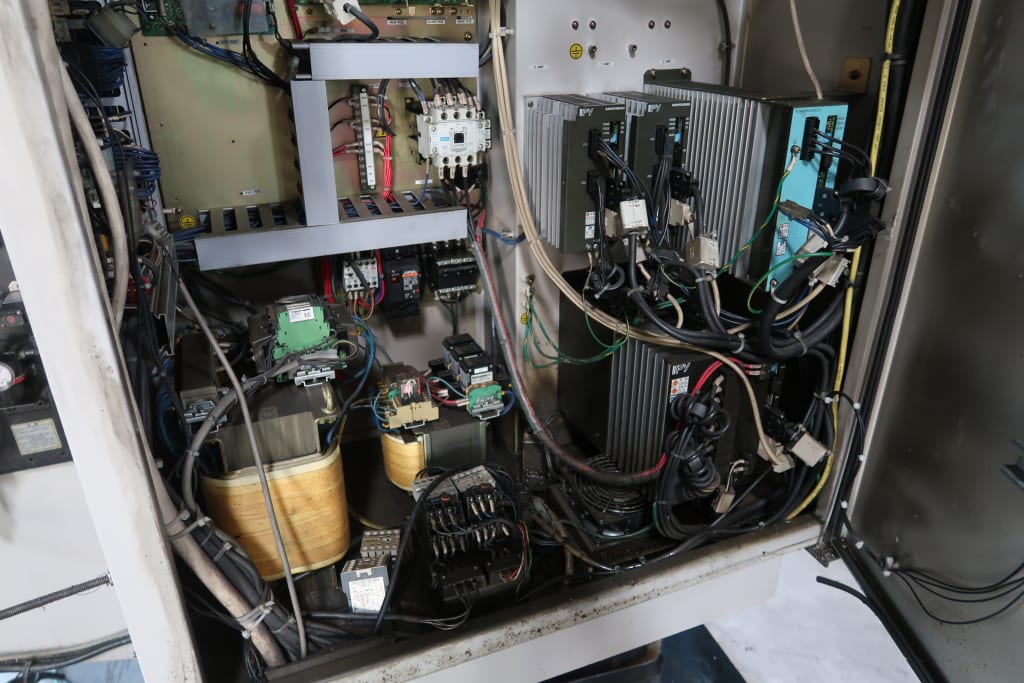

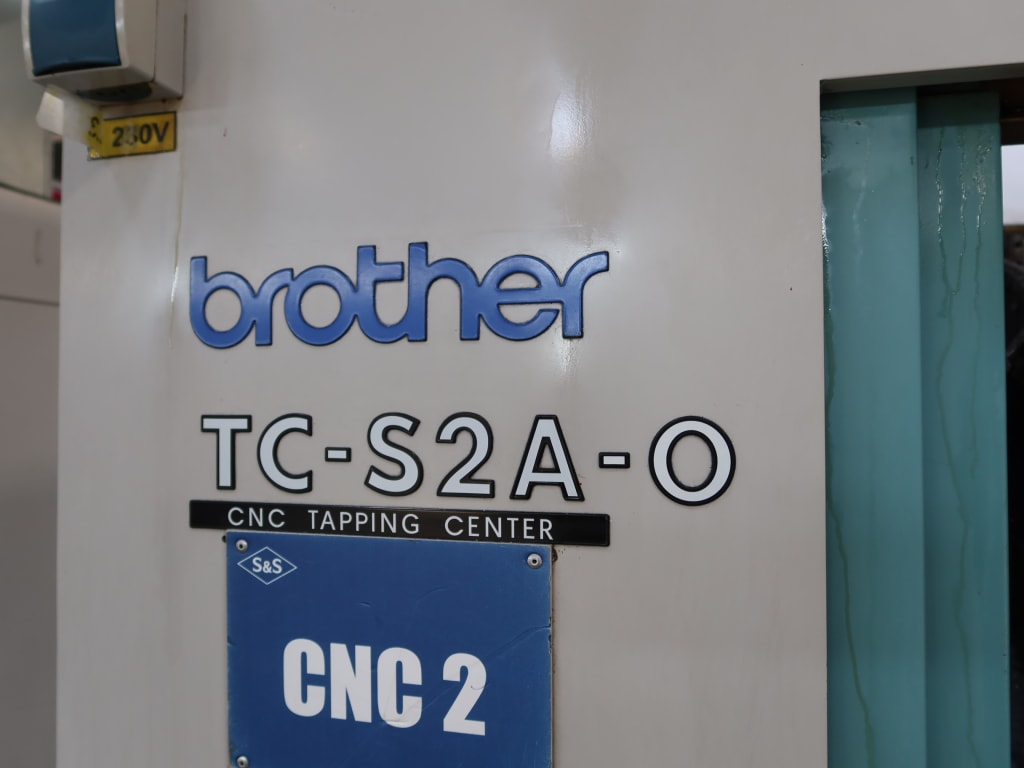

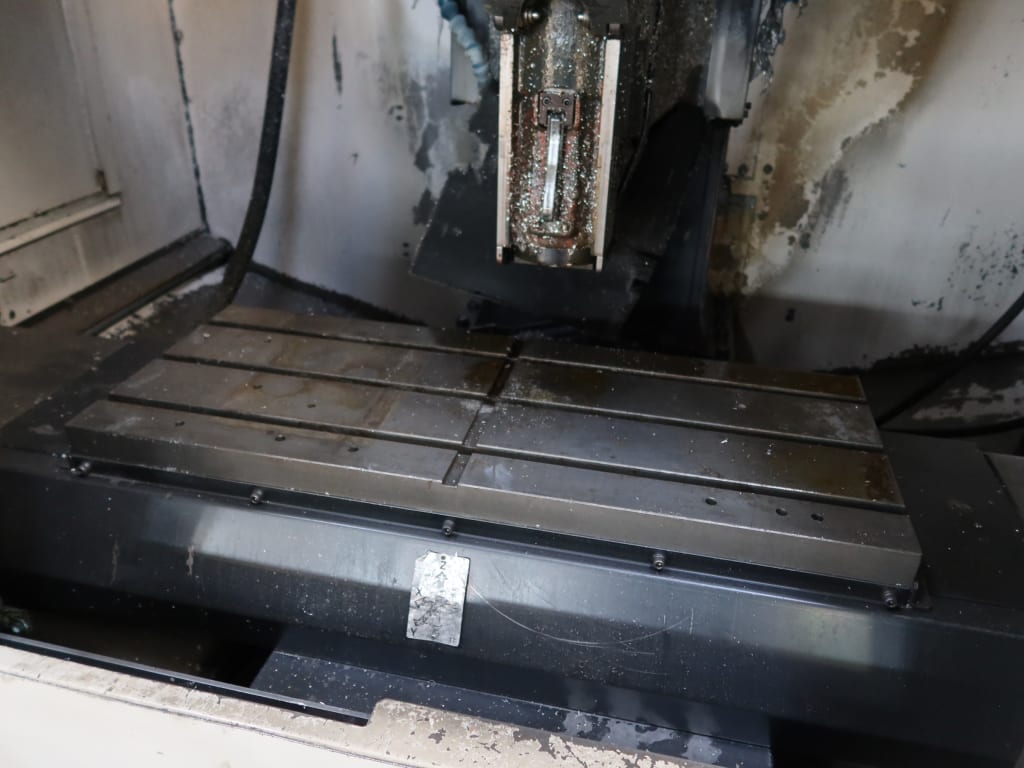

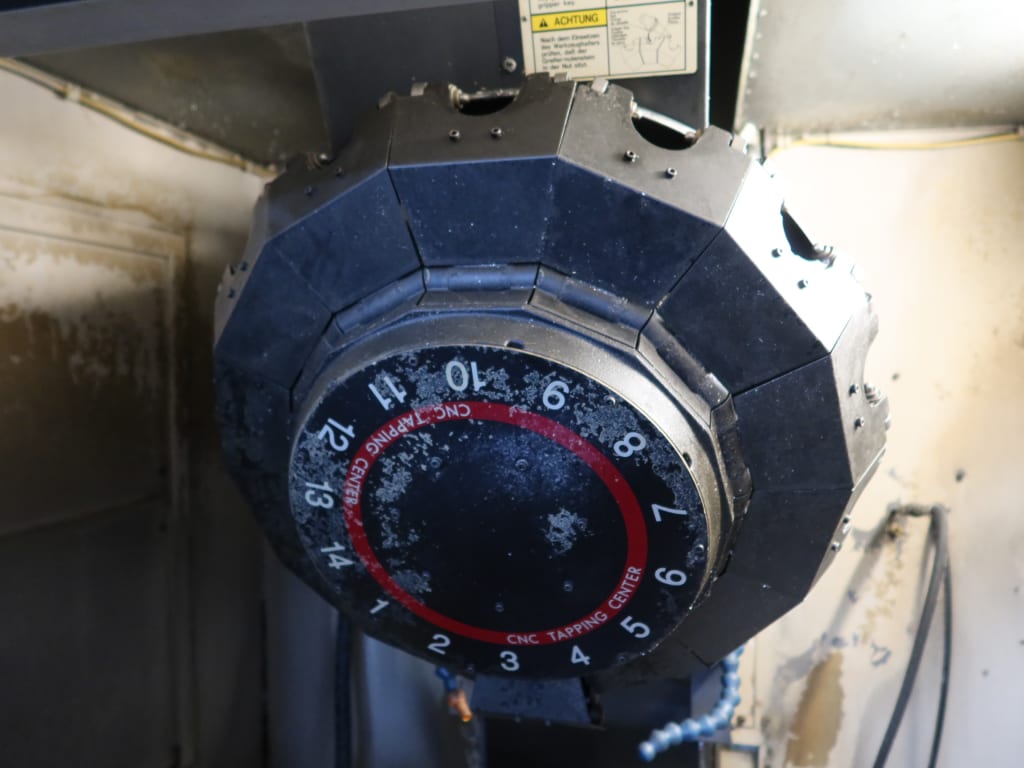

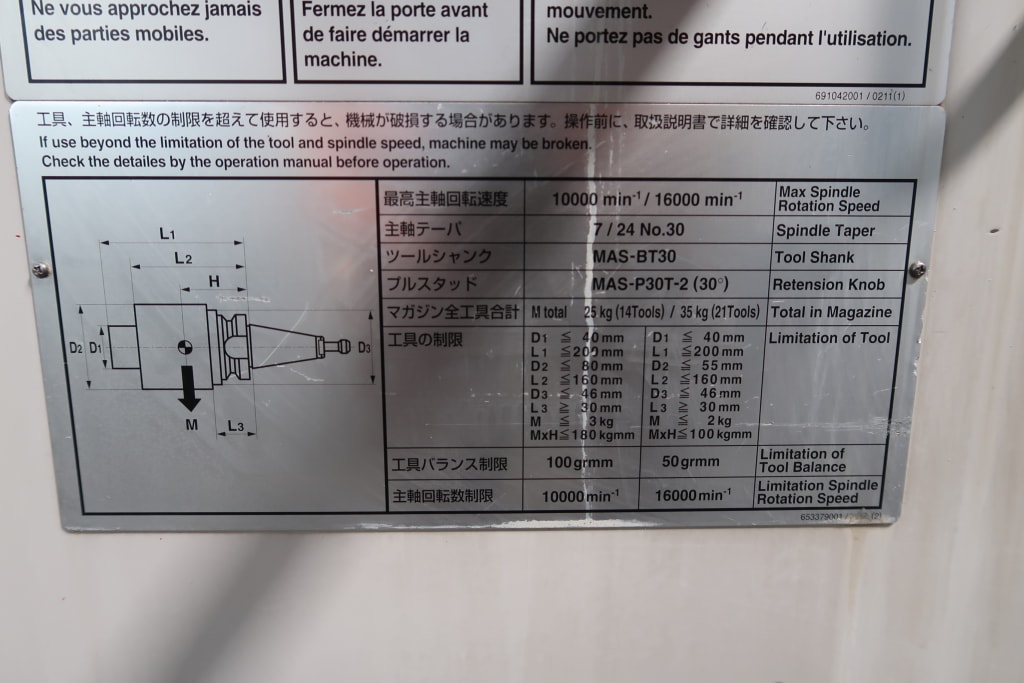

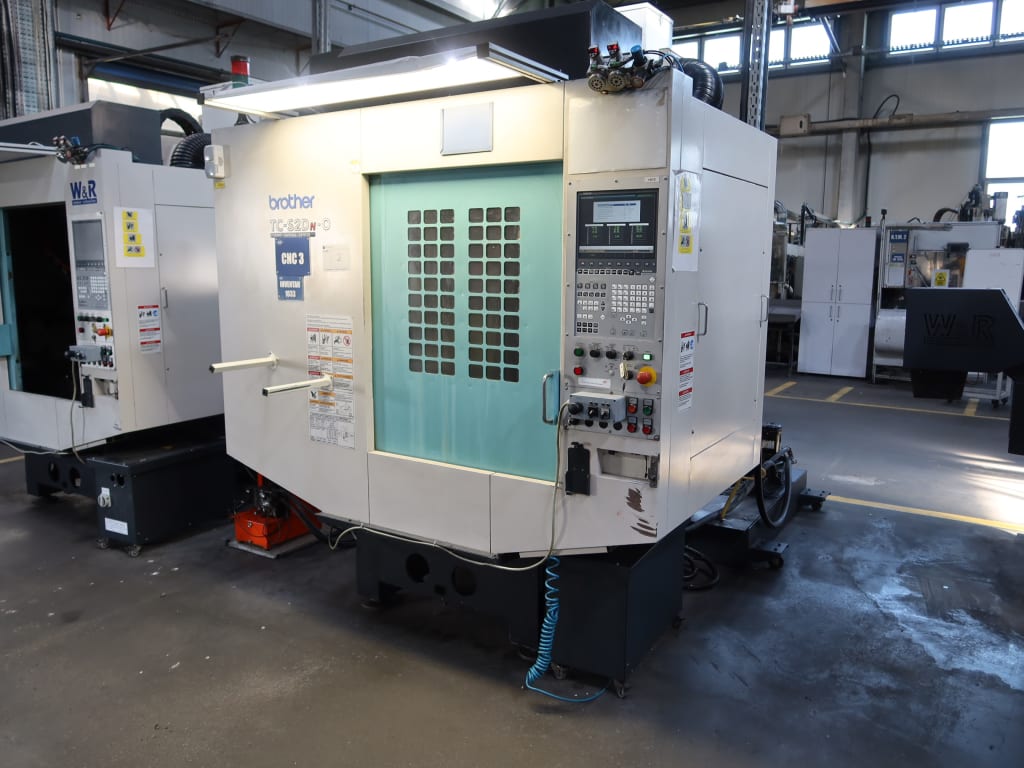

Tool magazine: Yes, 14 tools capacity, 25 kg load; KG: 1800; Table: 800 x 300 mm; X axis: 700 mm; Y axis: 360 mm; Z axis: 270 mm; Table load: 150 kg; Spindle taper: MAS-BT30; Retention knob: MAS-P30T-2 (30 degrees); Spindle speed: 10,000 rpm; Spindle motor: 7.0 kVA; Tool change time: 1.8 sec (chip to chip); Maximum tool diameter: 80 mm; Rapid traverse: 36 m/min (1417 ipm) in X and Y, and 50 m/min (1968 ipm) in Z; Approximate floor space: 2700 x 2000 mm; Limitation of tool balance: 100 grams at 14 tools with a 25 kg weight; Limitation of spindle rotation speed: 10,000 min⁻¹; Controller: Brother A-00; one axis is not working (maybe electrical motor defect); Control panel indicated hours, read on 11/09/2026: Running time 39,679 hrs, Power-on time 83,594 hrs. (Machine internal clock not synchronized due to CM OS battery low level, shows 10/10/2024.)

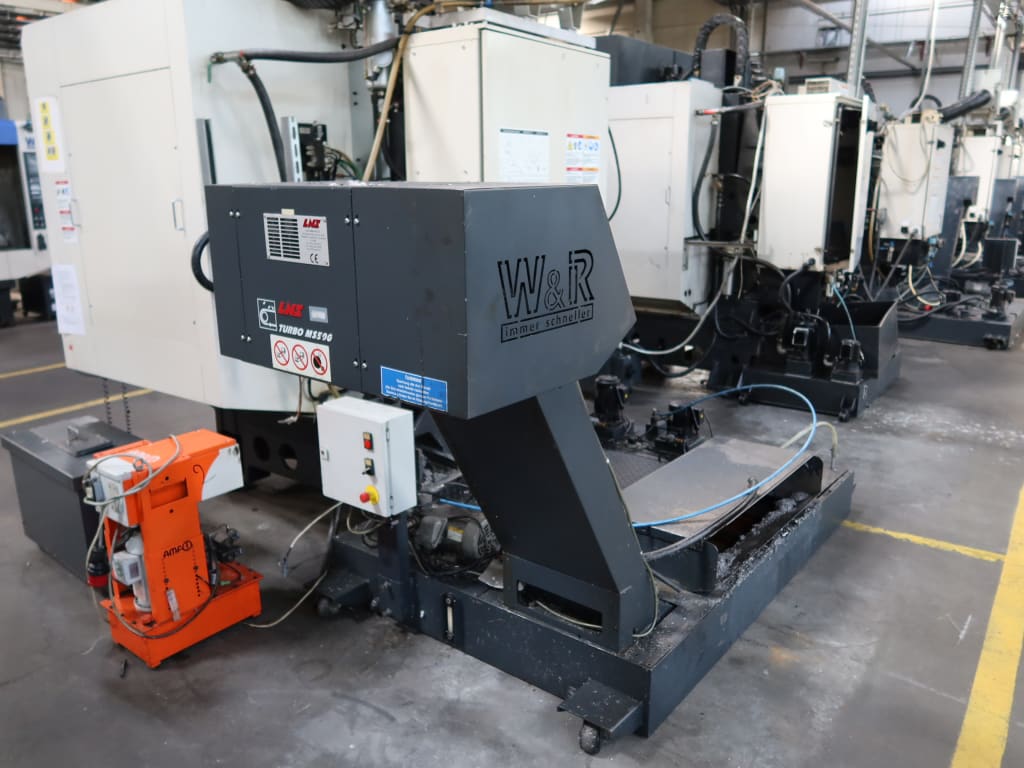

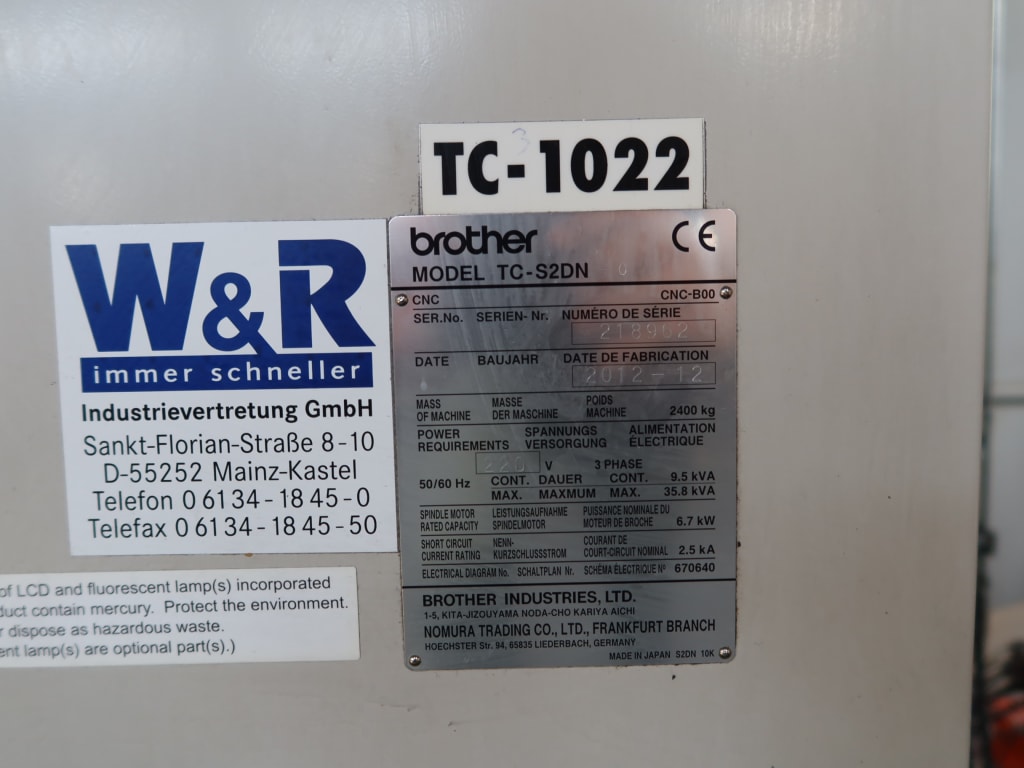

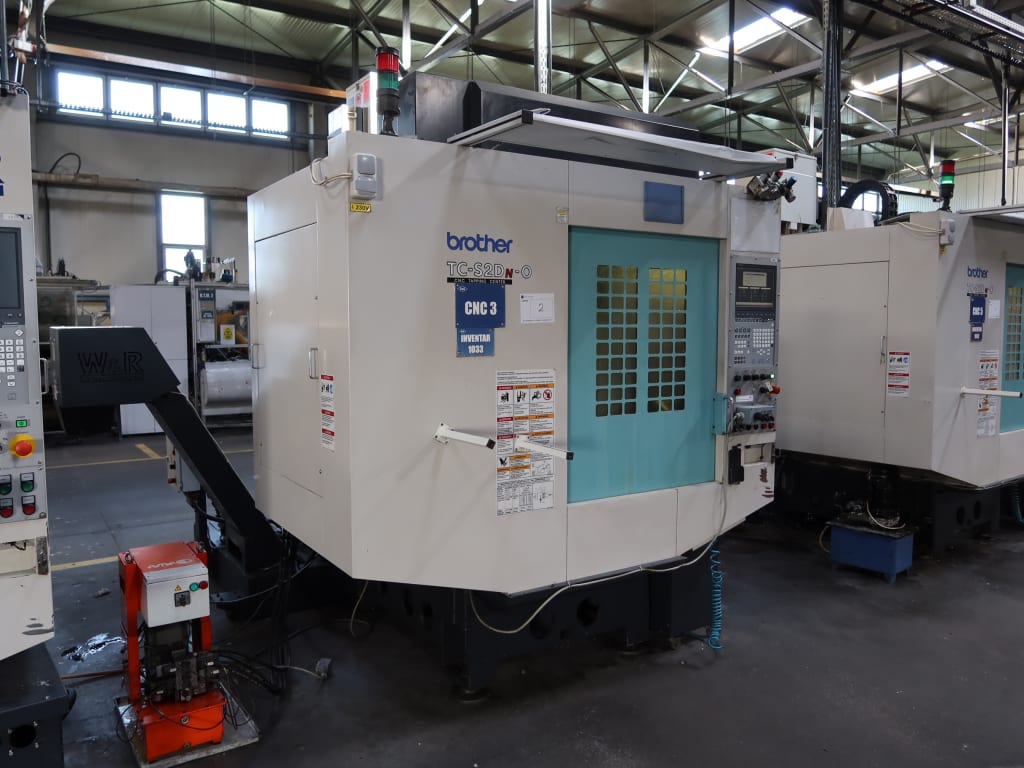

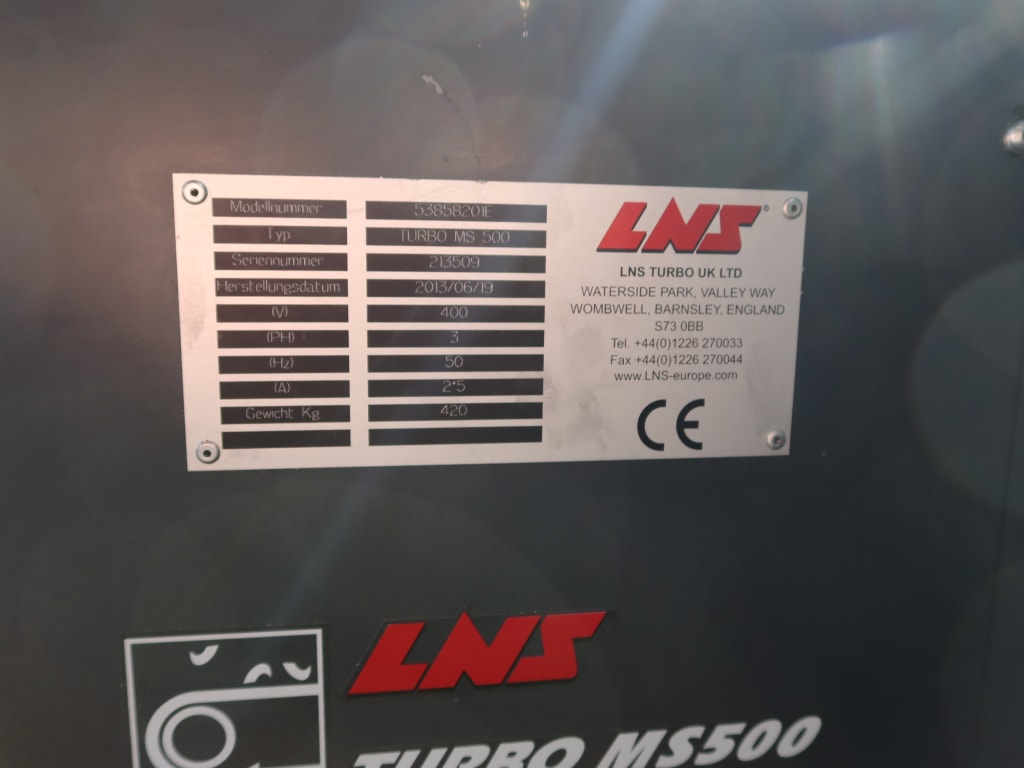

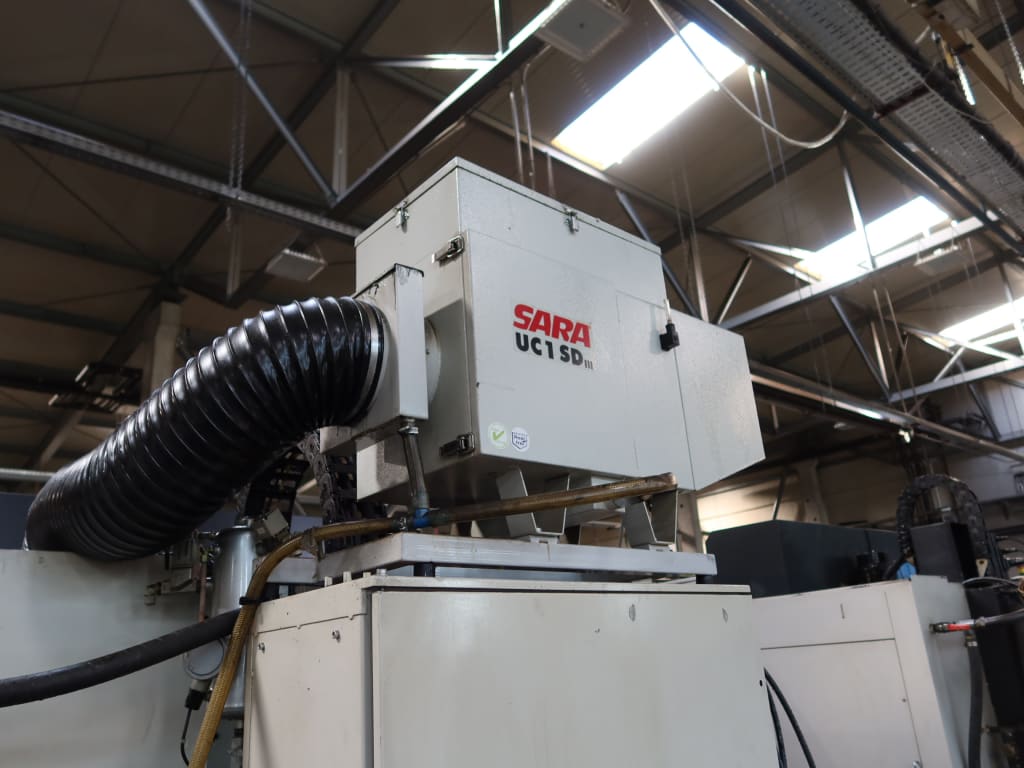

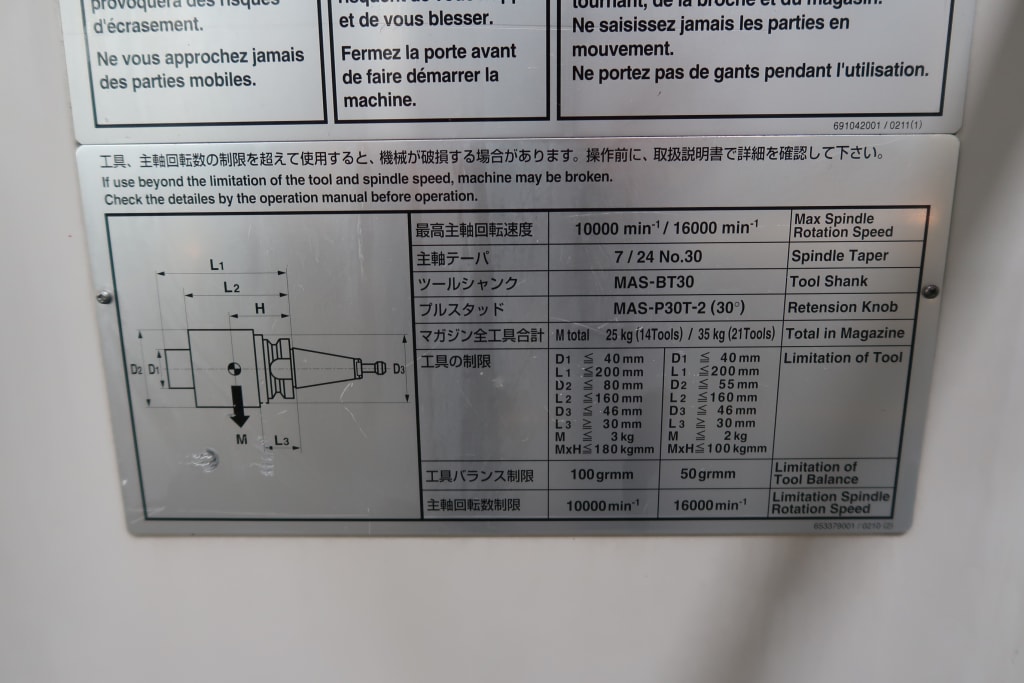

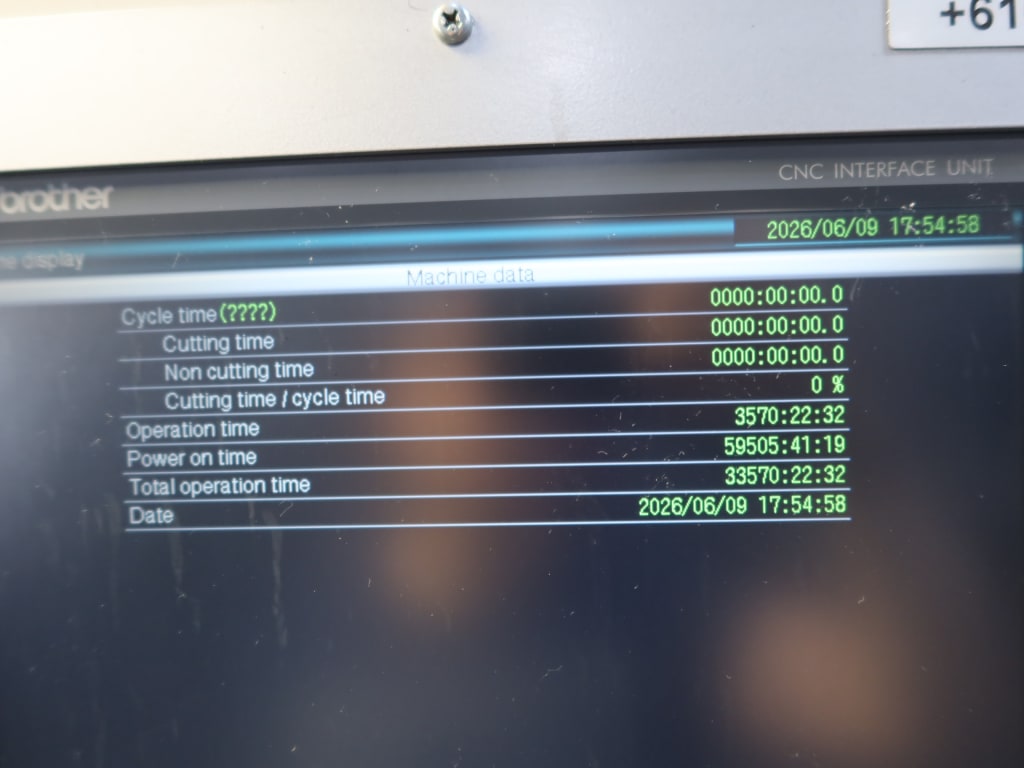

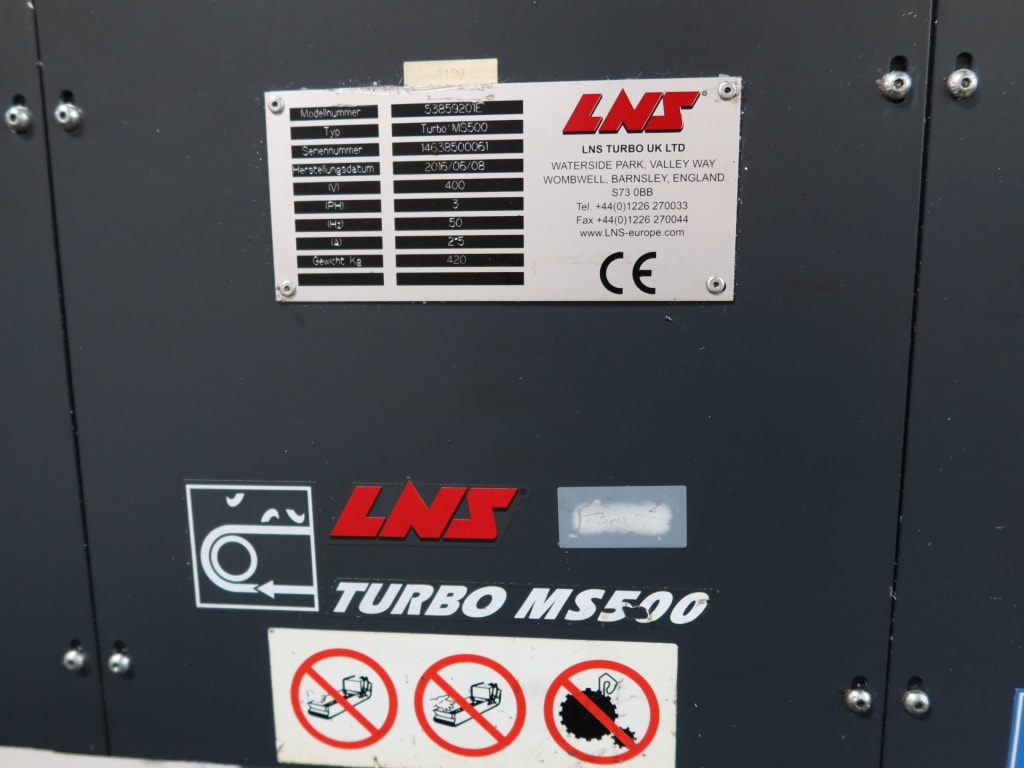

X axis: 700 mm; Y axis: 400 mm; Z axis: 300 mm; Spindle speed: 10,000 rpm; Spindle taper: 7/24 No. 30; Tool shank: MAS-BT30; Retention knob: MAS-P30T-2 (30 degrees); Tool magazine: 21-tool carousel with a total capacity of 35 kg; Spindle motor: 6.7 kW; Tool change time: 1.4 seconds (cut-to-cut); Rapid traverse (X, Y, Z): 50 m/min (1,969 IPM); Table size: 800 x 400 mm; Maximum table load: 250 kg; CNC: B00; lot includes emulsion mist separator SARA UC 1SD; inclined filtering chip conveyor LNS Turbo MS 500; the fixing device seen in the picture; the lot does NOT include the external hydraulic unit marked as inventory number 2049; Machine control indicated readings (09/06/2026): Total operation time 33,570 hrs, Power-on time 59,505 hrs.

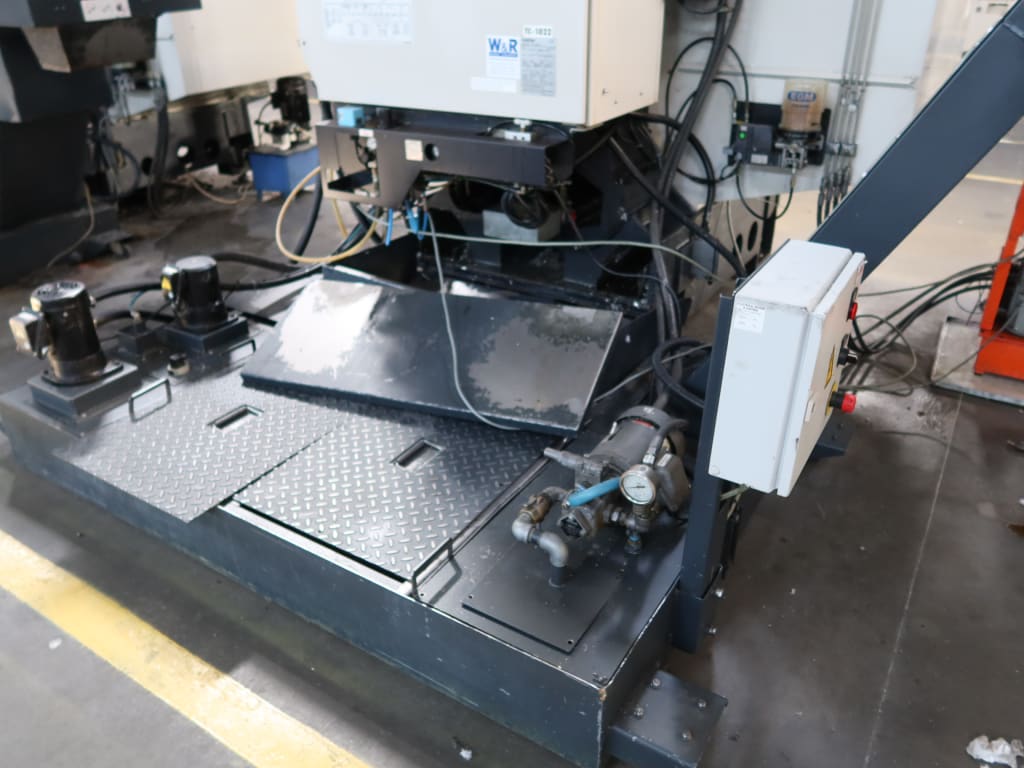

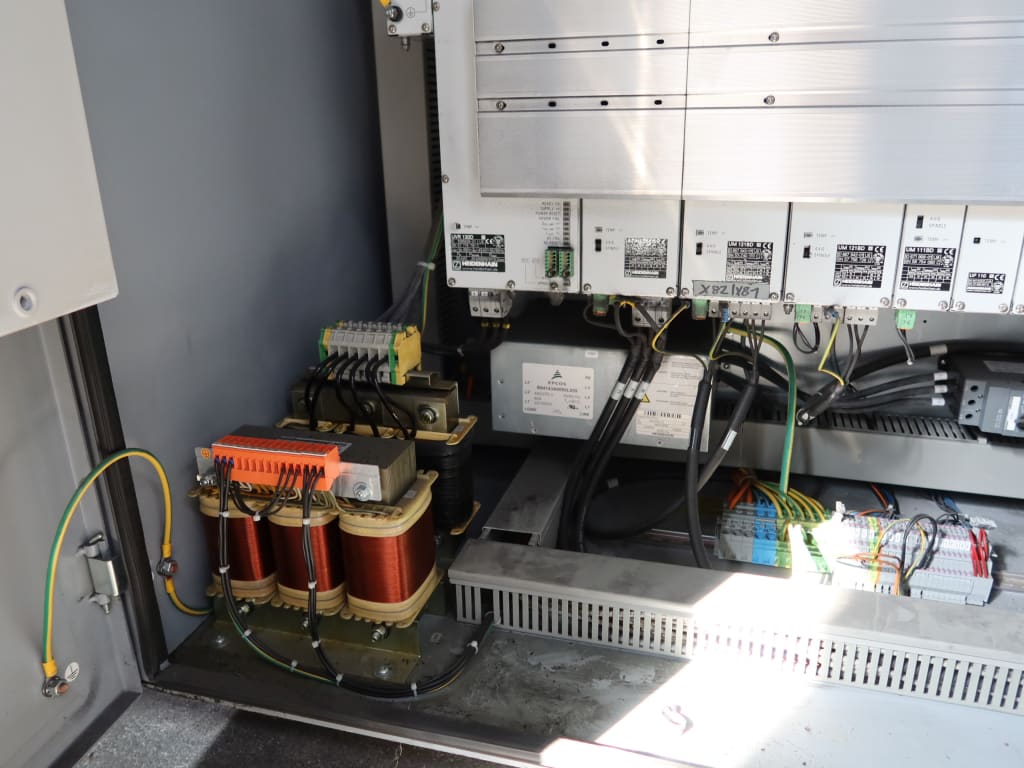

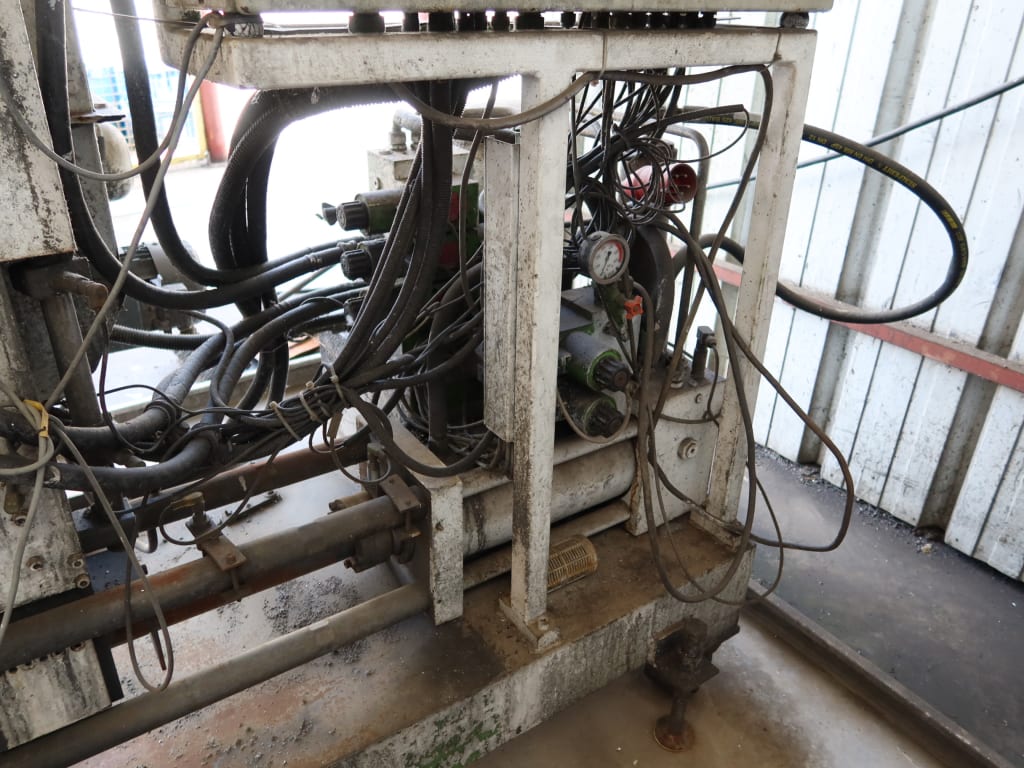

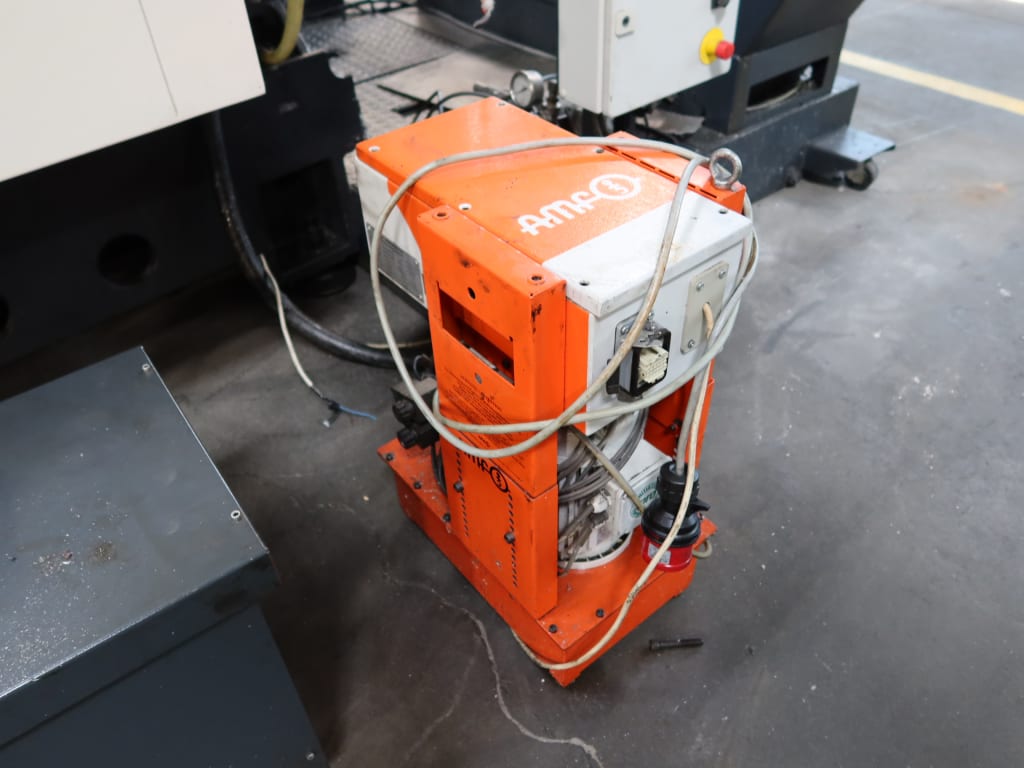

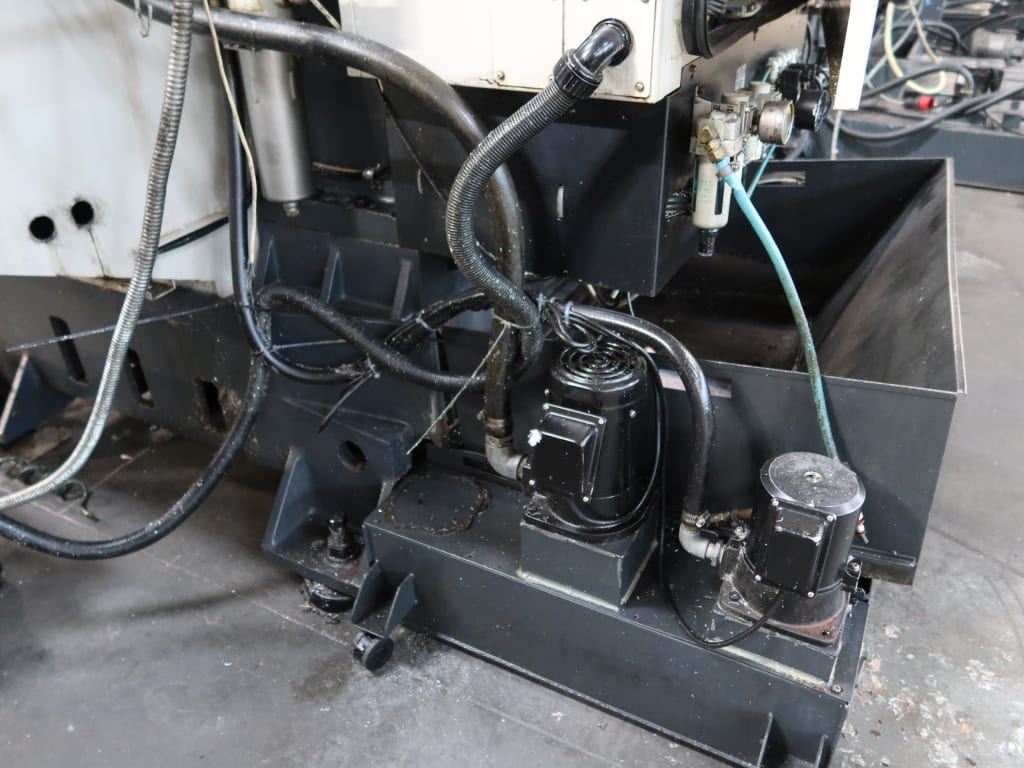

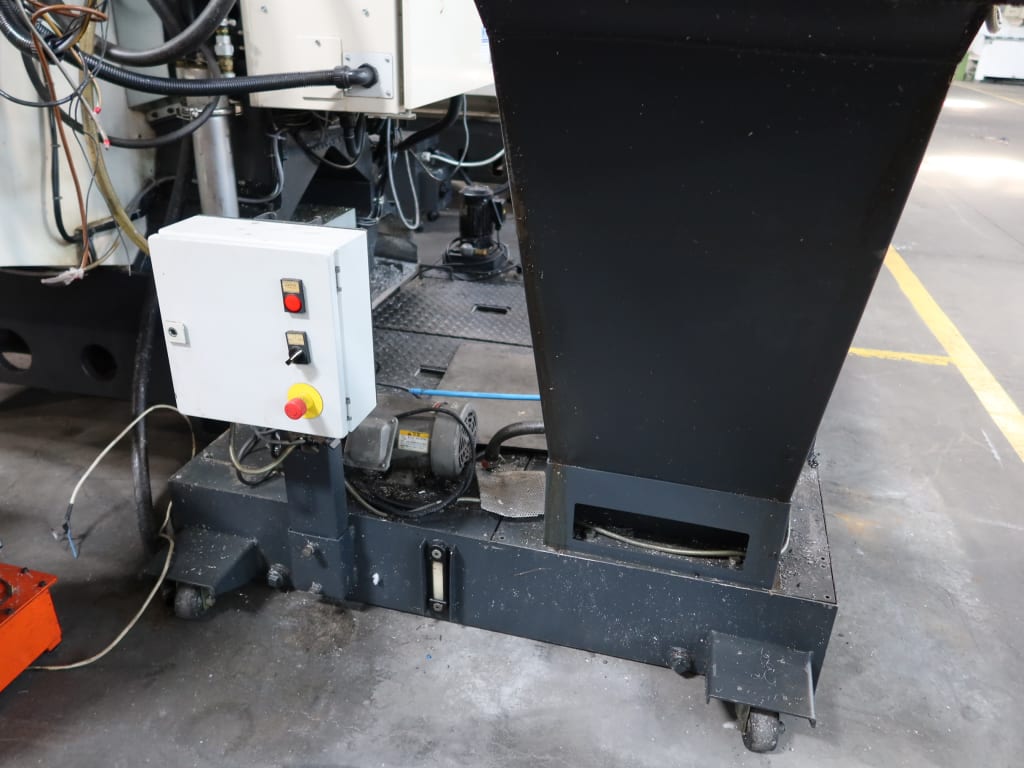

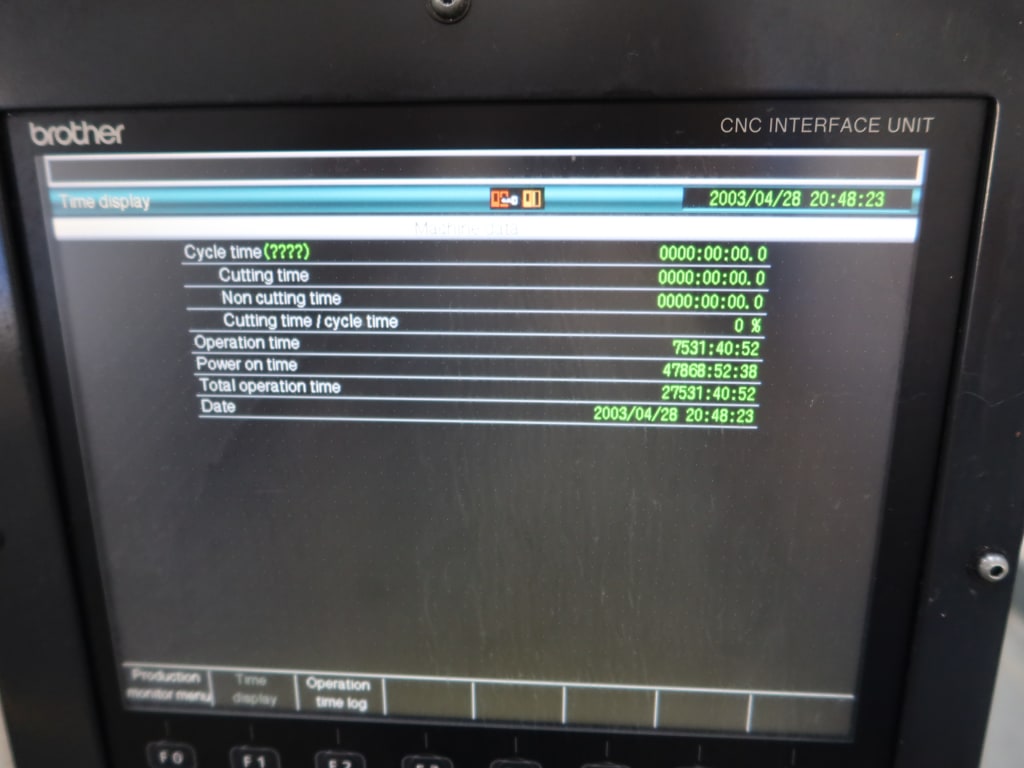

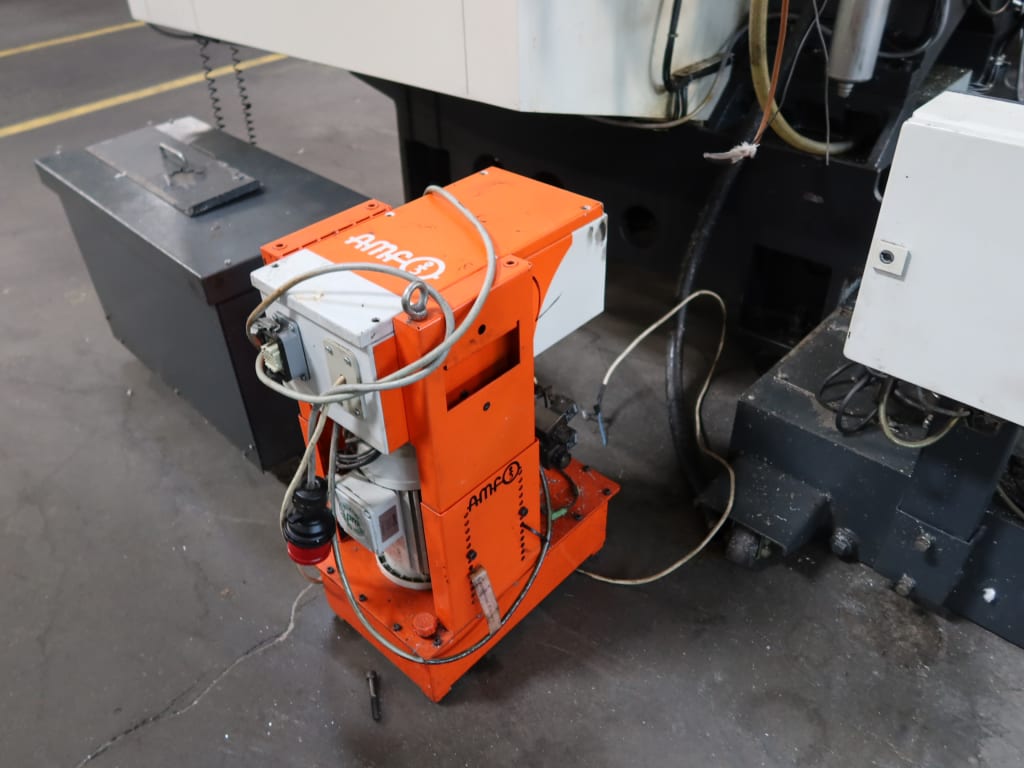

X axis: 700 mm; Y axis: 400 mm; Z axis: 300 mm; Table size: 1150 x 400 mm; Table load capacity: 250 kg; Tool change time: 0.8 sec (tool-to-tool); Spindle taper: 7/24 No. 30; Tool shank: MAS-BT; Retention knob: MAS-P30T-2 (30 degrees); Tool changer: 21-tool carousel with a total load capacity of 35 kg; Limitation of tool balance: 100 g; Limitation of spindle rotation speed: 10,000 rpm; Spindle motor: 4.9 kW; Rapid traverse rates: X = 50 m/min, Y = 50 m/min, Z = 56 m/min; CNC control: CNC-C00; the lot includes the inclined filtering chip conveyor LNS Turbo MS 500; the external hydraulic unit AMF; Transformer/power supply unit Nomura Trading type ADSG 5,0; the hydraulic fixing table; broken tool detector Renishaw; emulsion mist separator SARA UC 1 SD; Total operation time: 27531 h; Total power time: 47868 h; Internal clock not synchronized due to CM OS battery low level - Time display 28/04/2003 - 20:48:28

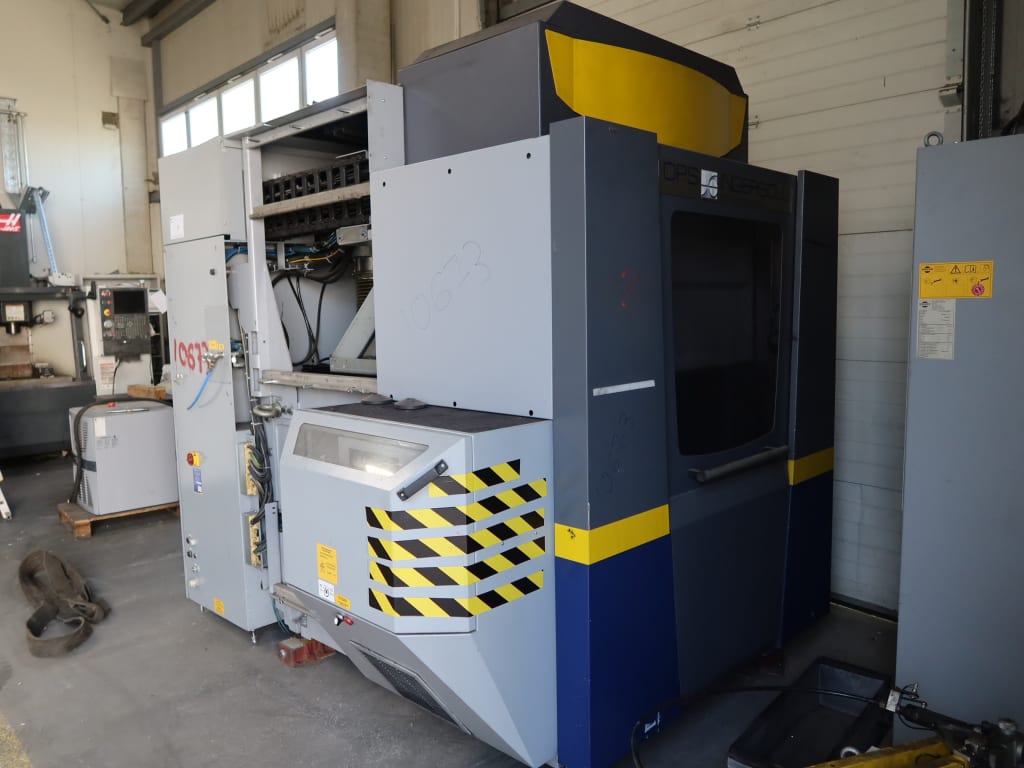

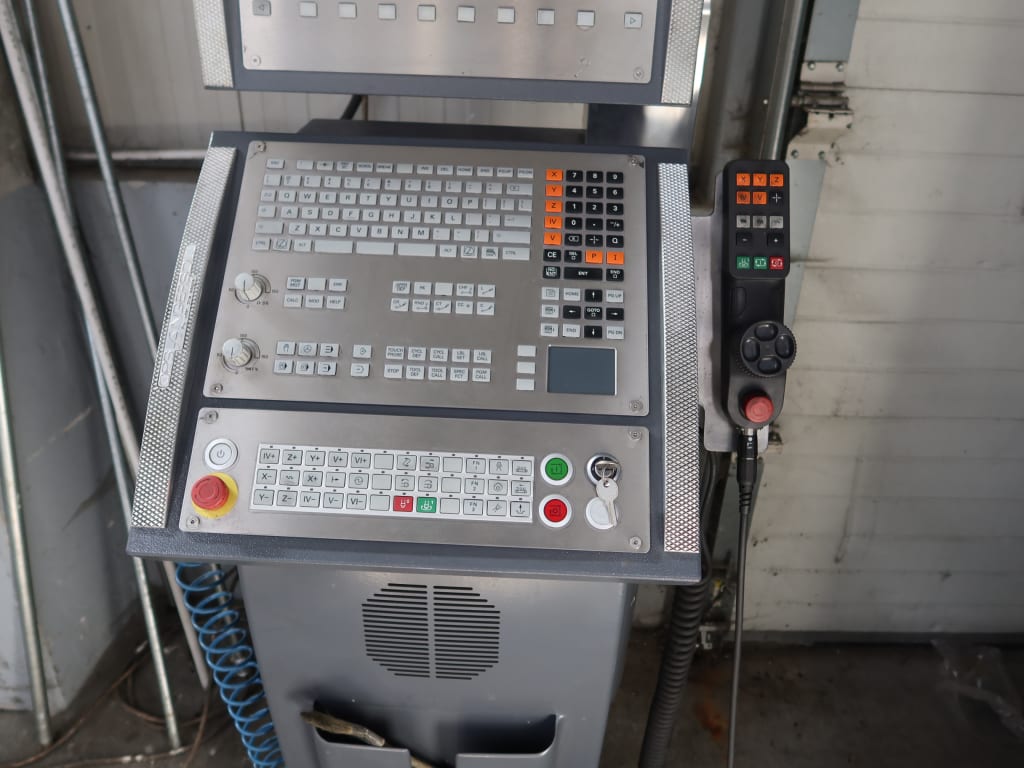

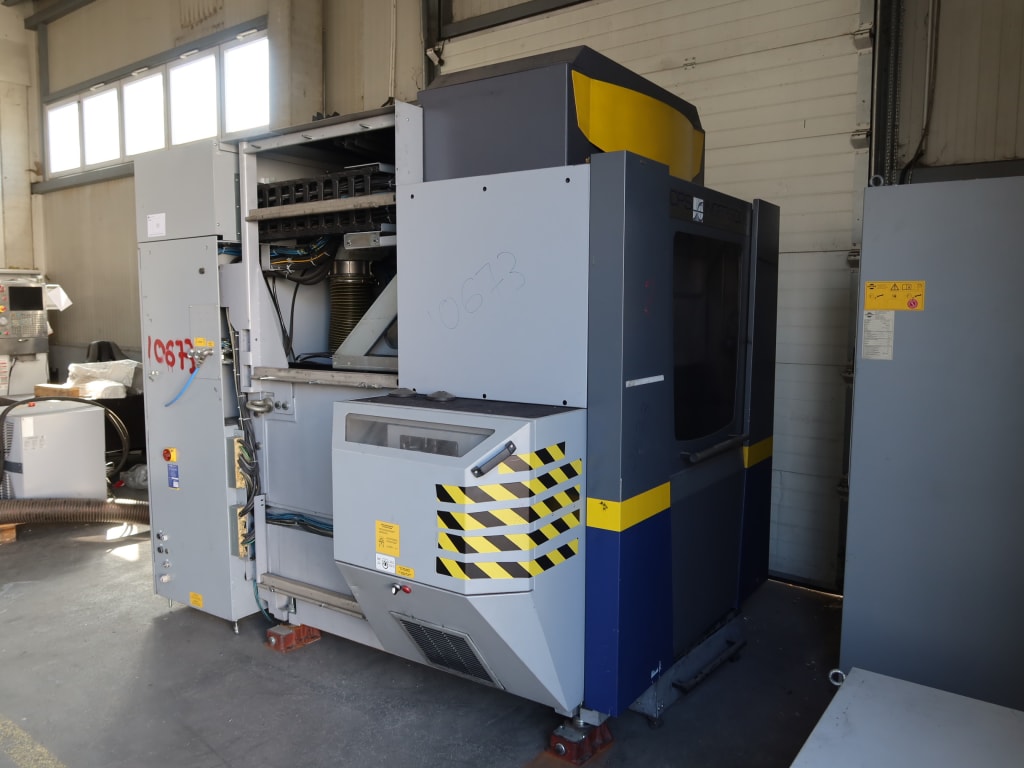

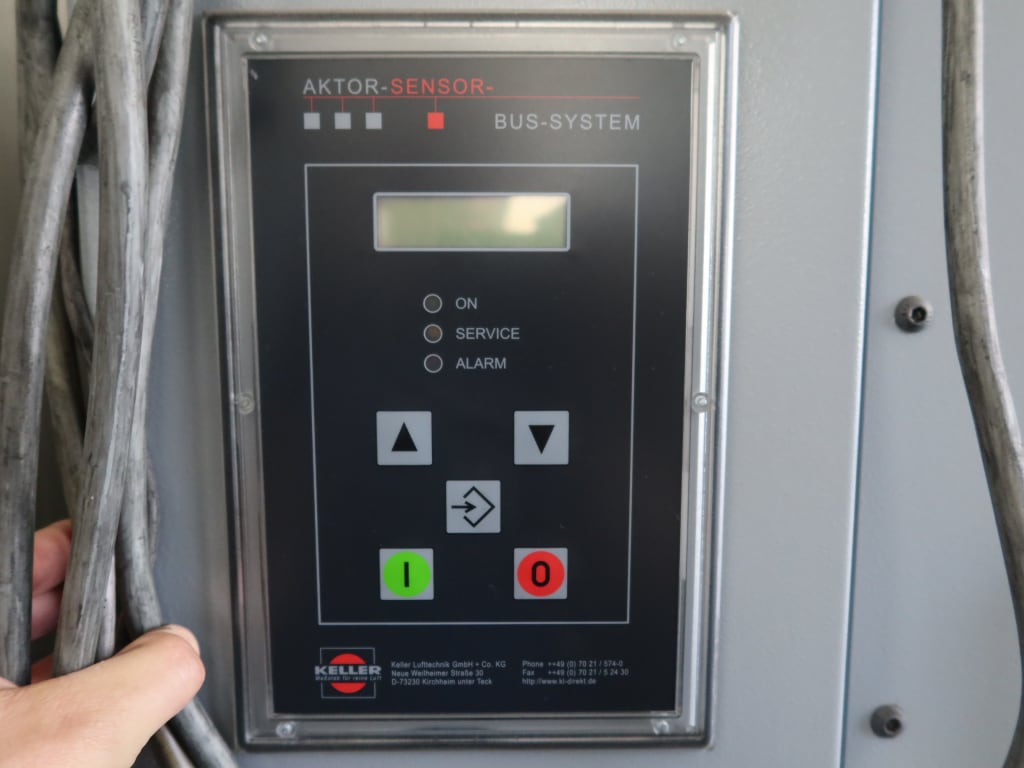

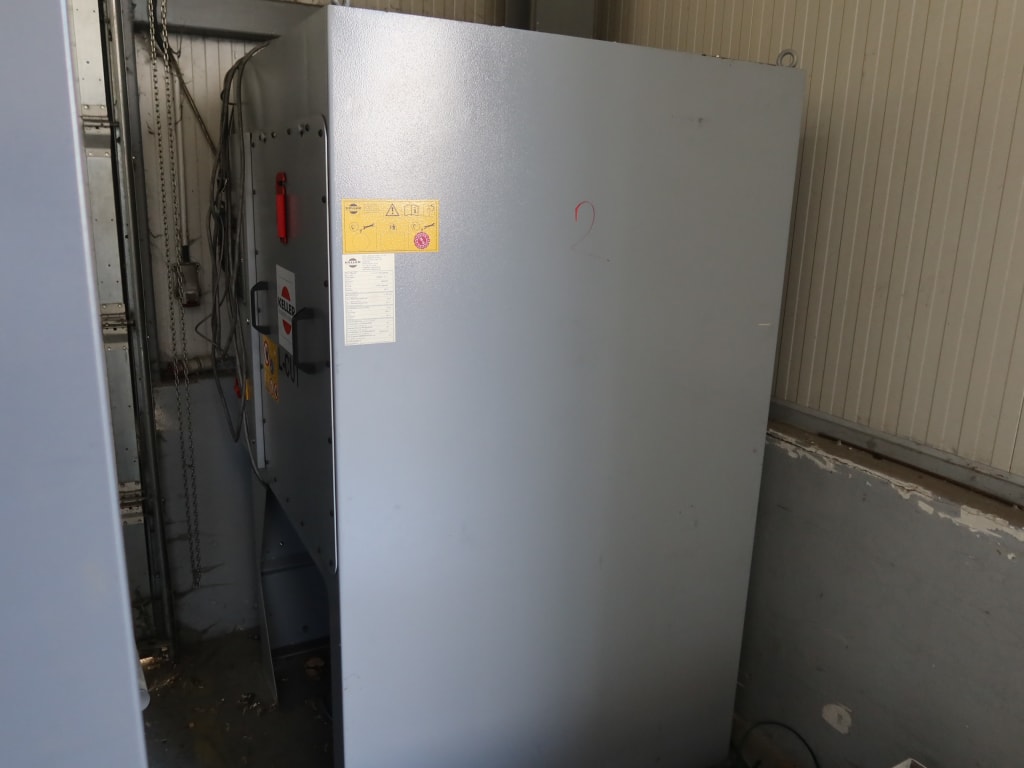

Travel X-Axis: 550 mm; Y-Axis: 400 mm; Z-Axis: 400 mm; Maximum speed: 42.000 RPM; Spindle Taper: HSK-E40; Spindle Power: 15 kW; Rotary/Tilt Table: Integrated B-axis (tilting from -120° to +60°) and C-axis (360°); Table size: 650 mm x 500 mm; Maximum table load: 500 kg (with pallet); Tool Magazine: 32-position ATC (automatic tool changer); Tool Taper: HSK-E40; Balancing grade: G2,5; Maximum tool length: 160 mm; Command on hours: 35322 h; Machine on hours: 35094 h; Program run hours: 27827 h; machine includes a Keller L-CUT-1-PM3-BE58 dust collector unit, serial number: 2460590; Year: 2017; Operating pressure: +/- 50 mbar; Maximum pressure dedusting: 4 bar; Maximum operating temperature: 40 degrees celsius; Power fan: 4 kW; Separation efficiency: up to 99.95% for particle sizes ranging from 0.1 μ m to 0.3 μ m; Filter elements: uses compact cartridge filters or flat-panel;

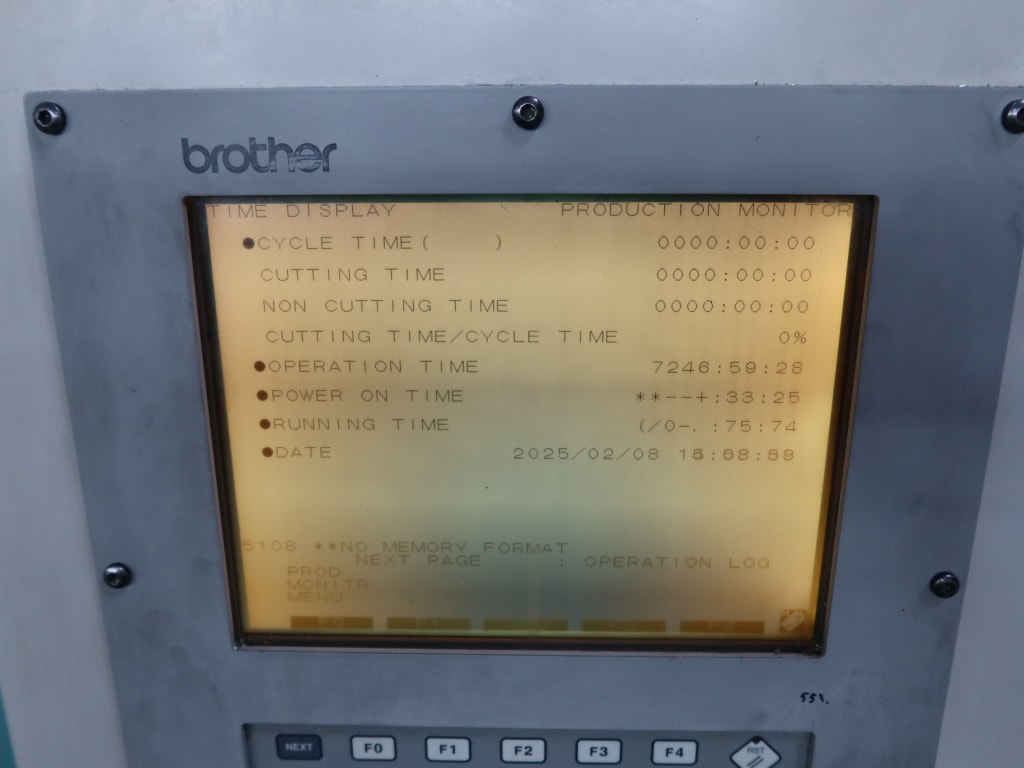

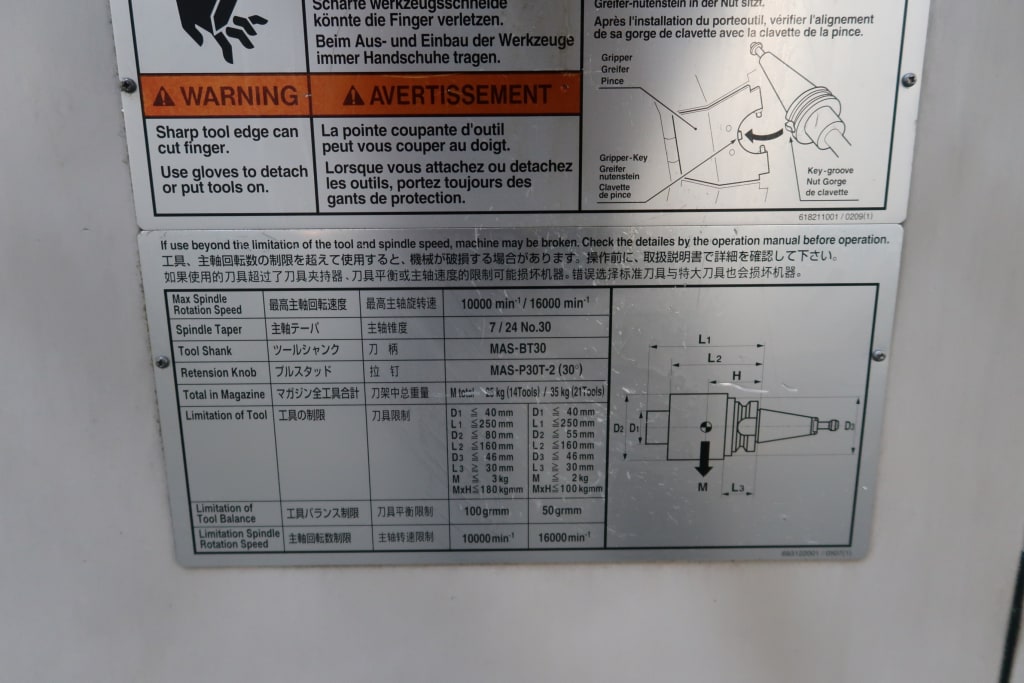

X axis: 480 mm; Y axis: 360 mm; Z axis: 270 mm; Table size: 600 x 300 mm; Maximum table load: 150 kg; Machine approximate weight: 1800–1850 kg; Spindle: MAS-BT30; Retention knob: MAS-P30T-2 (30 degrees); Tool magazine: 14 tools carousel; Maximum spindle rotation: 10,000 rpm; Spindle taper: 7/24 No. 30; Total capacity in magazine: 14 tools at 25 kg load; Limitation of tool balance: 100 g; Limitation of spindle rotation speed: 10,000 rpm; Spindle motor: 7.3 kW; Tool change time: ultra-fast, between 1.8 sec chip to chip and 1.1 sec tool to tool; Rapid traverse (X/Y/Z): 36 × 36 × 50 m/min; Controller: Brother A-00; Machine control indicated readings, recorded 09/06/2026: Operation time 7,246 hrs (Power-on and Running time not legible, display degraded). Spindle taper: 7/24 No. 30 (BT30). (Machine internal clock not synchronized due to CM OS battery low level - displays 2025/02/08.)

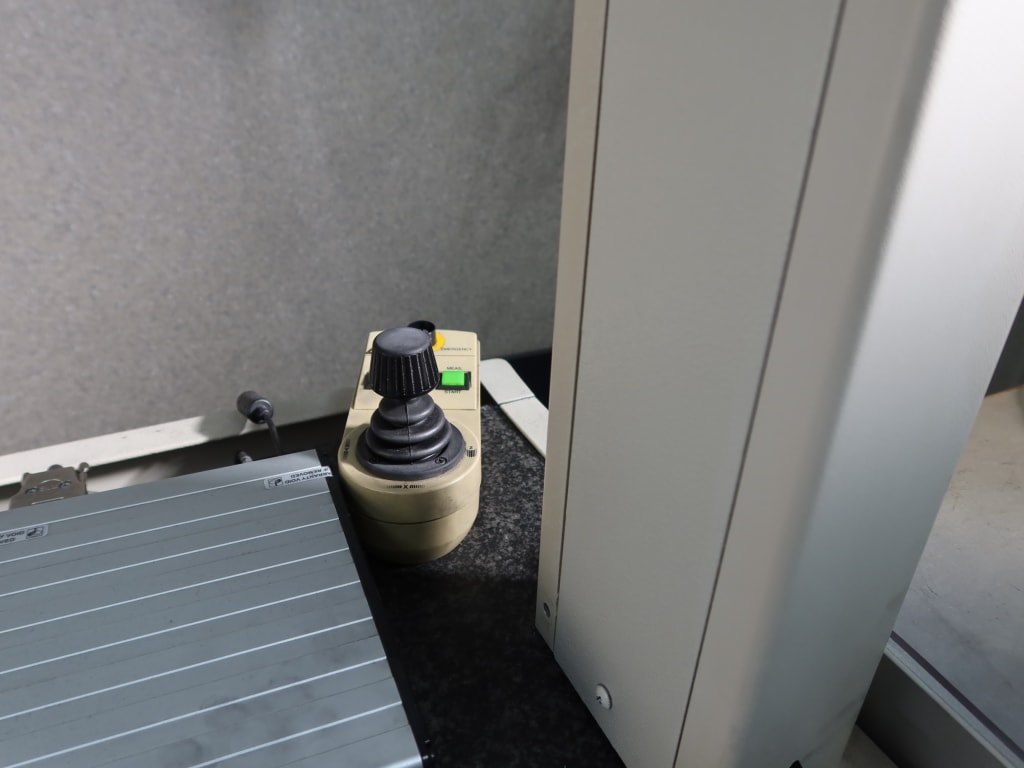

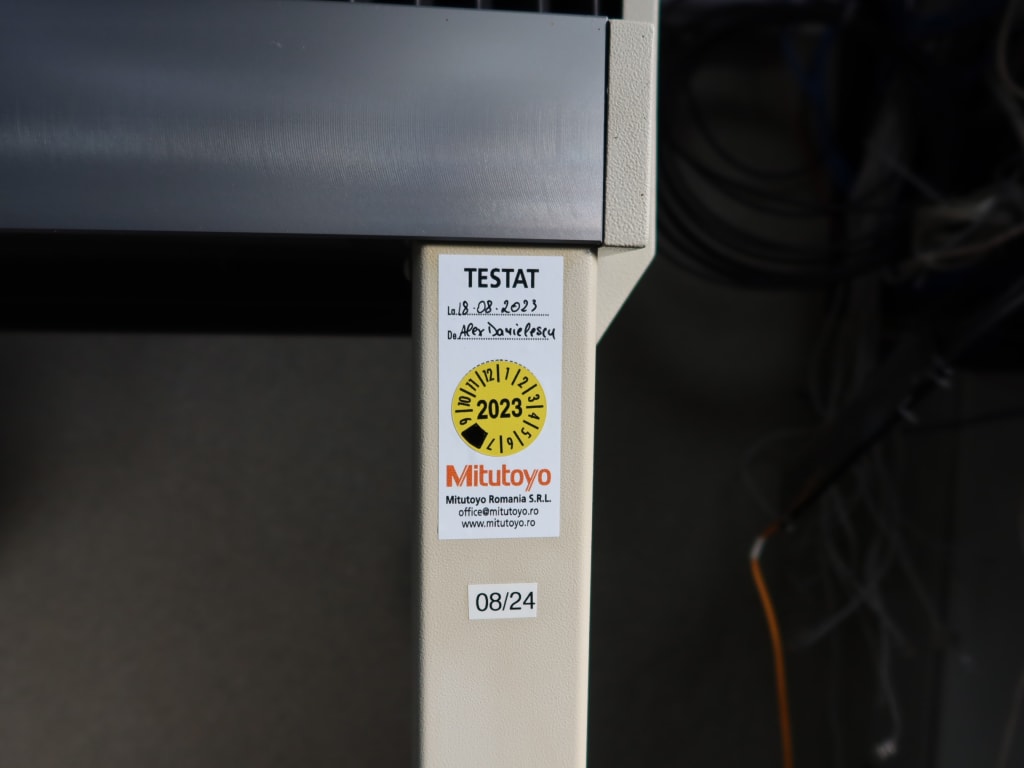

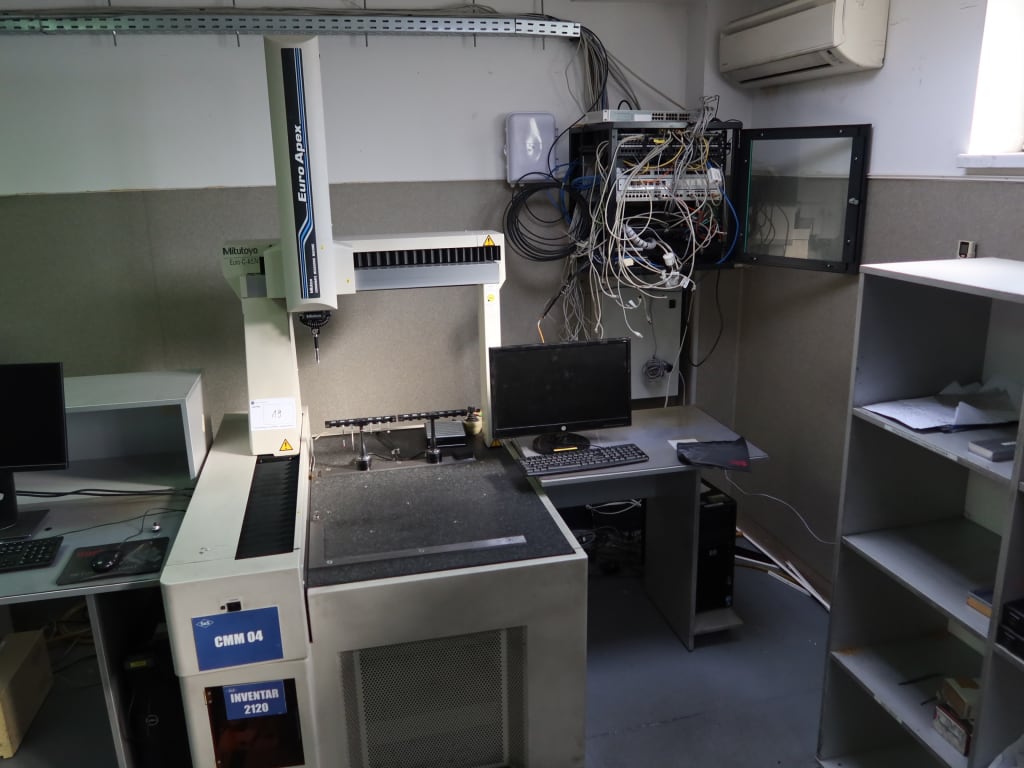

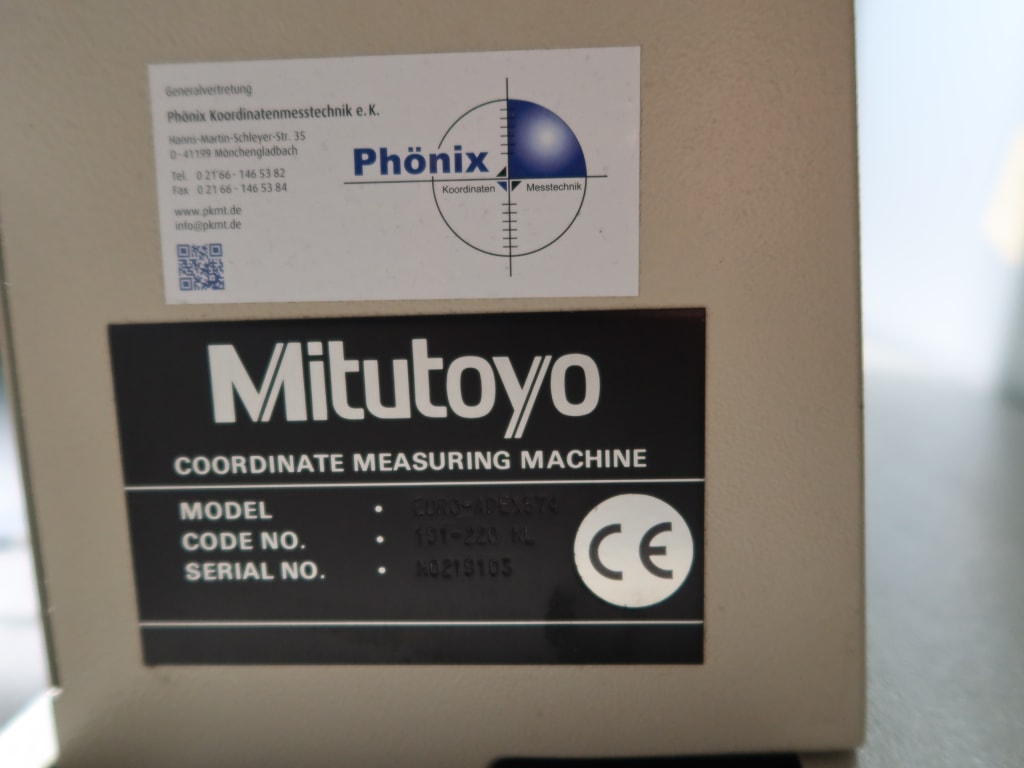

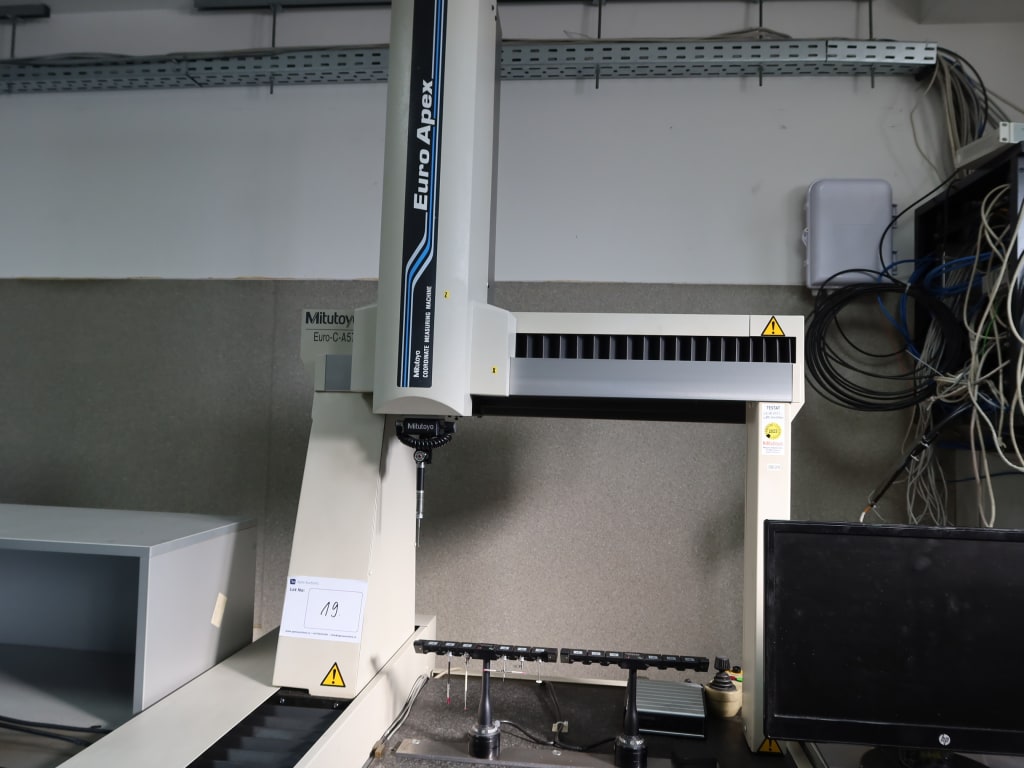

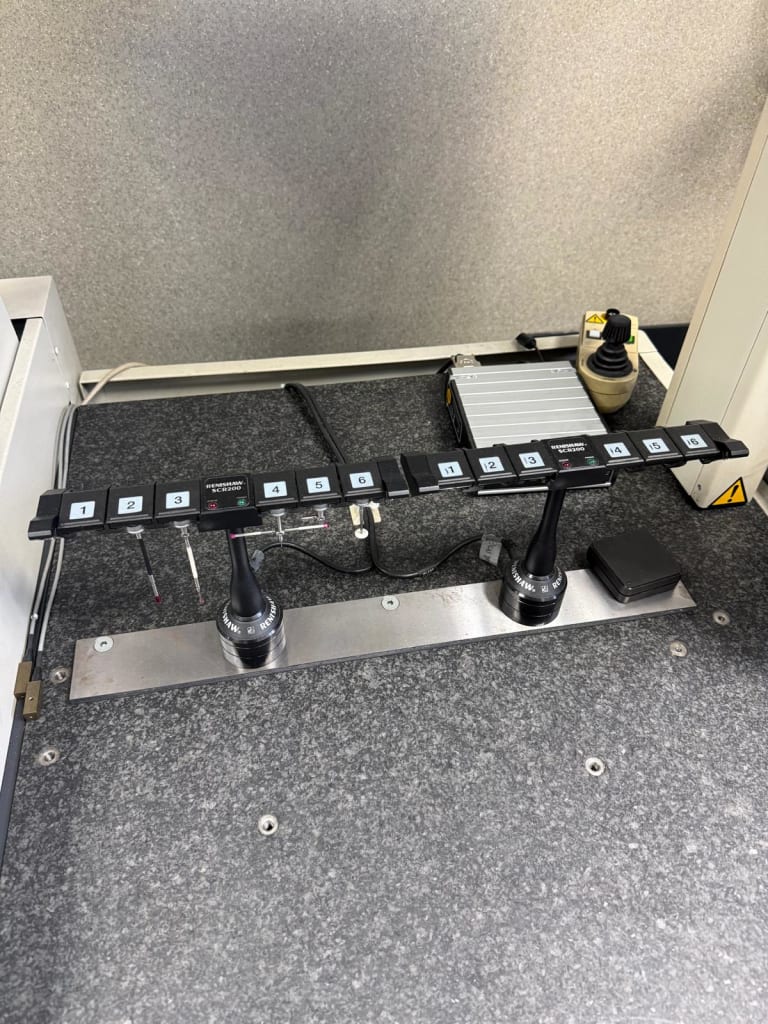

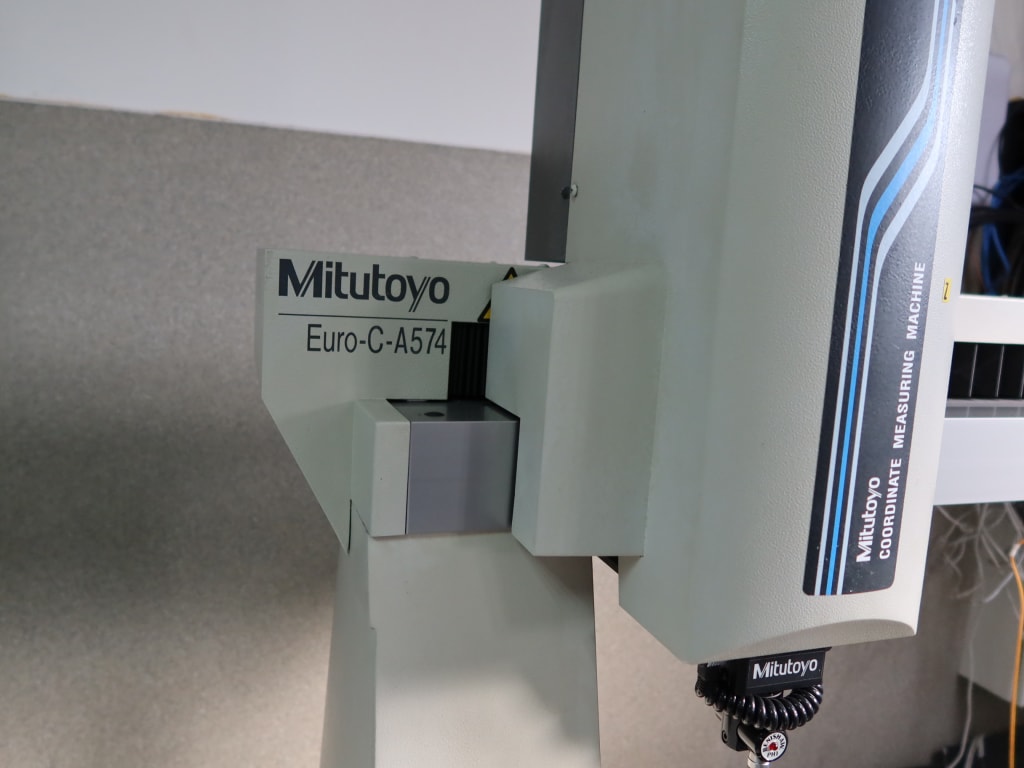

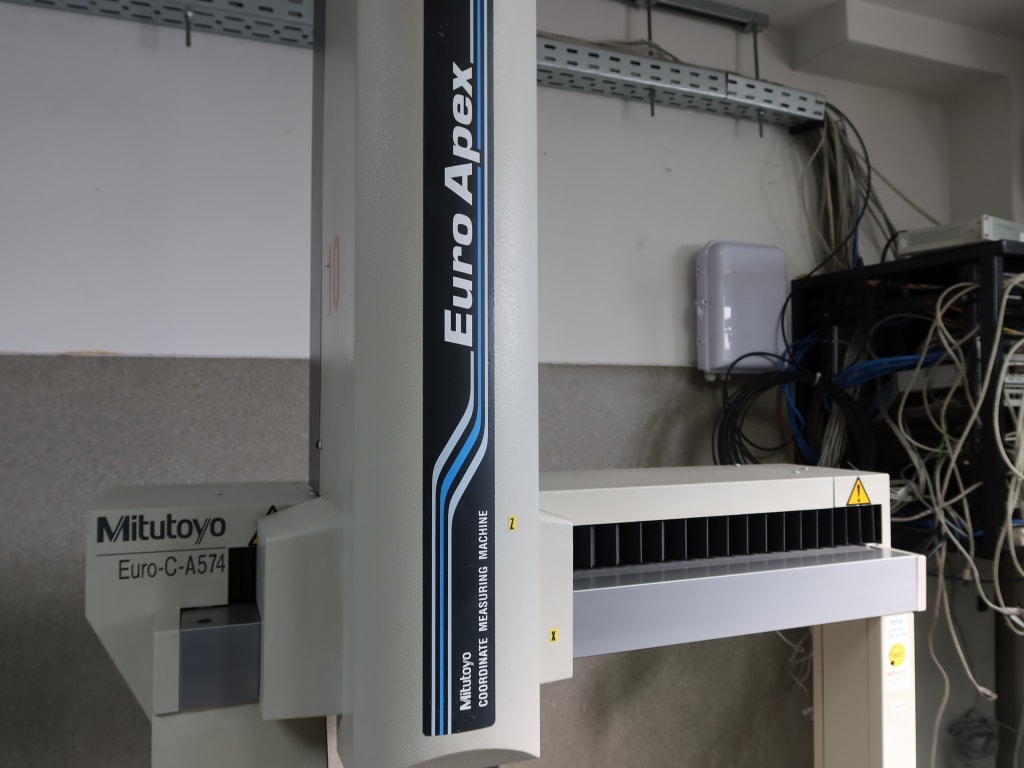

Serial number: N0219105; Measuring Range: 500 mm x 700 mm x 400 mm (X x Y x Z); Maximum Workpiece Height: ~ 545 mm; Maximum Workpiece Weight: 180 kg; Maximum Drive/Measuring Speed: Up to 519 mm/s (3D); Resolution: 0.0001 mm (0.1 μm); Equipped with Reinshaw PH1 shank mounted manual probe head; Weight: 125 g (4.41 oz); Probe mounting: M8 thread; Head mounting: MS range of shanks to suit CMM; Suitable interface: PI 200-3; Probe status indication: 1 LED; Cable connection: 5-pin DIN 180° socket; A-axis indexing: Swivel of 115°, locked with a 3 mm A/F hexagonal key; B-axis indexing: 15° steps through 360° (non-repeatable); Overtravel break load: Adjustable from 0.2 N to locked solid; Equipped with Reinshaw SCR200 stylus change rack; Weight: 0.75 kg; Mounting orientation: Vertical or horizontal; Mounting fixture: Single stud (M8, M10); Number of ports: 6; Repeatability of stylus change (2σ) at 50 mm: Automatic ≤ 1 μm, Manual ≤ 2 μm; Entry speed: Unrestricted; Module pull-off force: 800 g maximum; Overtravel protection: Electromechanical (minimum deflection: 5); LED indicators: Power: Green, Status: Red (flashing during probe inhibit); Change cycle detection: Optoelectronic beam system with Hall effect proximity sensor; Multi-rack usage: Up to two SCR200 units (12 ports) may be connected with a special cable; all needed documents will be provided in order to restart the machine

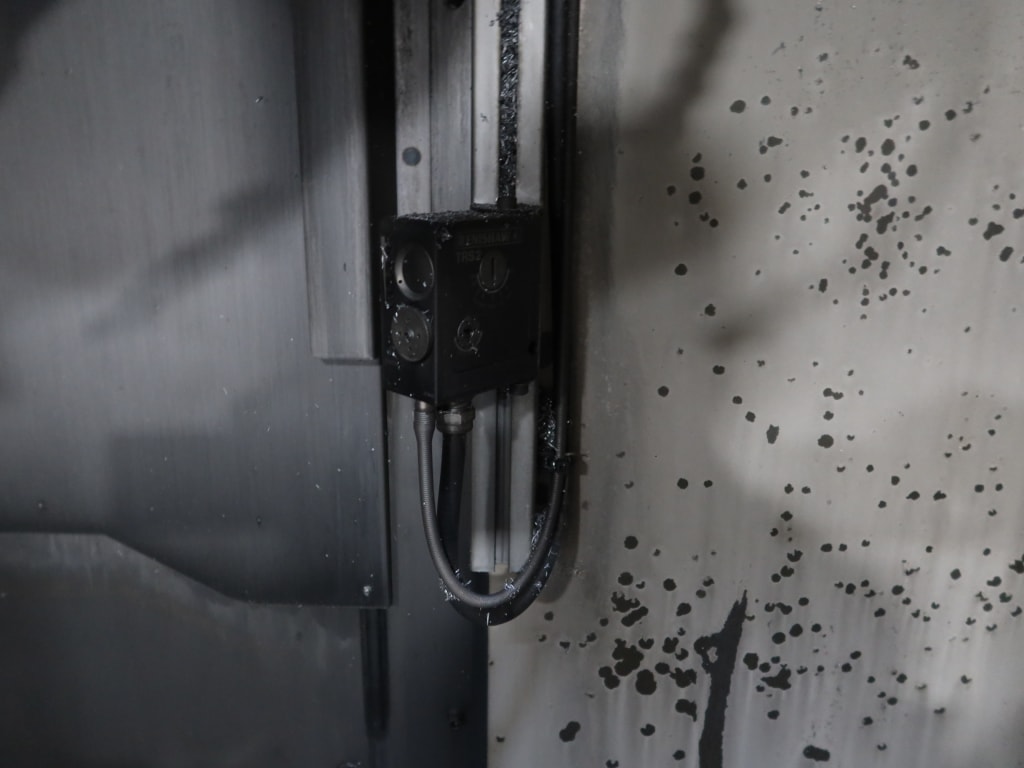

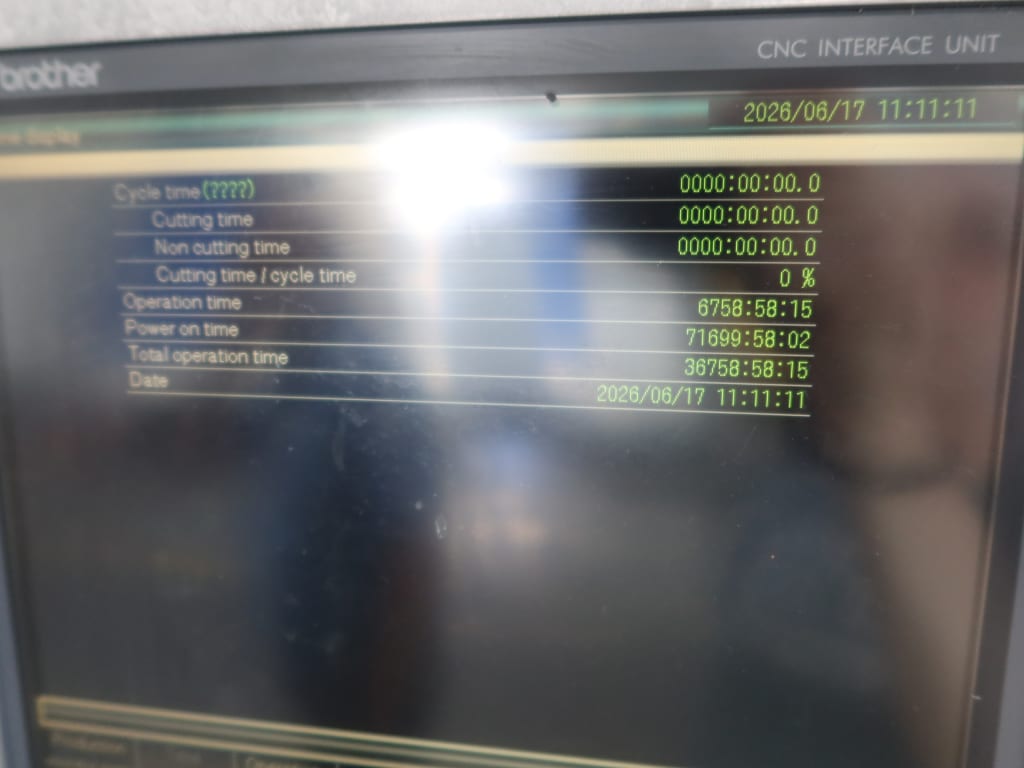

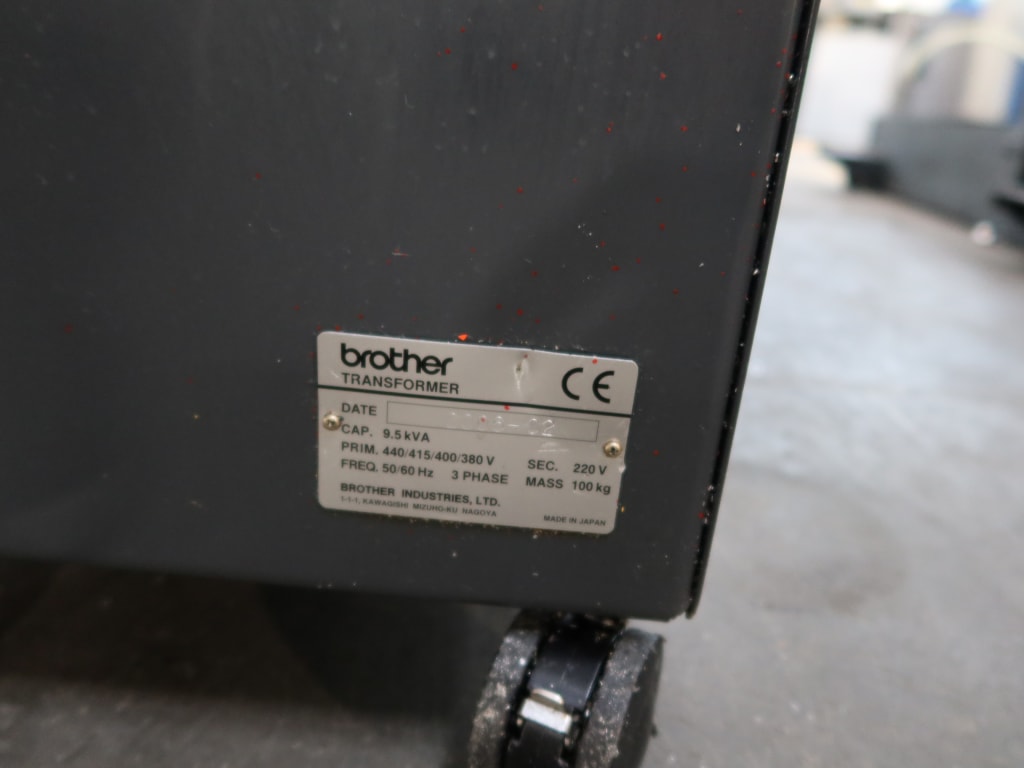

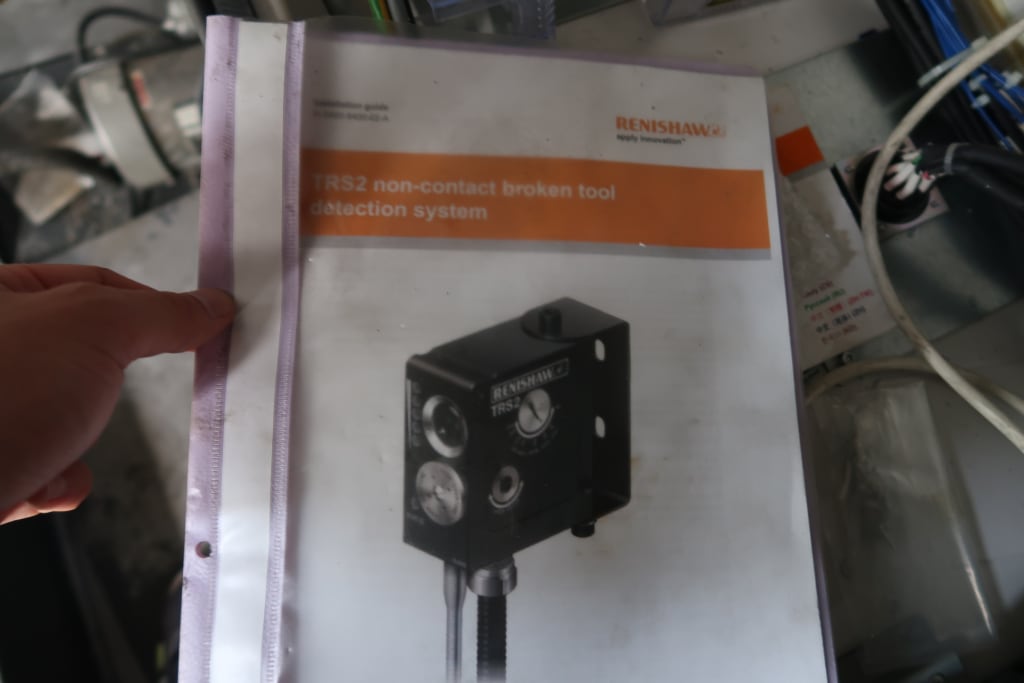

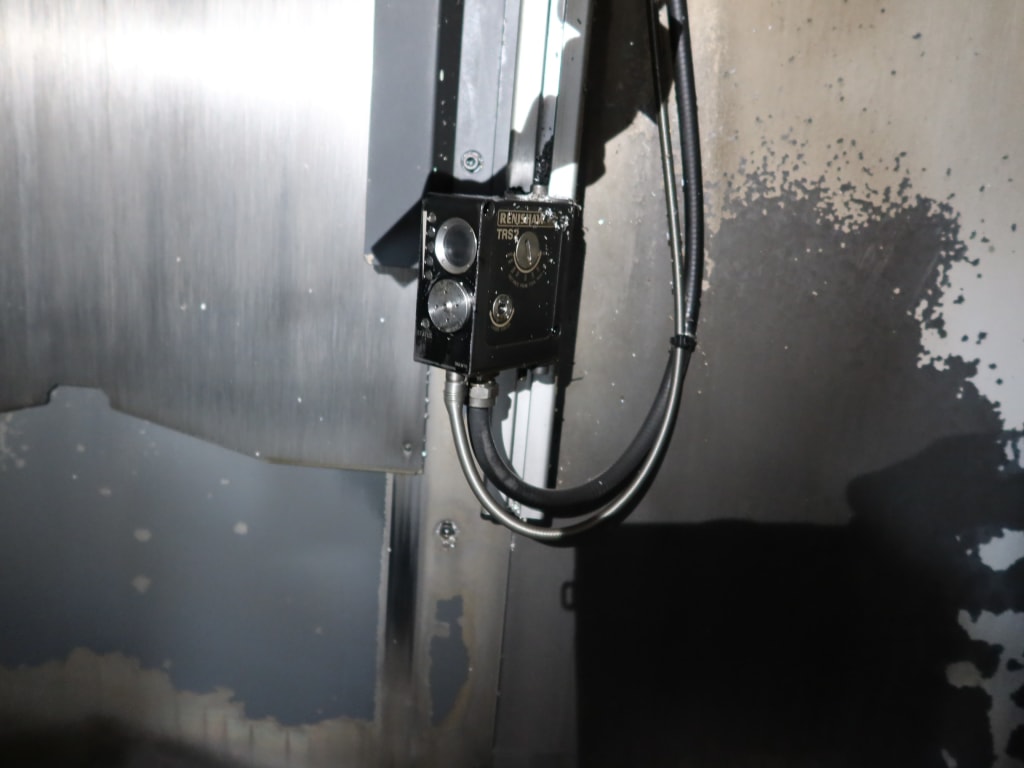

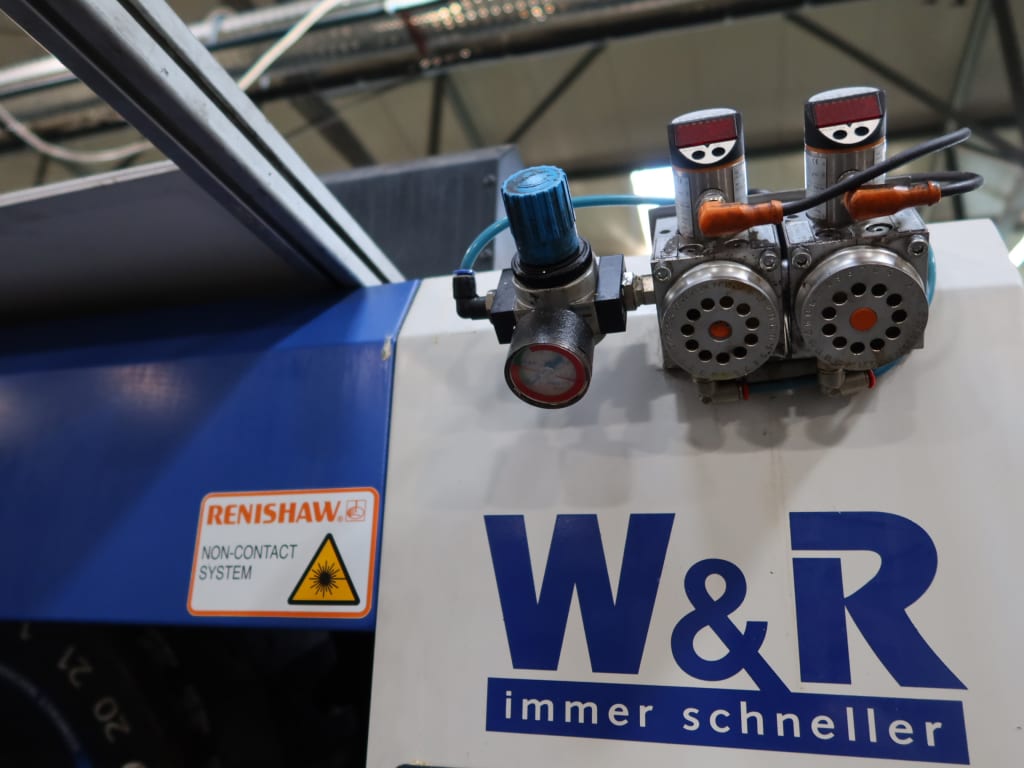

X axis: 500 mm; Y axis: 400 mm; Z axis: 300 mm; CNC type: B00; Table: 600 x 400 mm with modifications – to be clarified; Maximum load: 250 kg; Spindle taper: 7/24 No. 30; Tool shank: MAS-BT30; Retention knob: MAS-P30T-2 (30 degrees); Spindle standard speed: 10,000 rpm; Spindle motor: 4.9 kW; Rapid traverse rate (X/Y/Z): 50 m/min (1,969 IPM); Tool magazine: 21-tool carousel; Tool change time (tool-to-tool): 0.8 sec; Tool change time (chip-to-chip): 1.4 sec; Transformer/power supply unit Brother 9.5 KVA; Renishaw broken tool detector; Operation time: 6758 h; Total operation time: 36758 h

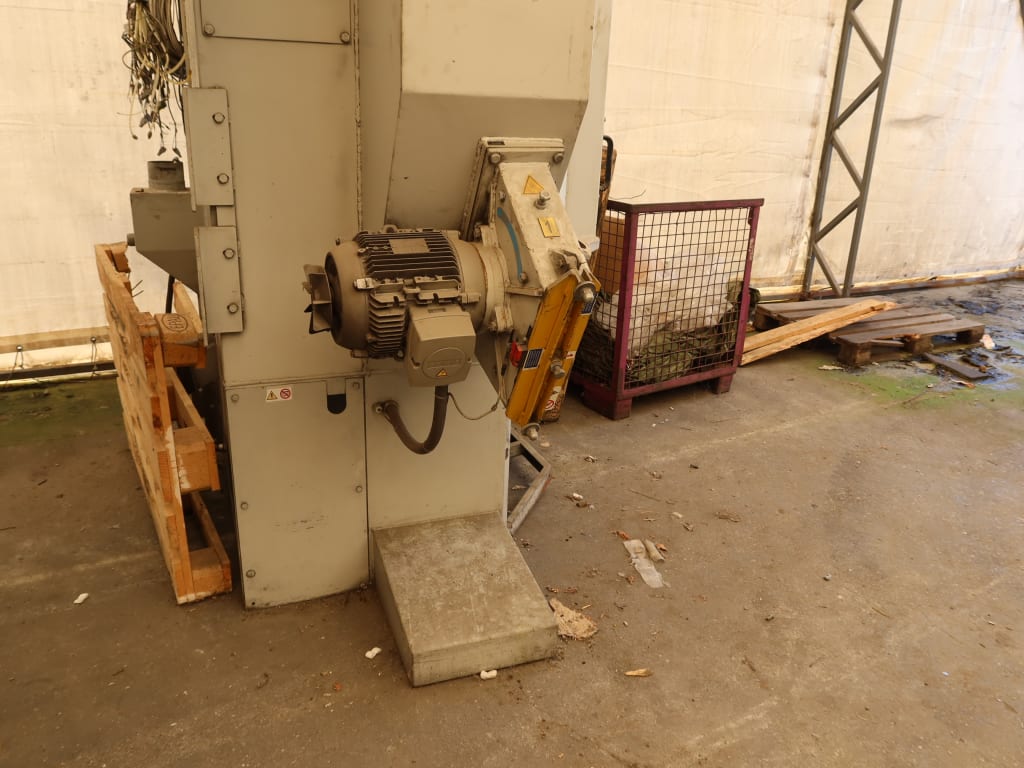

Briquette diameter aproximative 70mm;

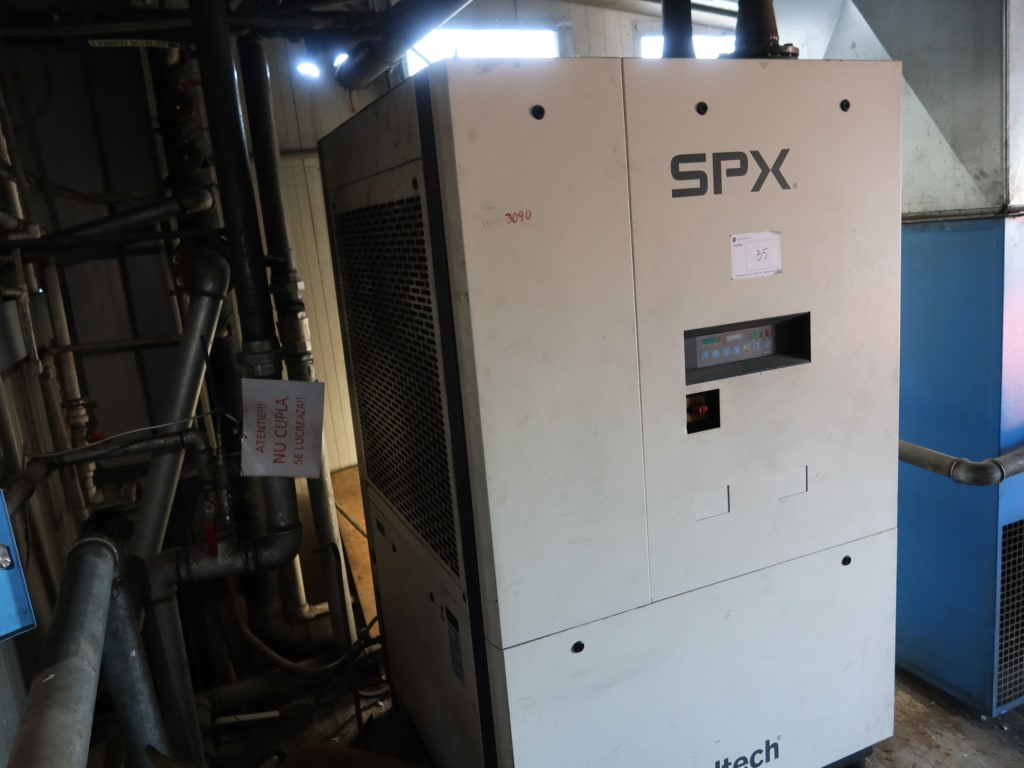

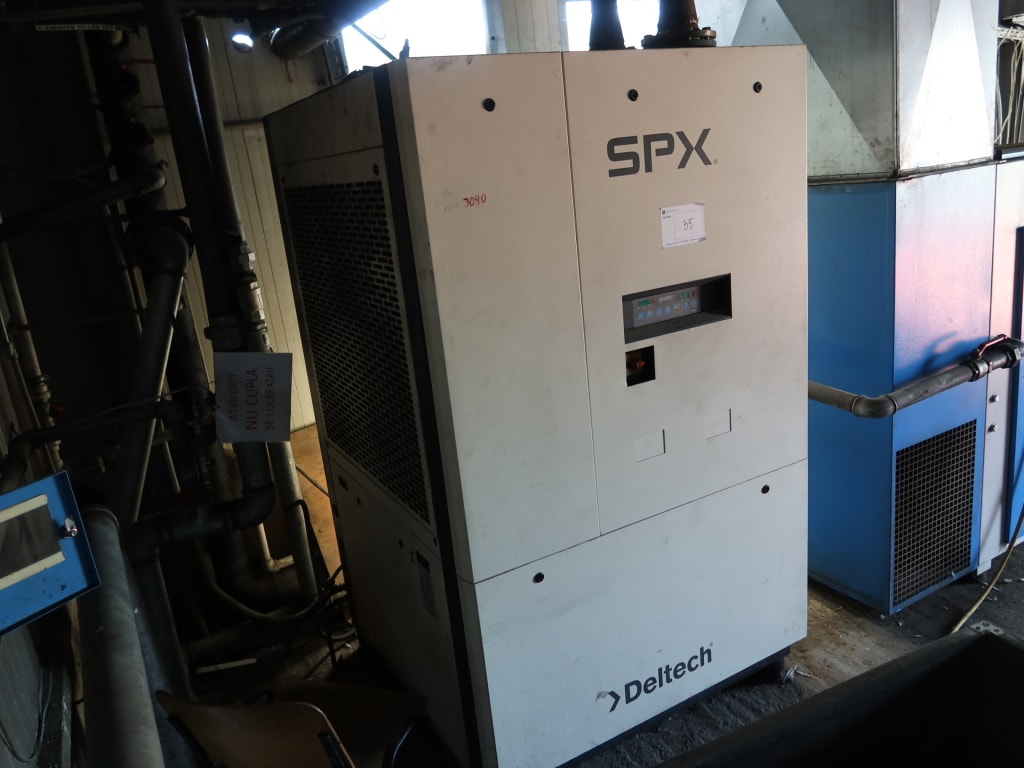

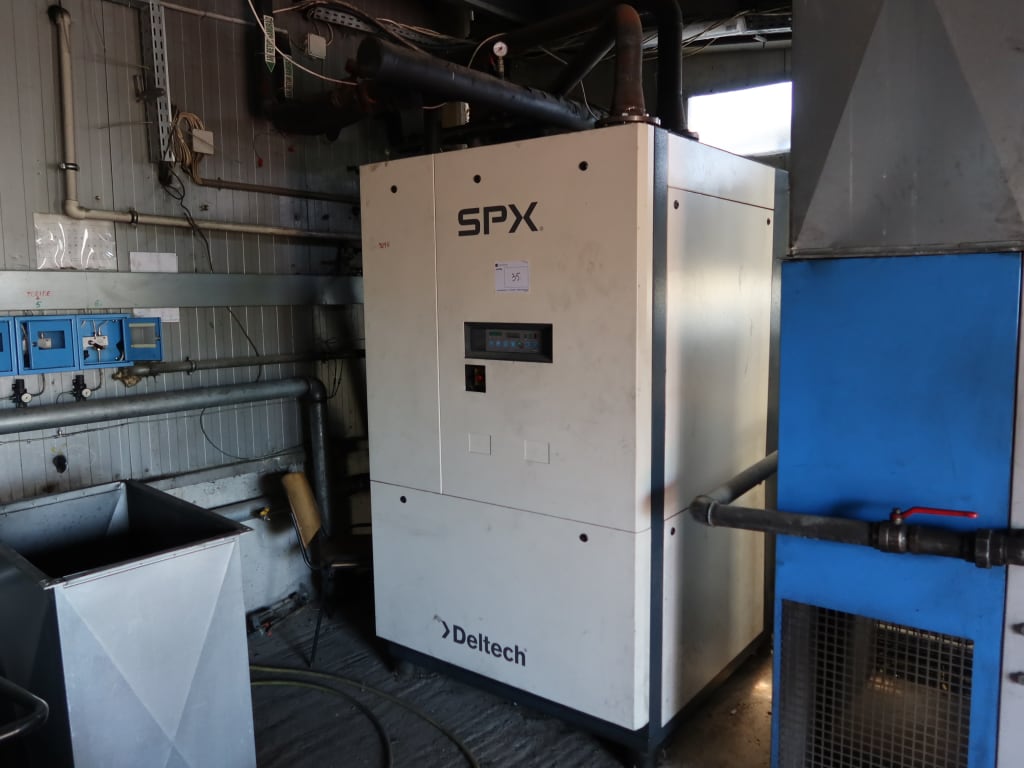

Flow Rate: 2.700 nominal volume in cubic meters per hour; Maximum pressure: 1.0 MPa / 10 bar; Air system circulation: Ts = -10....+60 degrees celsius; Ps = 10 bar; Refrigerant System Circuit: Ts = -10....+125 degrees celsius; Ps = 35 bar HP, Ps = 22 bar LP; Cooling Gas Used: R407 A / 17 kg

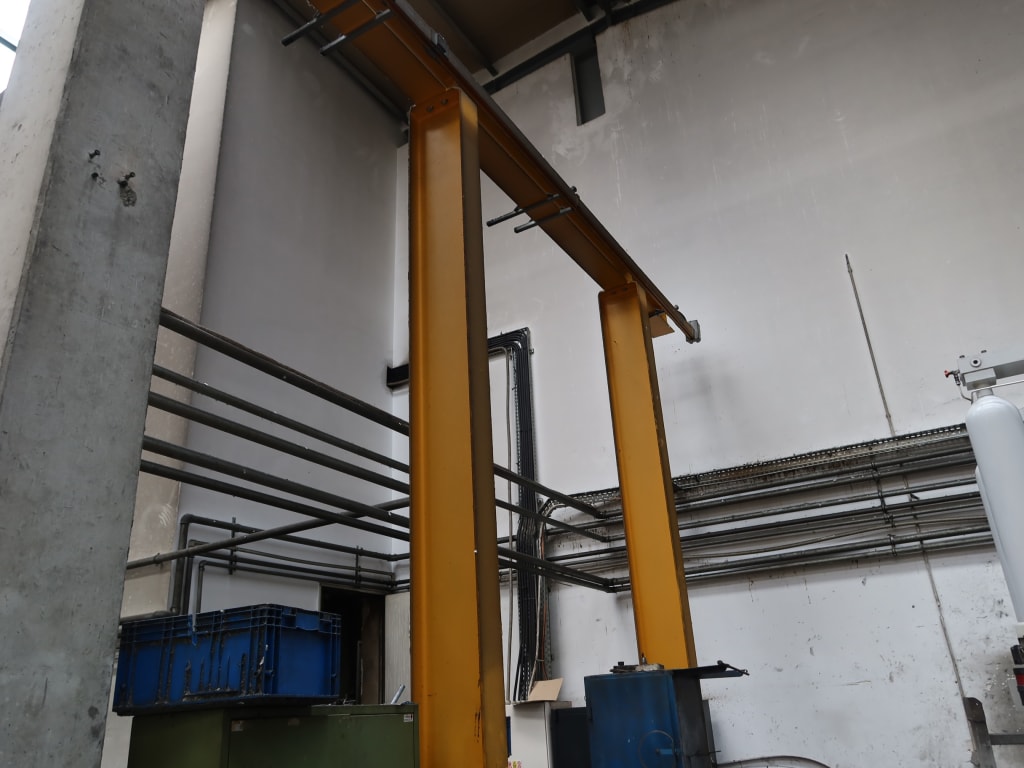

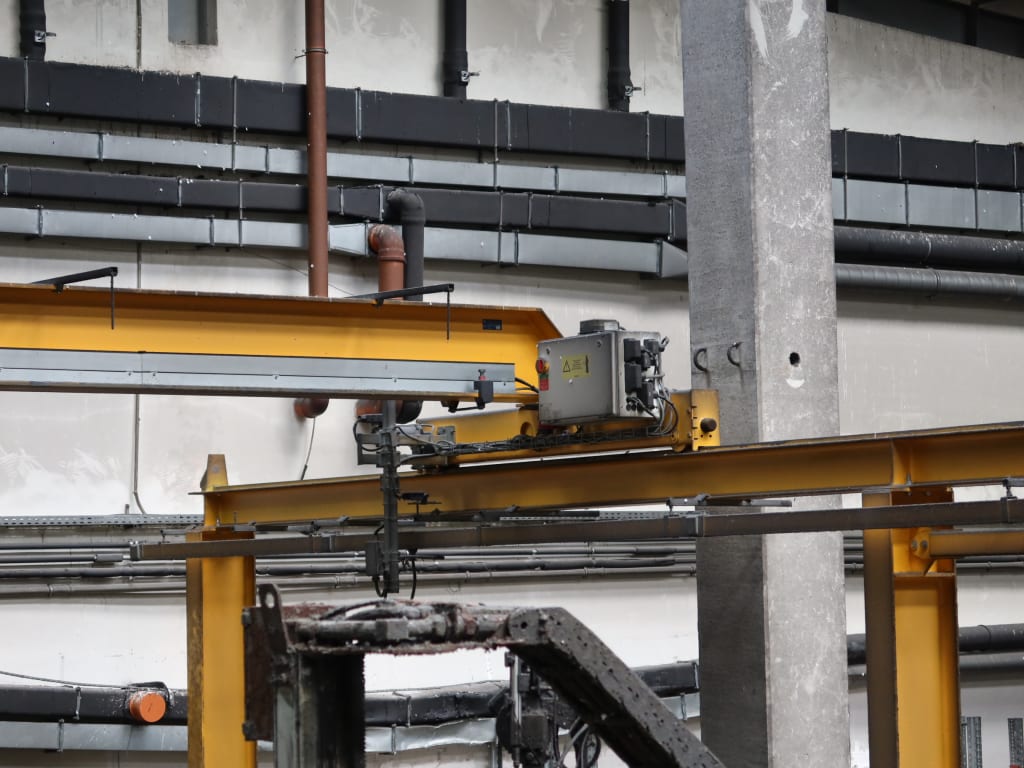

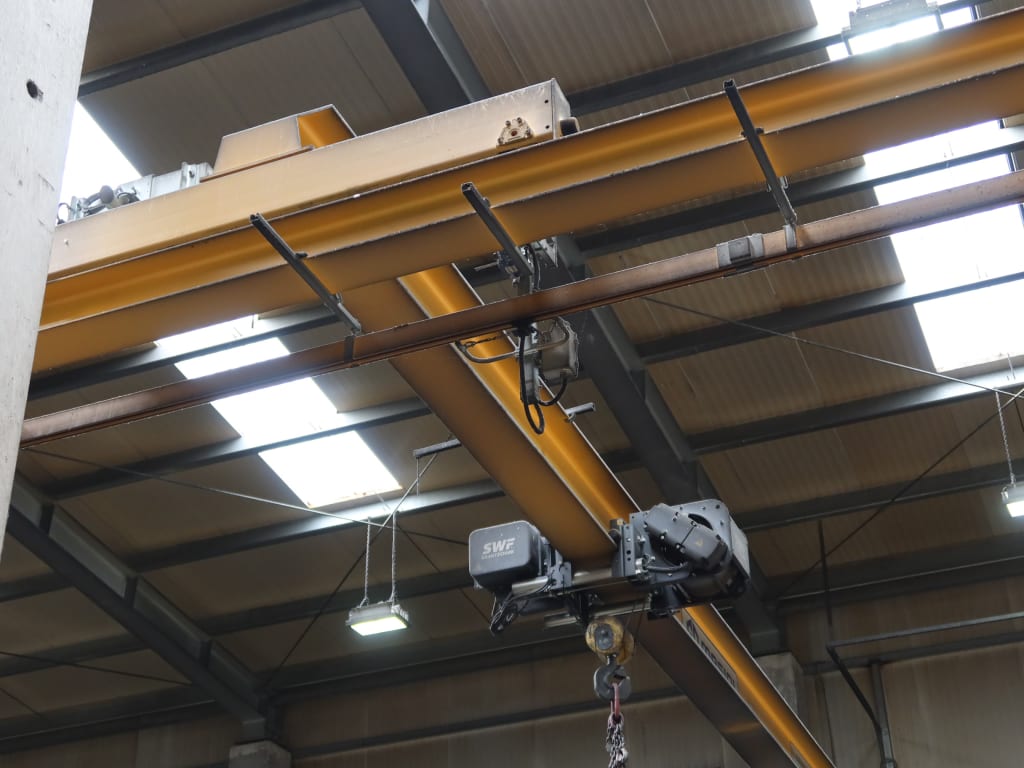

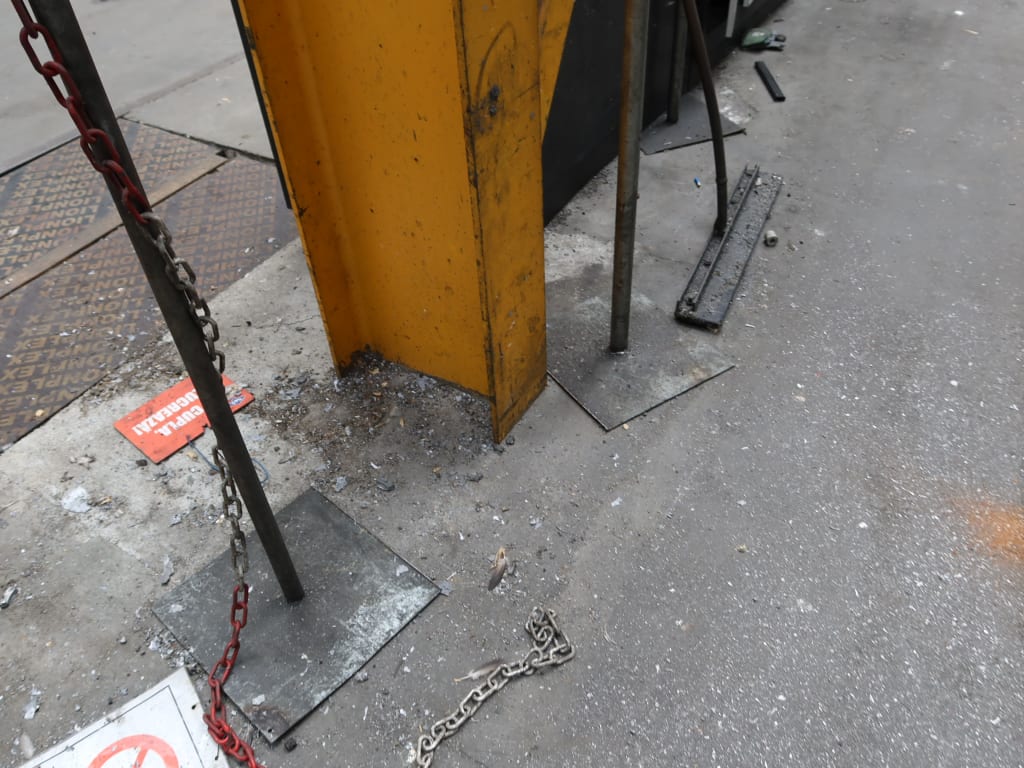

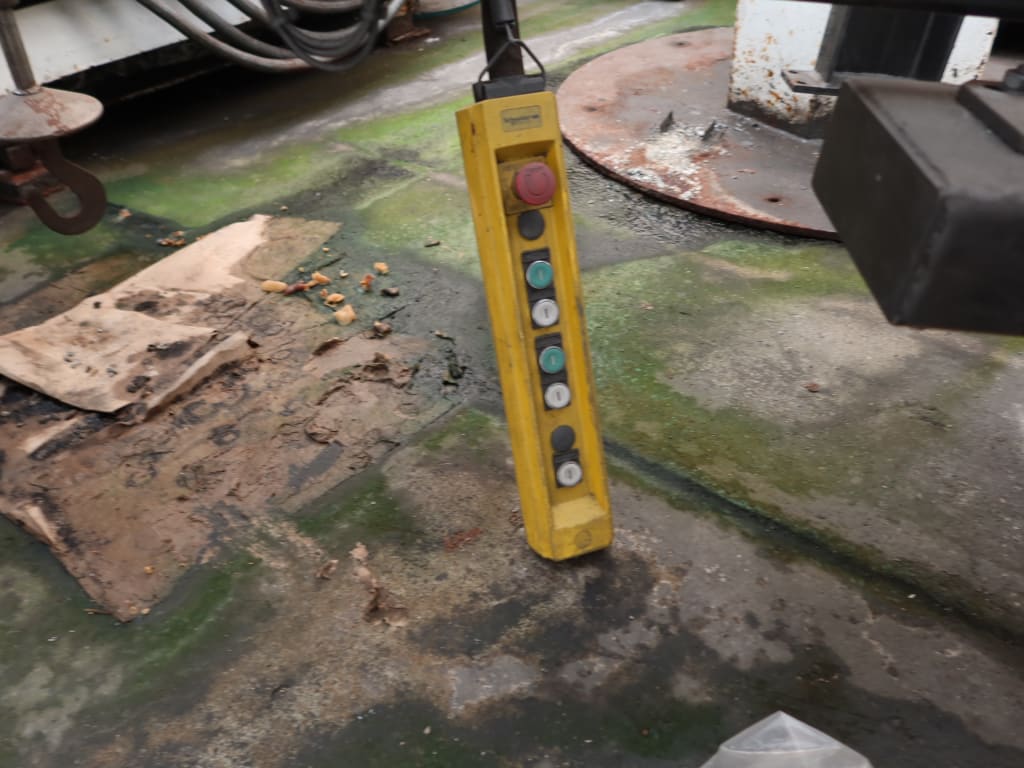

Overhead travelling crane, runway length 19m; span 10500mm; H=5400mm; The crane runway is supported by 5 pairs of I-shaped columns (365x170mm with g=11mm); max load 5 tons

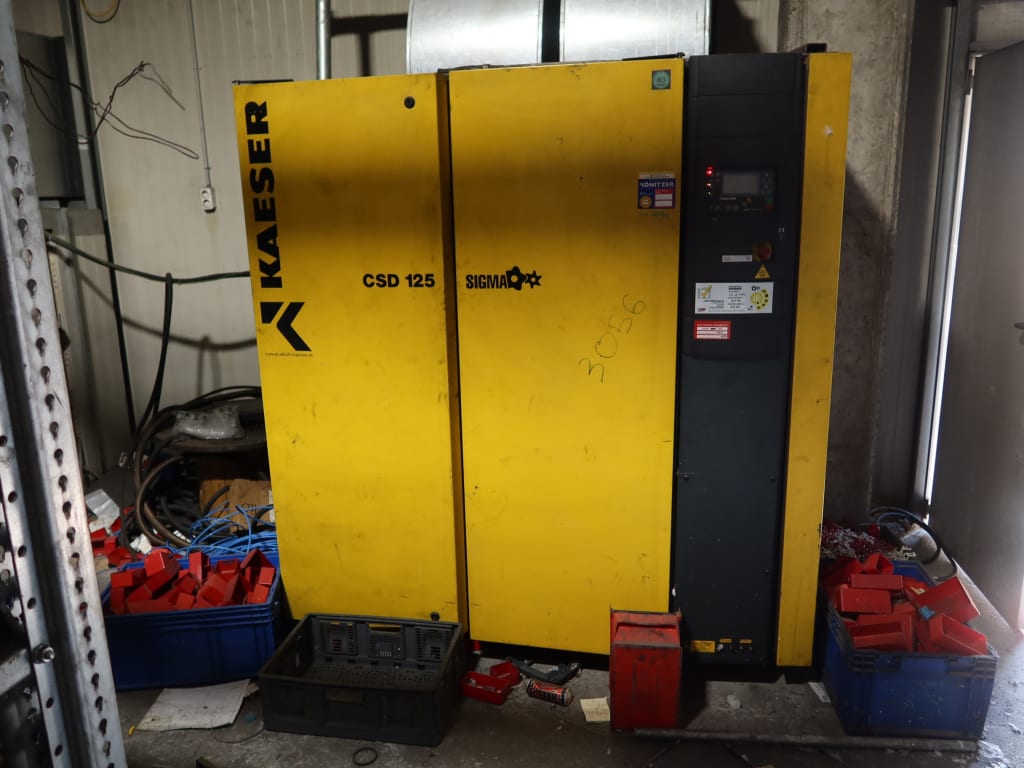

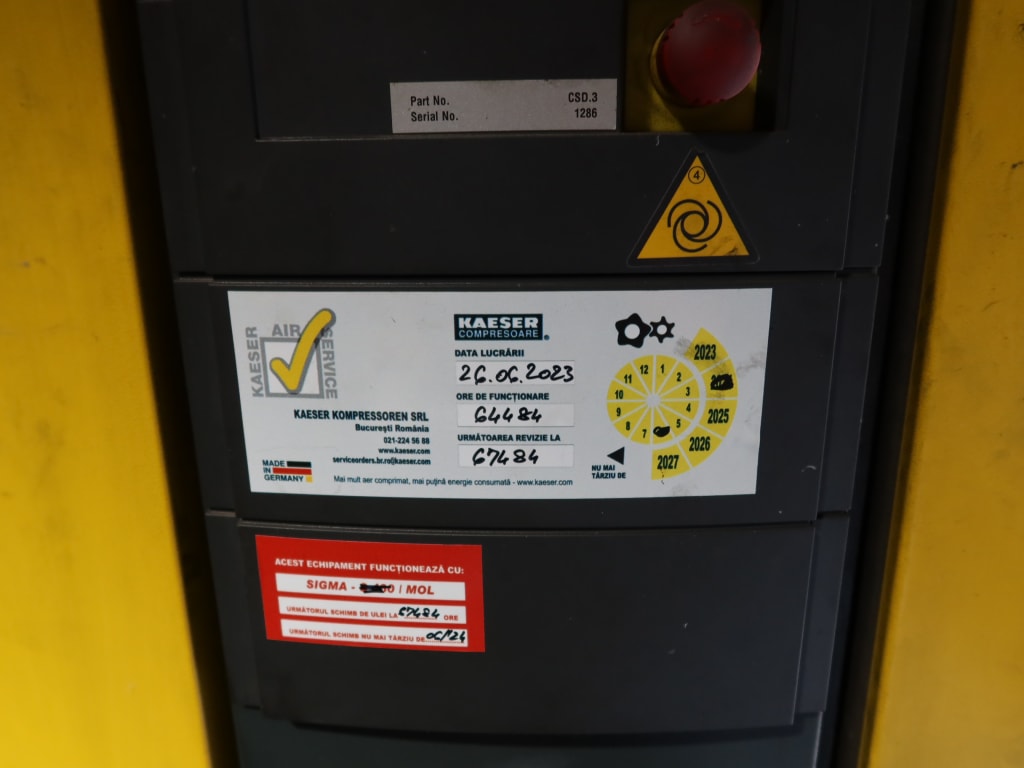

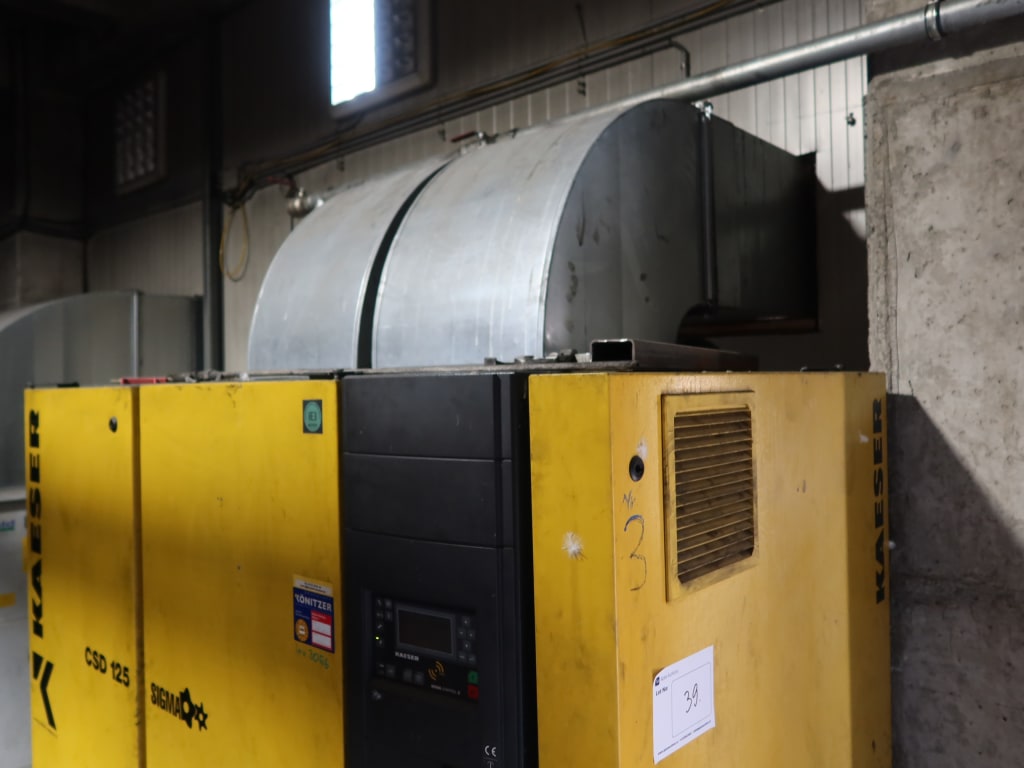

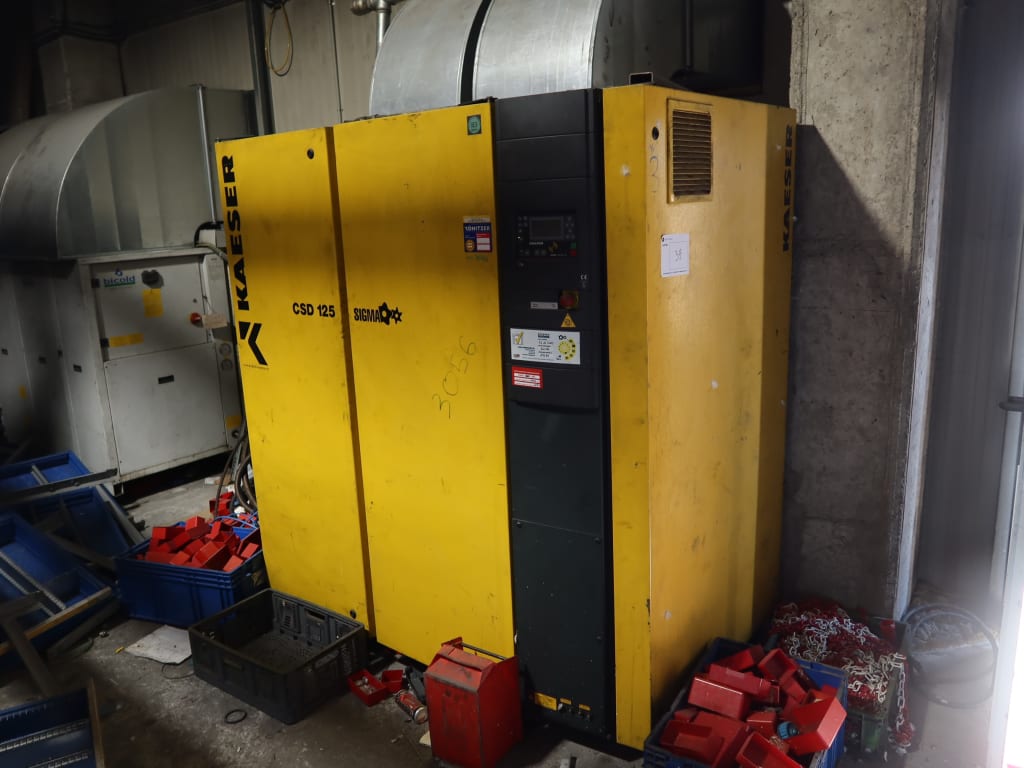

Sigma Profile Airend: A special screw-shaped part that squeezes air. It uses twisted screws to squeeze air using less power that normal; Motor power: 90 kW; Capacity (flow rate): 257 to 707 cmf (depending on the pressure variant); Working pressure: 80 to 217 psig; Controller: Sigma Control 2;

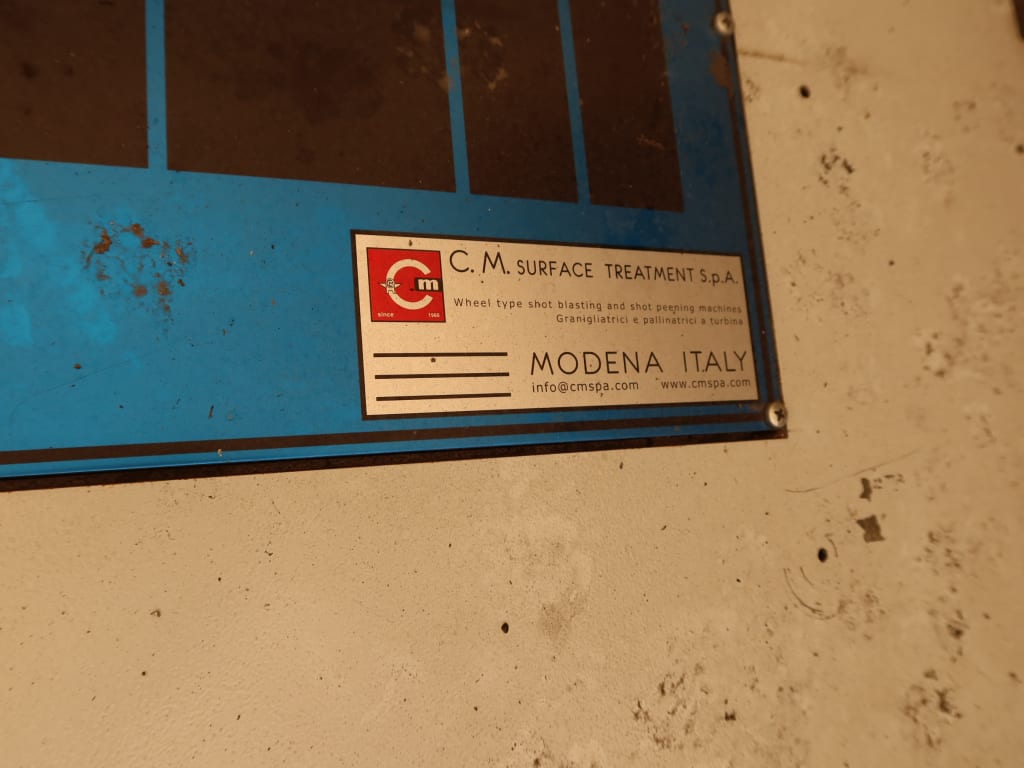

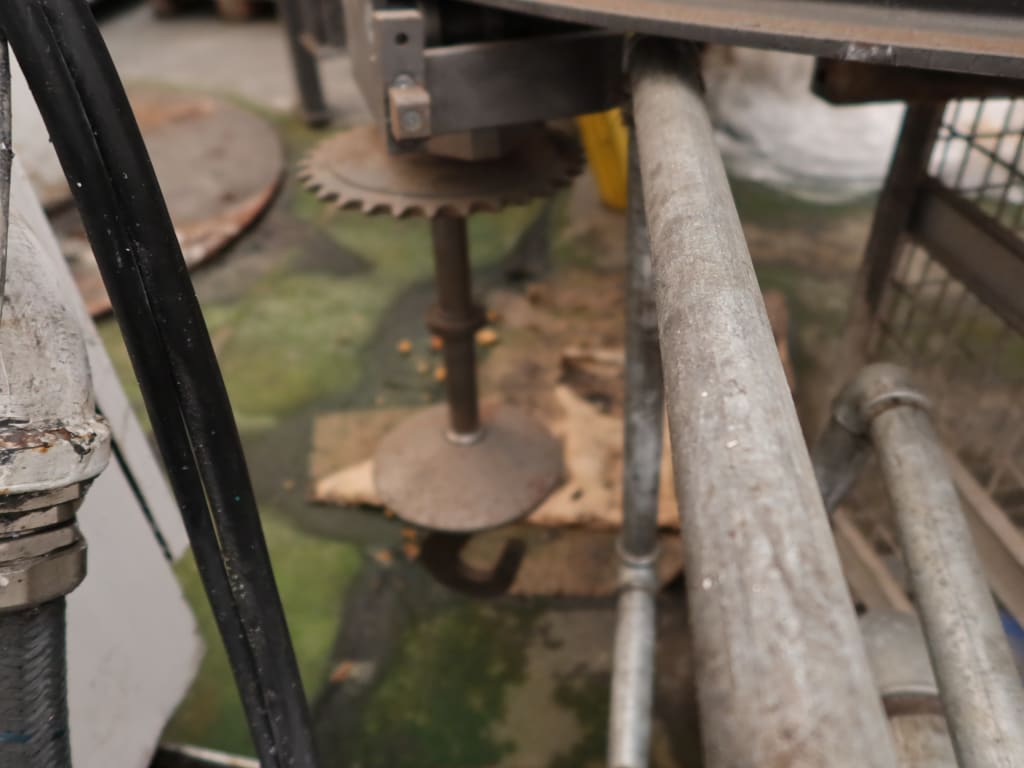

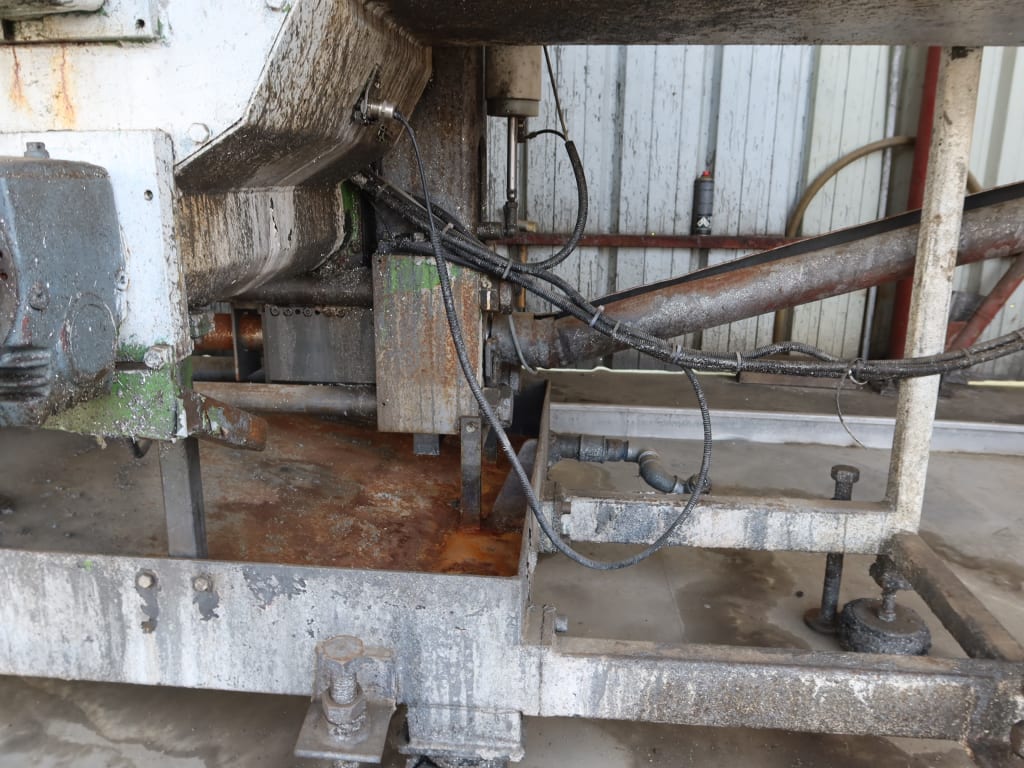

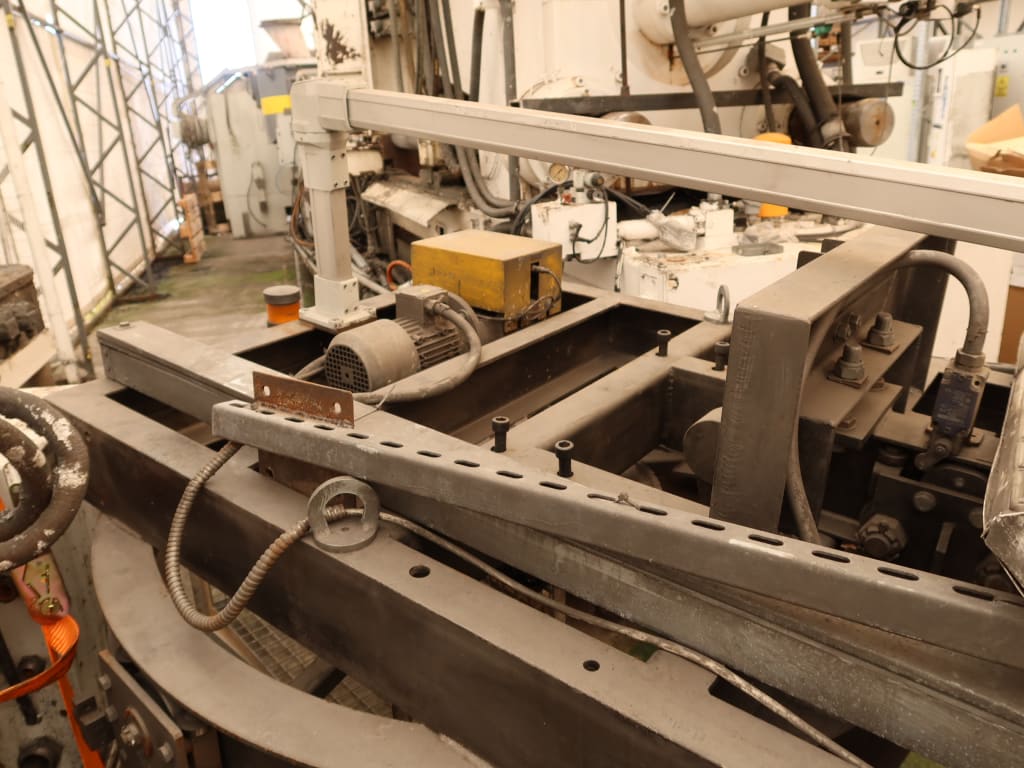

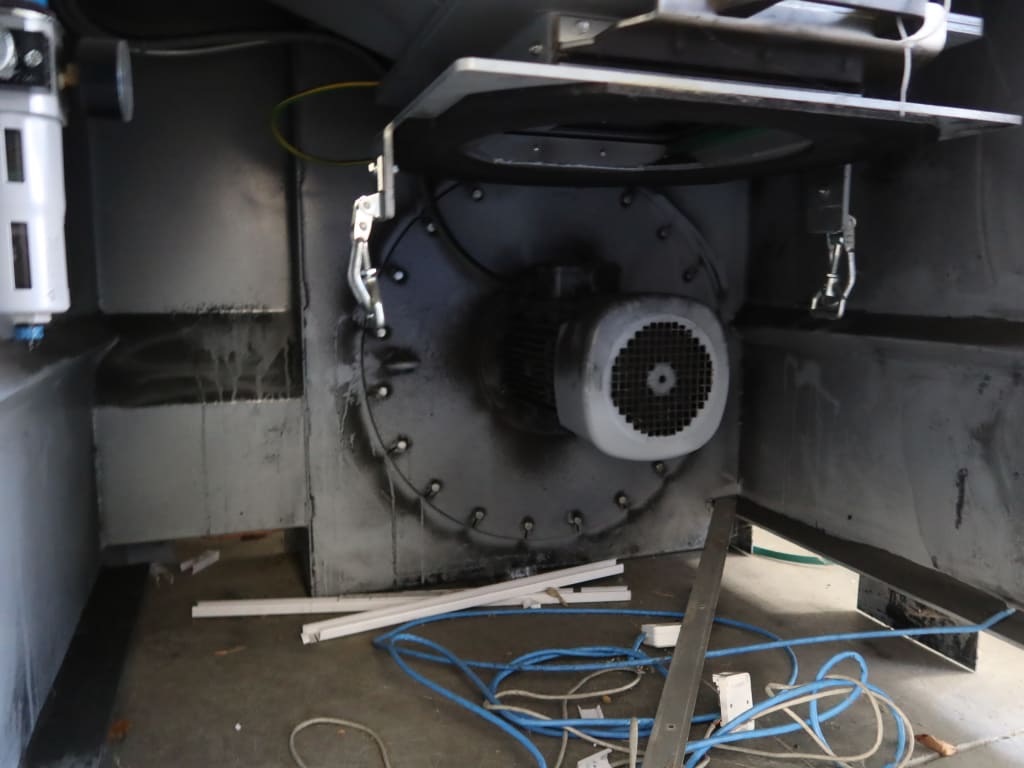

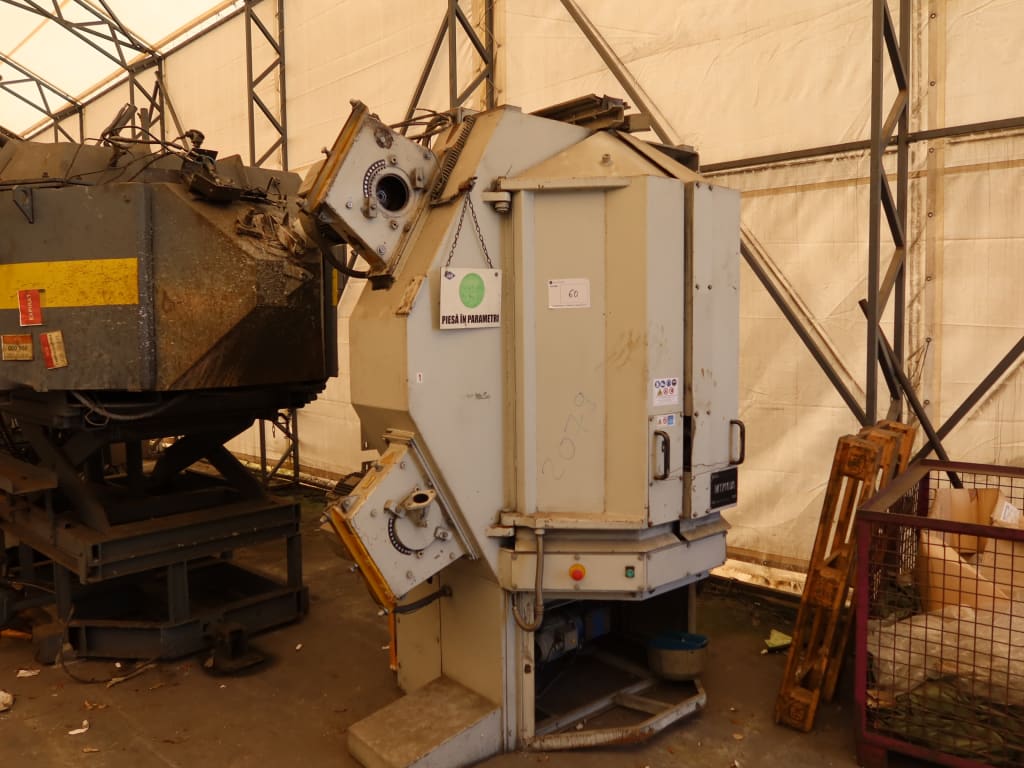

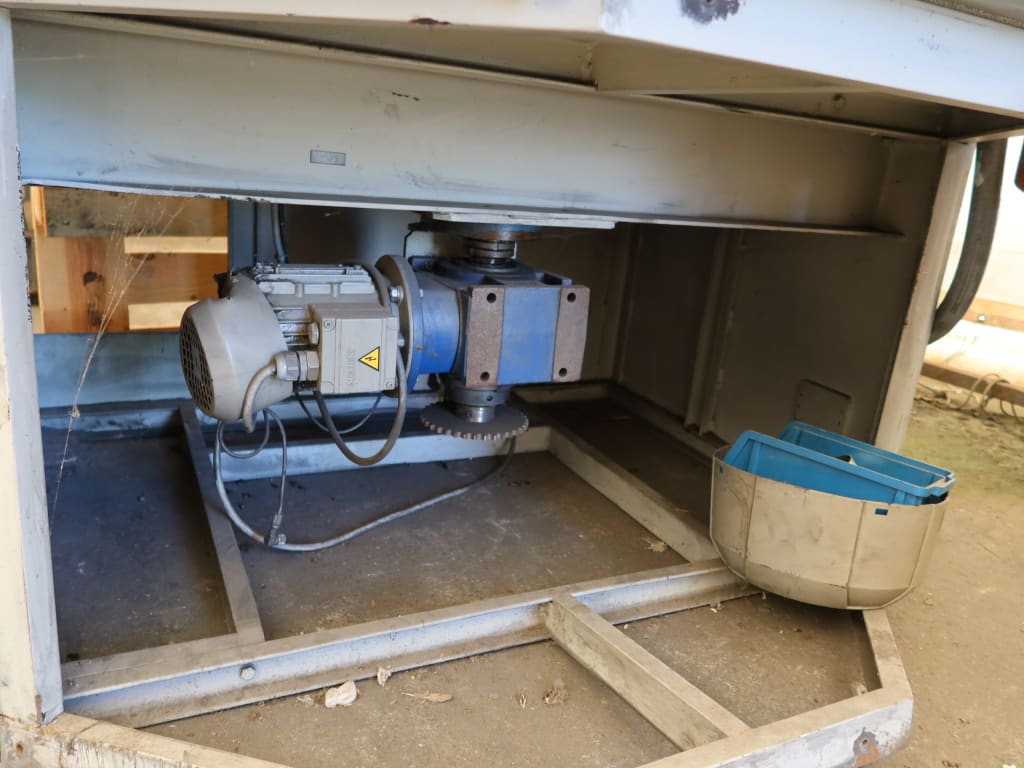

Wheel-type (turbine) shot blasting machine, manufacturer C.M. Surface Treatment S.p.A. (Modena, Italy), model MT/1000, serial no. S5204. Combination machine for treating workpieces on a rotary hook/hanger or rotary table; hook max. workload 300 kg. Suitable for descaling, cleaning and surface preparation of steel and non-ferrous parts. Complete with blast wheel(s), abrasive recovery/feed system, dust extraction and control panel. Note: the overhead hook transport / conveyor system is dismantled; Lot is functional and complete; the parts missing from the pictures are stored in another area.

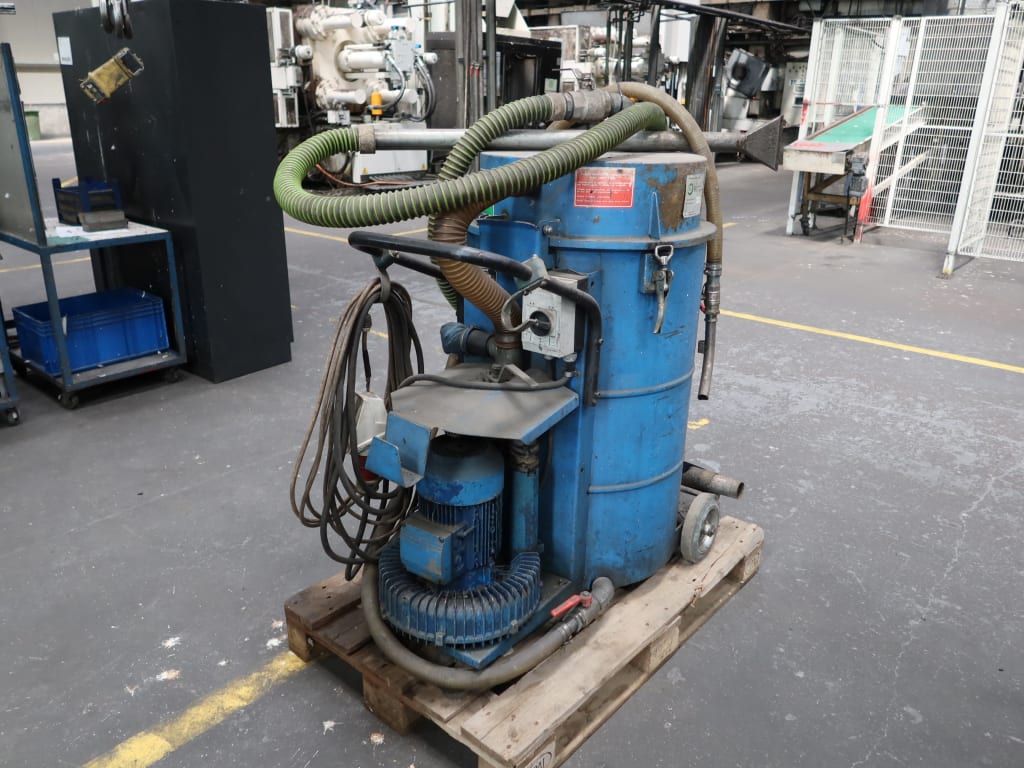

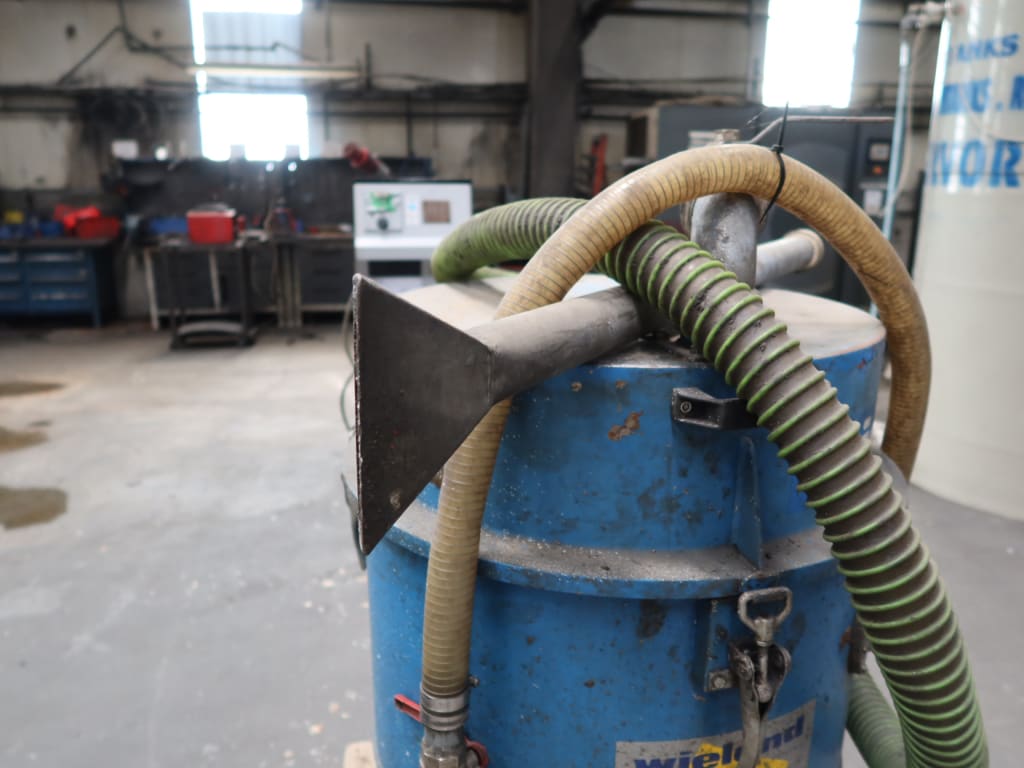

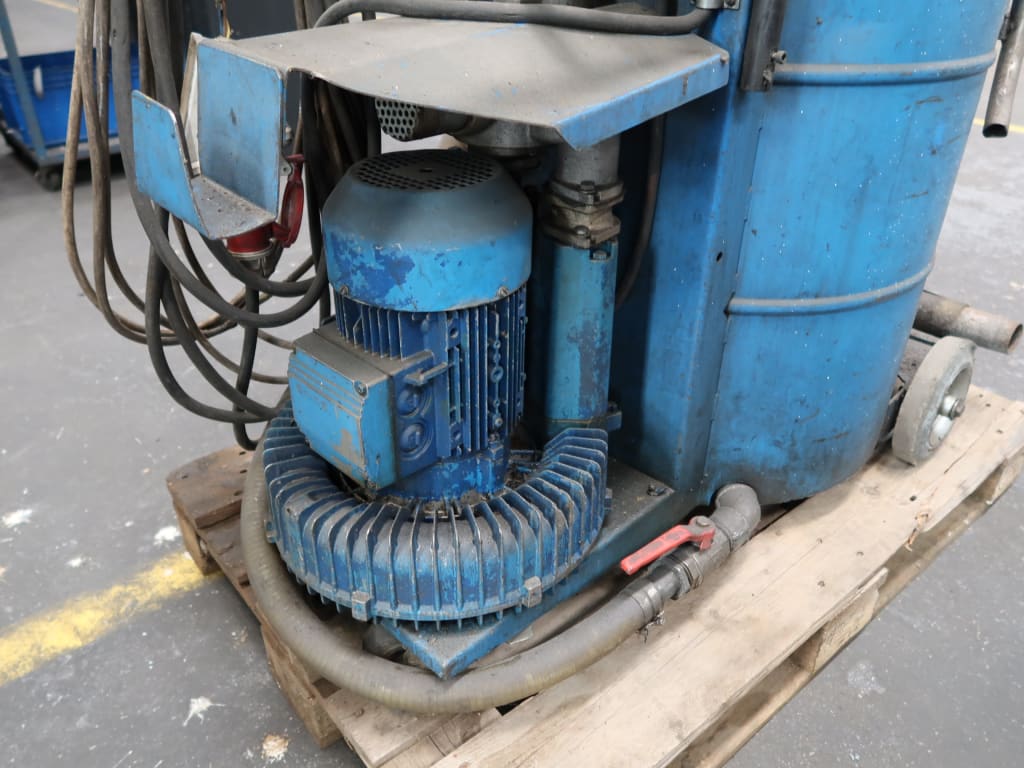

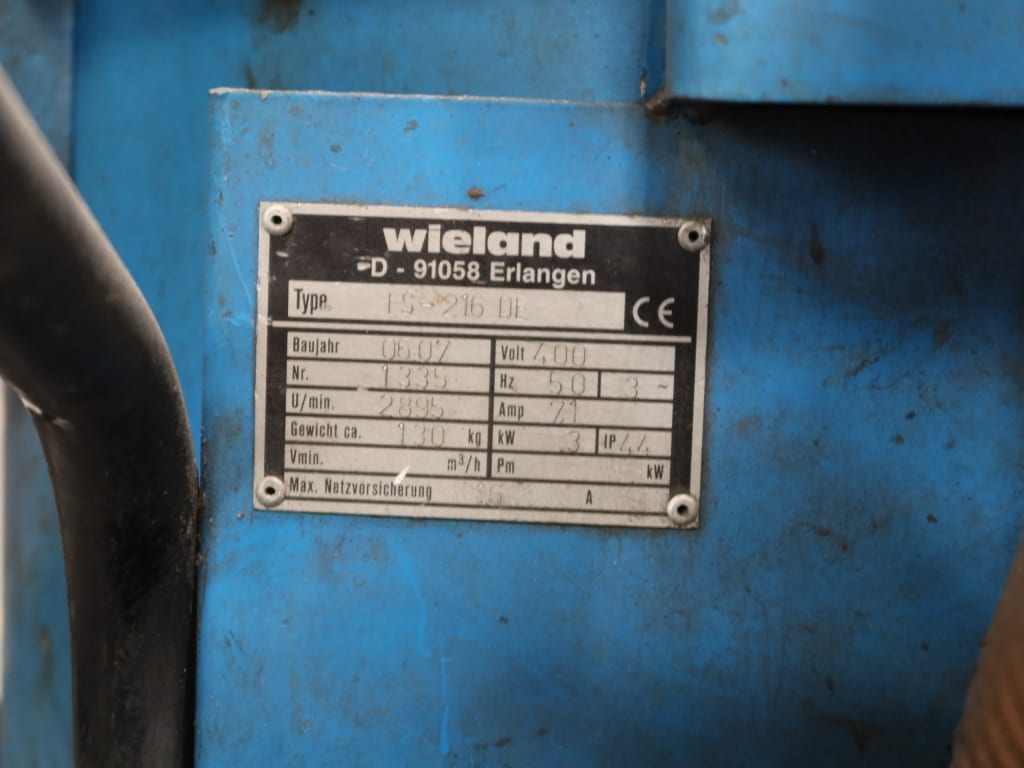

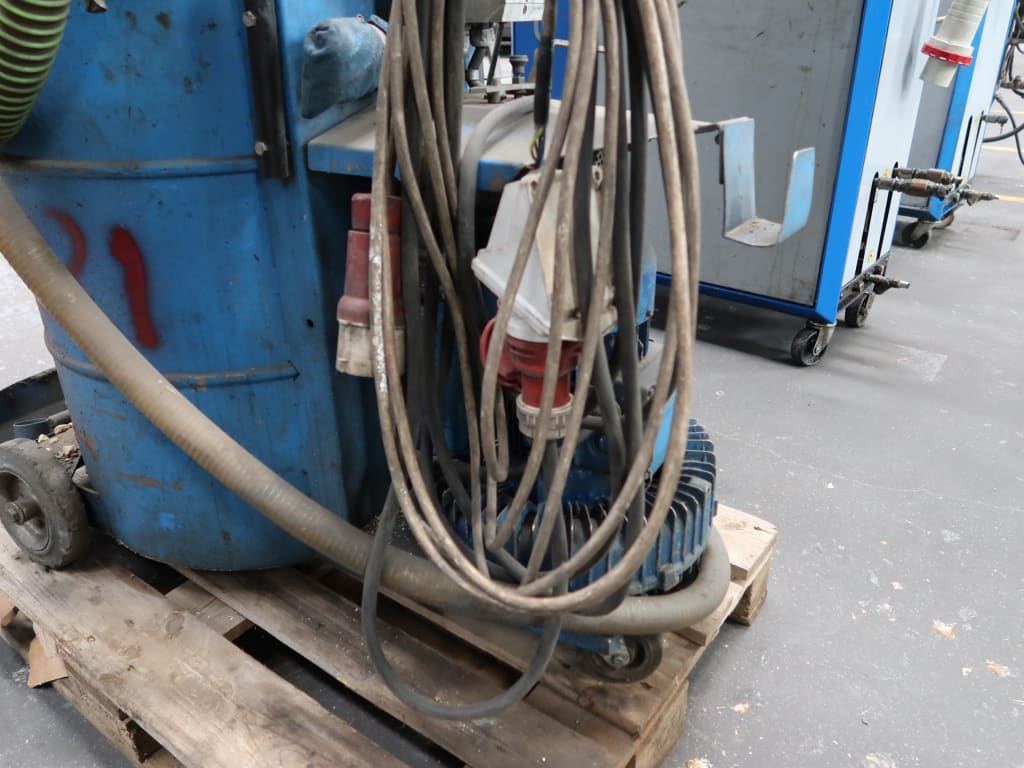

Mobile drum-type industrial vacuum / material suction unit; Manufacturer: Wieland (Erlangen, Germany); Year of manufacture: 2007; Serial number: 1335; Motor power: 3 kW; Motor speed: 2895 rpm; Power supply: 400 V / 50 Hz / 3-phase; Protection class: IP44; Approximate weight: 130 kg; Supplied with: Suction hoses and lance nozzle; Mounting: Wheeled drum base.

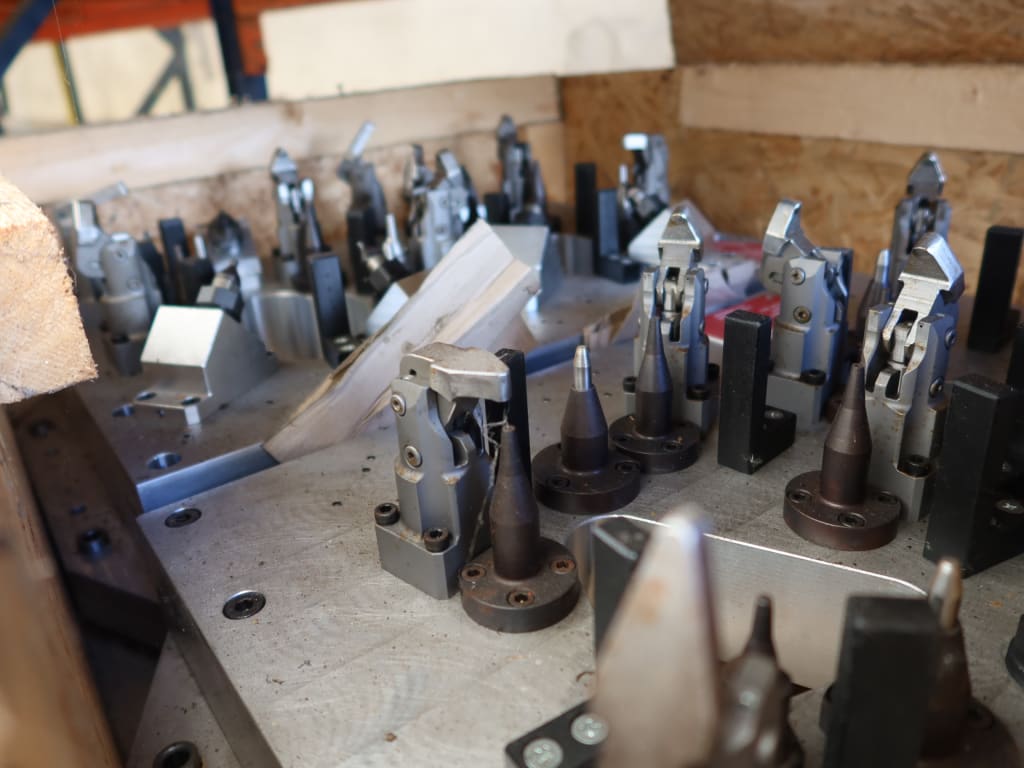

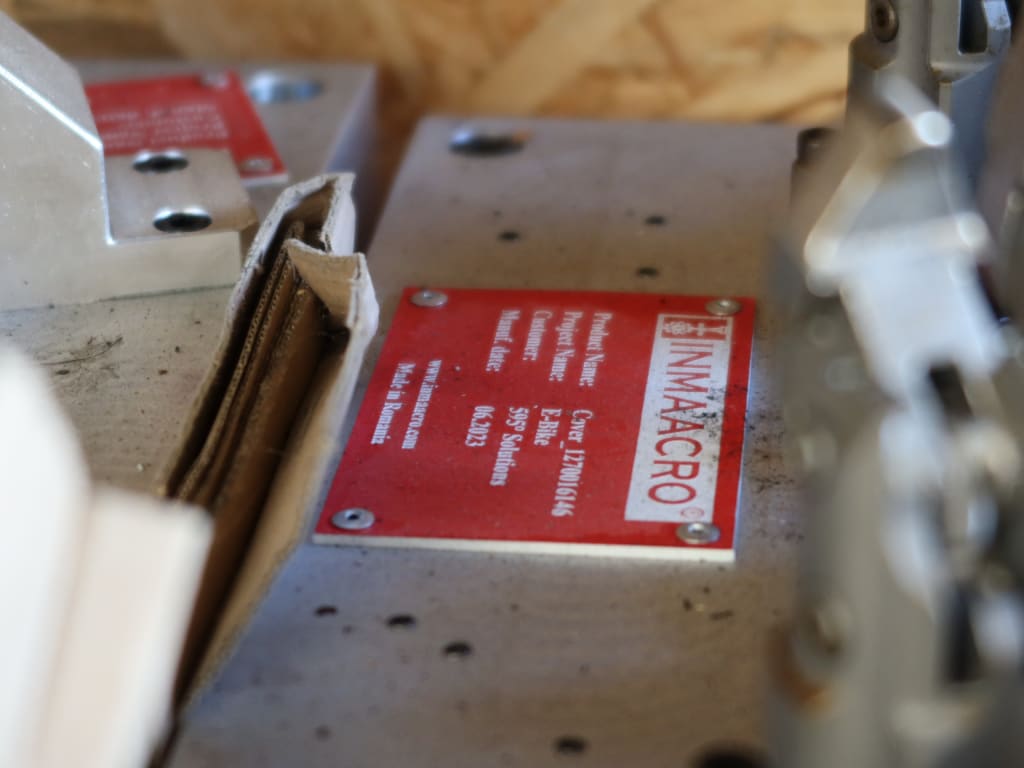

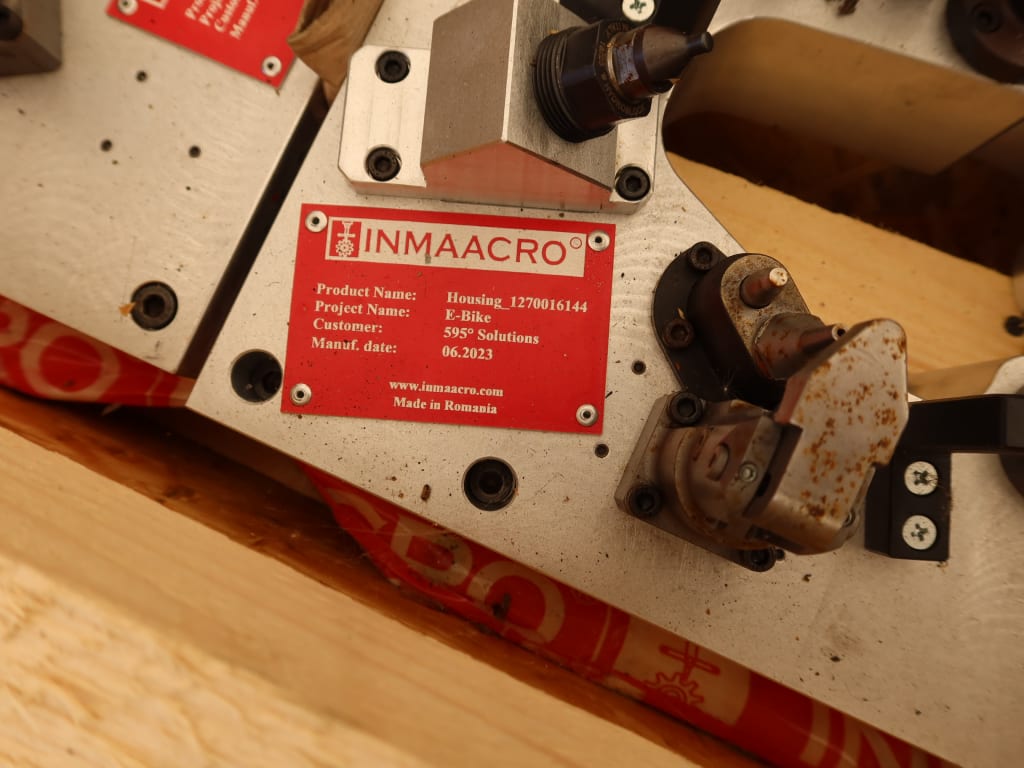

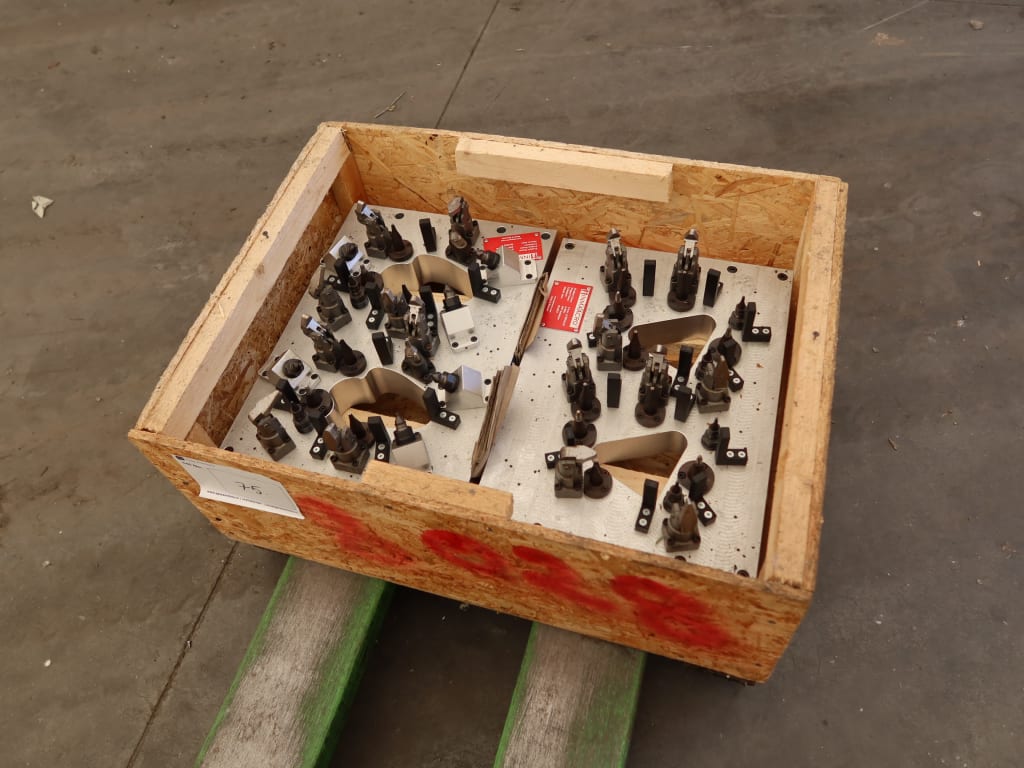

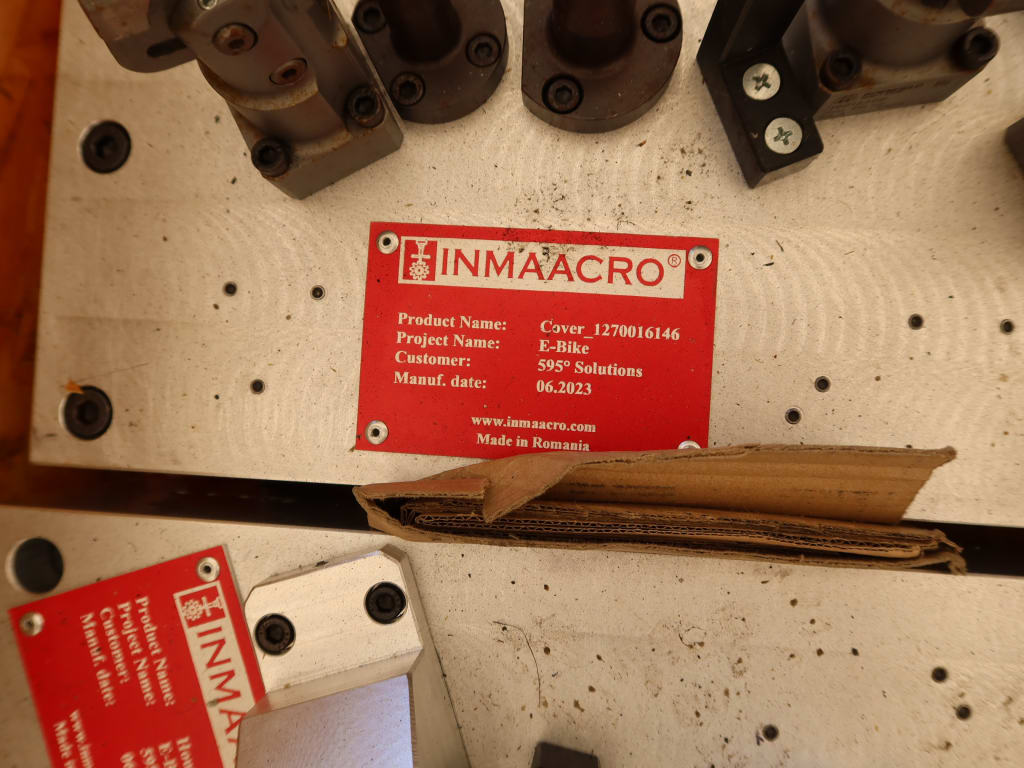

Quantity of locating pins, toggle/cam clamps, angle brackets and stop blocks mounted on perforated aluminium base plates.

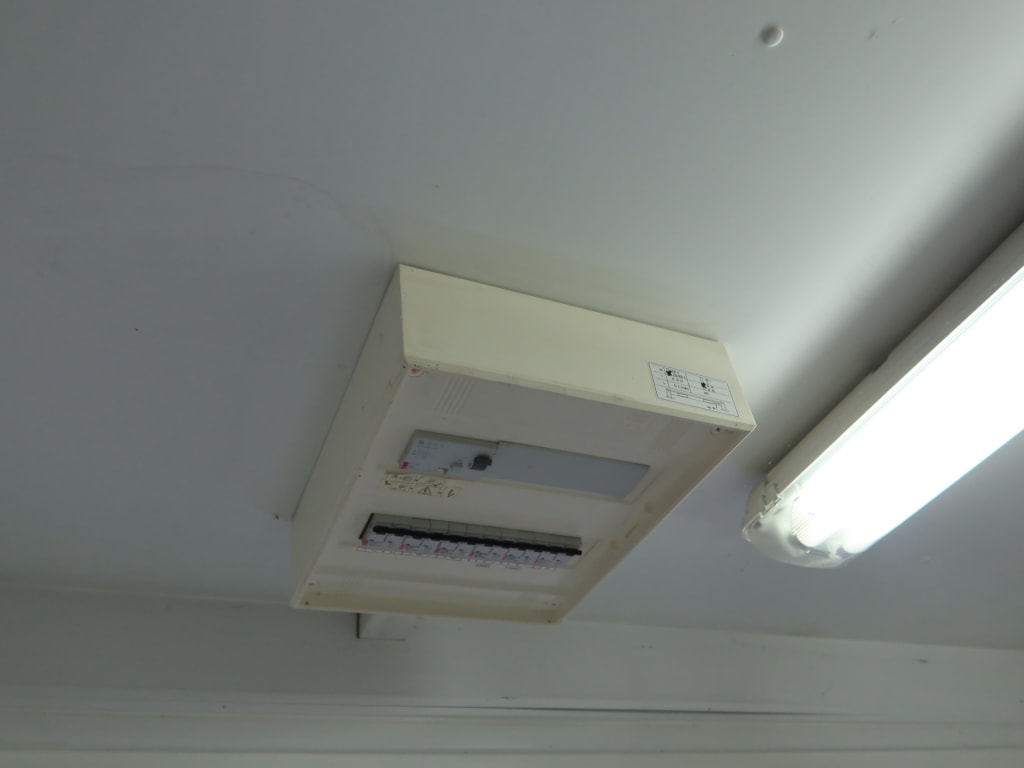

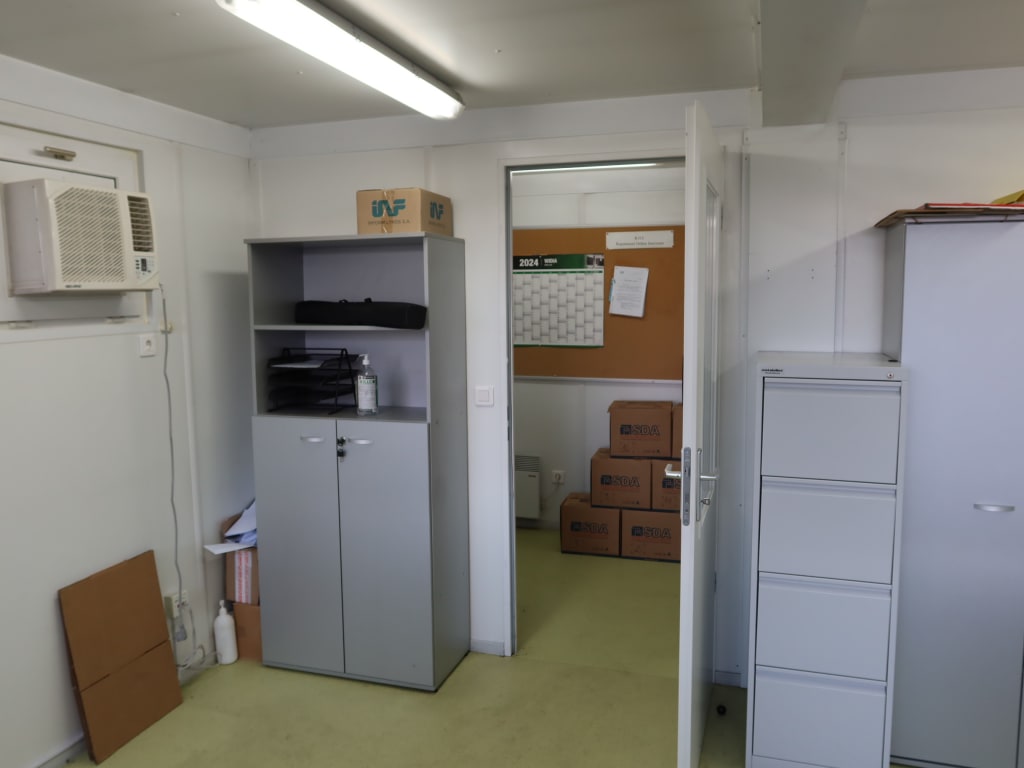

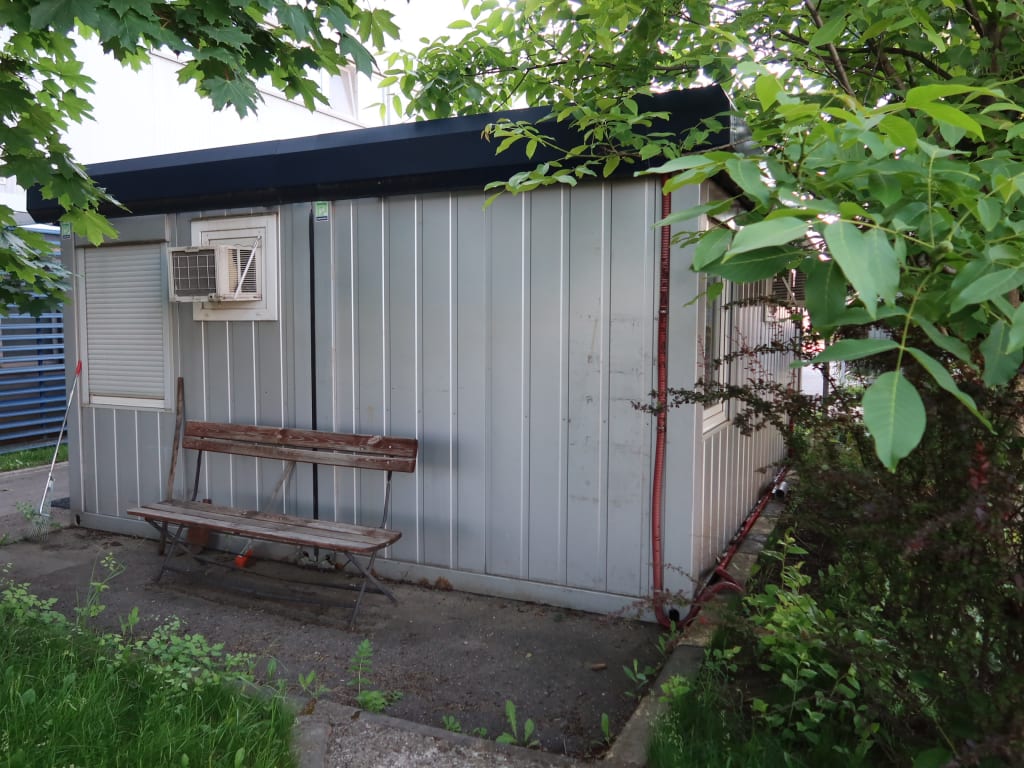

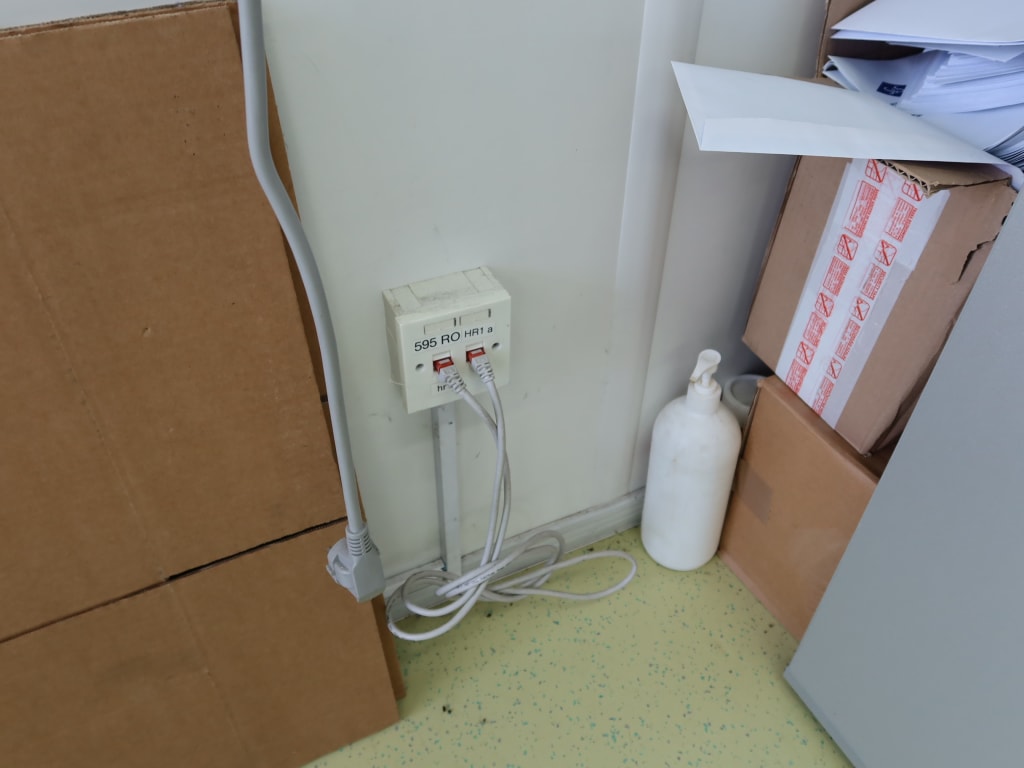

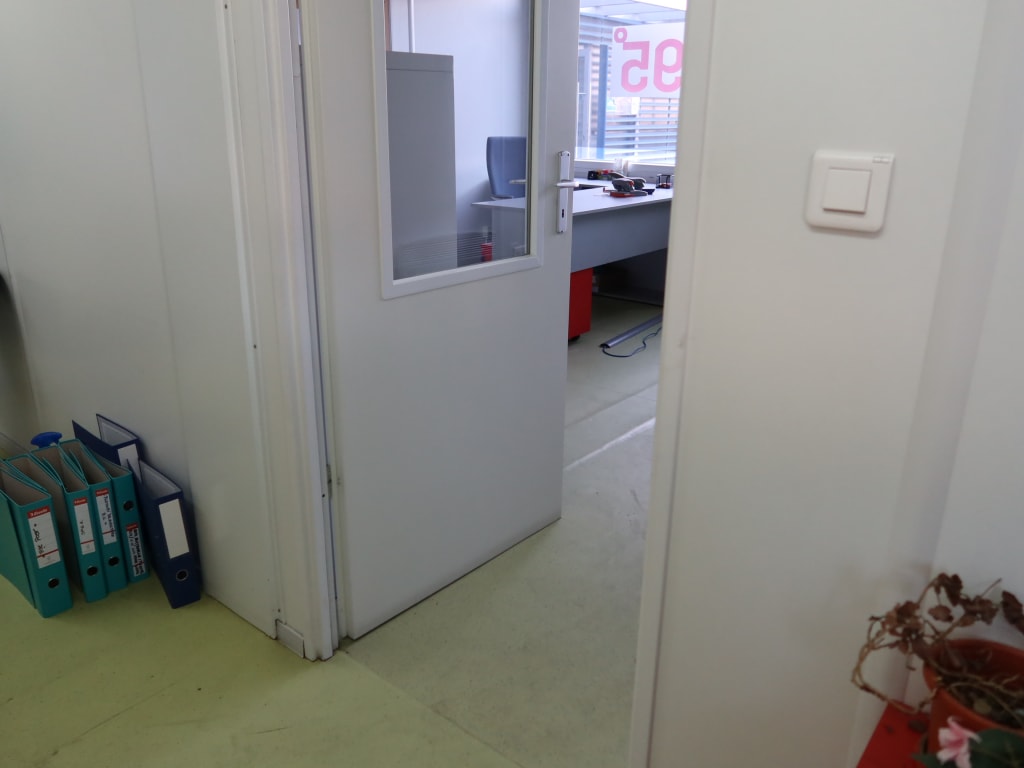

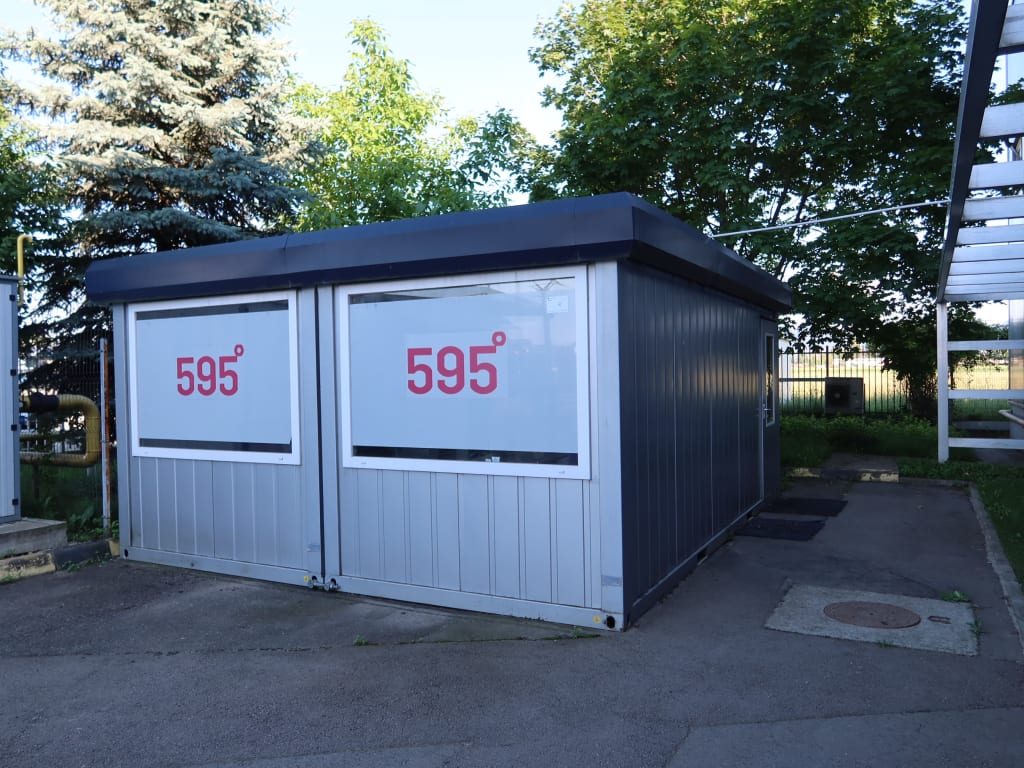

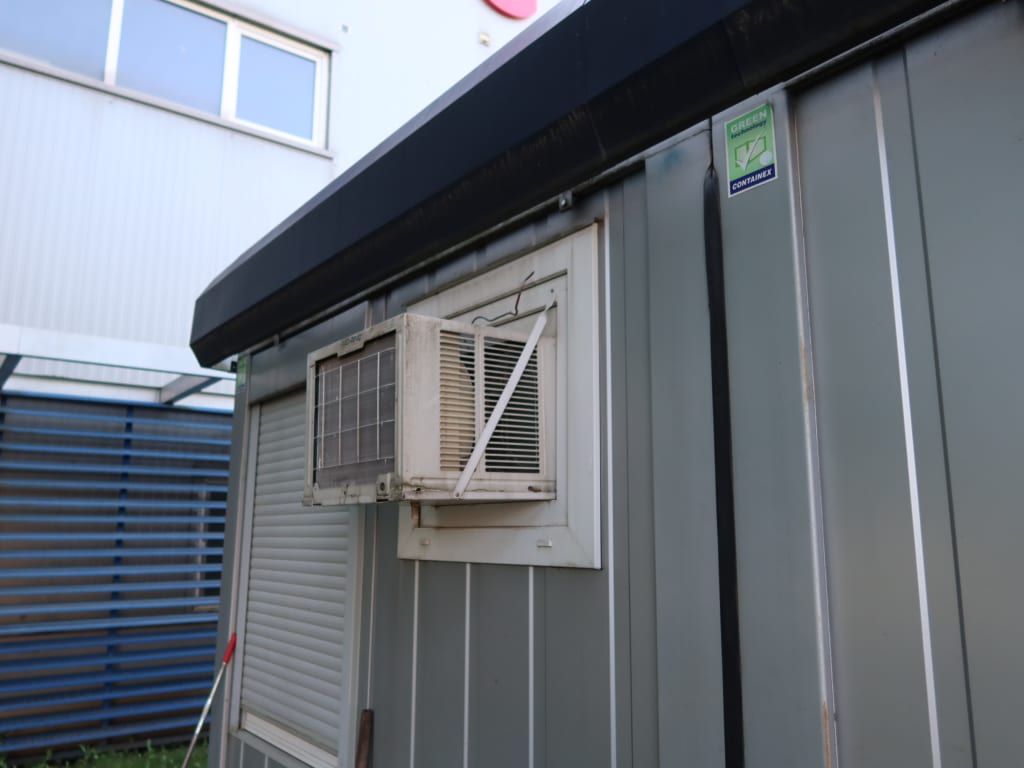

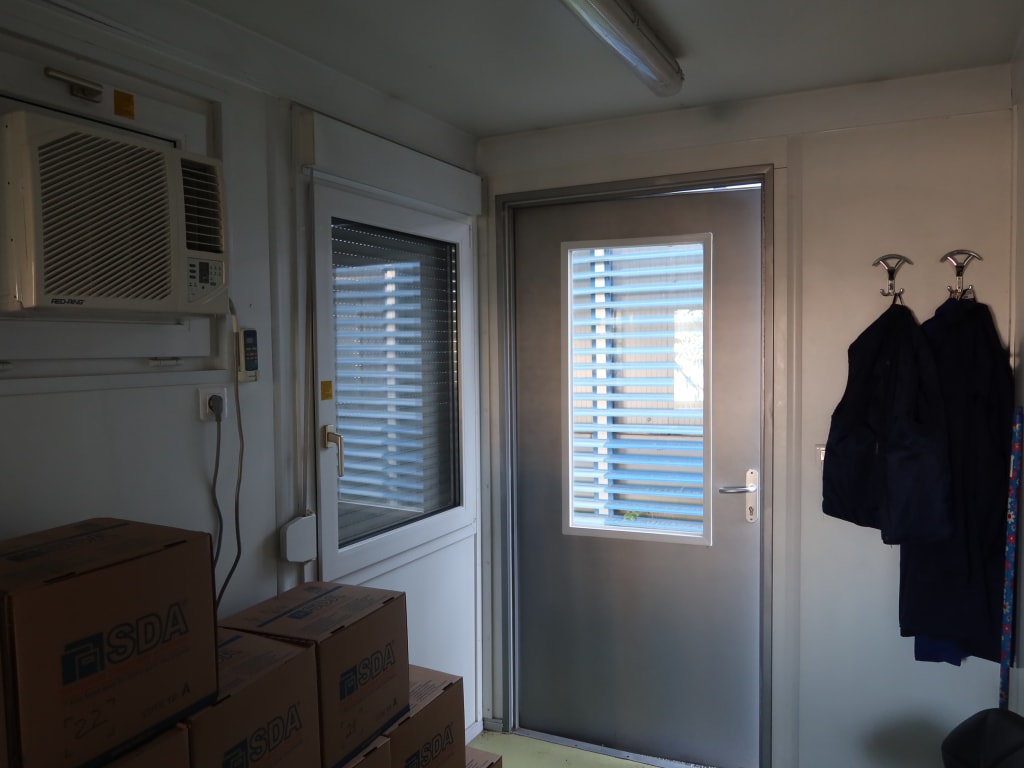

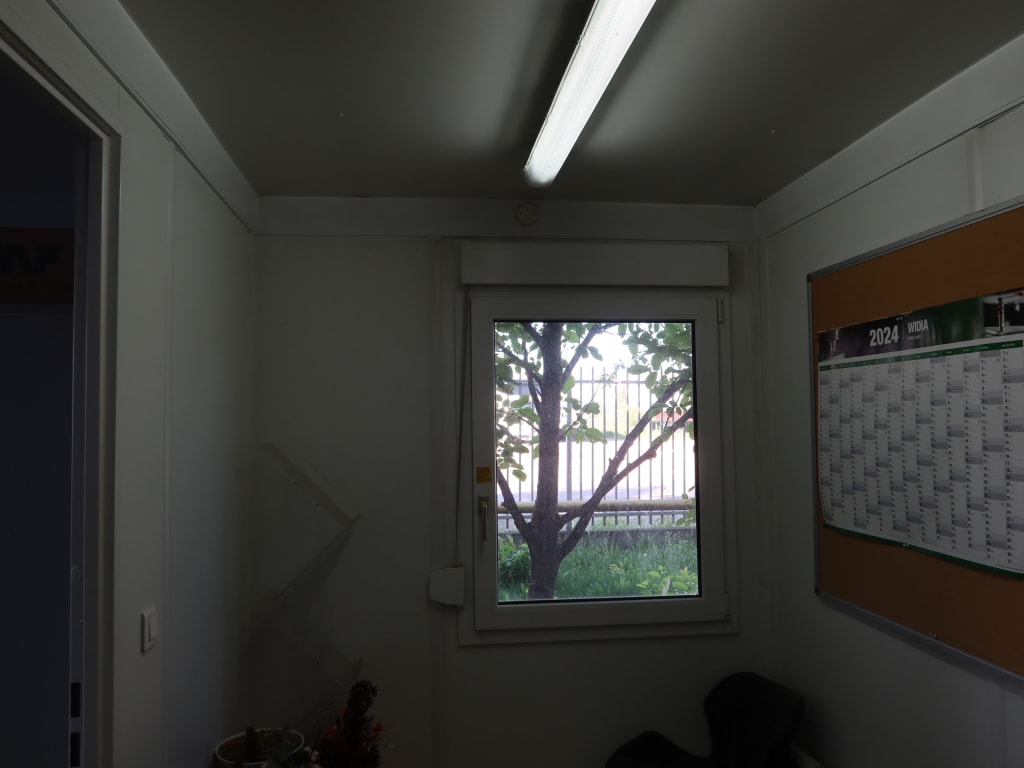

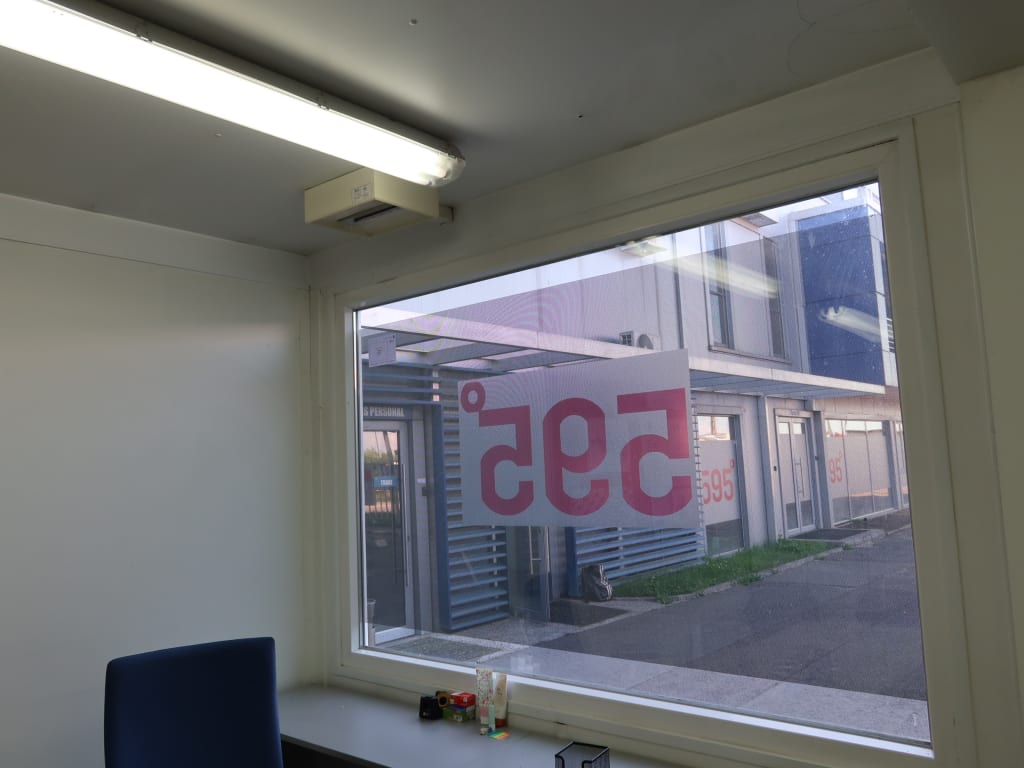

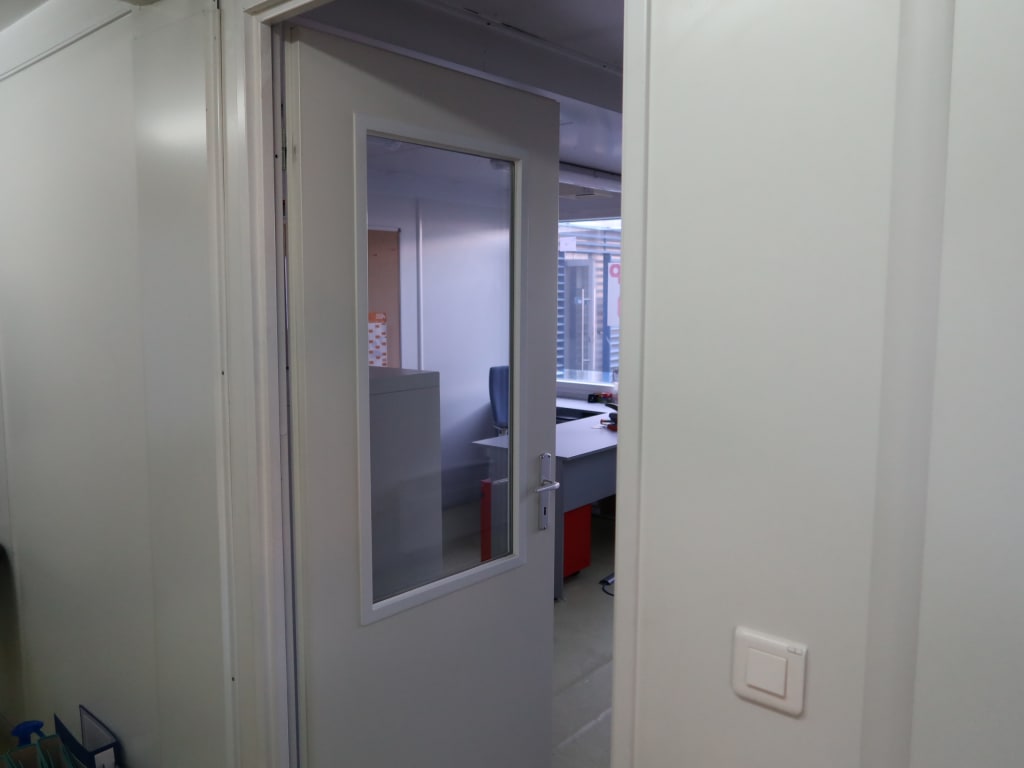

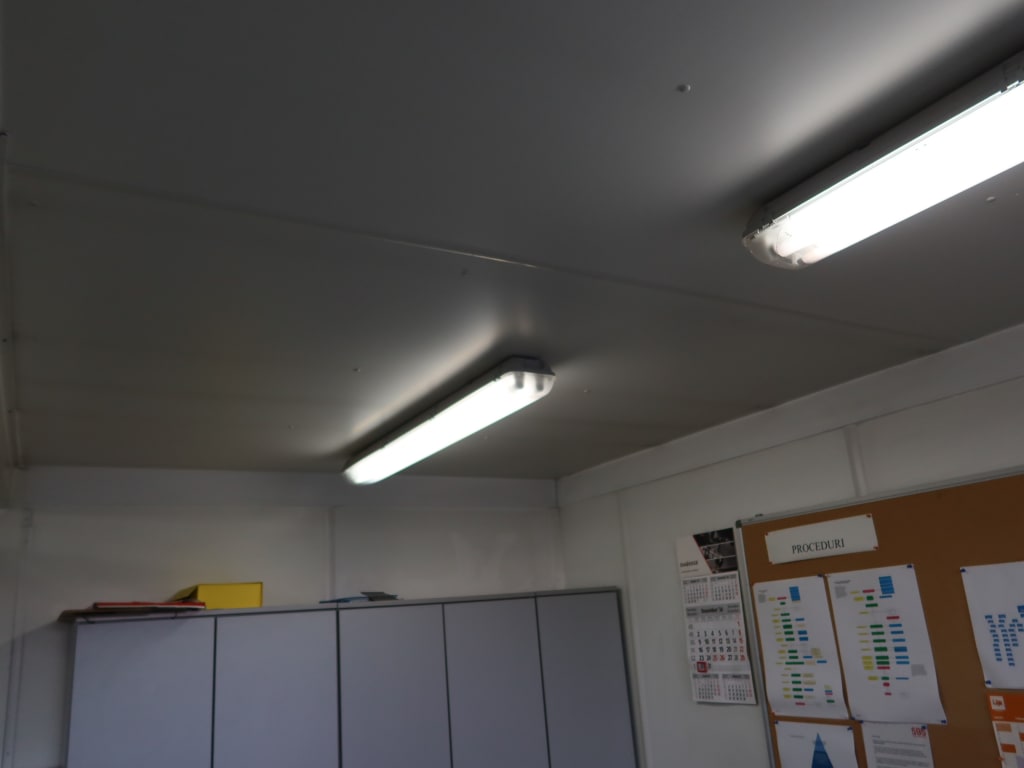

Completely equipped office container; constructed from 2 CTX Containex 20" containers; 2 AC units, electricity, heating, 2 electric panels; furniture and other inventory is NOT included
