Inspektion

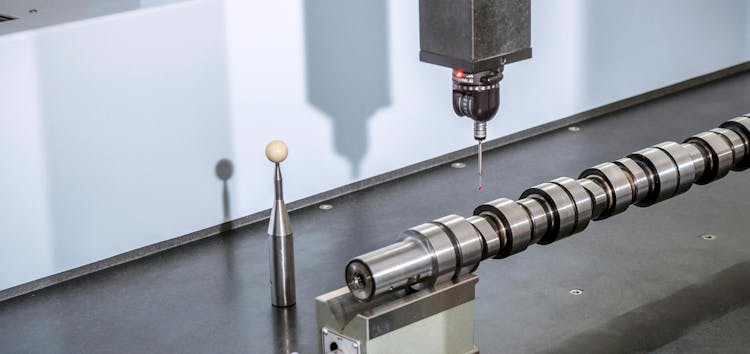

Was umfasst die Kategorie Inspektion?
Die Kategorie Befestigungselemente umfasst alle Koordinatenmessgeräte und die allgemeine Inspektion.
Aktuell verfügbare Prüfgeräte
Filtering
(Showing 11 of 11 items)
![Image not available]()
Image not available![site]()
View2015 Zoller Tool Pre-setter - Venturion 450/6 Purchased in June 20172015 Zoller Tool Pre-setter - Venturion 450/6: Maximum tool length Z: 450 / 620 / 820 mm; X-axis travel: 210 / 310 mm; Maximum tool diameter: 420 / 620 mm Maximum jaw gauge diameter: 100 mm; 100-120 Volt / 200-240 Volt / 50-60 Hz / 80-110 P...![site]()
![site]()
ViewMitutoyo Crysta-Plus 574 Coordinate Measuring MachineMeasuring Range (X x Y x Z): 500 mm x 700 mm x 400 mm; Resolution: 0.0005 mm (0.00002 inches); Accuracy formula: E=(3.5+4l/1000)um; Table Material: High-rigidity Granite; Table size: 1175 mm x 764 mm; Maximum Workpiece Height: 590 mm; Equip...![site]()
View2018 Mitutoyo Crista-Apex S574 High Accuracy General Purpose CNC Coordinate Measuring MachineSerial Number: 83421127; Measuring Range: 500 mm x 700 mm x 400 mm (X, Y, Z); Maximum Workpiece Height: 545 mm; Maximum Workpiece Weight: 180 kg; Maximum Drive Speed: Up to 519 mm/s; Maximum Acceleration: Up to 2.309 mm/s2 (combined axes); ...![site]()
ViewMitutoyo Euro-C-A574 Coordinate Measuring MachineSerial number: N0219105; Measuring Range: 500 mm x 700 mm x 400 mm (X x Y x Z); Maximum Workpiece Height: ~ 545 mm; Maximum Workpiece Weight: 180 kg; Maximum Drive/Measuring Speed: Up to 519 mm/s (3D); Resolution: 0.0001 mm (0.1 μm); Equipp...![site]()
View2021 Mitutoyo Crysta-Apex V574 High Accuracy CNC Coordinate Measuring MachineMeasuring Range (X x Y x Z): 500 mm x 700 mm x 400 mm; Maximum Workpiece Height: 545 mm; Maximum Table Load: 180 kg; Volumetric Accuracy (E0,MPE): From (1.7 + 0.3L / 100) μm (where L is the measured length in mm); Max. Drive Speed: 519 mm/s...![site]()
View2010 Mitutoyo Crysta-Apex C574 High-Accuracy, 3D CNC Coordinate Measuring MachineSerial number: 80461121; Measuring range (X x Y x Z): 500 mm x 700 mm x 400 mm; Table size: 1160 mm L x 638 mm W; Maximum Workpiece Height: 180 kg; Maximum Workpiece Height: 545 mm; Drive Speed: Up to 520 mm/s; Acceleration: 0.17 G (1,667 m...![Image not available]()
Image not available![site]()
ViewZeiss MMZ G 60/70/12 Bridge Type Co-Ordinate Measuring Machine (CMM) With Vollert Travelling Table (2021) NBV. € 514.816Distance Between Columns 6,600mm. Height Under Bridge 2,040mm. Accuracy (DIN EN ISO 10360) MPE(E0)=4.20 + L/325, P=3.2, THP=4.3, TAU=64,00, Ront=3.9. With Vast G-D1 Probe Head. 21 Position Probe Rack With Styluses. S/No. 221287 (2021). Tabl...![site]()
View2004 Johannson/Brown & Sharpe Quartz Bridge Type ONE 7.10.7 Coordinate Measuring MachineSolid Steel Bed. 'X' Axis 700mm, 'Y' Axis 1,000mm, 'Z' Axis 700mm. Complete with Renishaw PH10T Motorised Probe Head, Renishaw Controller PHC 10-2, Legacy Box Control PHC9/PHC10. DEA Control 240 Volt. S/No. of Machine 0604-7151.
Hersteller
Zu den Herstellern, die üblicherweise in dieser Kategorie zu finden sind, gehören Amada, Brevetti, Brown & Sharpe, Bunting Magnetics Co., Carl Zeiss, DEA, Eaton Leonard, Erowa, Faro, G2metric, Gleason, Goring Kerr, Hexagon, Instron, Keyence, Leitz, LK, Magnaflux, Mitutoyo, OGP, Phoenix, Schenck, Scherr Tumico, Scherr-Tumico, Sciemetric, Sheffield, Topcon, Trimek, Virket und Vision Engineering.
