Bankruptcy Auction - Former Schulte & Schmidt: Colosio Cold Die Injections Lines

Serial number: TS2510341; Load capacity: 3.500 kg; Empty Weight: 4.580 kg; Max. Speed: up to 19 KM/H; Fuel: Diesel; Fuel tank capacity: 70 L; Lifting height: 3000 mm; Fork size: 1070 mm x 125 mm x 50 mm; Load Center: 500 mm; Lifting Speed (Loaded / Unloaded): 400/420 mm/s; Engine power: 35.4 kW; indicated hours 2914; Has side shift forks

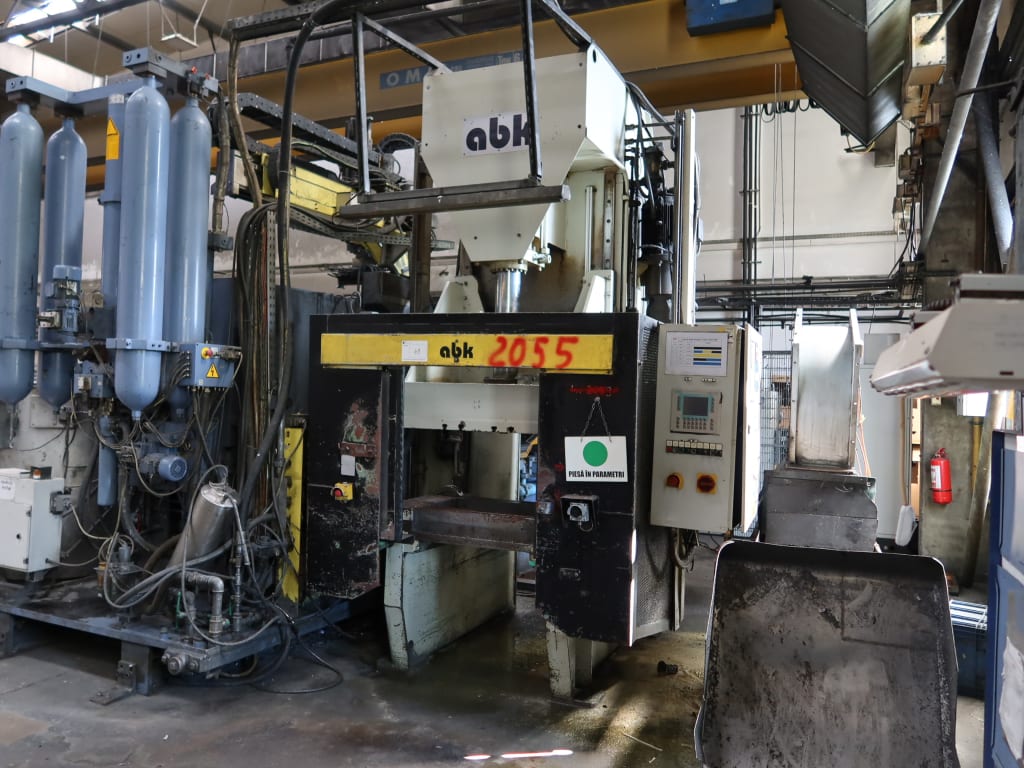

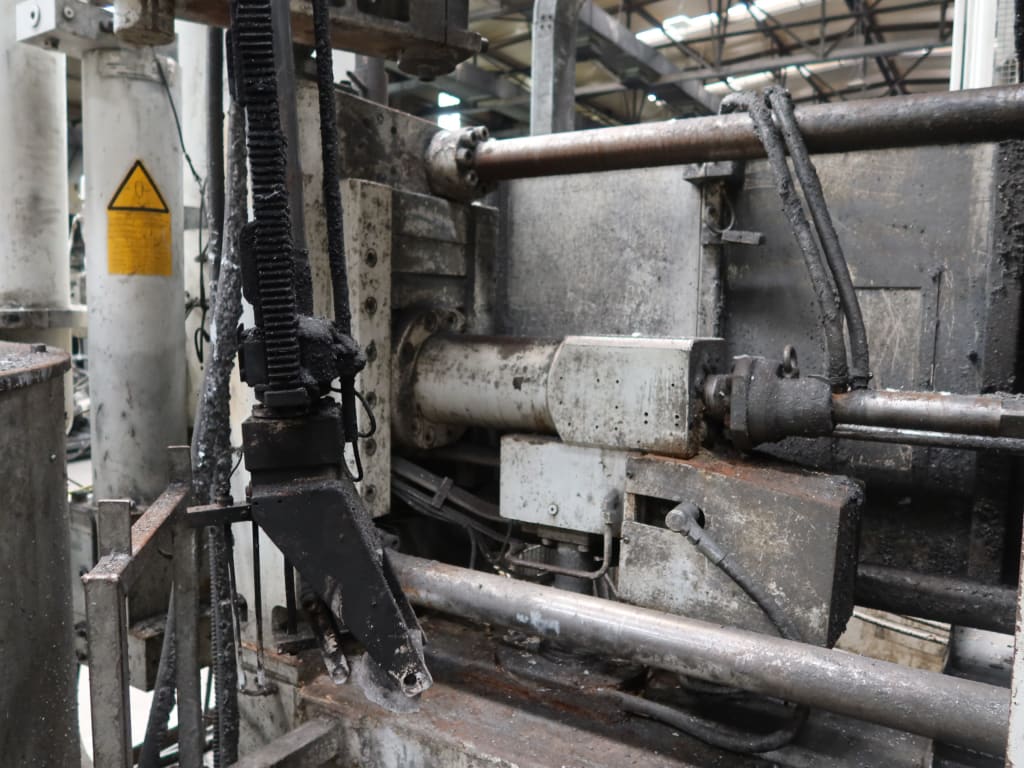

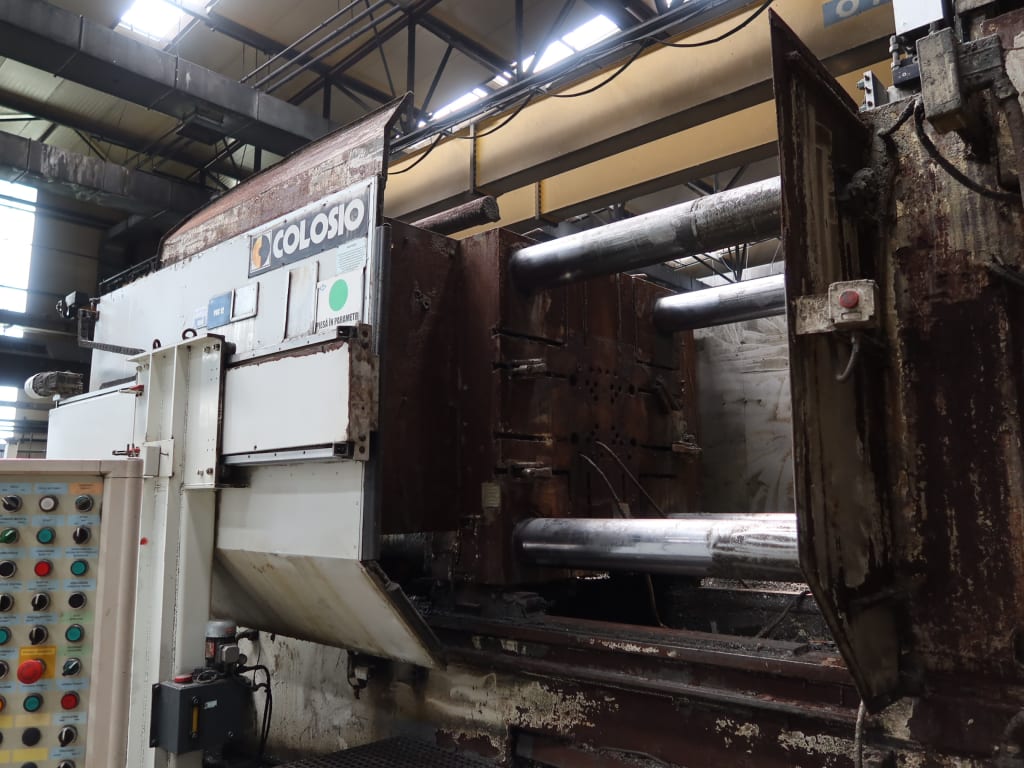

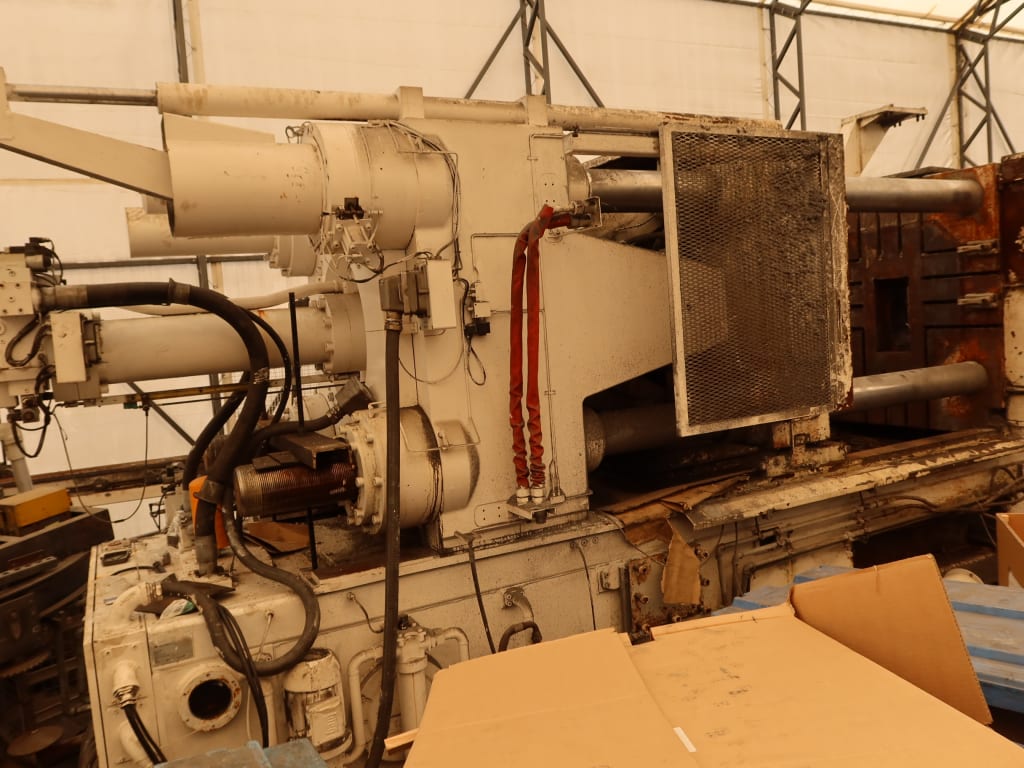

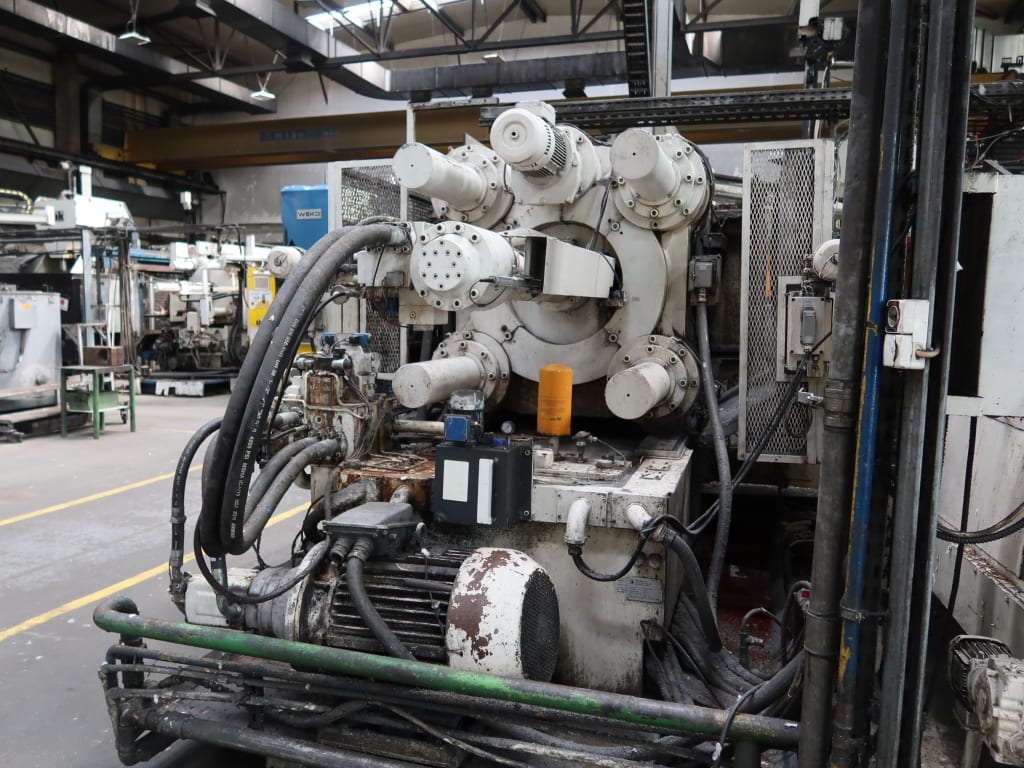

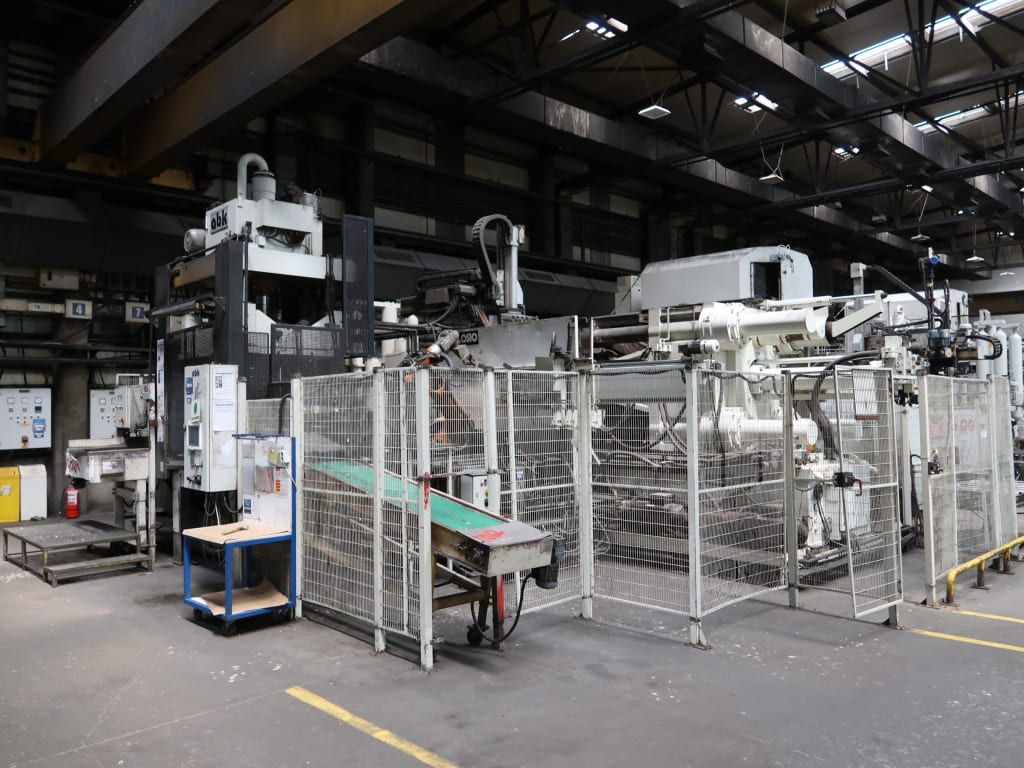

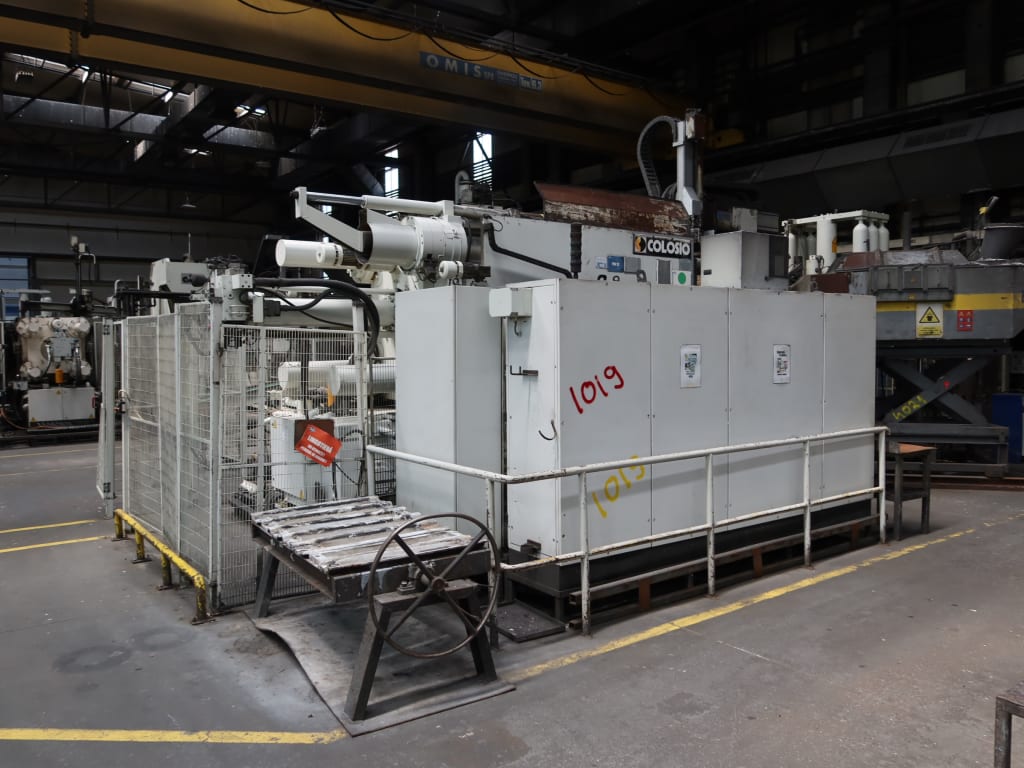

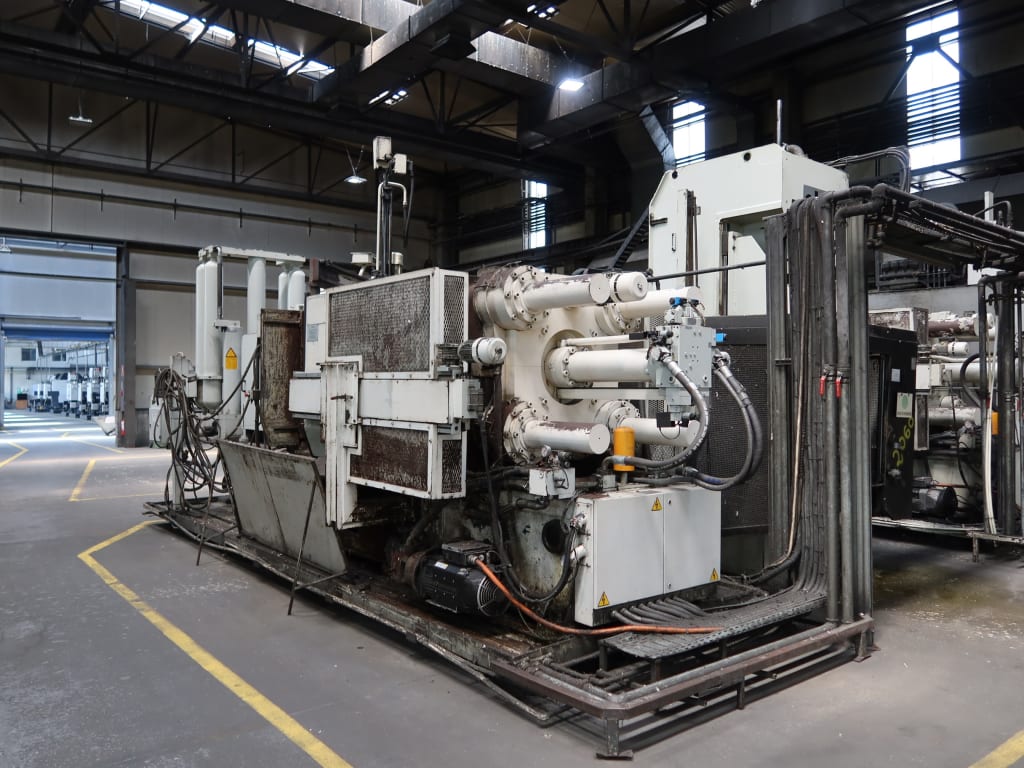

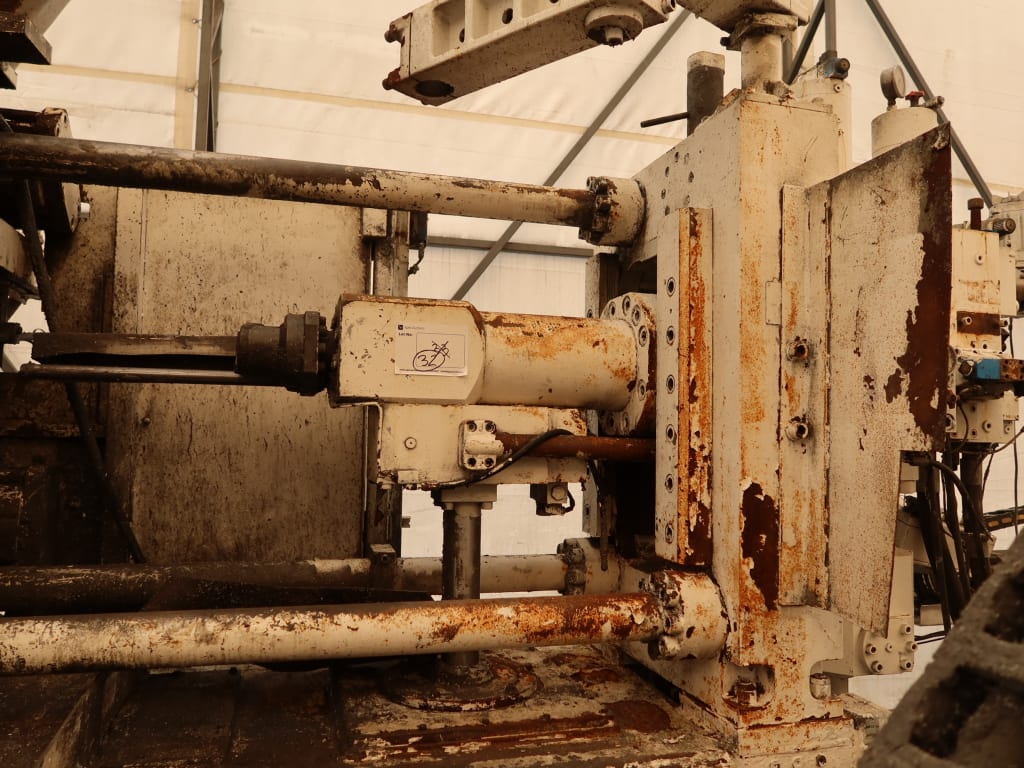

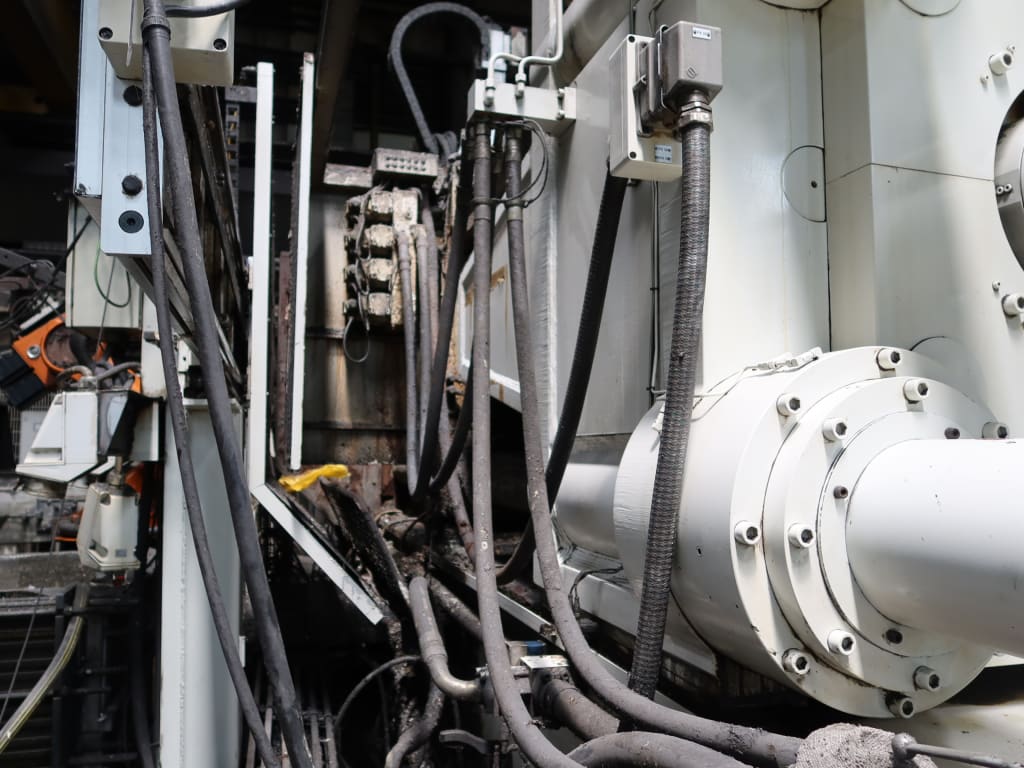

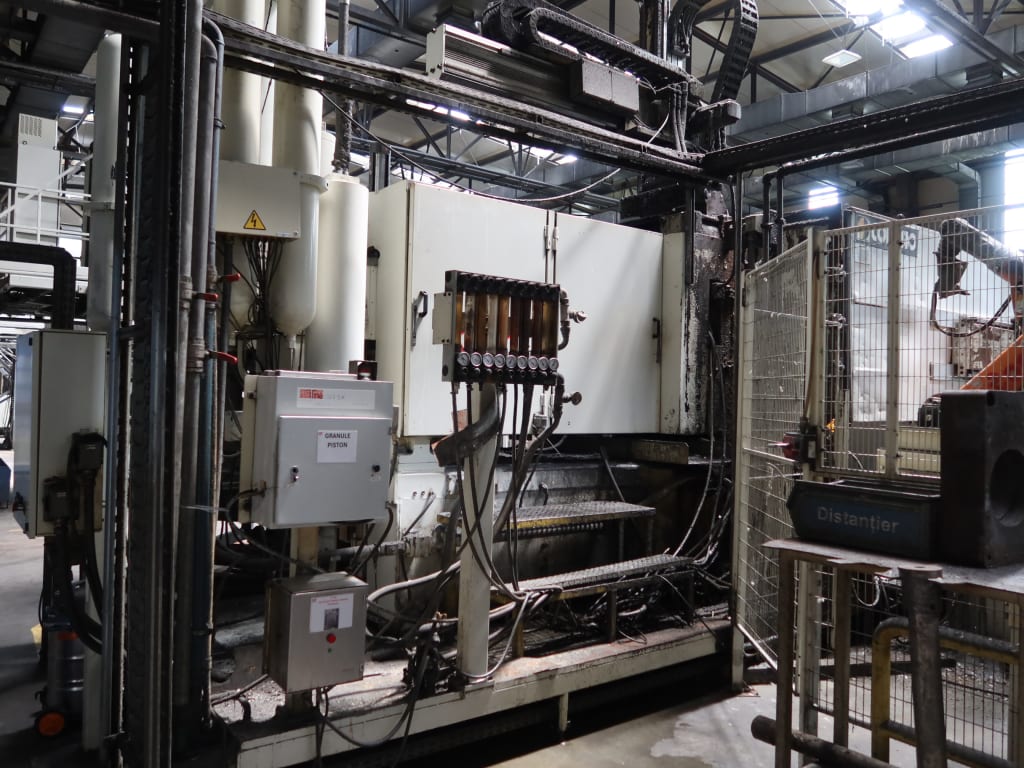

This lot consists of two complete die casting cells, dismantled, as follows: Die Casting Machine Colosio PFO 750, Year 2018; Hydraulic Press ABK-CP35; Melting Oven: Hindenlang SWLE-750, Year 2013; Spraying Robot AED DAG 1000; Industrial Robot Kuka KR 60; Spraying Robot: AED DAG 1000, Hydraulic Press; Die Casting Machine Colosio PFO 560 GL 2014; Command panel PDC 11; Industrial Robot Kuka;

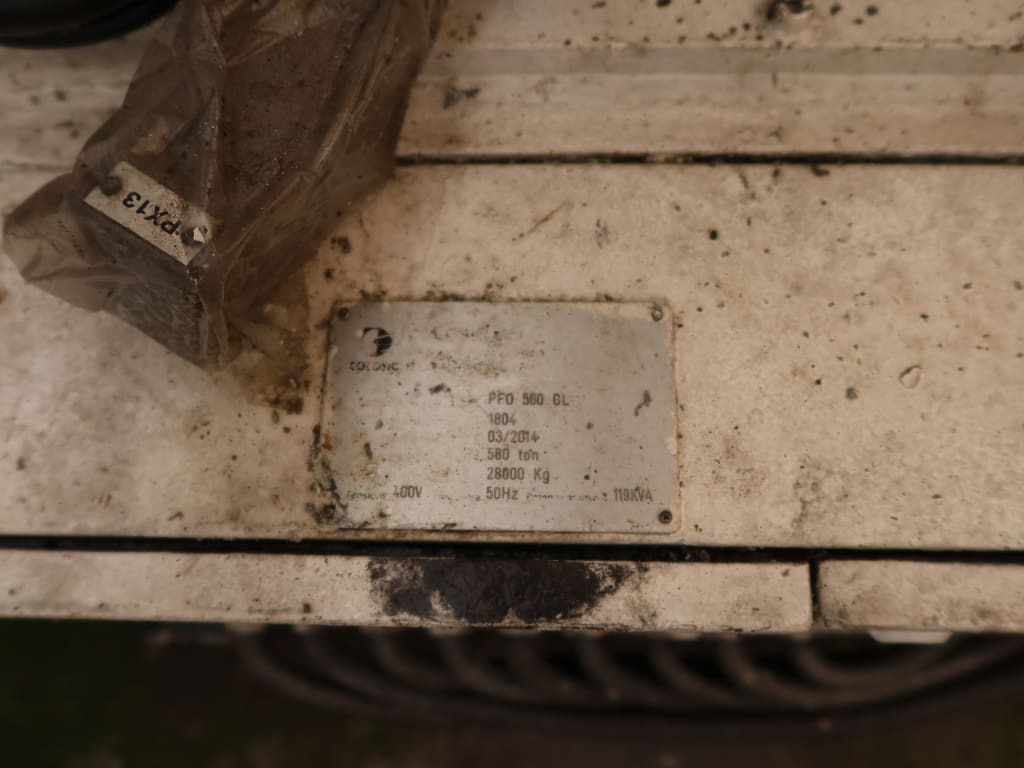

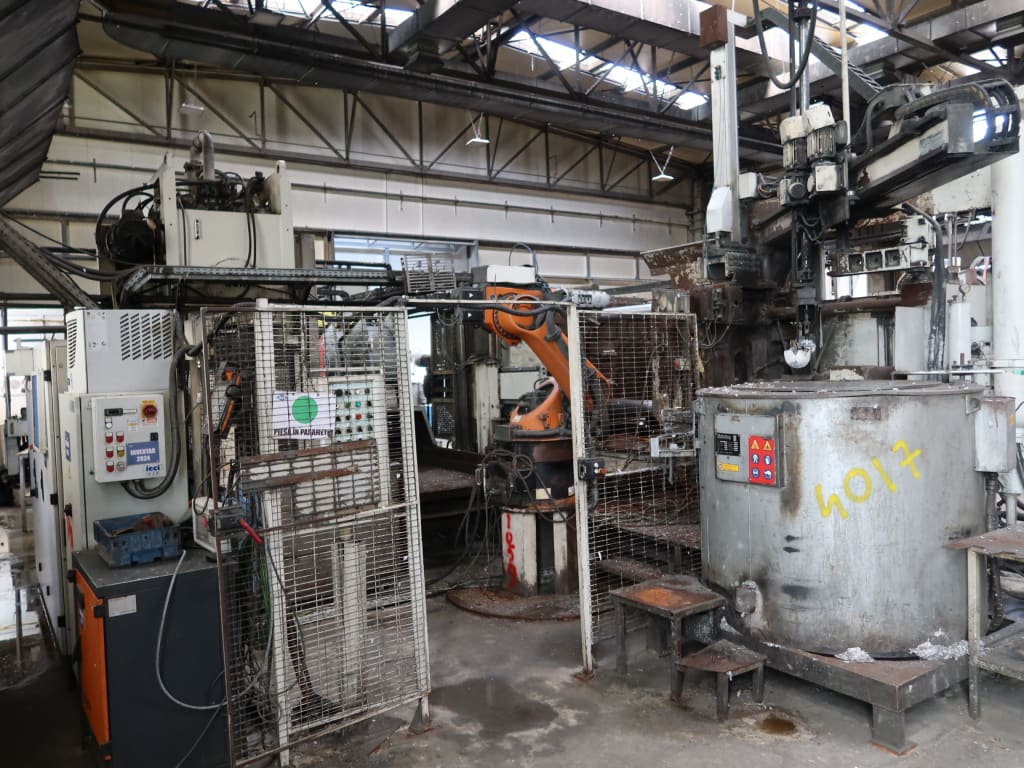

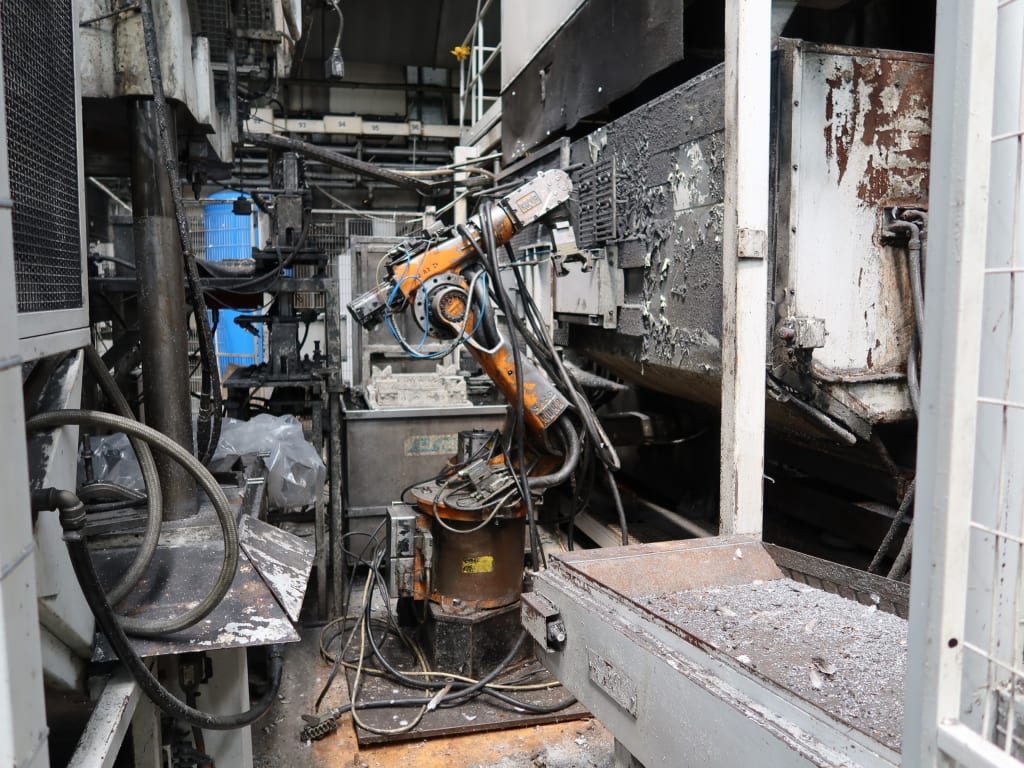

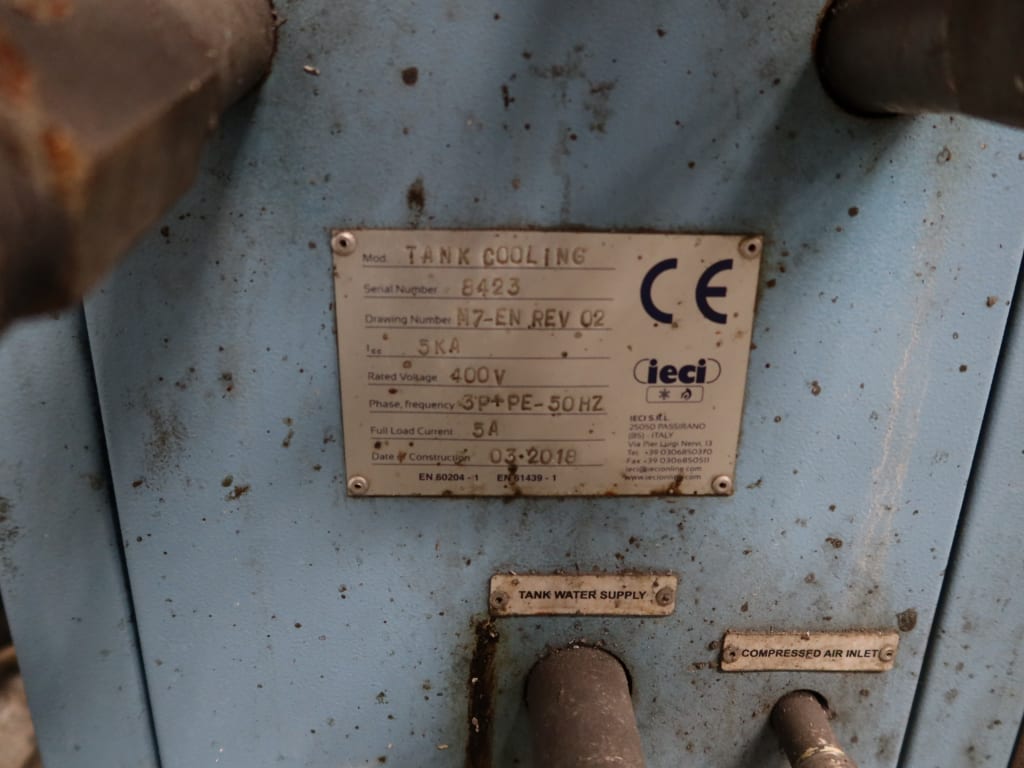

Line consisting of: A) Colosio PFO 560 GL; B) Kuka KR60- 3F Robot; C) ABK-CP35 Hydraulic Press; D) Ieci Cooling Tank; E) AED DAG 1000 Spray Robot; Does not contain: Hindenlang SWLE-750 Melting Furnace Inv. Nr: 4017; Does not contain: Granule Piston Inv Nr. 5001; A) Equipped with Green Line Motors Bosch - RexRoth, with inverters; Locking force: 580 ton; Opening force: 14.58 ton; Maximum injection force: 55.7 ton; Minimum injection force: 15.8 ton; Central ejection force: 27.1 ton; Backward central ejection force: 16.1 ton; Maximum movable platen stroke: 720 mm; Minimum movable platen stroke: 360 mm; Injection stroke: 500 mm; Central ejection stroke: 170 mm; Maximum die height: 850 mm; Minimum die height: 350 mm; Distance between tie bars: 715 mm; External platen dimensions: 1120 x 1148 mm; Tie bar diameter: 145 mm; Maximum projected area (400 kg/cm²): 1450 cm²; Maximum empty cycles: 8 cycles/min; Work pressure: 140 bar; Tank capacity: 1600 l; Number of injection positions / difference: 3 / -30, -80, -120, -150, -190, -240 mm; Maximum casting weight (Al): 9.2 kg; Minimum die dimensions: 470 x 470 mm; Machine dimensions (W x L x H): 2390 x 7614 x 3135 mm; Total machine weight (machine only): 24,600 kg; Nitrogen accumulator pre-charge pressure: 120 bar; Multiplier nitrogen accumulator pre-charge pressure: 130 bar; B) Payload: 60 kg; Maximum reach: 2033 mm; Number of axes: 6; Repeatability: ± 0.06 mm; Robot weight: approx. 665 kg; Mounting position: Floor; Controller: CR C4 with serial number 11038316 and command console; Axis 1 (J1): Motion range ± 185°, speed 128°/s; Axis 2 (J2): Motion range +35° / -135°, speed 102°/s; Axis 3 (J3): Motion range +158° / -120°, speed 128°/s; Axis 4 (J4): Motion range ± 350°, speed 260°/s; Axis 5 (J5): Motion range ± 119°, speed 245°/s; Axis 6 (J6): Motion range ± 350°, speed 322°/s; Controller type: KUKA KR C4. C) Pressing Force: 343 kN (nominal capacity of 35 metric tons); Controller Siemens; Overall height: 3400 mm; Base length: 1290 mm; Lower frame height: 950 mm; Tool center Height from Floor: Approx. 900 mm; Upper Opening Height Indicated: 600 mm; Overall Width: 1900 mm; Internal Opening Width: 1200 mm; Height to lower working level: 1150 mm; Upper Tool centering diameter: Ø50 mm D) Capacity: 1000 L; E) Machine type: 2-axis die spraying equipment (horizontal/vertical); Press Size Compatibility: 500 to 2000 Tons locking force; Vertical Stroke Range: 1200 mm to 2000 mm; Horizontal Stroke Range: 1000 mm to 2000 mm; Lubricant Control: Up to 2 proportional valves for varying mixtures; Operating Purpose: Cyclical treatment of die surfaces to cool, lubricate, and clean molds;

Line consisting of: A) Colosio PFO 600 REV; B) Kuka KR60- 3F Robot; C) ABK-CP35 Hydraulic Press; D) Ieci Cooling Tank; E) AED DAG 1000 Spray Robot; Does not contain: Hindenlang SWLE-750 Melting Furnace A) Nominal force: 675 T; Clamping force: 620 T; Press force: 60.7 T; Minimum injection force: 21.5 T; Central ejection force: 33 T; Maximum adjustment of moving mold plate: 700 mm; Minimum adjustment of moving mold plate: 450 mm; Stroke: 625 mm; Maximum mold height: 850 mm; Minimum mold height: 350 mm; Distance between columns: 720 x 720 mm; External dimensions of mold plates: 1120 x 1120 mm; Column diameter: 150 mm; Maximum pressure area (400 kg/cm²): 1150 cm²; Number of cycles at idle: 6 cycles/min; Pump motor power: 37 kW; Operating pressure: 140 bar; Tank capacity: 1500 l; Maximum piece weight (Al): 10.5 kg; Minimum mold dimensions: 520 x 520 mm; Total weight: 29.000 kg. B) Payload: 60 kg; Maximum reach: 2033 mm; Number of axes: 6; Repeatability: ± 0.06 mm; Robot weight: approx. 665 kg; Mounting position: Floor; Controller: CR C4 with serial number 11038316 and command console; Axis 1 (J1): Motion range ± 185°, speed 128°/s; Axis 2 (J2): Motion range +35° / -135°, speed 102°/s; Axis 3 (J3): Motion range +158° / -120°, speed 128°/s; Axis 4 (J4): Motion range ± 350°, speed 260°/s; Axis 5 (J5): Motion range ± 119°, speed 245°/s; Axis 6 (J6): Motion range ± 350°, speed 322°/s; Controller type: KUKA KR C4. C) Pressing Force: 343 kN (nominal capacity of 35 metric tons); Controller Siemens; D) Capacity: 1000 L E) Machine type: 2-axis die spraying equipment (horizontal/vertical); Press Size Compatibility: 500 to 2000 Tons locking force; Vertical Stroke Range: 1200 mm to 2000 mm; Horizontal Stroke Range: 1000 mm to 2000 mm; Lubricant Control: Up to 2 proportional valves for varying mixtures; Operating Purpose: Cyclical treatment of die surfaces to cool, lubricate, and clean molds;

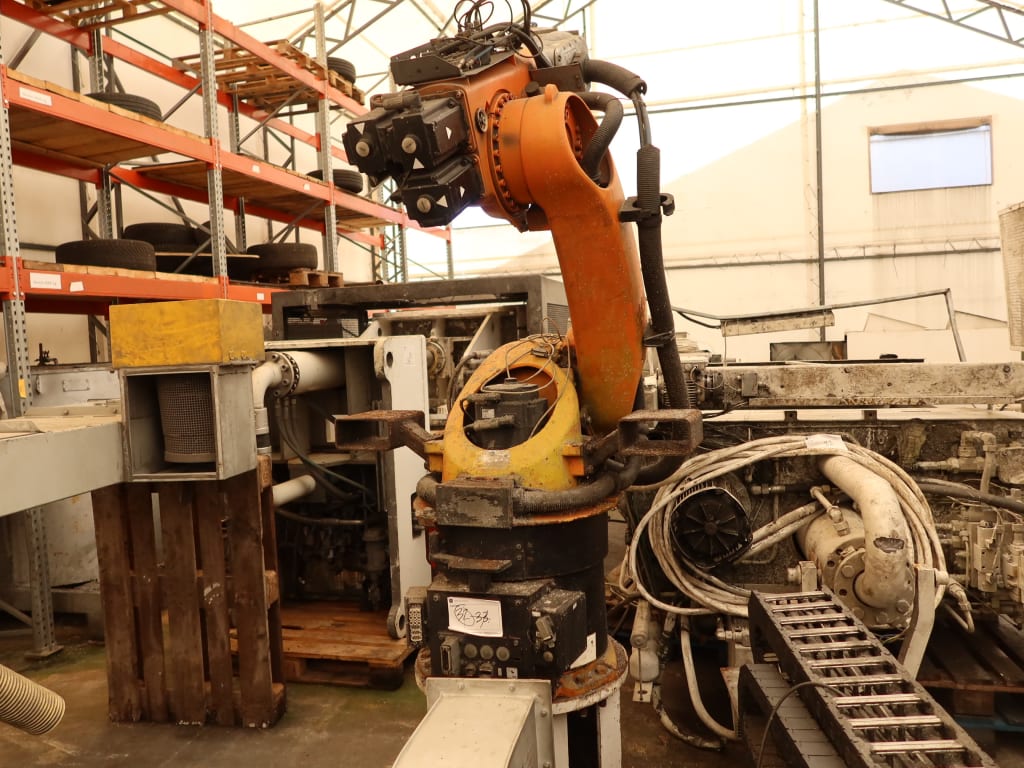

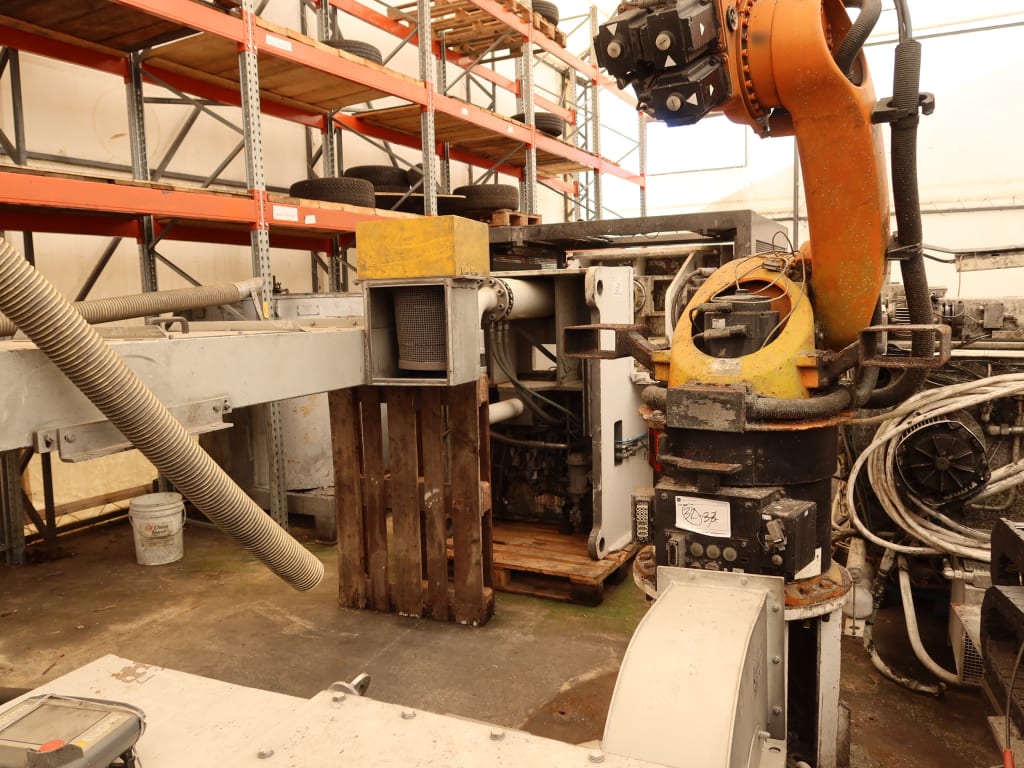

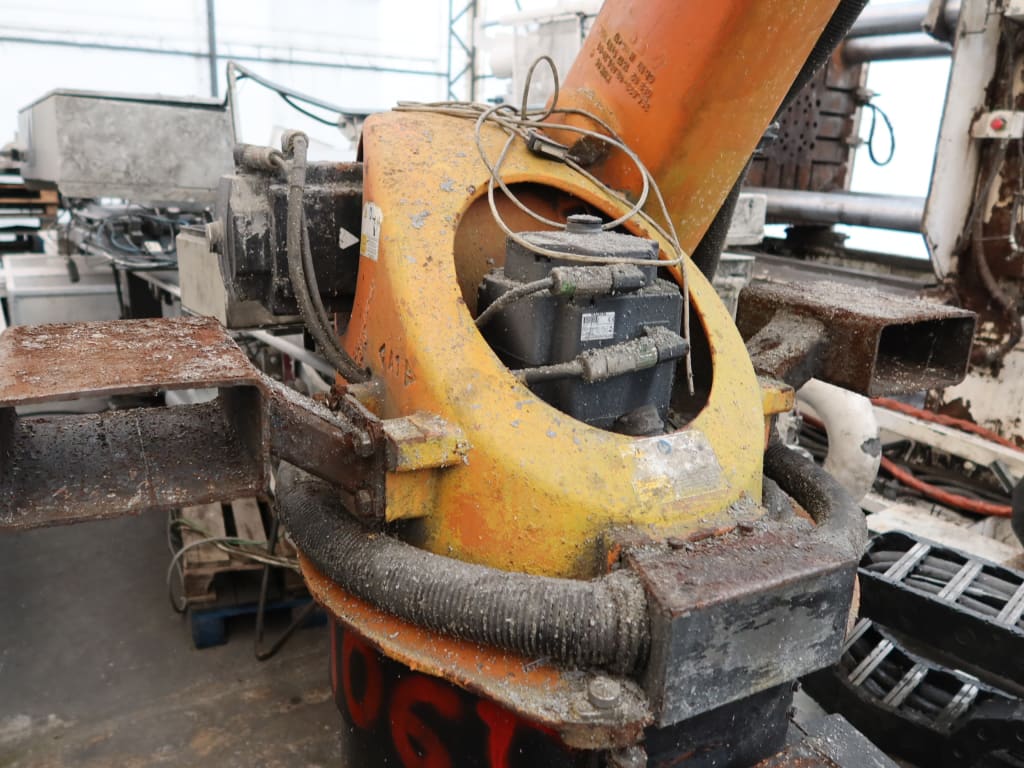

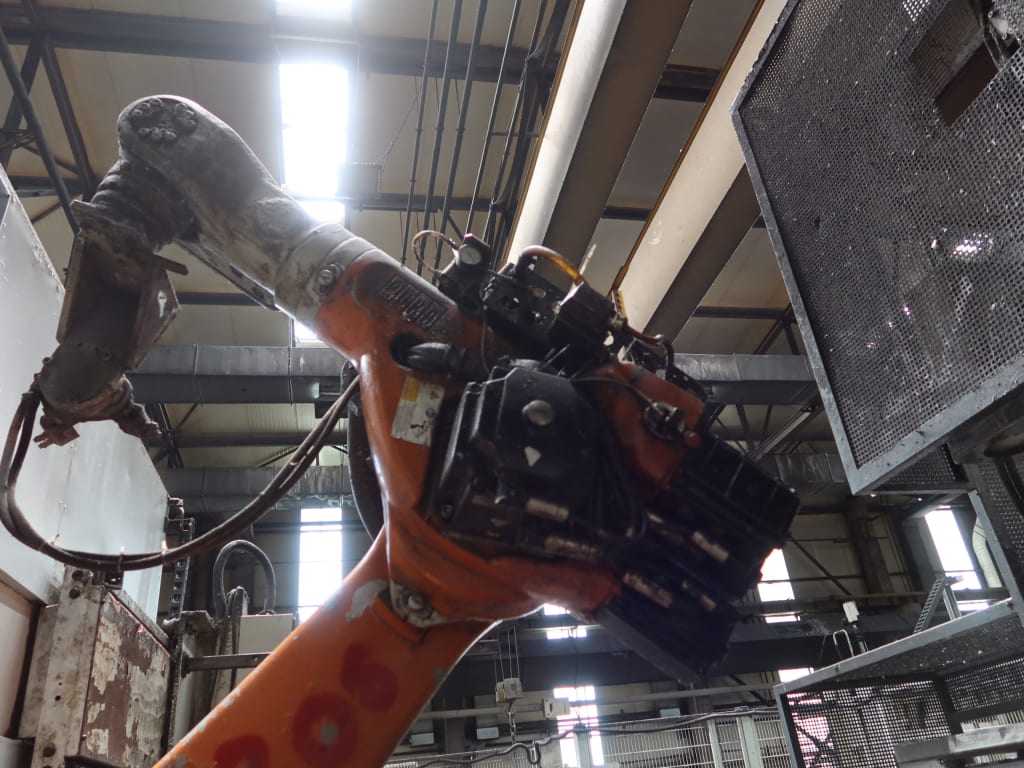

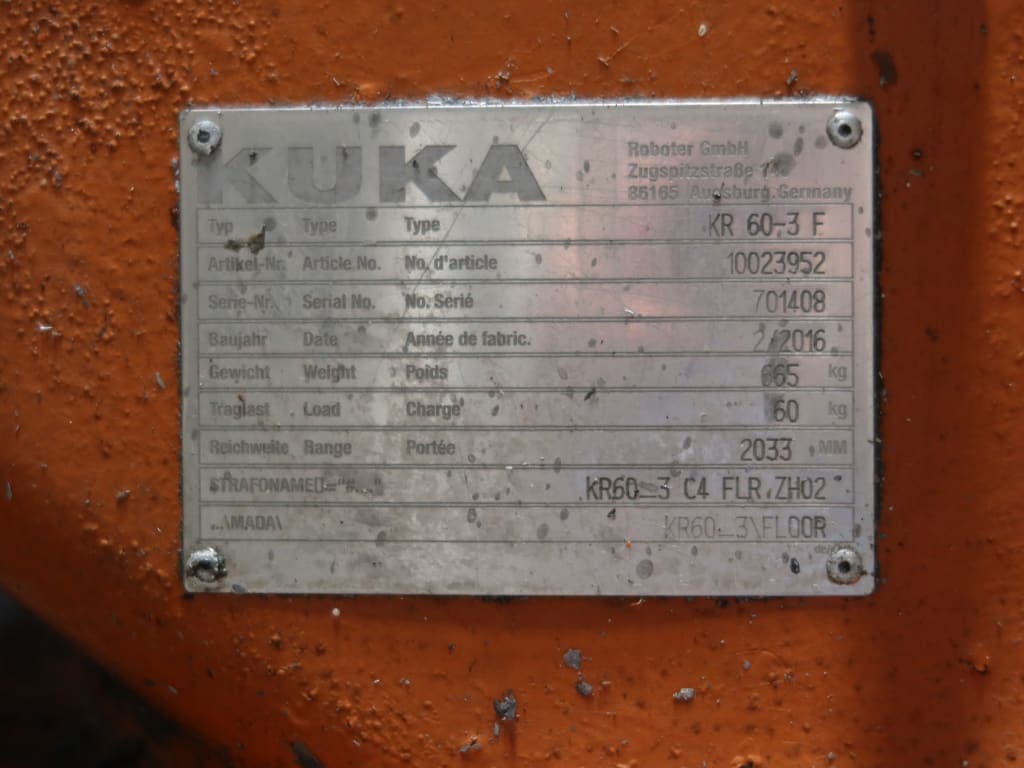

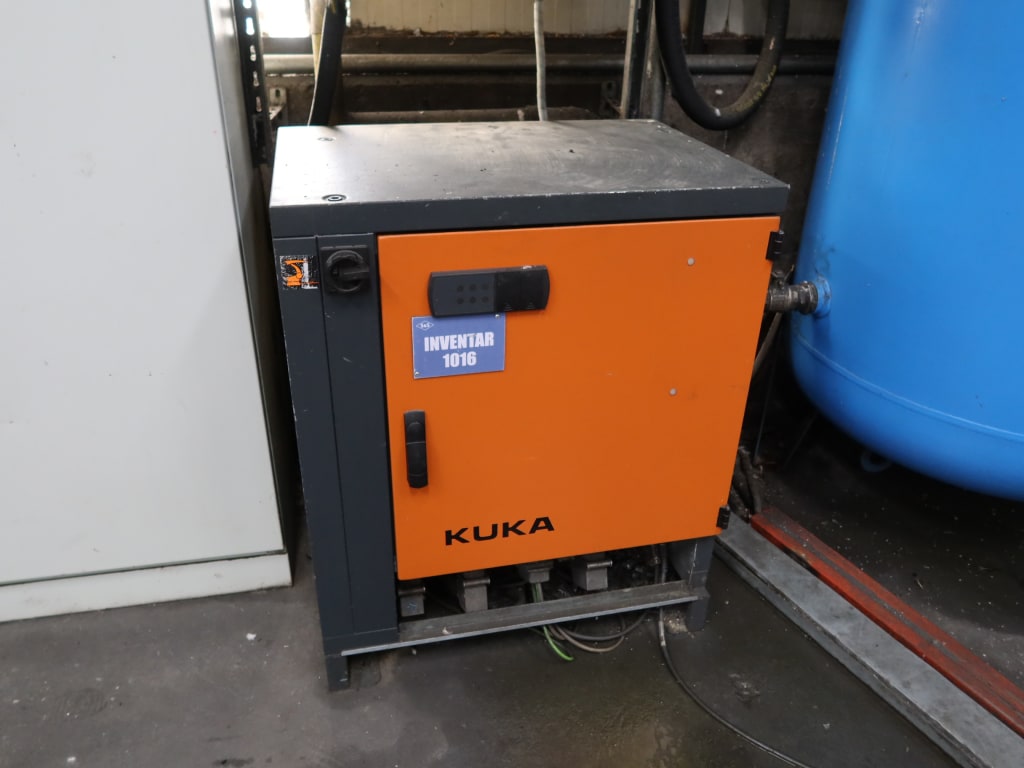

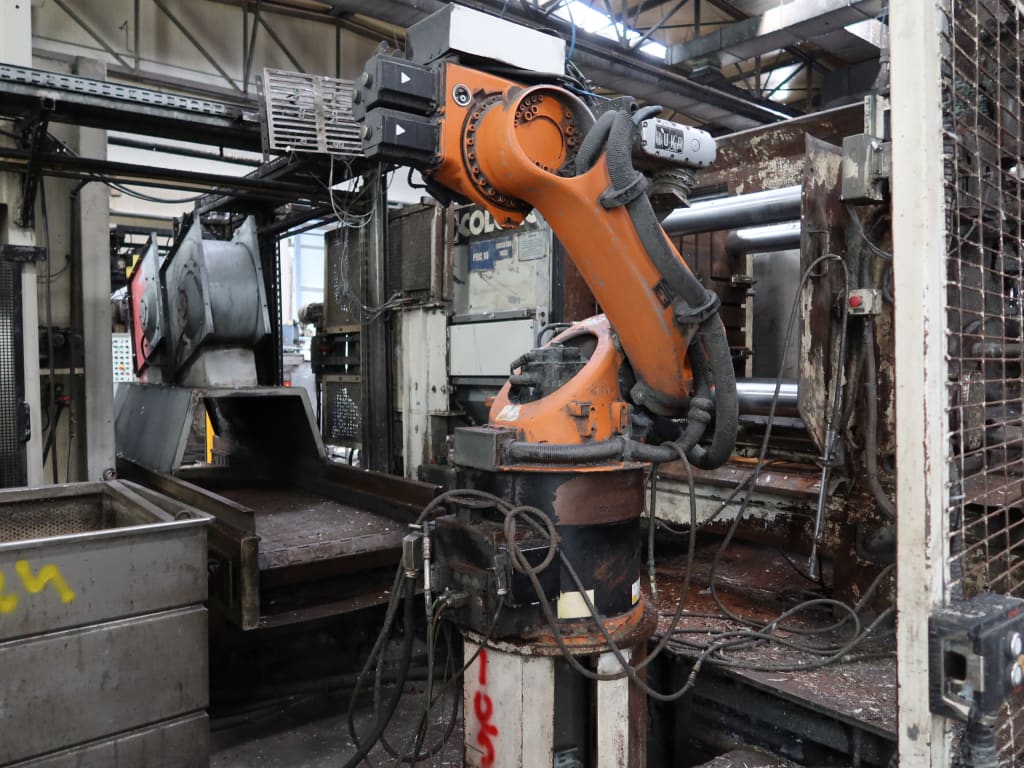

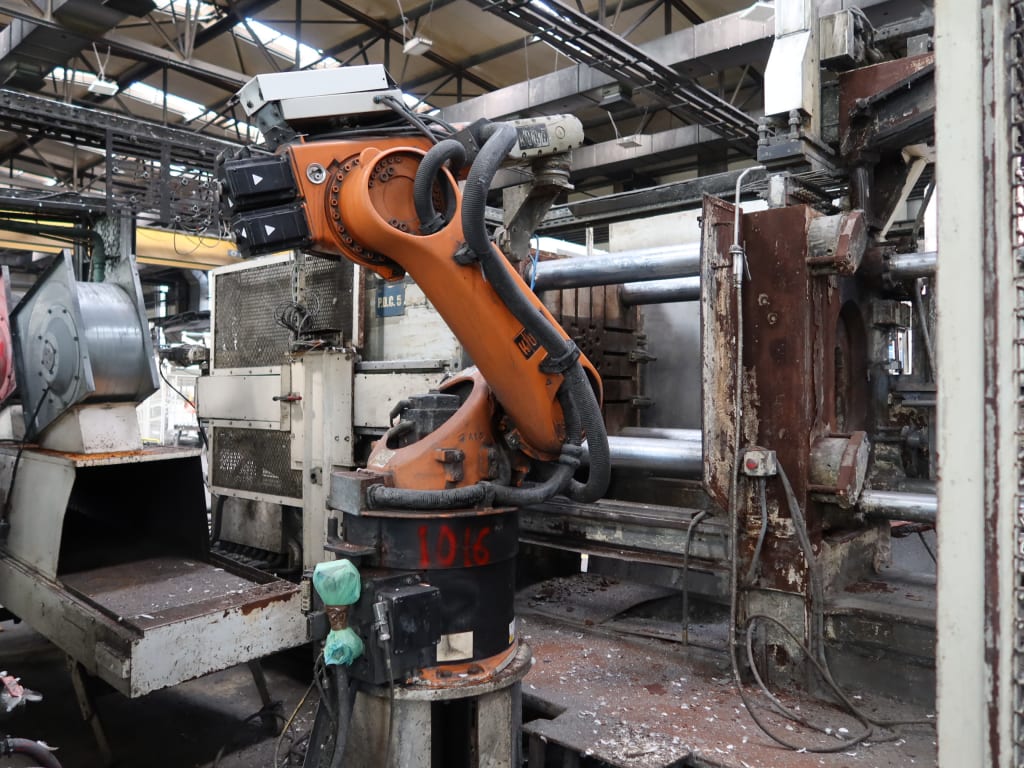

Composed of: A) Colosio PFO; B) Kuka Robot; C) Hindenlang SWLE- 500 Melting Furnace; D) ABK-CP35 Hydraulic Press; E) Relbo Director 150 Spraying machine A) 500 Tons B) Payload: 60 kg; Maximum reach: 2033 mm; Number of axes: 6; Repeatability: ± 0.06 mm; Robot weight: approx. 665 kg; Mounting position: Floor; Controller: CR C4 with serial number 11038316 and command console; Axis 1 (J1): Motion range ± 185°, speed 128°/s; Axis 2 (J2): Motion range +35° / -135°, speed 102°/s; Axis 3 (J3): Motion range +158° / -120°, speed 128°/s; Axis 4 (J4): Motion range ± 350°, speed 260°/s; Axis 5 (J5): Motion range ± 119°, speed 245°/s; Axis 6 (J6): Motion range ± 350°, speed 322°/s; Controller type: KUKA KR C4. C) Capacity: 500 kg; Maximum Temperature: 760 Degrees Celsius; Power: 41,5 kW D) Pressing Force: 343 kN (nominal capacity of 35 metric tons); Controller Siemens; Overall height: 3400 mm; Base length: 1290 mm; Lower frame height: 950 mm; Tool center Height from Floor: Approx. 900 mm; Upper Opening Height Indicated: 600 mm; Overall Width: 1900 mm; Internal Opening Width: 1200 mm; Height to lower working level: 1150 mm; Upper Tool centering diameter: Ø50 mm E) Robust spraying machine; Maximum spray head weight: 30 kg; Number of circuits: Up to 2 circuits; Vertical stroke: 1500 mm; Maximum vertical speed: 1.0 m/s; Acceleration: 2.6 m/s2

A) Colosio PFO 560; B) KMA Ultravent 2 Electrostatic Filter; C) Hindenlang SWLE 750 Melting Furnace; D) Kuka 6 - Axis Robot; E) Quenching Tank; F) Reis SEP 10-30 D III Trimming Press; A) Locking force: 580 ton; Opening force: 14.58 ton; Maximum injection force: 55.7 ton; Minimum injection force: 15.8 ton; Central ejection force: 27.1 ton; Backward central ejection force: 16.1 ton; Maximum movable platen stroke: 720 mm; Minimum movable platen stroke: 360 mm; Injection stroke: 500 mm; Central ejection stroke: 170 mm; Maximum die height: 850 mm; Minimum die height: 350 mm; Distance between tie bars: 715 mm; External platen dimensions: 1120 x 1148 mm; Tie bar diameter: 145 mm; Maximum projected area (400 kg/cm²): 1450 cm²; Maximum empty cycles: 8 cycles/min; Work pressure: 140 bar; Tank capacity: 1600 l; Number of injection positions / difference: 3 / -30, -80, -120, -150, -190, -240 mm; Maximum casting weight (Al): 9.2 kg; Minimum die dimensions: 470 x 470 mm; Machine dimensions (W x L x H): 2390 x 7614 x 3135 mm; Total machine weight (machine only): 24,600 kg; Nitrogen accumulator pre-charge pressure: 120 bar; Multiplier nitrogen accumulator pre-charge pressure: 130 bar; B) 2 - Stage filtration system: Demister and Electrostatic Precipitator (ESP); Automatic Clean-in-Place (CIP) washing system; C) Maximum Temperature: 760 Degrees Celsius; Power: 49.5 kW; Capacity: 750 kg D) 6 Axis E) 1000 L F) Pressing force: 300 kN; Design: 3 bars; Platen size: 1320 x 1085 mm; Table highness: 900 mm; distance between tie bars: 1320 x 705 mm; Ram stroke: 500 mm

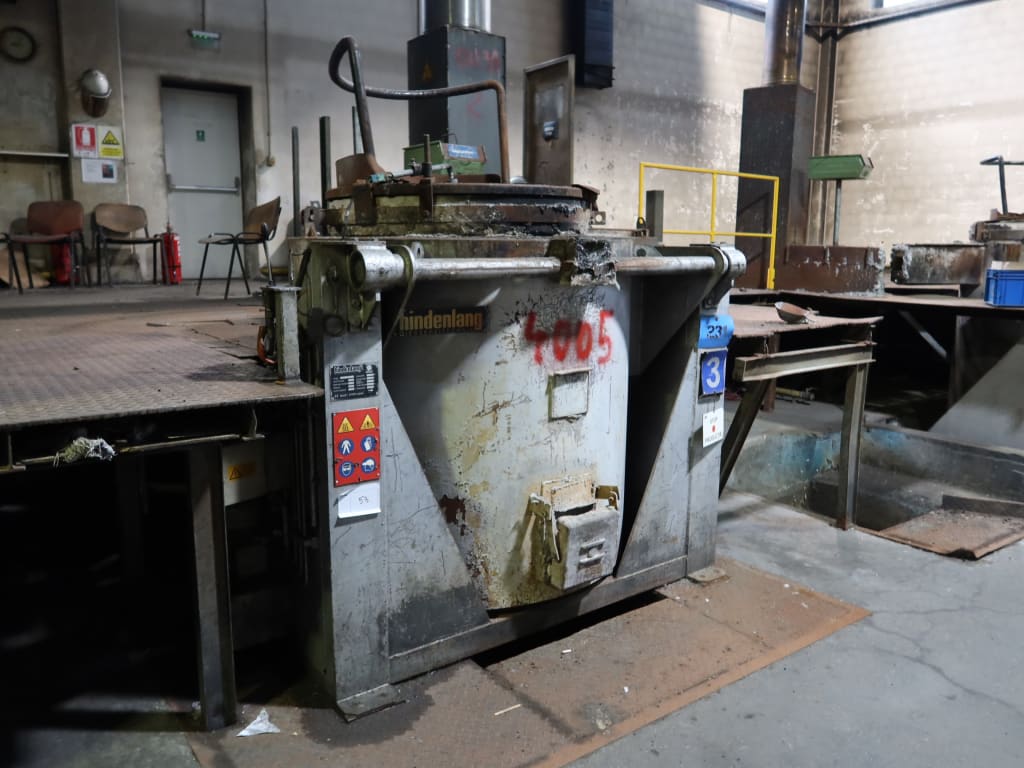

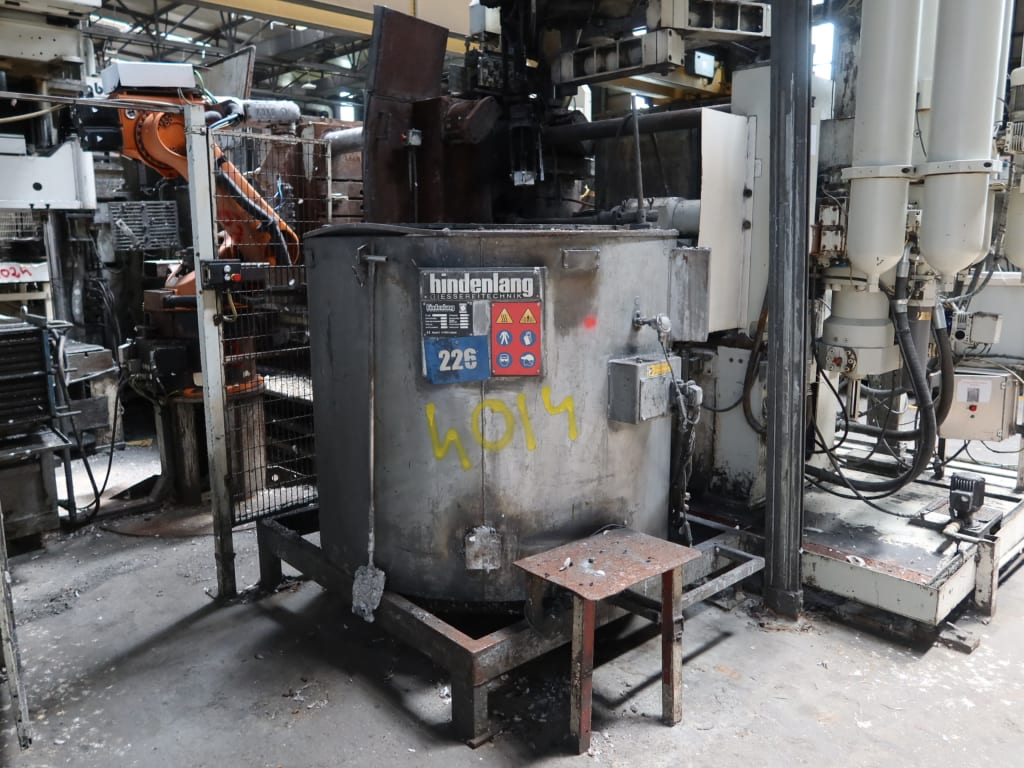

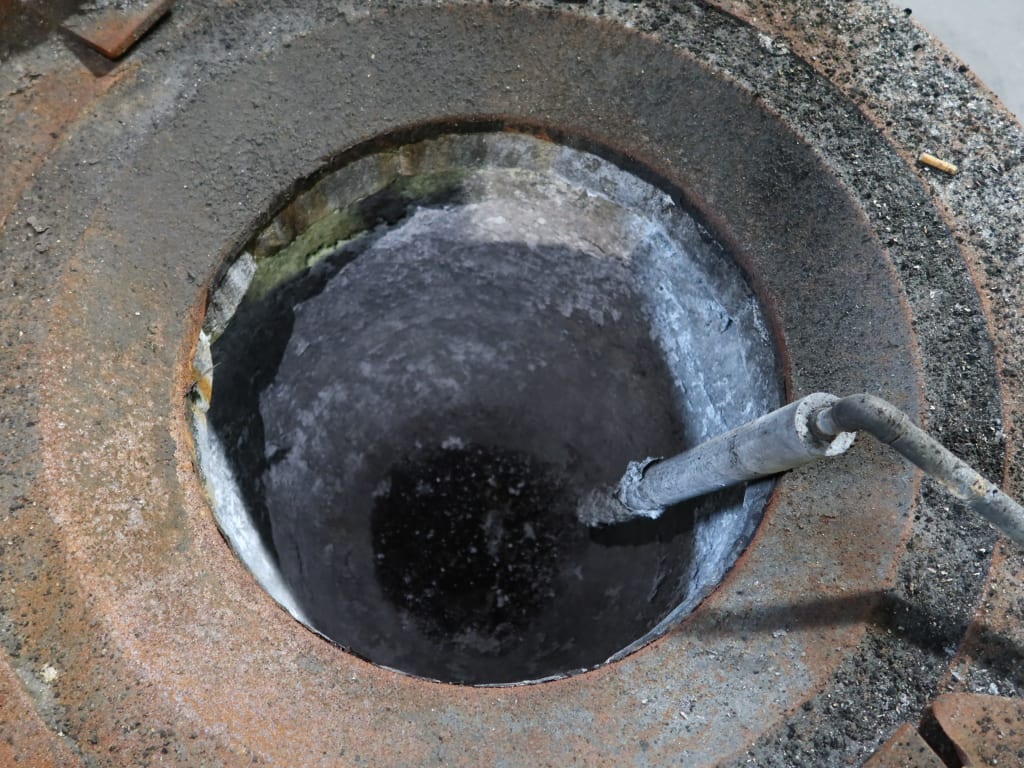

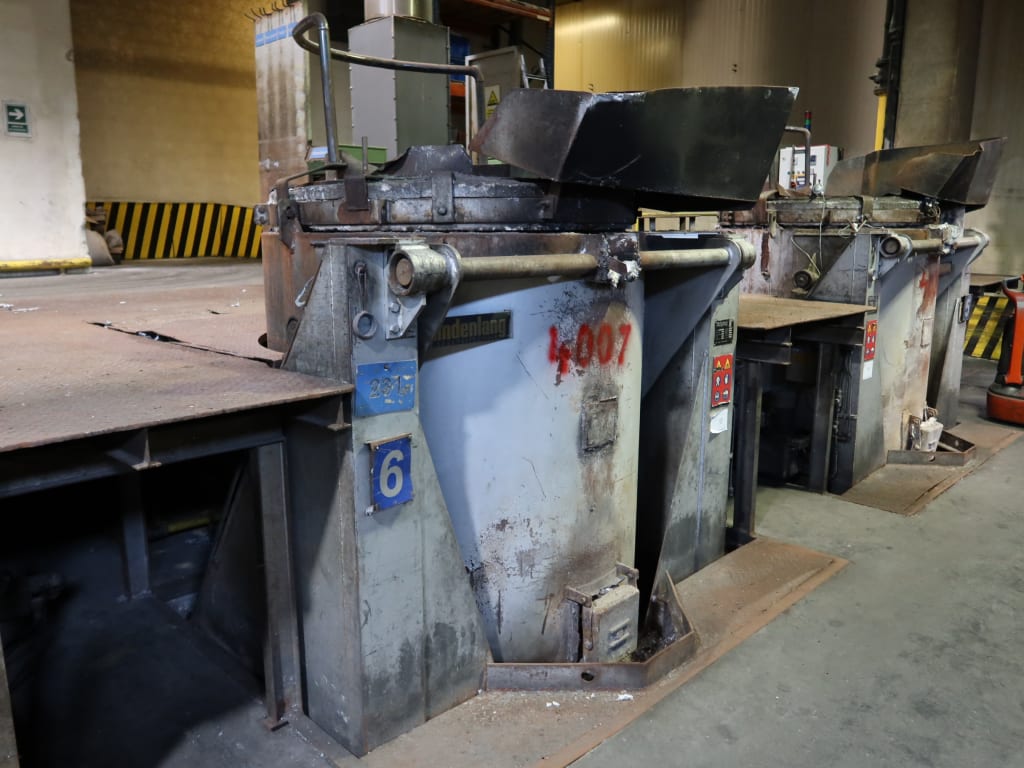

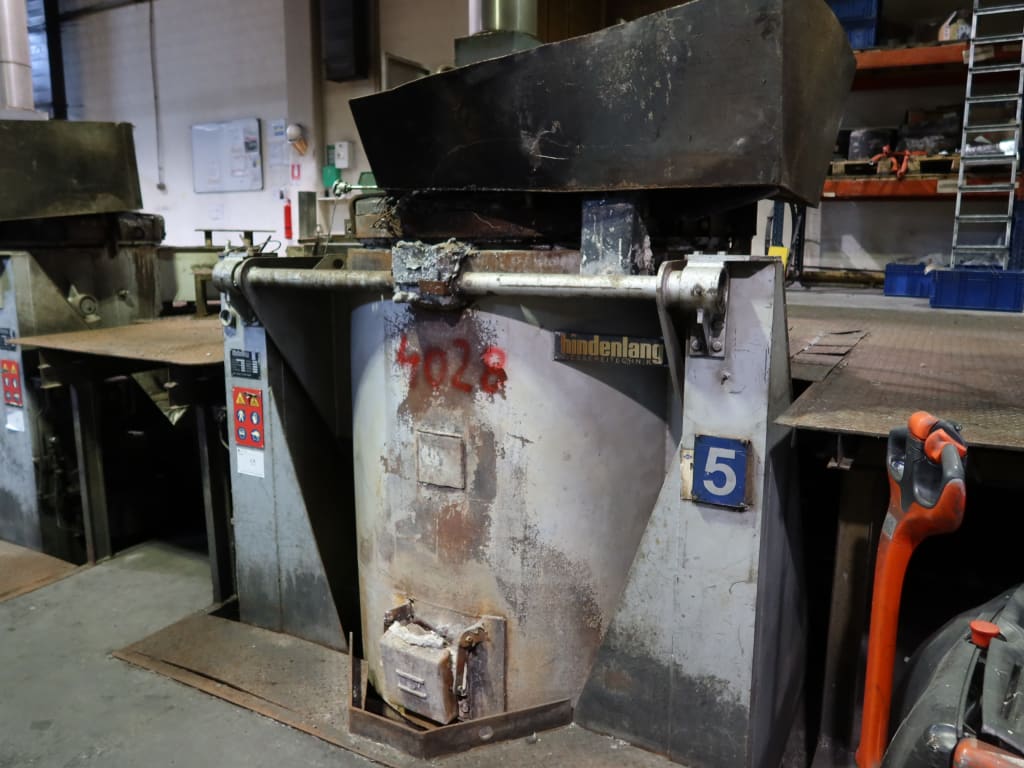

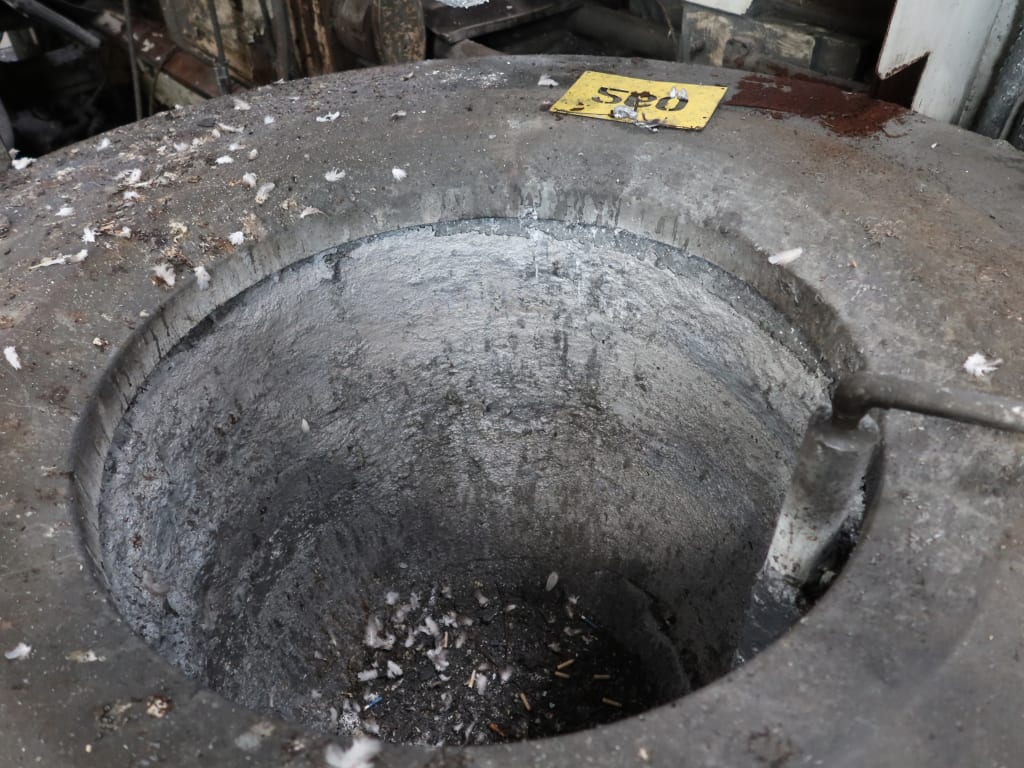

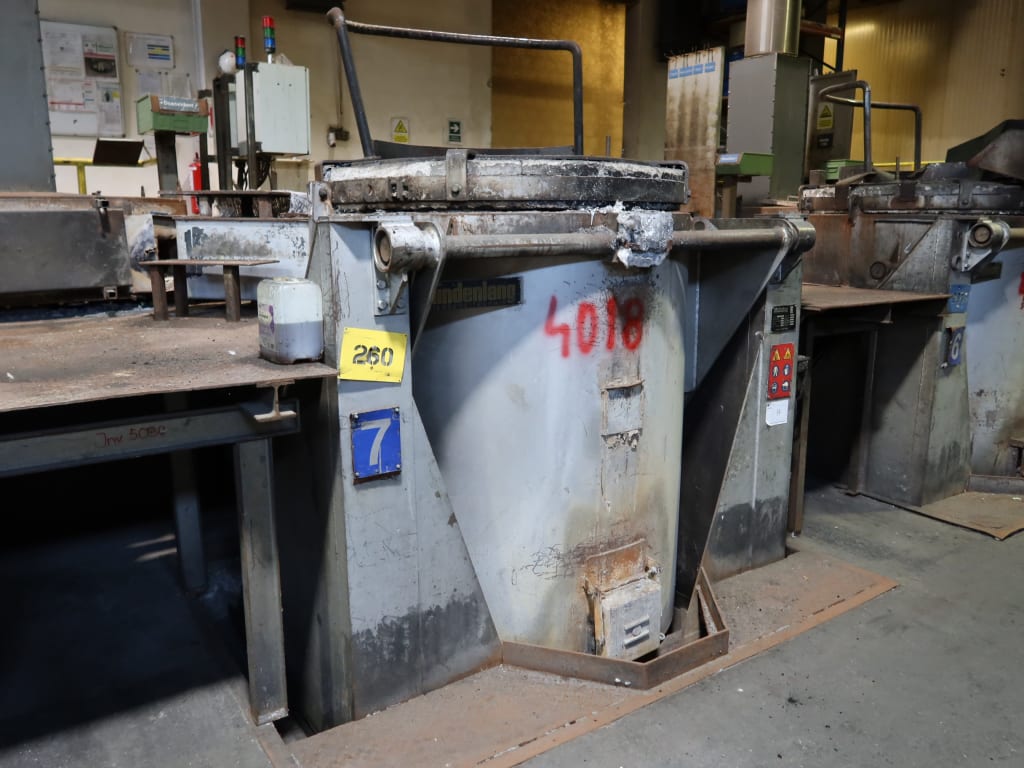

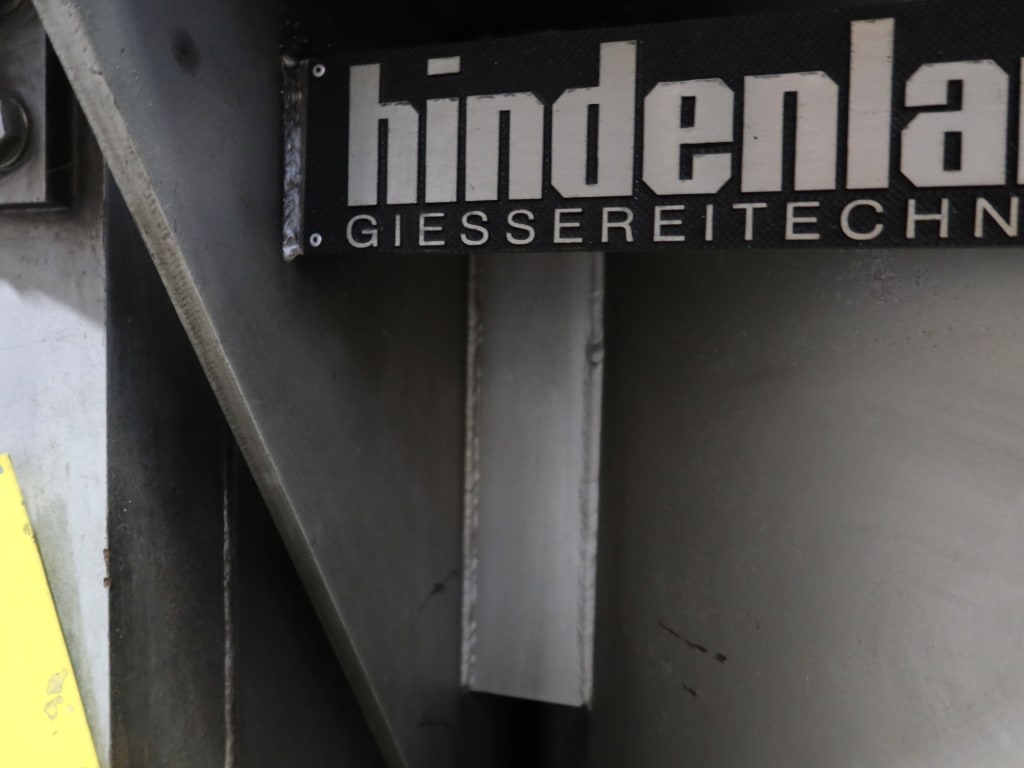

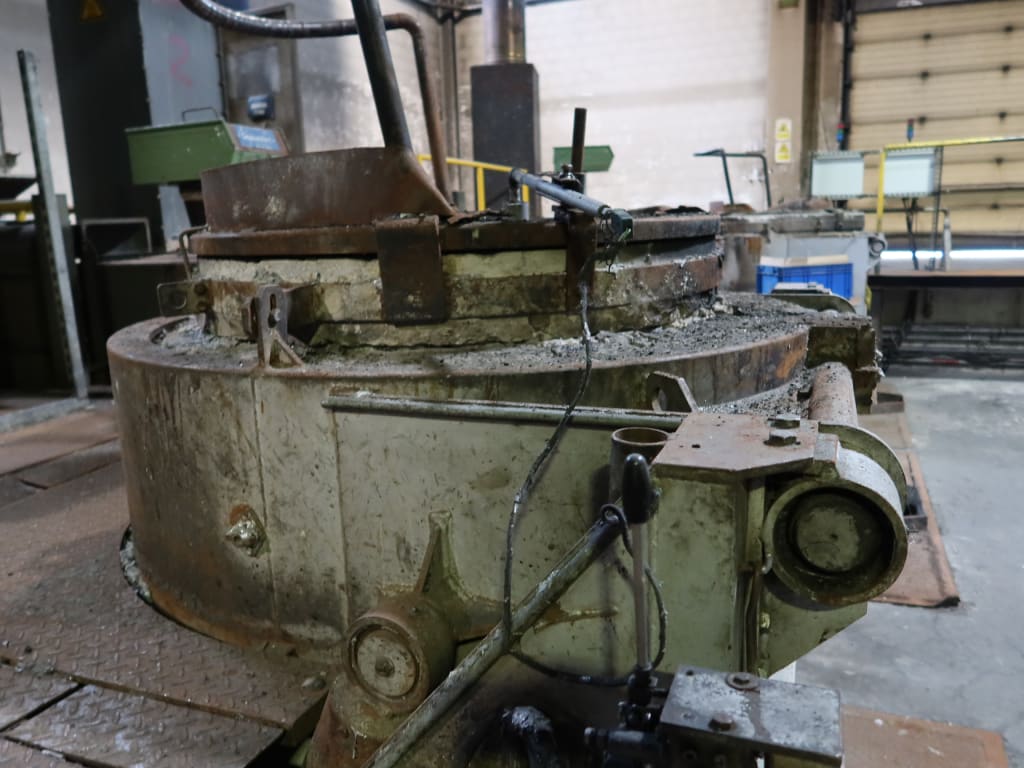

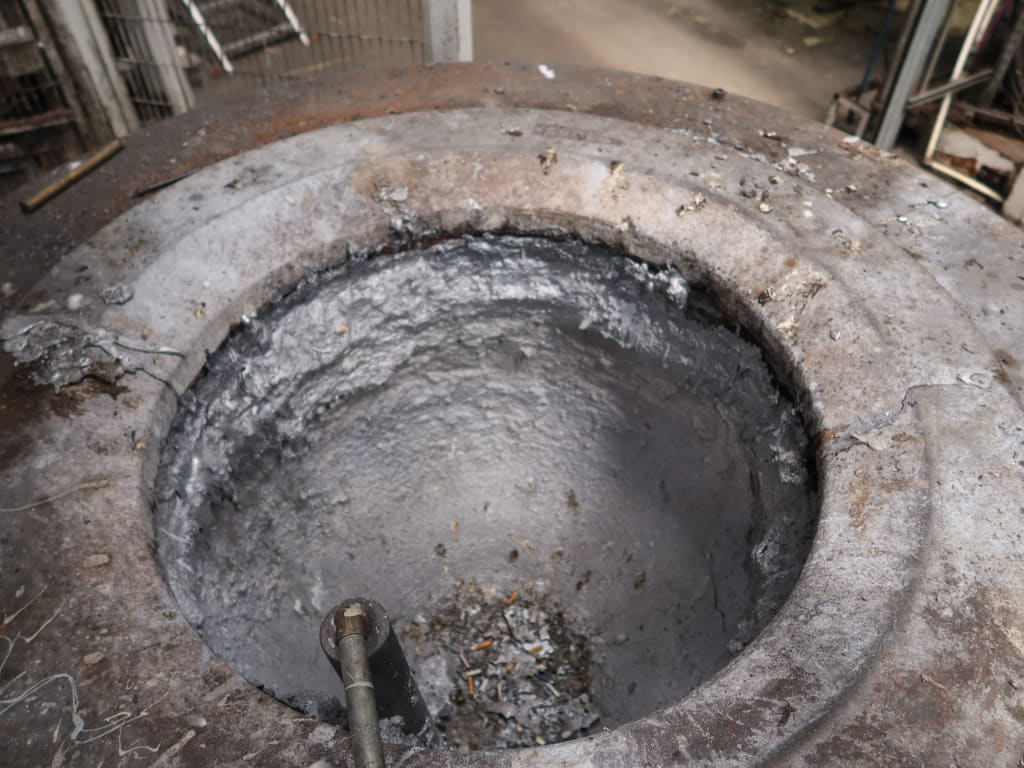

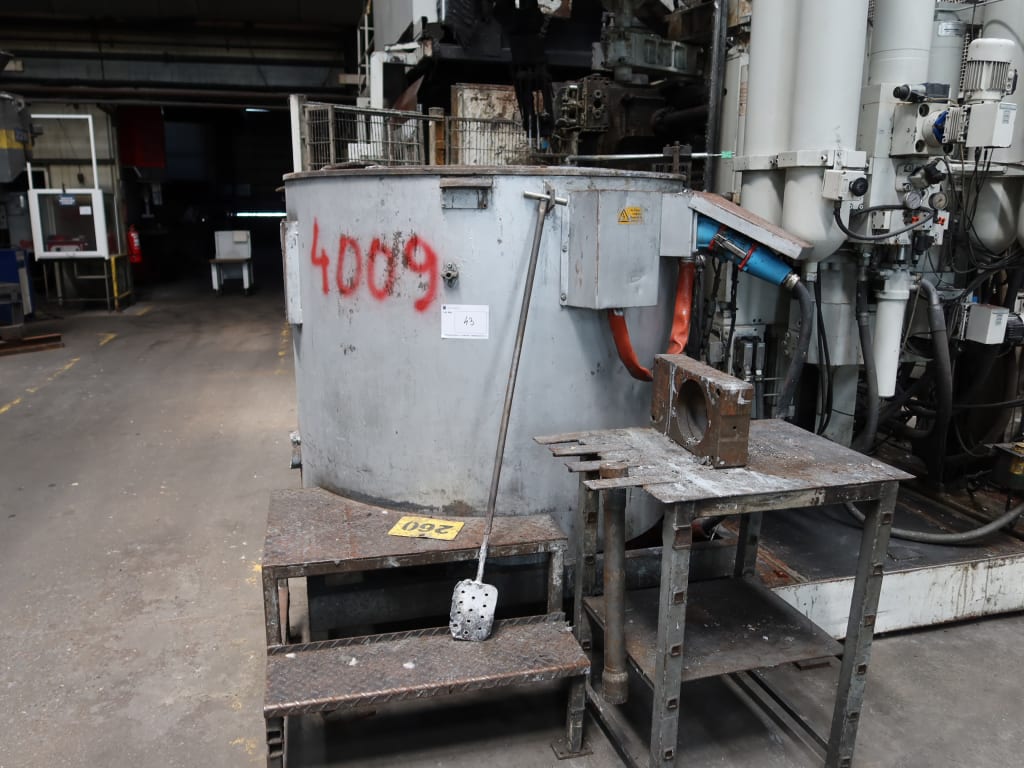

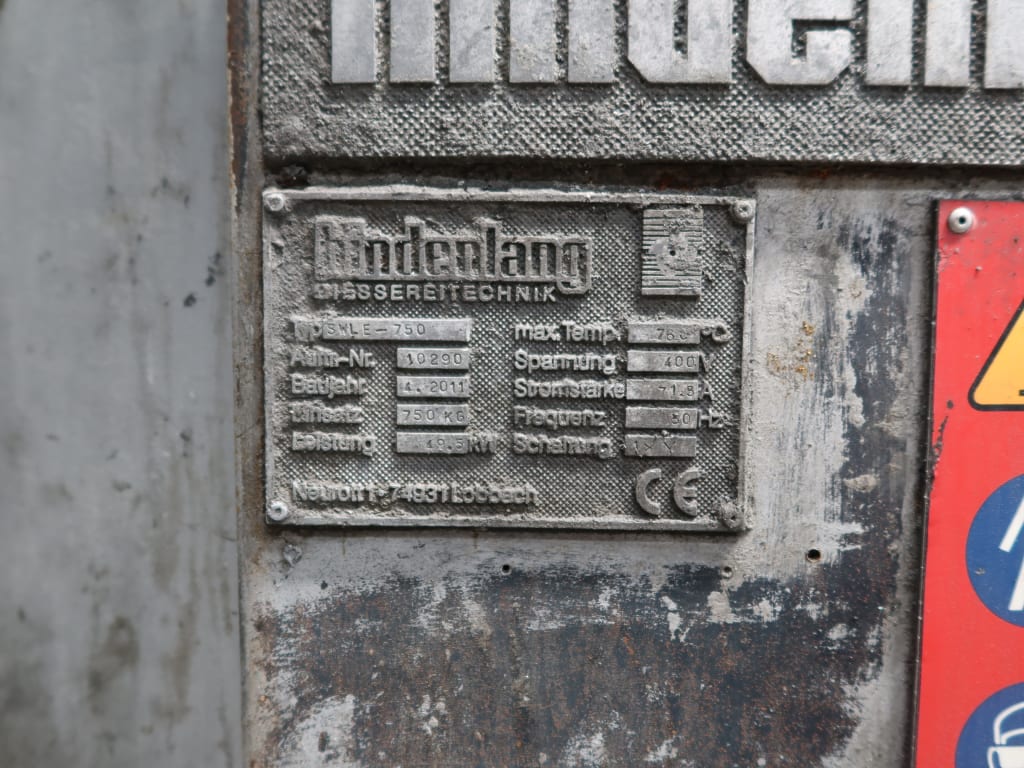

Electric resistance-heated holding furnace for molten light-metal (aluminium) alloys, manufacturer Hindenlang Gießereitechnik (Lobbach, Germany), type SWLE-750, ID no. 10290, year of manufacture 04/2011. Holding capacity 750 kg, max. temperature 760 °C. Power 49.5 kW, 400 V / 50 Hz, 71.5 A, circuit 1×Y. Crucible-type furnace, mounted on steel base frame with access platform. Complete with control system

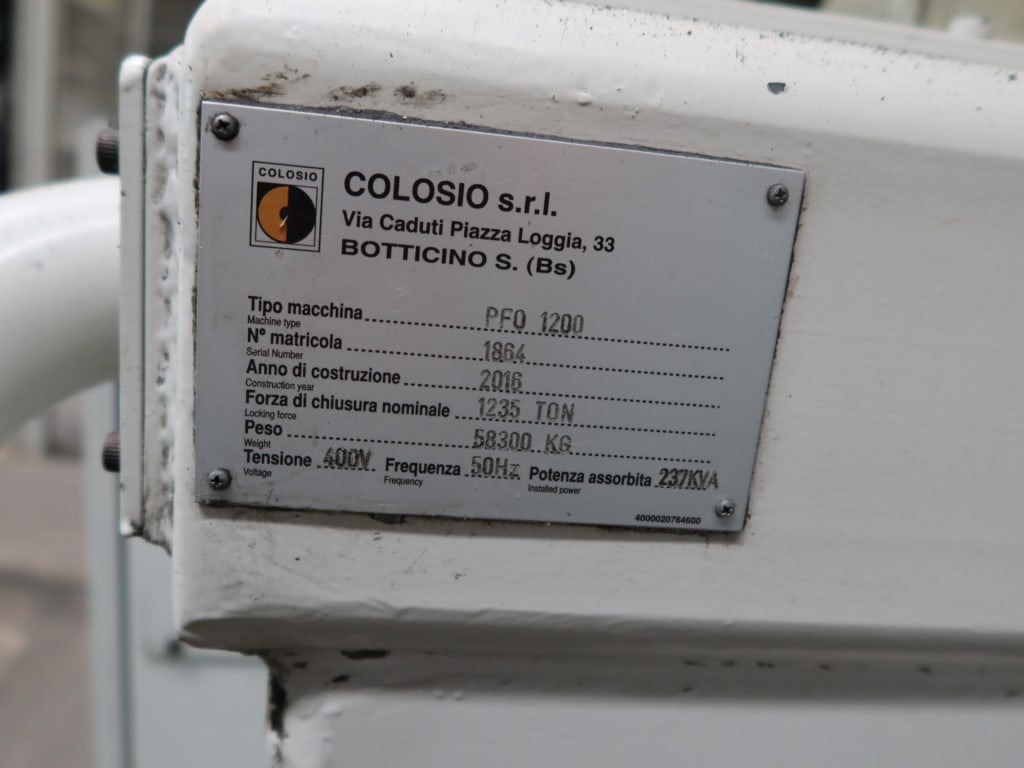

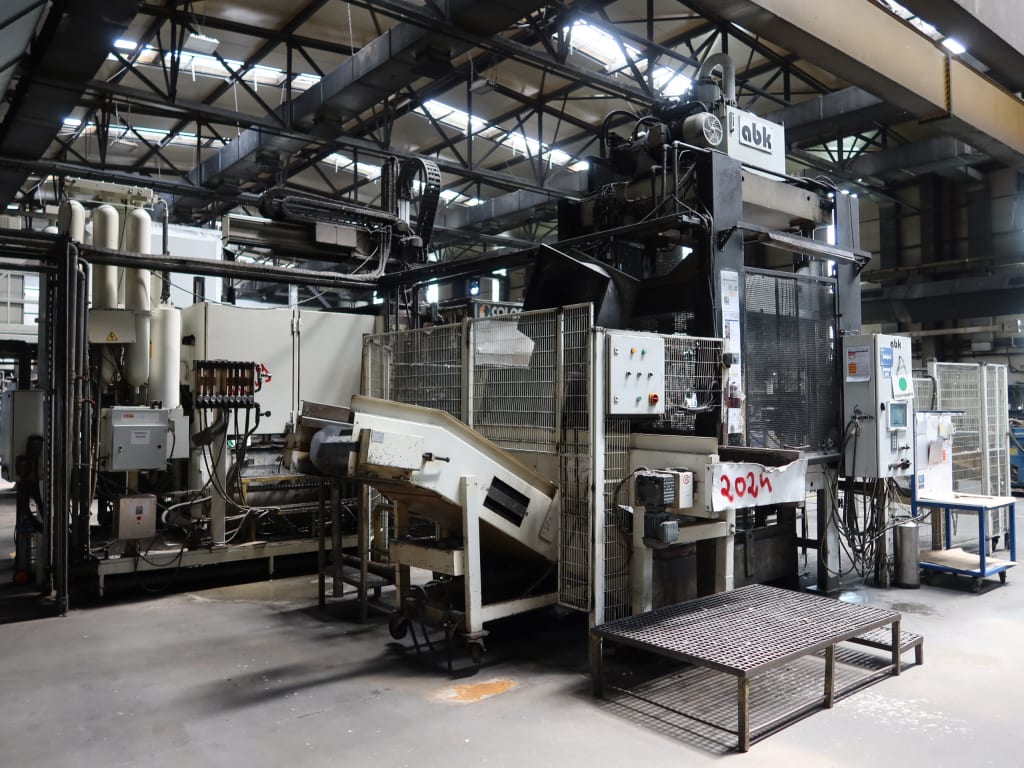

This lot is composed of: A) 2016 Colosio PFO 1200; B) ABK SP13-65 Hydraulic Deburring and Trimming Press ; C) Kuka KR 60-3 F Robot; D) 2 Conveyours; E) Cooling tank 1 m3; F) AED DAG 1000 Spray Robot A) Equipped with Green Line Motors Bosch - RexRoth, with inverters; Clamping force: 12,115 kN (1235 T); Platen dimensions: 1540 x 1540 mm; Clearance between tie bars: 775 x 775 mm to 800 x 800 mm; Tie bar diameter: 205 mm; Die height (max/min): 1100 mm / 450 mm; Moving platen stroke: 1000 mm; Maximum injection force: 828 to 850 kN; Injection stroke: 730 mm; Ejection force: 563 kN; Ejection stroke: 220 mm; Distance between tie bars: 995 mm; Tie bar diameter: 205 mm; Maximum shot weight: 17.3 kg; Maximum projected area (400 kg/cm²): 3087.5 cm²; Casting cycles (empty): 5 cycles/min; Maximum shot weight (aluminum): approx. 20 kg; Own weight: 58,300 kg; Width: approx. 3700 mm; Length: 10,981 mm; Height: 3878 mm. B) With automated tilt extraction table; Press Force: 650 kN (65 Tonnes); Hydraulic system: Side-mounted hydraulic; Overall height: 4192 mm; Height to working area: 1700 mm; Overall Width: 1740 mm; Overall Depth: 2100 mm; Base width: 1370 mm; Base Depth: 870 mm; Anchor bolt spacing: Approx. 400 mm; Press opening dimensions, Daylight opening: 1000 mm; Lower working height: 700 mm; Upper Tool Area: 300 mm; Working area: 400 mm / 600 mm / 800 mm; Maximum working area: 800 x 650 mm; Table width: 1100 mm; Overall table support: 1320 mm; Visible ram diameter: Ø50 mm C) Payload: 60 kg; Maximum reach: 2033 mm; Number of axes: 6; Repeatability: ± 0.06 mm; Robot weight: approx. 665 kg; Mounting position: Floor; Controller: CR C4 with serial number 11038316 and command console; Axis 1 (J1): Motion range ± 185°, speed 128°/s; Axis 2 (J2): Motion range +35° / -135°, speed 102°/s; Axis 3 (J3): Motion range +158° / -120°, speed 128°/s; Axis 4 (J4): Motion range ± 350°, speed 260°/s; Axis 5 (J5): Motion range ± 119°, speed 245°/s; Axis 6 (J6): Motion range ± 350°, speed 322°/s; Controller type: KUKA KR C4. D) Gambazzi 135404 E) Capacity: 1 m3 F) Machine type: 2-axis die spraying equipment (horizontal/vertical); Press Size Compatibility: 500 to 2000 Tons locking force; Vertical Stroke Range: 1200 mm to 2000 mm; Horizontal Stroke Range: 1000 mm to 2000 mm; Lubricant Control: Up to 2 proportional valves for varying mixtures; Operating Purpose: Cyclical treatment of die surfaces to cool, lubricate, and clean molds;

Equipped with Green Line Motors Bosch - RexRoth, with inverters; Locking force: 580 ton; Opening force: 14.58 ton; Maximum injection force: 55.7 ton; Minimum injection force: 15.8 ton; Central ejection force: 27.1 ton; Backward central ejection force: 16.1 ton; Maximum movable platen stroke: 720 mm; Minimum movable platen stroke: 360 mm; Injection stroke: 500 mm; Central ejection stroke: 170 mm; Maximum die height: 850 mm; Minimum die height: 350 mm; Distance between tie bars: 715 mm; External platen dimensions: 1120 x 1148 mm; Tie bar diameter: 145 mm; Maximum projected area (400 kg/cm²): 1450 cm²; Maximum empty cycles: 8 cycles/min; Work pressure: 140 bar; Tank capacity: 1600 l; Number of injection positions / difference: 3 / -30, -80, -120, -150, -190, -240 mm; Maximum casting weight (Al): 9.2 kg; Minimum die dimensions: 470 x 470 mm; Nitrogen accumulator pre-charge pressure: 120 bar; Multiplier nitrogen accumulator pre-charge pressure: 130 bar;

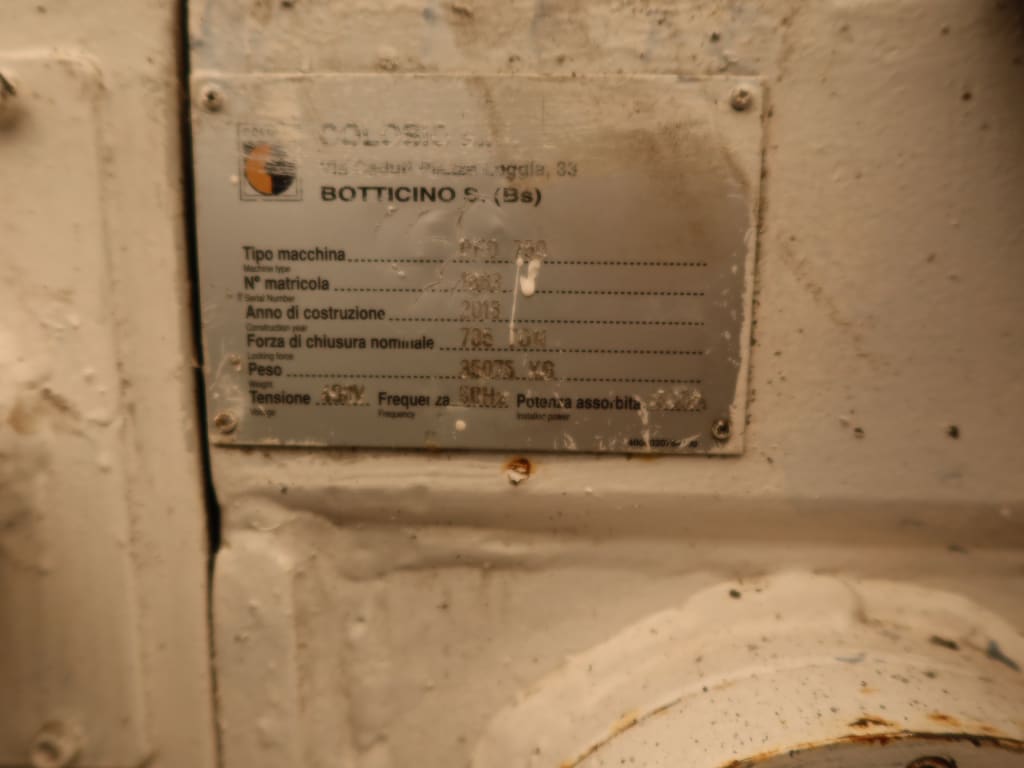

This lot is compose from: A) Colosio PFO 750 GL; B) Kuka SEP10-07-65 Trimming Press; C) Kuka KR 60 robot; D) AED DAG 1000 Spray Robot; E) Cooling Tank: 1400 x 1400 x 1450 mm; This lot does not include Melting Furnace Inv. Nr: 4014. A) Equipped with Green Line Motors Bosch - RexRoth, with inverters; Closing force: 785 T; Opening force: 16.26 T; Maximum injection force: 76.6 T; Minimum injection force: 25.2 T; Central ejector force: 37.9 T; Central ejector return force: 19.7 T; Maximum stroke of moving platen: 750 mm; Minimum stroke of moving platen: 400 mm; Injection stroke: 650 mm; Central ejector stroke: 170 mm; Maximum die height: 950 mm; Minimum die height: 400 mm; Tie bar spacing: 800 mm; Platen dimensions: 1270 x 1270 mm; Tie bar diameter: 170 mm; Maximum casting area (400 kg/cm²): 1960 cm²; Idle cycles: 6 cycles/min; Operating pressure: 140 bar; Tank capacity: 2410 l; Number of injection positions / axis offset: 6 / -30, -80, -120, -150, -190, -240 mm; Maximum shot weight (Al): 12.5 kg; Minimum mold size: 565 x 565 mm; Nitrogen pre-charge pressure in accumulator: 120 bar; Nitrogen pre-charge pressure in intensifier accumulator: 115 bar; B) HN (Height feeding tube), standard: 4680 mm; HN (Height feeding tube), special version: 2180 mm + Δ(TH); LW (Inside width table X/Y): 880 / 580 mm; UHG (Lower edge fixed covering): 2100 mm; TU (Table lower edge): 530 mm + Δ(TH); TH (Table height): standard 800 mm, maximum 1200 mm; XT (Table plate total length): 1260 mm; YT (Table plate total width): 1000 mm; LW-X (Table clamping area length): 1000 mm; LW-Y (Table clamping area width): 700 mm; TD-X (Distance between table T-nuts): 800 mm; TD-Y (Distance between table T-nuts): 550 mm; XS (Ram total length): 1160 mm; YS (Ram total width): 960 mm; LW-X (Ram clamping area length): 1020 mm; LW-Y (Ram clamping area width): 720 mm; SD (Distance to T-nut on Ram): 120 mm; T-nut spacing 1: 200 mm; T-nut spacing 2: 300 mm; T-nut spacing 5: 200 mm; T-nut DIN: 18. C) Payload: 60 kg; Maximum reach: 2033 mm; Number of axes: 6; Repeatability: ± 0.06 mm; Robot weight: approx. 665 kg; Mounting position: Floor; Controller: CR C4 with serial number 11038316 and command console; Axis 1 (J1): Motion range ± 185°, speed 128°/s; Axis 2 (J2): Motion range +35° / -135°, speed 102°/s; Axis 3 (J3): Motion range +158° / -120°, speed 128°/s; Axis 4 (J4): Motion range ± 350°, speed 260°/s; Axis 5 (J5): Motion range ± 119°, speed 245°/s; Axis 6 (J6): Motion range ± 350°, speed 322°/s; Controller type: KUKA KR C4. D) Machine type: 2-axis die spraying equipment (horizontal/vertical); Press Size Compatibility: 500 to 2000 Tons locking force; Vertical Stroke Range: 1200 mm to 2000 mm; Horizontal Stroke Range: 1000 mm to 2000 mm; Lubricant Control: Up to 2 proportional valves for varying mixtures; Operating Purpose: Cyclical treatment of die surfaces to cool, lubricate, and clean molds; E) 1400 x 1400 x 1450 mm

Nominal capacity: 25 Tons; Total height (from base to top of machine structure): 3973 mm; Operational width (including external control cabinet): 1530 mm; Base width (main press frame): 914 mm; Table depth (top view): 830 mm; Table width (top view): 900 mm; Vertical clearances (working/installation heights): 1200 / 850 / 665 mm; Mounting/internal structural widths: 400 / 200 / 600 / 680 mm.

Electric resistance-heated holding furnace for molten light-metal (aluminium) alloys, manufacturer Hindenlang Gießereitechnik (Lobbach, Germany), type SWLE-750, ID no. 10533, year of manufacture 10/2013. Holding capacity 750 kg, max. temperature 760 °C. Power 49.5 kW, 400 V / 50 Hz, 71.5 A, circuit 1×Y. Complete with control system. Crucible-type furnace, mounted on steel base frame with access platform.

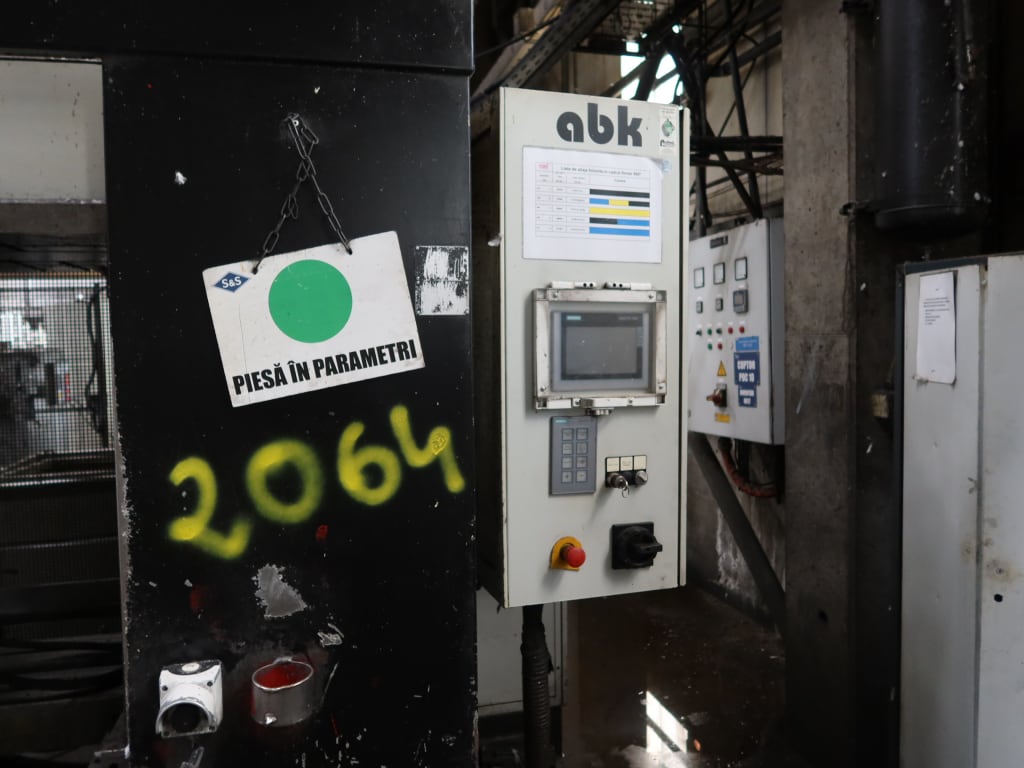

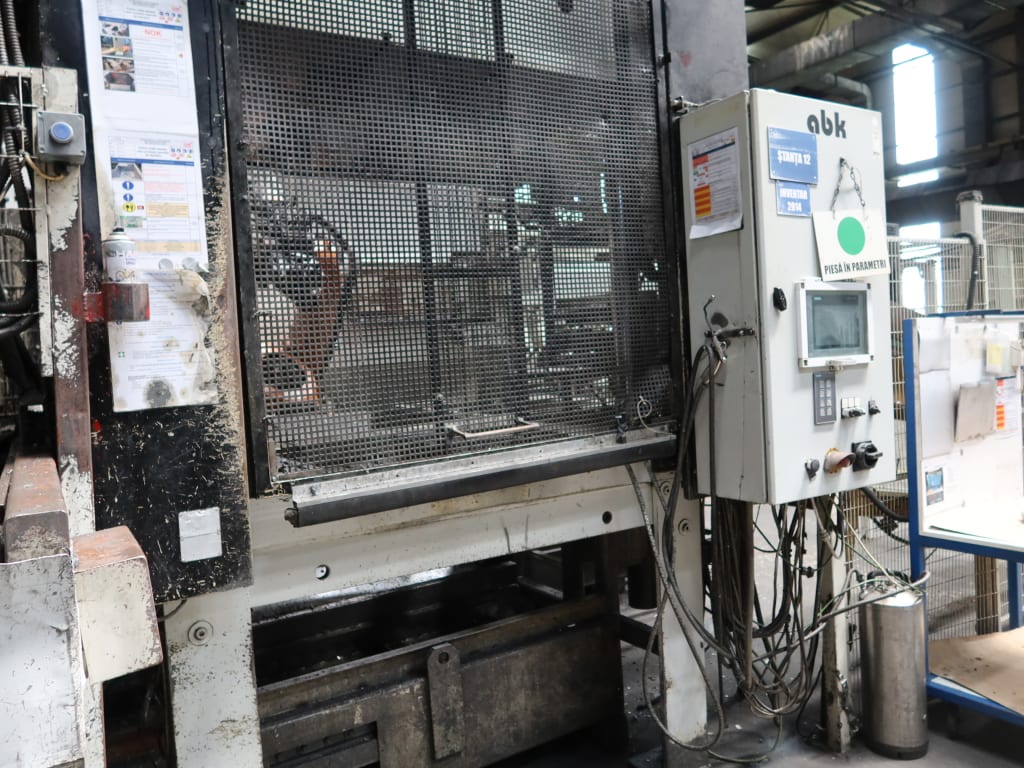

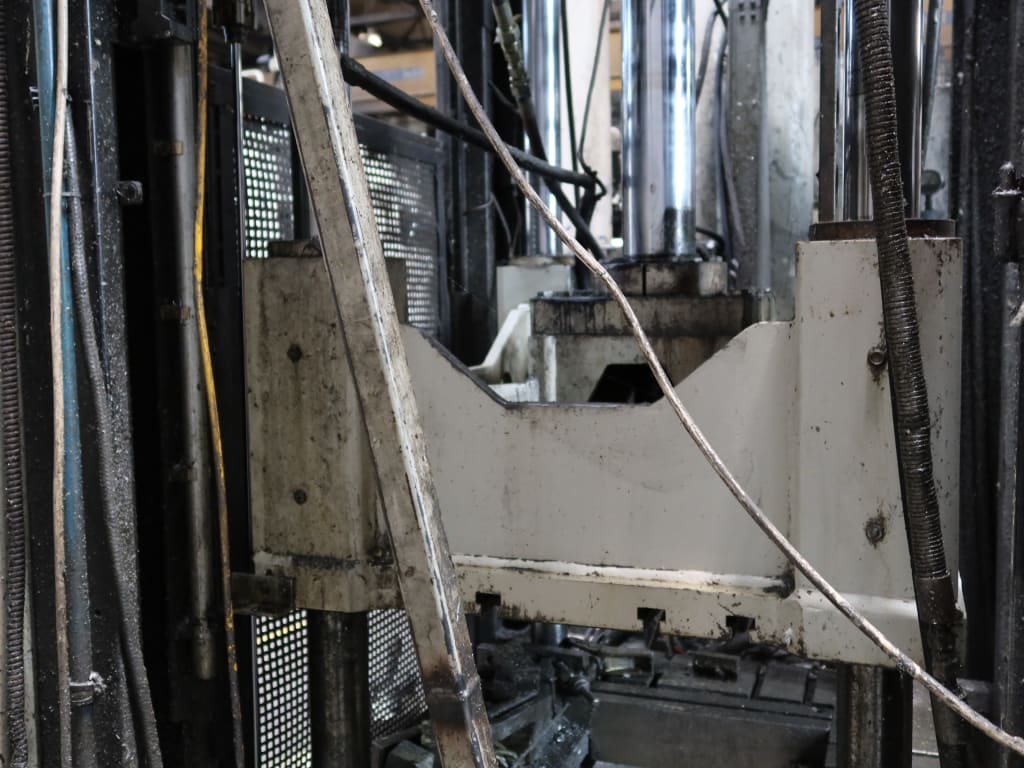

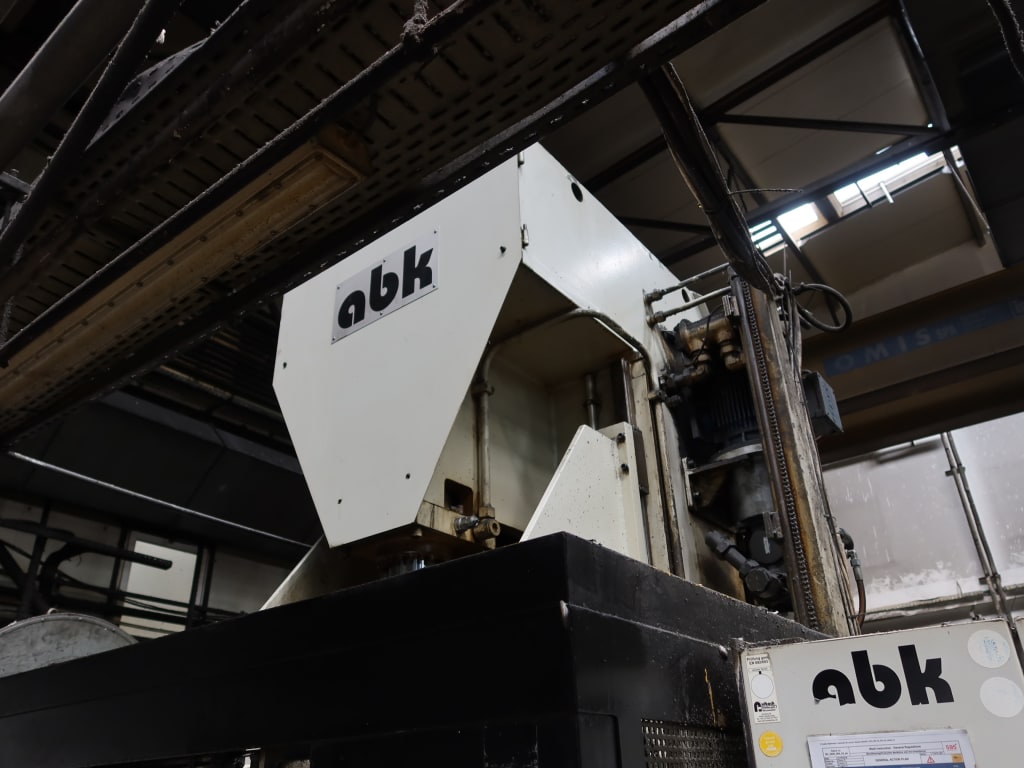

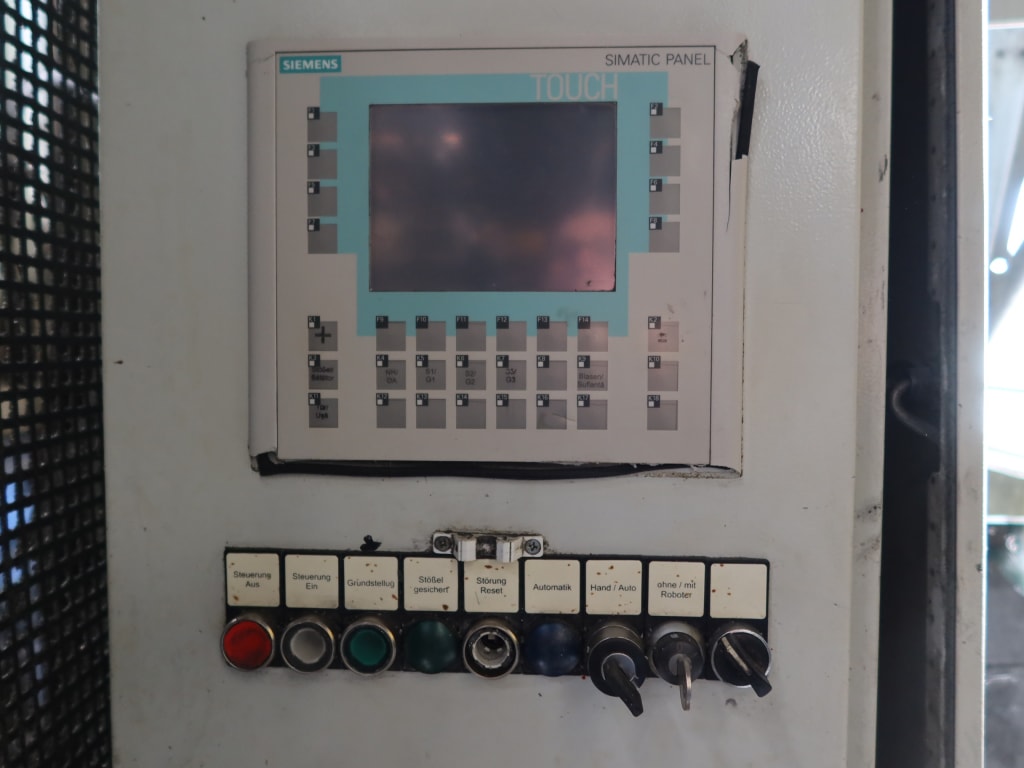

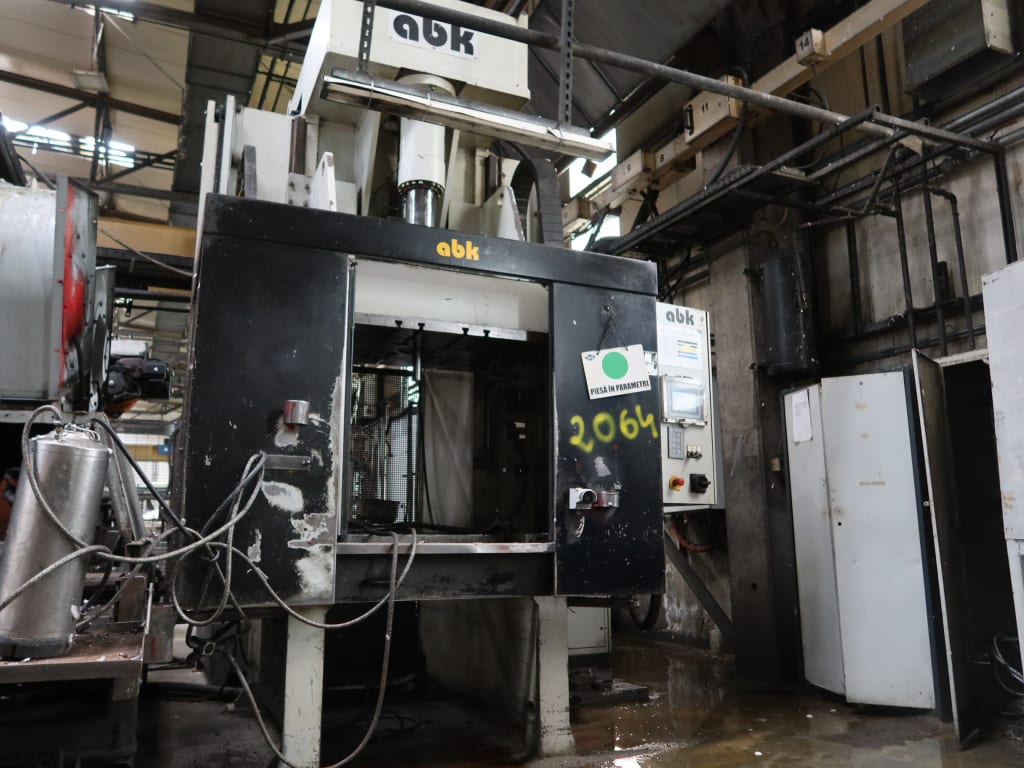

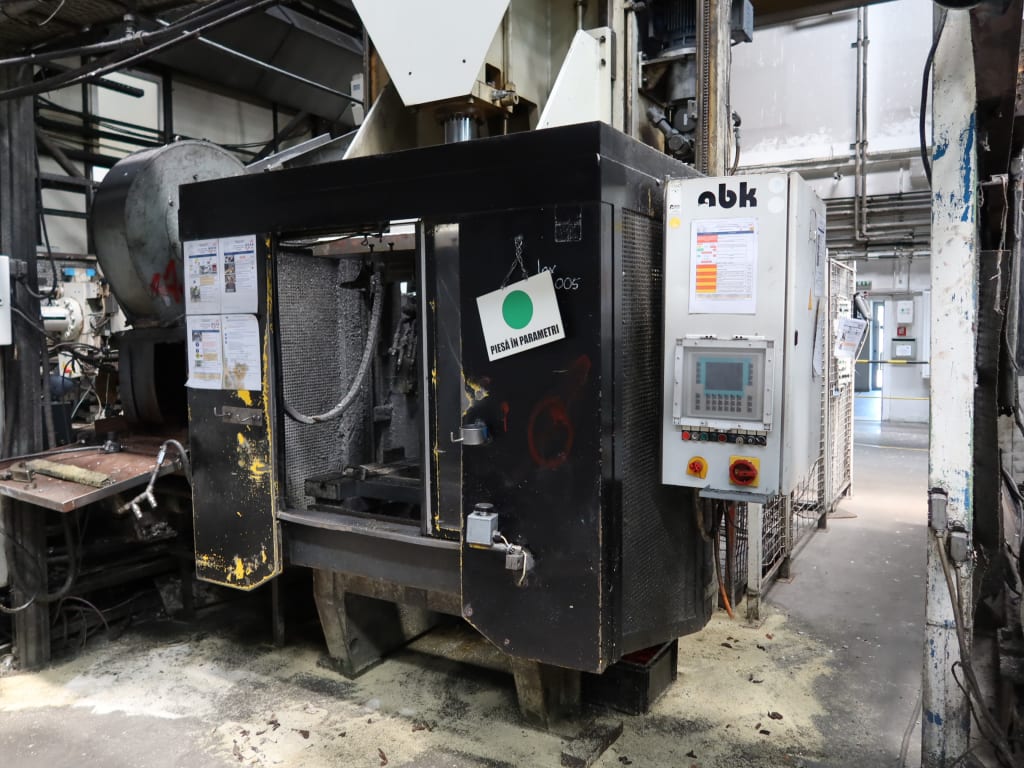

Pressing Force: 343 kN (nominal capacity of 35 metric tons); Controller Siemens; Overall height: 3400 mm; Base length: 1290 mm; Lower frame height: 950 mm; Tool center Height from Floor: Approx. 900 mm; Upper Opening Height Indicated: 600 mm; Overall Width: 1900 mm; Internal Opening Width: 1200 mm; Height to lower working level: 1150 mm; Upper Tool centering diameter: Ø50 mm

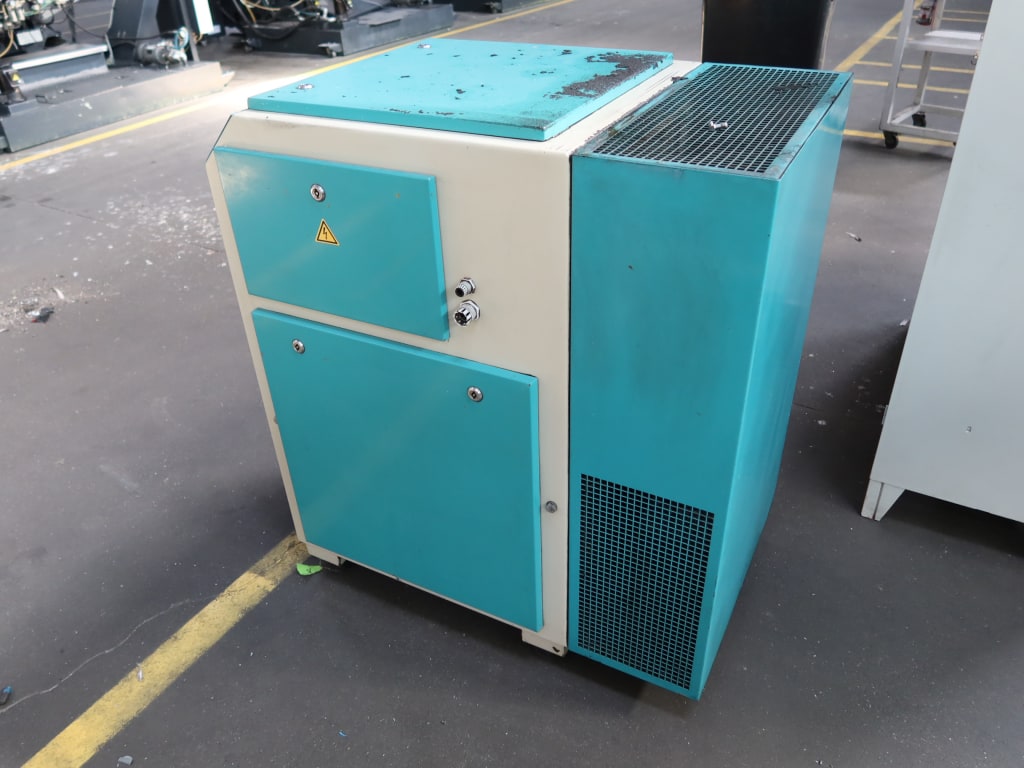

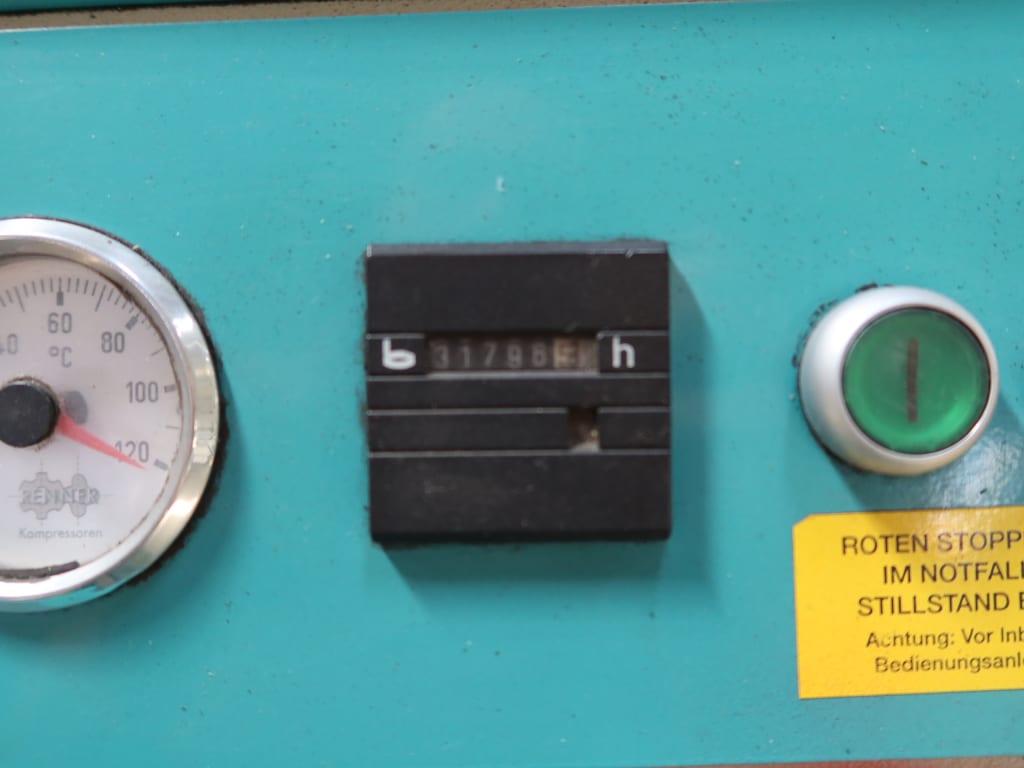

Industrial compressor, manufacturer Renner Kompressoren GmbH (Gügglingen, Germany). Delivery rate approx. 1,960 l/min; 15KW; maybe not functional

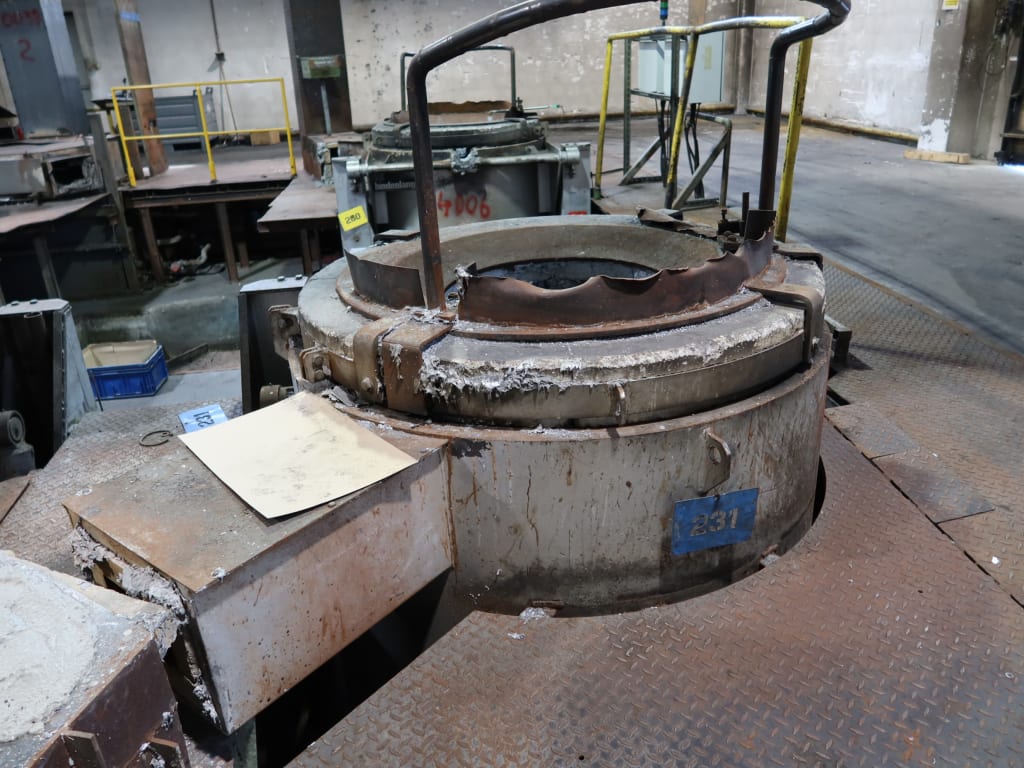

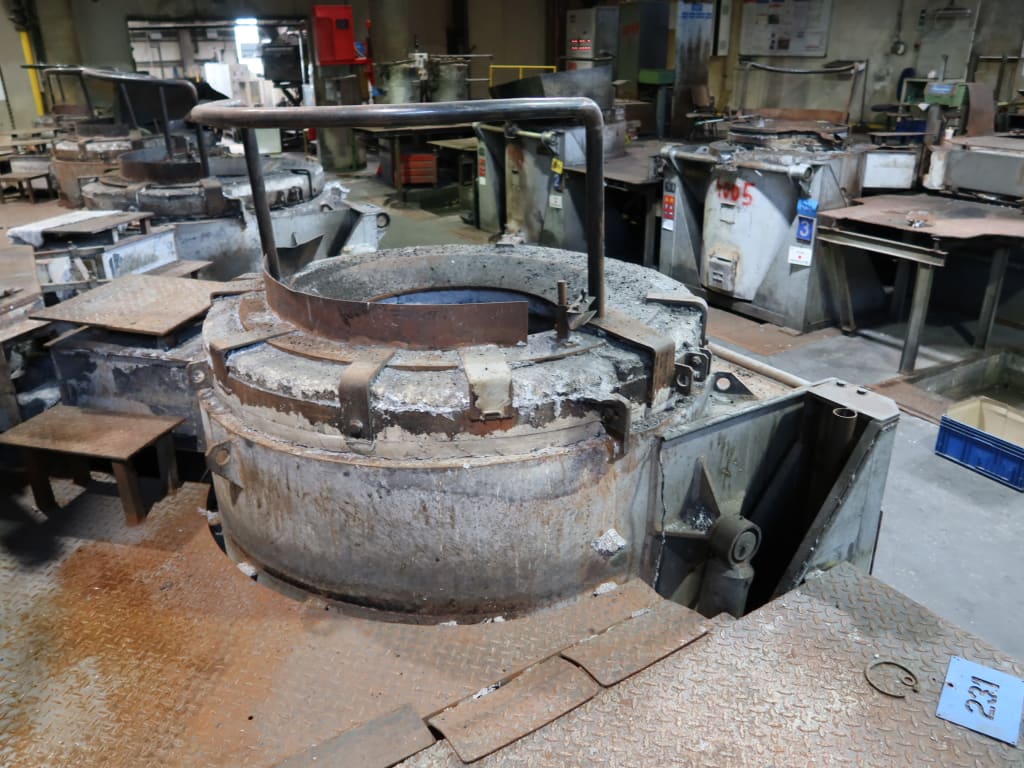

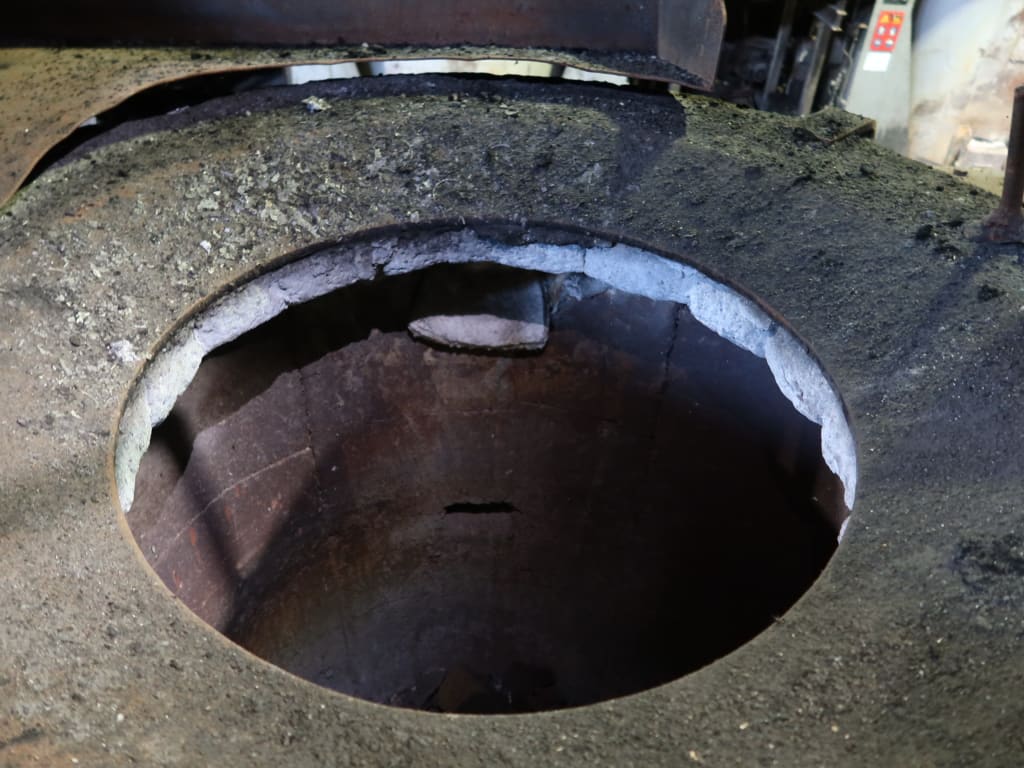

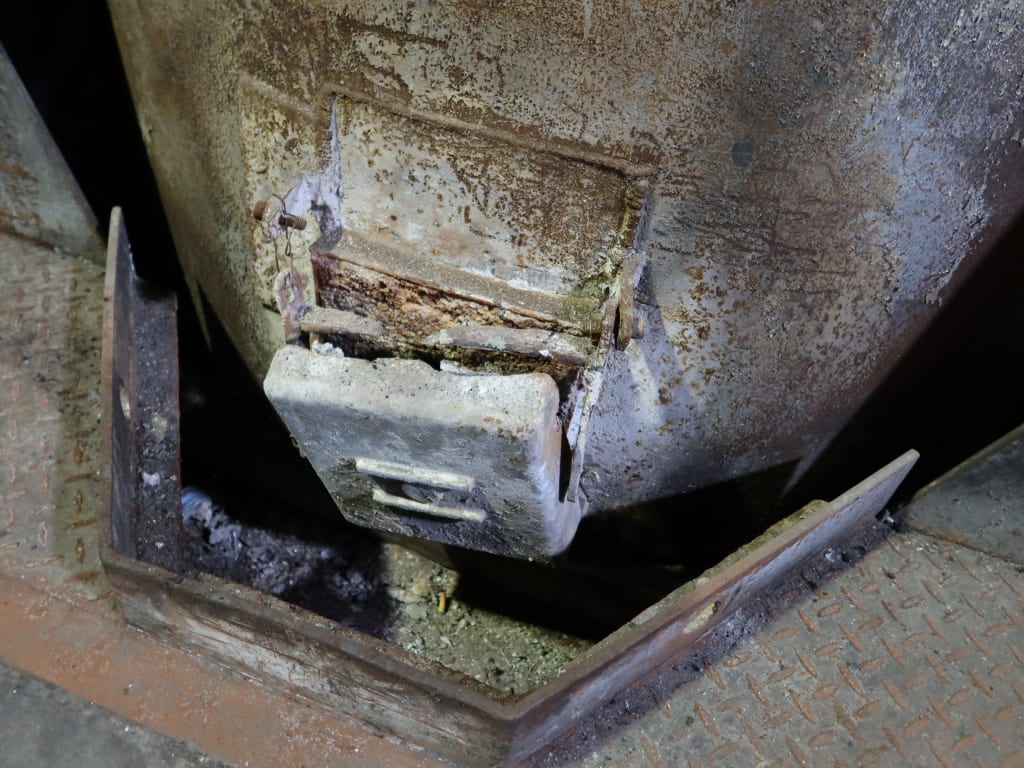

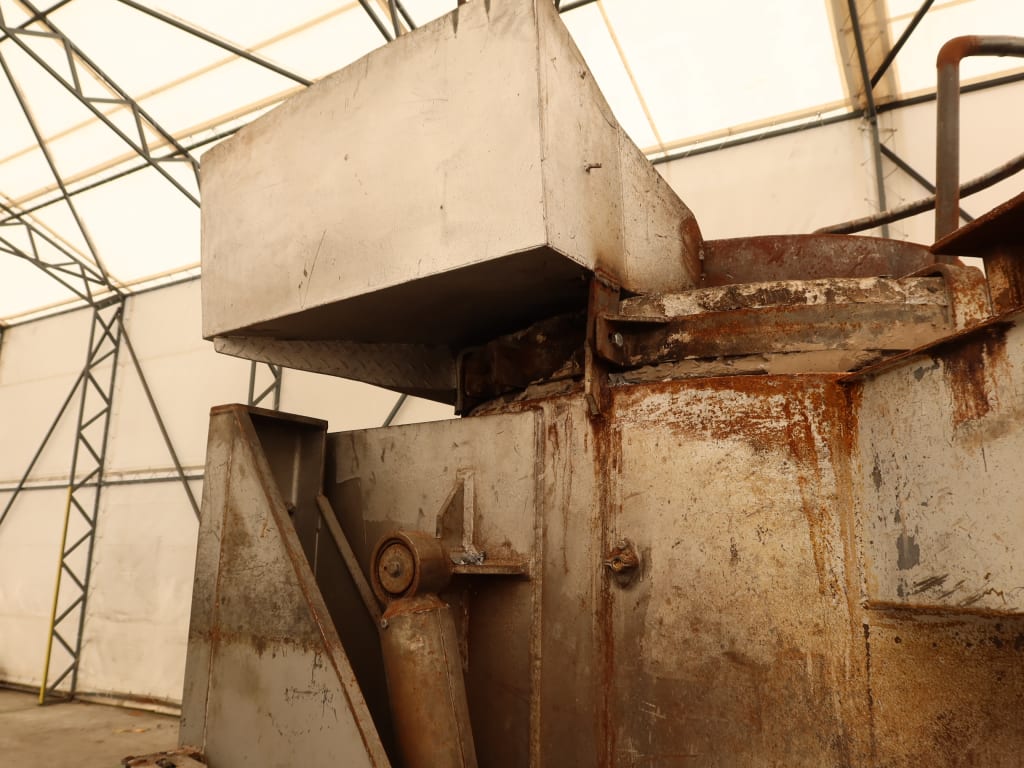

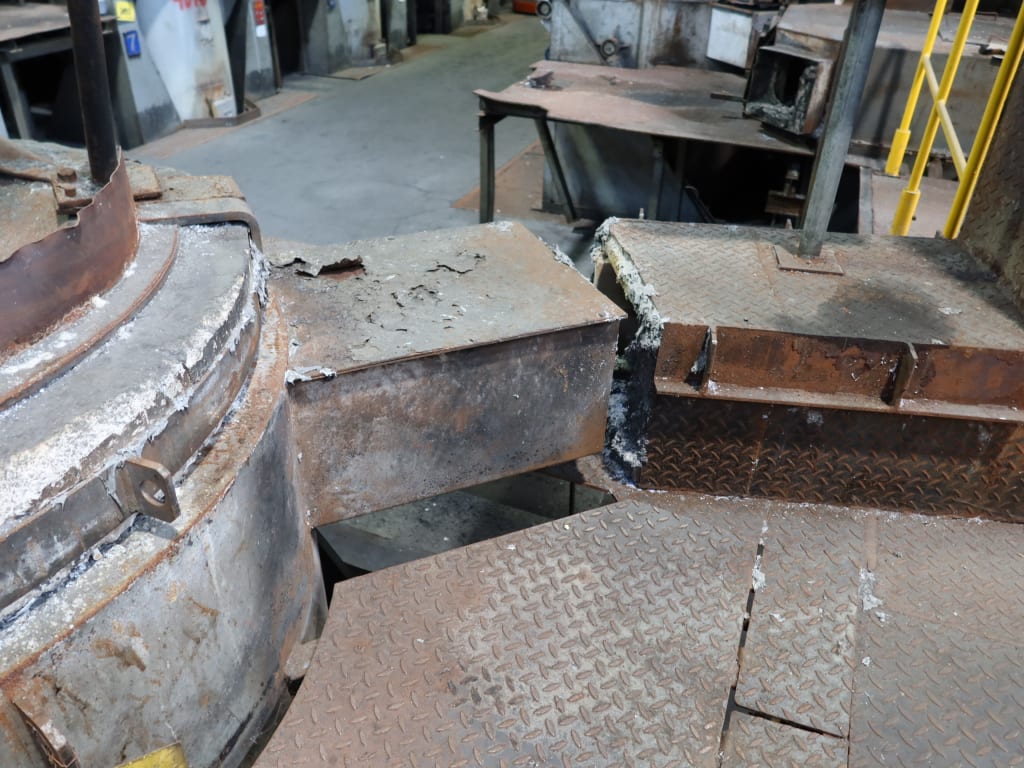

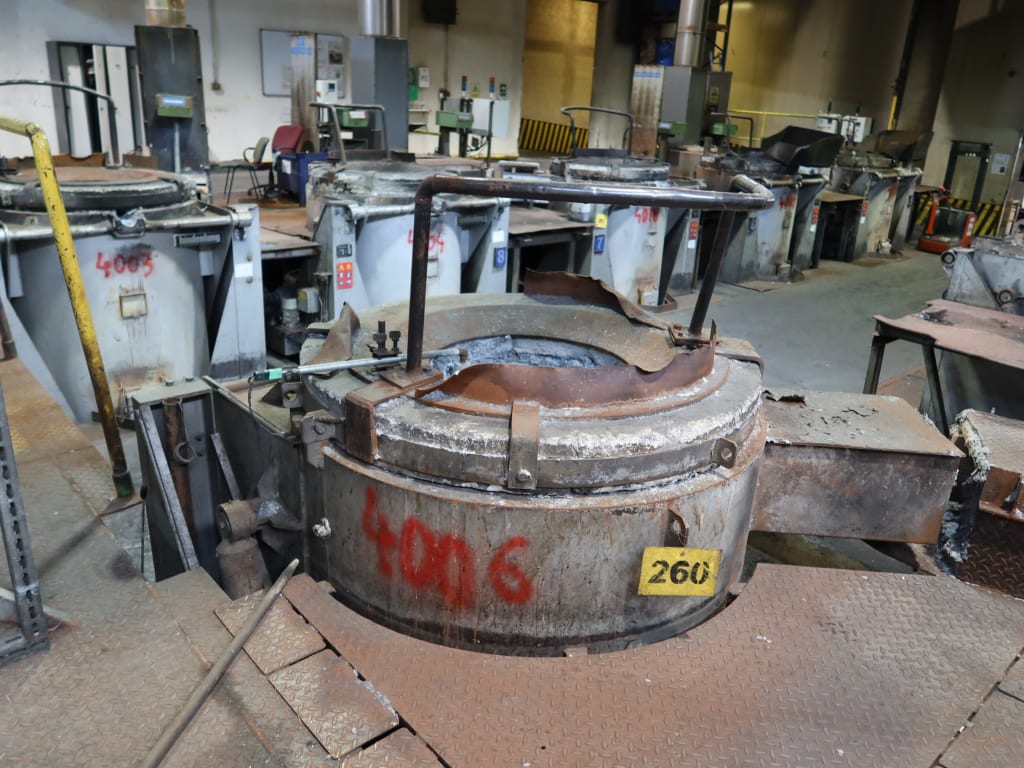

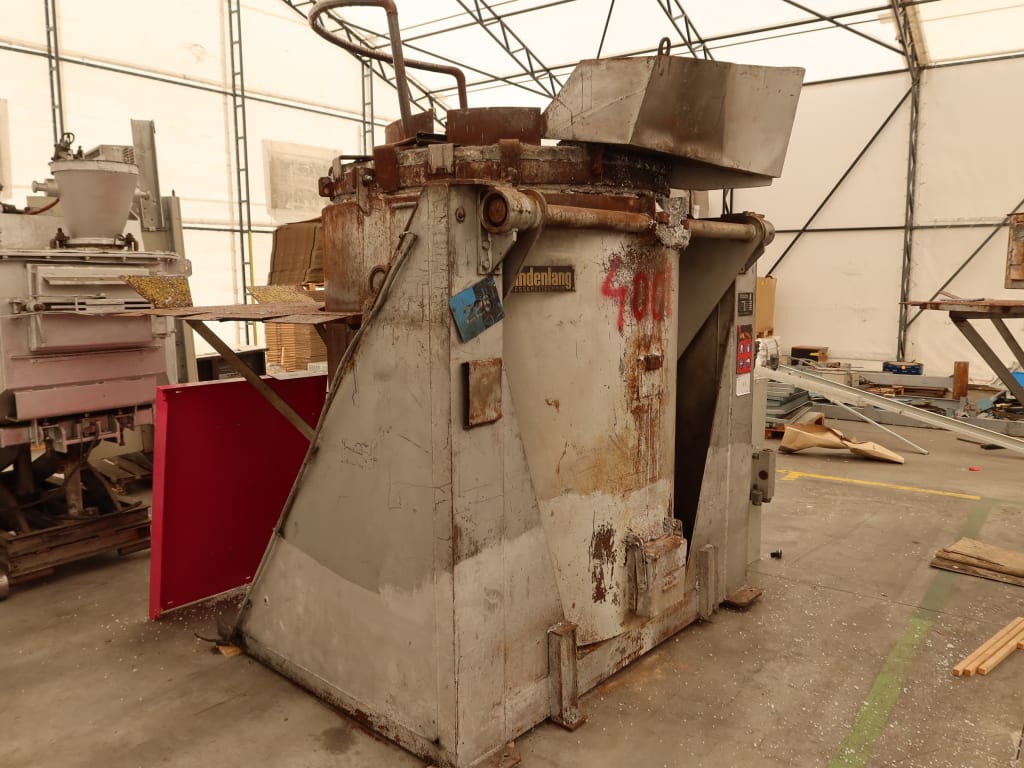

Gas-fired tilting crucible furnace for melting and holding light-metal (aluminium) alloys, manufactured by Hindenlang Giessereitechnik (Lobbach, Germany). Year of manufacture 2015, ID no. 10653. Crucible/charge capacity 1,200 kg, max. temperature 900 °C, rated power 512 kW, 400 V / 50 Hz. Hydraulically tiltable for pouring; complete with control system and exhaust/extraction connection.

Gas-fired tilting crucible furnace for melting and holding light-metal (aluminium) alloys, manufactured by Hindenlang Giessereitechnik (Lobbach, Germany). Year of manufacture 2013 (02/2013), ID no. 10442. Crucible/charge capacity 580 kg, max. temperature 900 °C, rated power 440 kW, 400 V / 50 Hz. Hydraulically tiltable for pouring; complete with control system and exhaust/extraction connection.

Gas-fired tilting crucible furnace for melting and holding light-metal (aluminium) alloys, manufactured by Hindenlang Giessereitechnik (Lobbach, Germany). Year of manufacture 2021, ID no. 11083. Operating capacity 1,150 kg, max. temperature 900 °C, rated power 512 kW, 400 V / 50 Hz. Hydraulically tiltable for pouring; complete with control system and exhaust/extraction connection.

Gas-fired tilting crucible furnace for melting and holding light-metal (aluminium) alloys, manufactured by Hindenlang Giessereitechnik (Lobbach, Germany). Year of manufacture 2021, ID no. 11084. Operating capacity 1,150 kg, max. temperature 900 °C, rated power 512 kW, 400 V / 50 Hz. Hydraulically tiltable for pouring; complete with control system and exhaust/extraction connection.

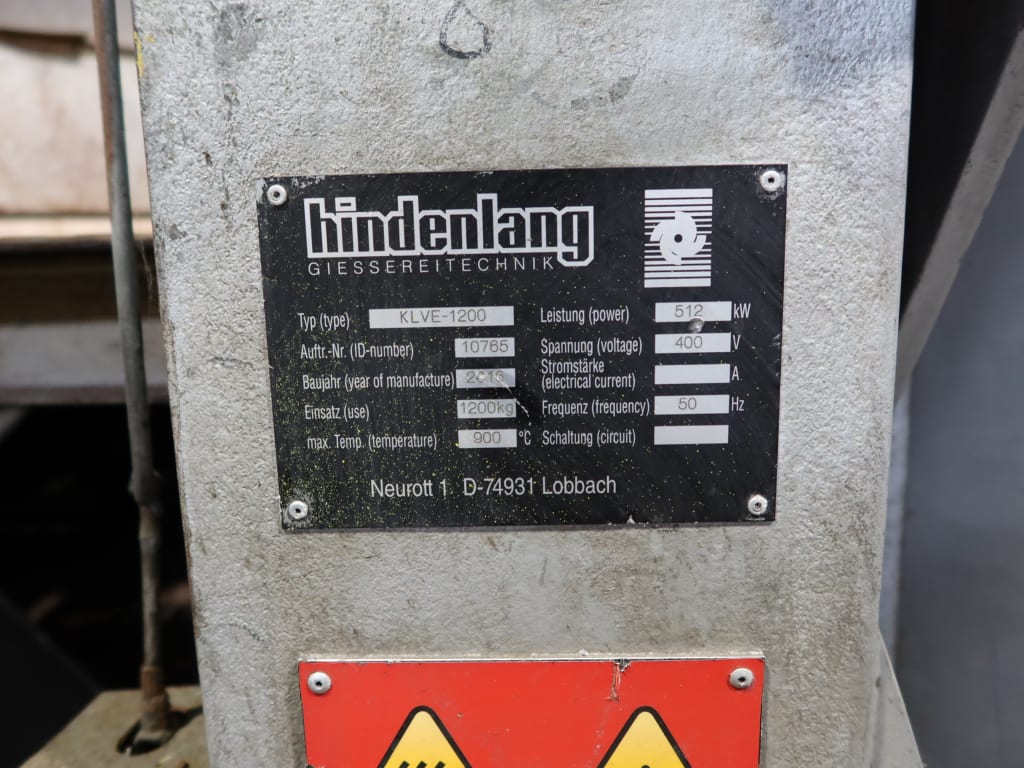

Gas-fired tilting crucible furnace for melting and holding light-metal (aluminium) alloys, manufactured by Hindenlang Giessereitechnik (Lobbach, Germany). Year of manufacture 2016, ID no. 10765. Crucible/charge capacity 1,200 kg, max. temperature 900 °C, rated power 512 kW, 400 V / 50 Hz. Hydraulically tiltable for pouring; complete with control system and exhaust/extraction connection.

Gas-fired tilting crucible furnace for melting and holding light-metal (aluminium) alloys, manufactured by Hindenlang Giessereitechnik (Lobbach, Germany). Year of manufacture 2016, ID no. 10764. Crucible/charge capacity 1,200 kg, max. temperature 900 °C, rated power 512 kW, 400 V / 50 Hz. Hydraulically tiltable for pouring; complete with control system and exhaust/extraction connection.

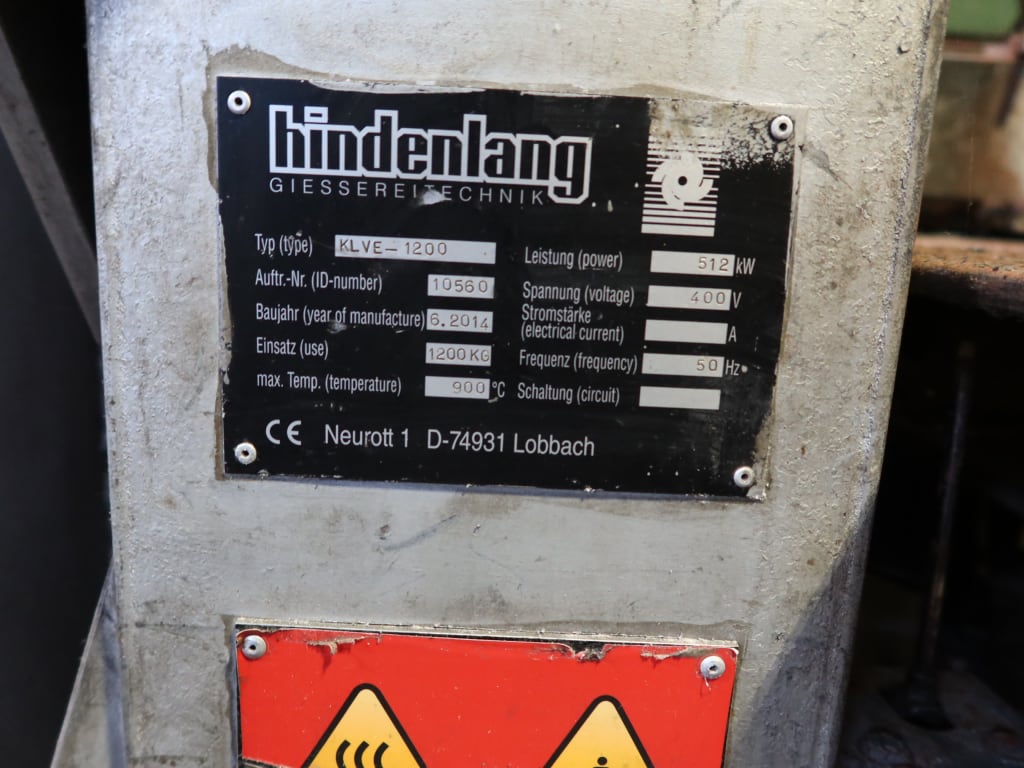

Gas-fired tilting crucible furnace for melting and holding light-metal (aluminium) alloys, manufactured by Hindenlang Giessereitechnik (Lobbach, Germany). Year of manufacture 2014 (06/2014), ID no. 10560. Crucible/charge capacity 1,200 kg, max. temperature 900 °C, rated power 512 kW, 400 V / 50 Hz. Hydraulically tiltable for pouring; complete with control system and exhaust/extraction connection.

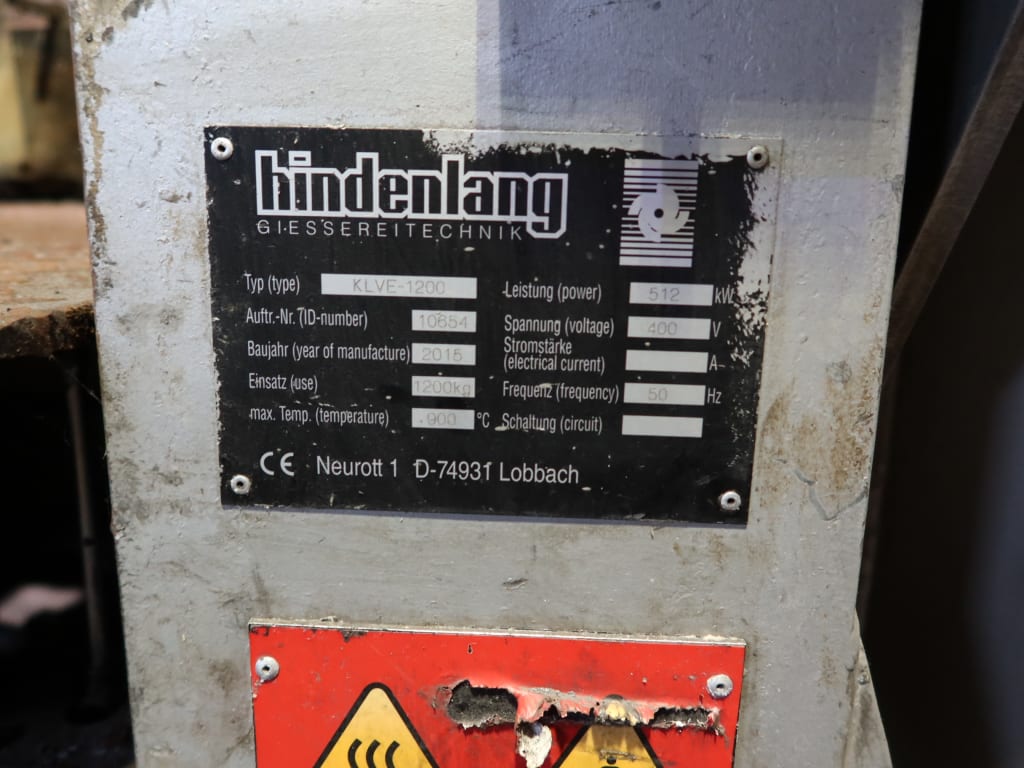

Gas-fired tilting crucible furnace for melting and holding light-metal (aluminium) alloys, manufactured by Hindenlang Giessereitechnik (Lobbach, Germany). Year of manufacture 2015, ID no. 10654. Crucible/charge capacity 1,200 kg, max. temperature 900 °C, rated power 512 kW, 400 V / 50 Hz. Hydraulically tiltable for pouring; complete with control system and exhaust/extraction connection.

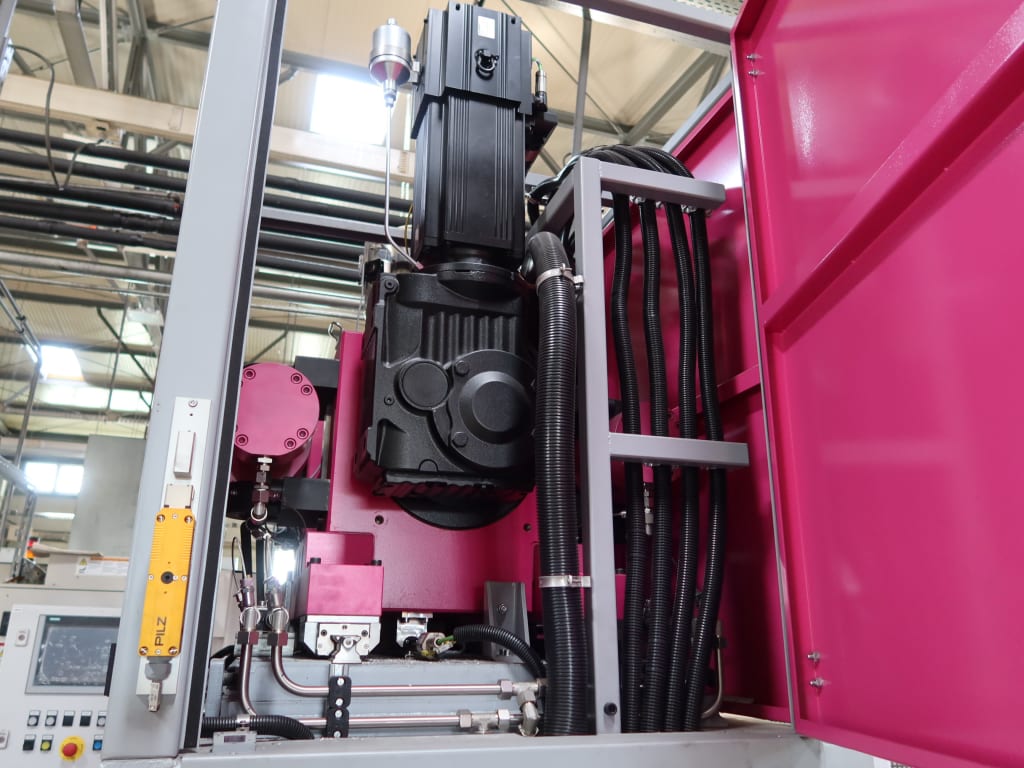

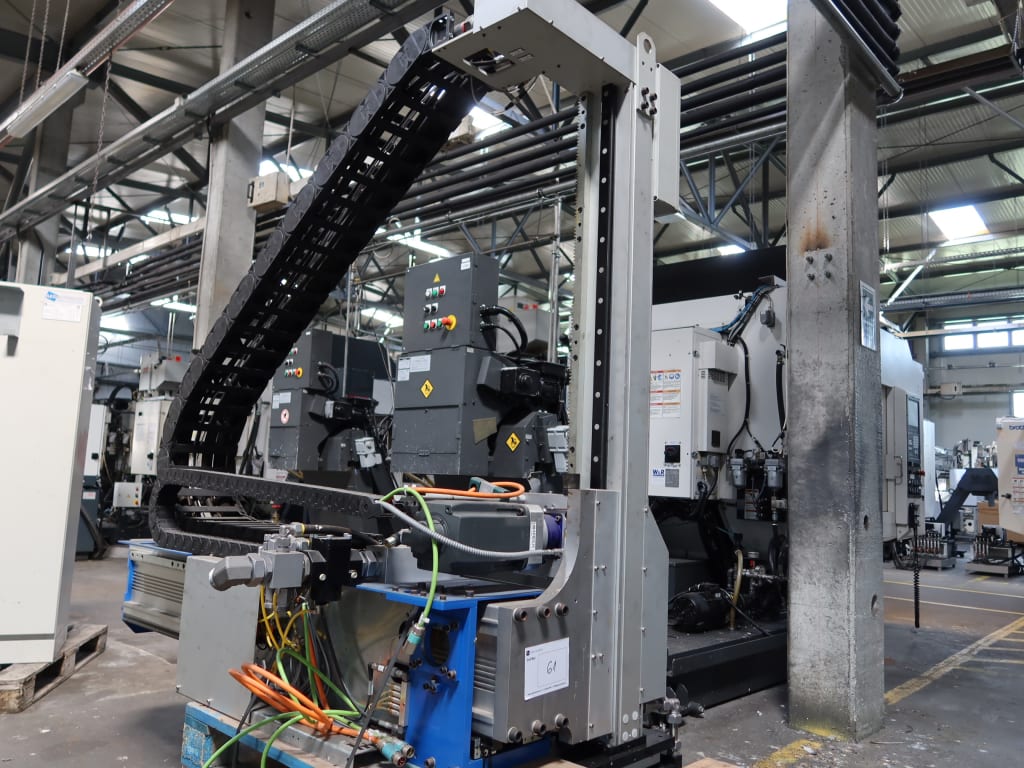

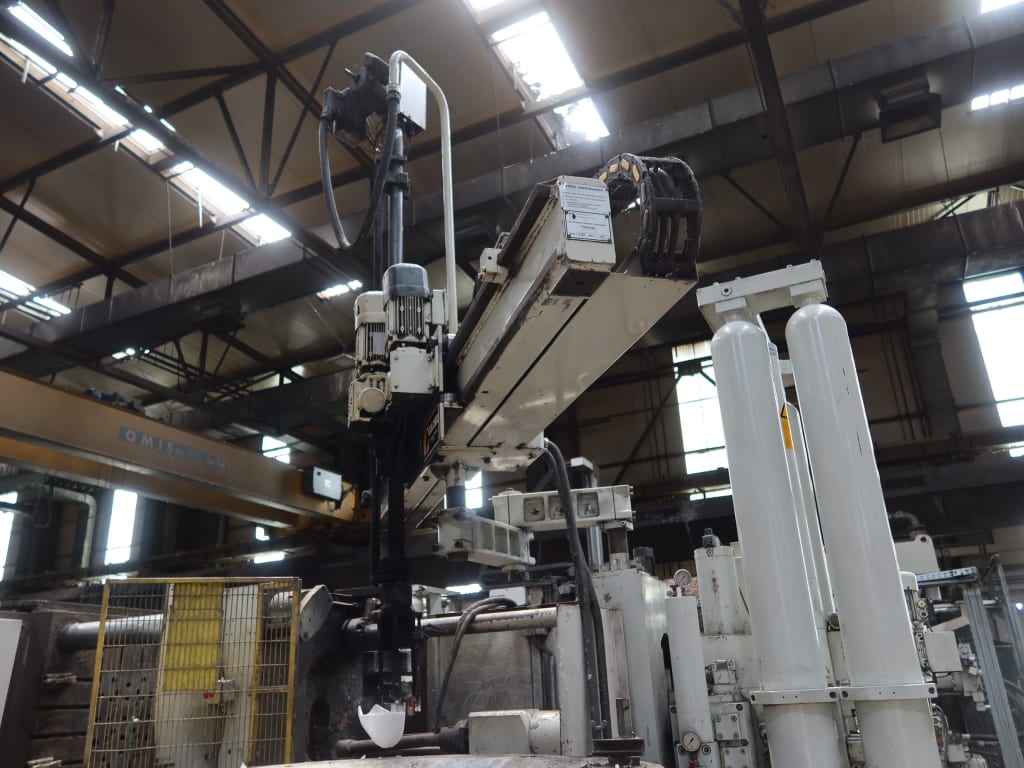

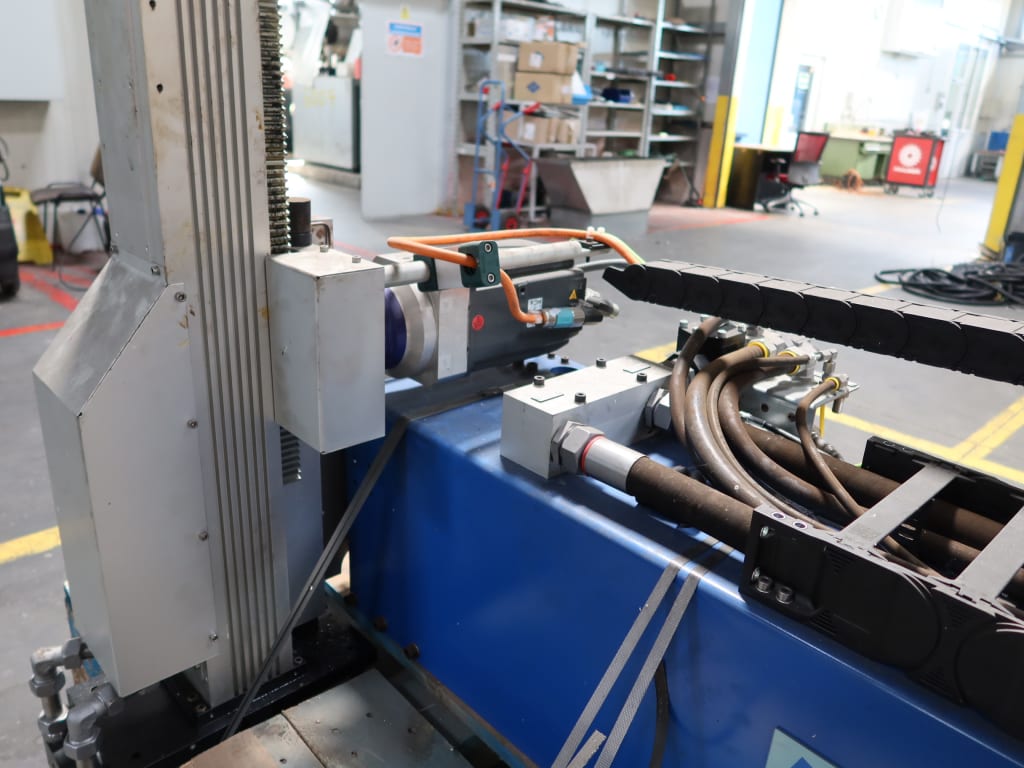

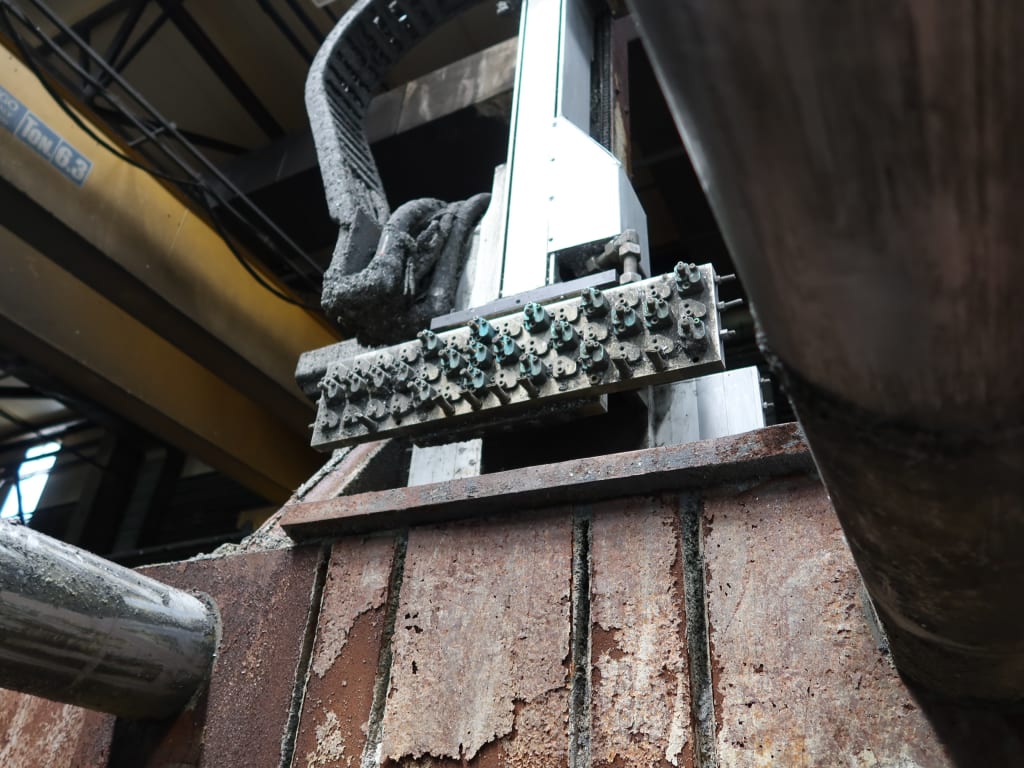

Automatic spray robot for application of die release agent (die lubricant) in aluminium high-pressure die casting (HPDC); Condition: Never used; Manufacturer: AED Automation GmbH (Dornstadt, Germany); Year of manufacture: 11/2023; Serial number: LST2-0022; Power: 5 kW; Control voltage: 24 V DC; Operating pressure: 8 bar; Supplied with: häwa floor-standing control cabinet (IP55); Control system: Siemens SIMATIC PLC with ET200 I/O; Servo drives: Siemens SINAMICS S120 (2-axis) with Safety Integrated Extended Functions licence (SW 4.8); Power supply: Siemens SITOP PSU300S, 24 V / 20 A; Safety relays: Pilz PNOZ s4 / s7; Industrial Ethernet switch: Siemens SCALANCE X005; Motor protection: Siemens SIRIUS; Included: Original software licences and CompactFlash firmware card; Intended application: In-mould spraying on HPDC machines, with potential adaptation for other automated spraying applications.

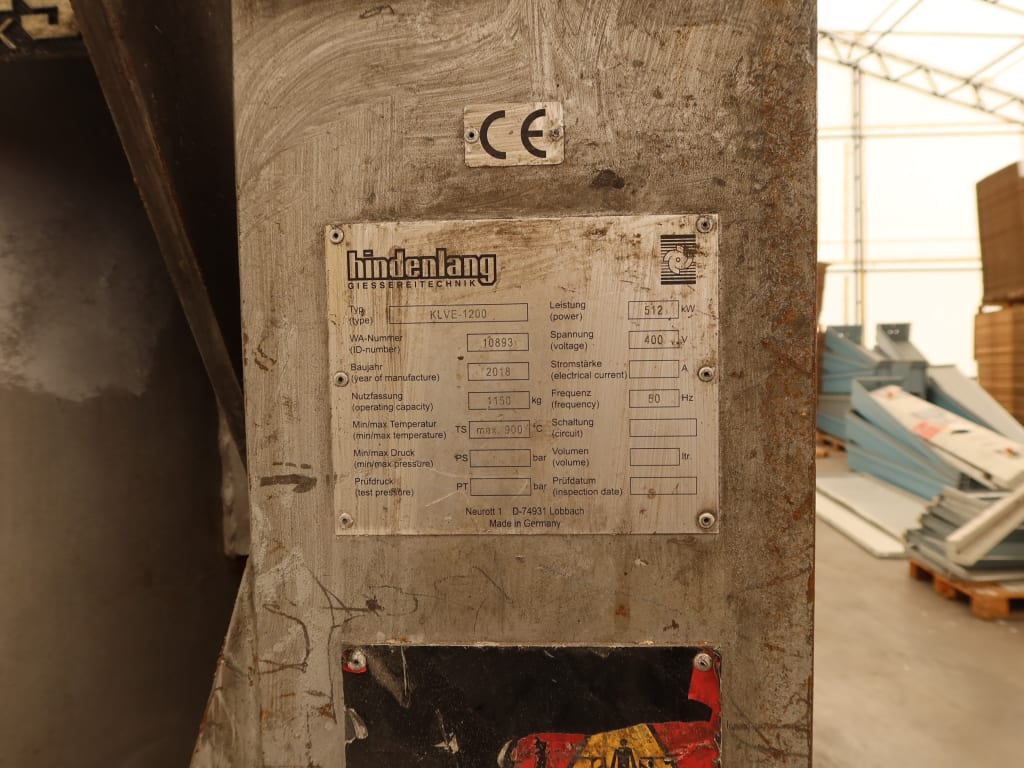

Type: Gas-fired tilting crucible furnace for melting and holding light-metal (aluminium) alloys; Manufacturer: Hindenlang Giessereitechnik (Lobbach, Germany); Year of manufacture: 2018; ID number: 10893; Operating capacity: 1,150 kg; Maximum temperature: 900 °C; Rated power: 512 kW; Power supply: 400 V / 50 Hz; Tilting system: Hydraulically tiltable for pouring; Supplied with: Control system and exhaust/extraction connection.

Type: Gas-fired tilting crucible furnace for melting and holding light-metal (aluminium) alloys; Manufacturer: Hindenlang Giessereitechnik (Lobbach, Germany); Year of manufacture: 12/2013; ID number: 10537; Crucible/charge capacity: 1,200 kg; Maximum temperature: 900 °C; Rated power: 512 kW; Power supply: 400 V / 50 Hz; Tilting system: Hydraulically tiltable for pouring; Supplied with: Control system and exhaust/extraction connection

Nominal capacity: 25 Tons; Total height (from base to top of machine structure): 3973 mm; Operational width (including external control cabinet): 1530 mm; Base width (main press frame): 914 mm; Table depth (top view): 830 mm; Table width (top view): 900 mm; Vertical clearances (working/installation heights): 1200 / 850 / 665 mm; Mounting/internal structural widths: 400 / 200 / 600 / 680 mm.

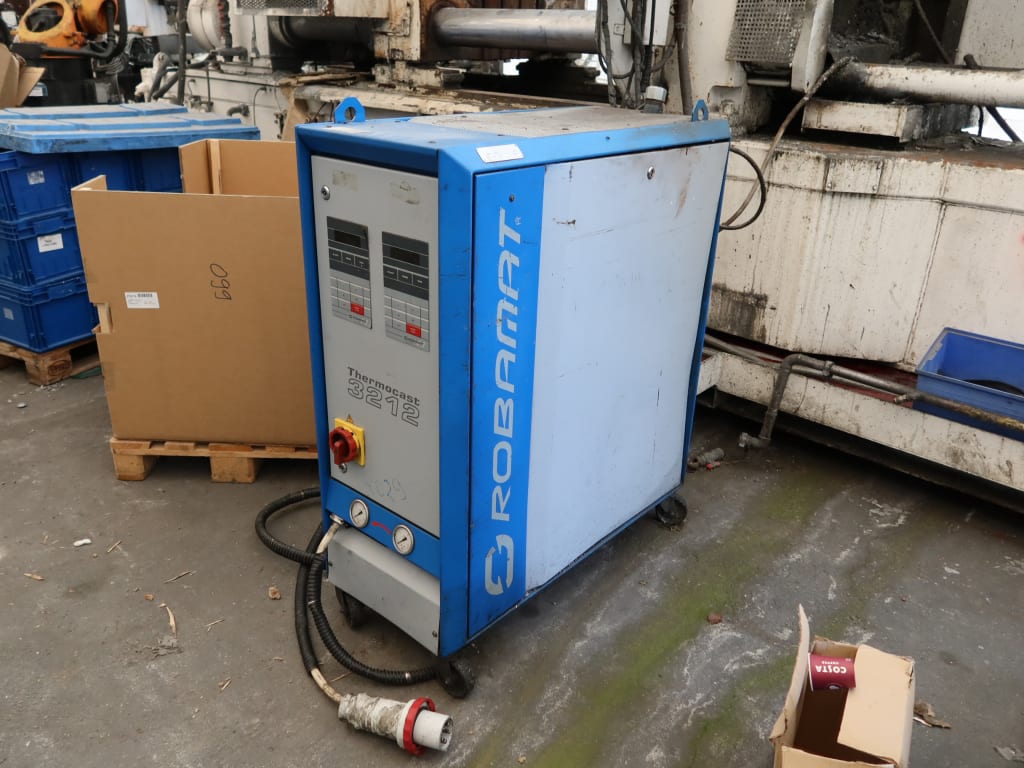

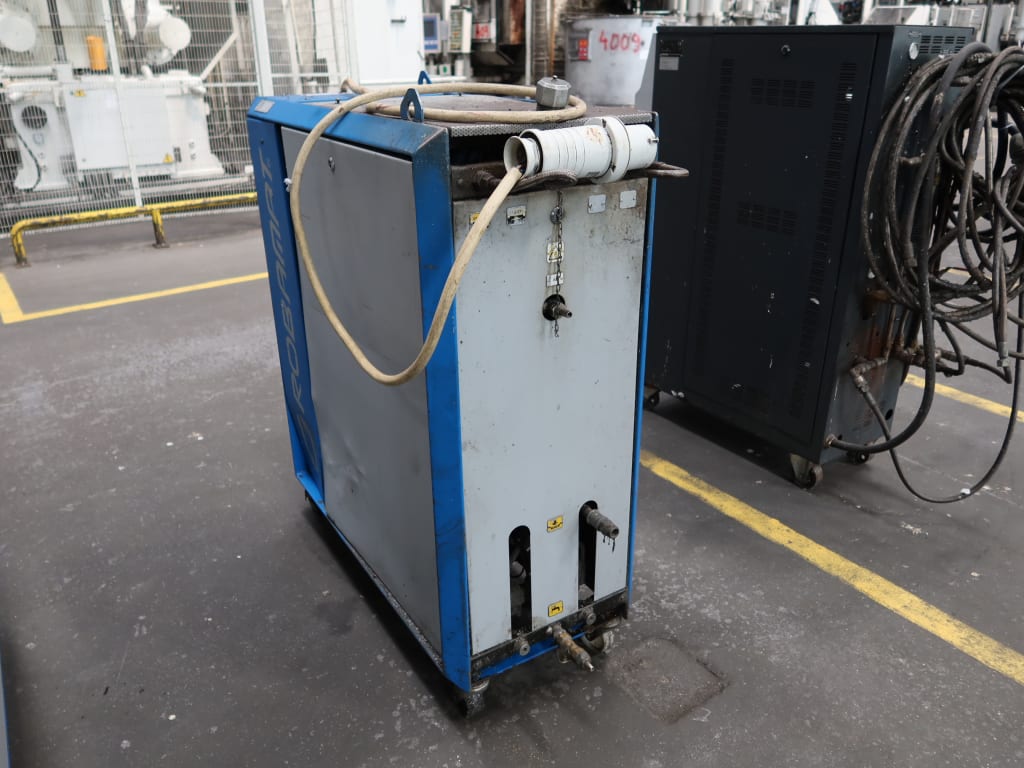

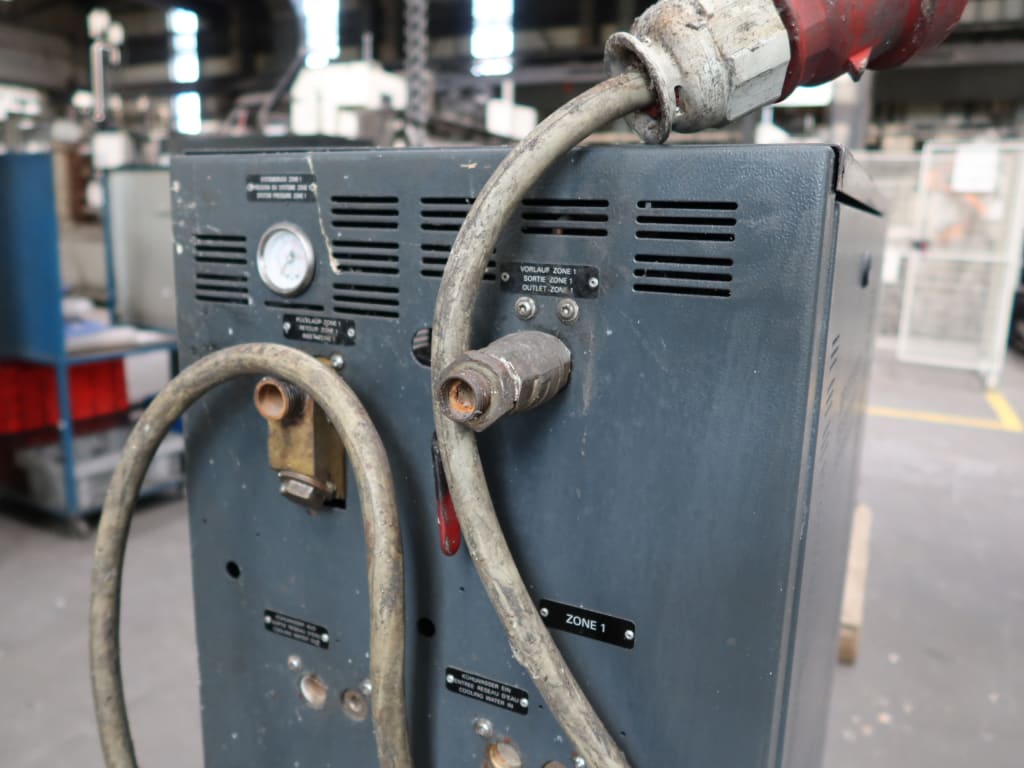

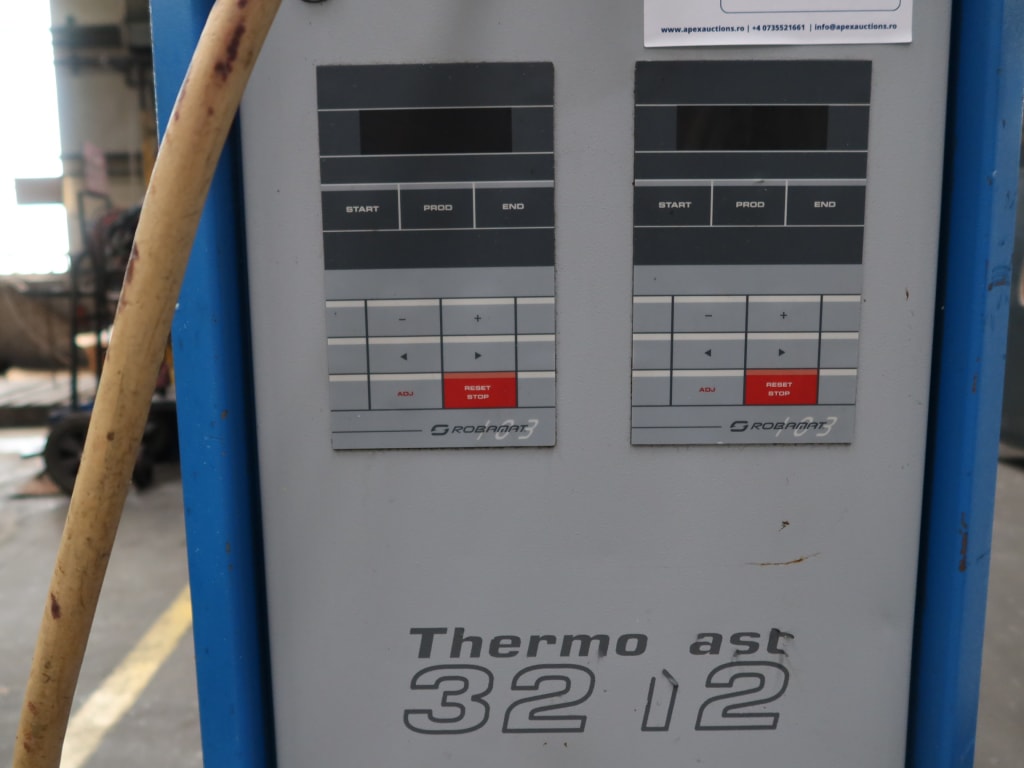

Mould temperature control unit; Manufacturer: Robamat; Year of manufacture: 2014; Serial number: 19083; Configuration: Twin-circuit (two independent control zones); Power supply: 400 V / 50 Hz / 63 A; Mounting: Mobile unit on castors; Equipped with: Pressure gauges.

Con.Nr: 33001683; ID.Nr: 10009846;

Pressurised-water mould temperature control unit, manufactured by Regloplas AG (St. Gallen, Switzerland). Year 2013, serial no. 114730250021. Max. temperature 160 °C, heating power 38 kW, tank volume 1 litre, max. pressure 10 bar, 400 V / 3 PE / 50 Hz, 58 A.

Pressurised-water mould temperature control unit, manufactured by Regloplas AG (St. Gallen, Switzerland). Max. temperature 160 °C, heating power 38 kW, tank volume 1 litre, max. pressure 10 bar, 400 V / 3 PE / 50 Hz, 58 A. Mobile unit on castors.

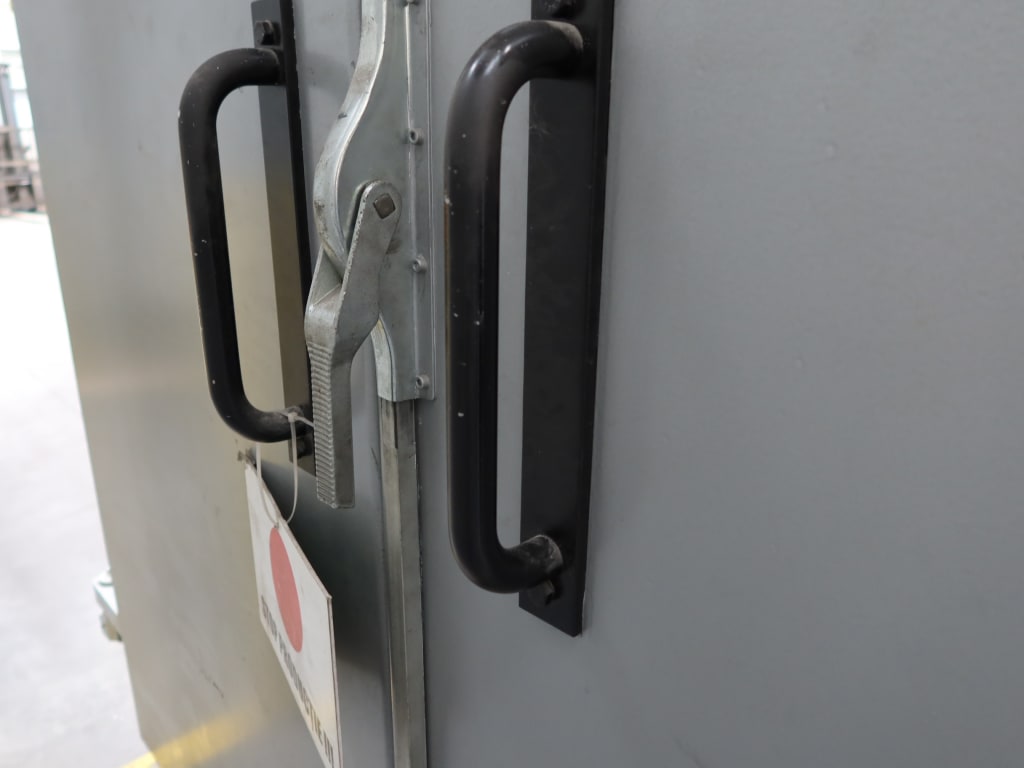

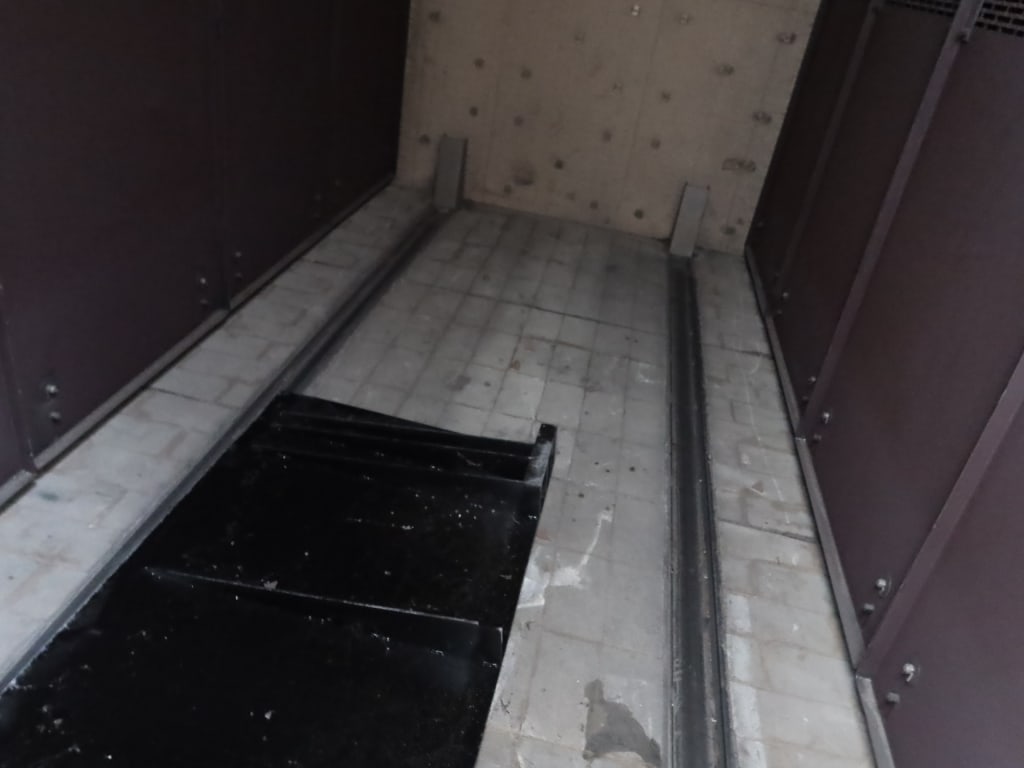

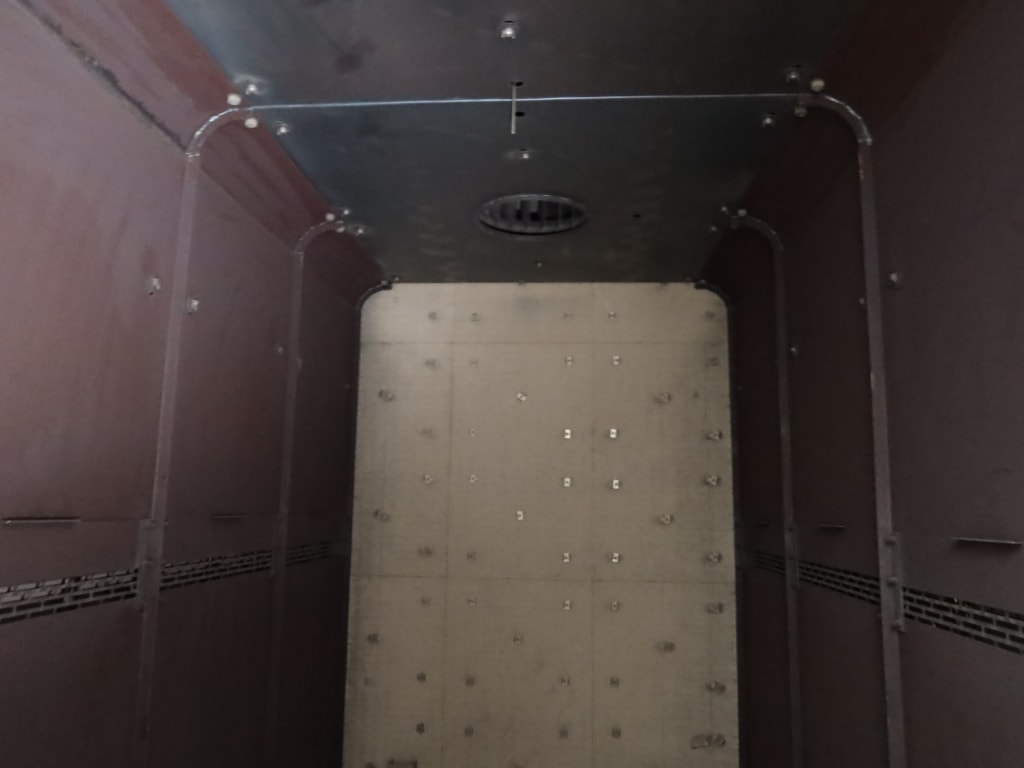

Large electrically heated walk-in chamber furnace; Manufacturer: KGO GmbH (Wetter, Germany); Year of manufacture: 2021; Commission number: 21.02/18178; Construction: Hinged front access door with lever-latch closure; insulated panel construction on steel frame; Application: Originally configured for aluminium age-hardening (ageing); Process capability: Tempering, annealing, age-hardening, recrystallizing and ageing, with option for protective-gas atmospheres; Control system: Freely programmable switch and control system with interface for process control systems and multi-segment temperature profiles; Cooling: Direct cooling with protective gas; Temperature uniformity: Highest furnace class per DIN / AMS; Maximum temperature: 300 °C; Installed power: 130 kVA max; Power supply: 400 V / 3 PH / 50 Hz; Weight: 5,500 kg; Useful chamber dimensions (D × W × H): approx. 1,600 × 3,200 × 2,200 mm

Pressing Force: 343 kN (nominal capacity of 35 metric tons); Controller Siemens; Overall height: 3400 mm; Base length: 1290 mm; Lower frame height: 950 mm; Tool center Height from Floor: Approx. 900 mm; Upper Opening Height Indicated: 600 mm; Overall Width: 1900 mm; Internal Opening Width: 1200 mm; Height to lower working level: 1150 mm; Upper Tool centering diameter: Ø50 mm

Unused; Optional dismantling and loading services are available on site.
