Cutlery Manufacturing Facility Closure – Fiber Laser and Metalworking Machinery Sale

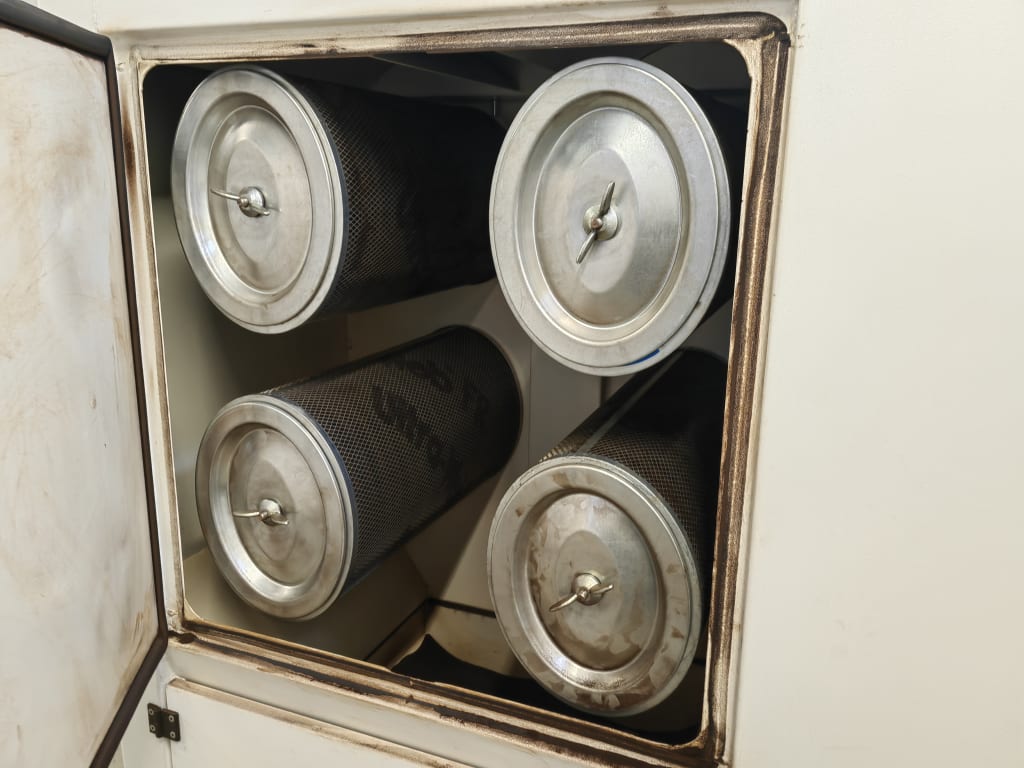

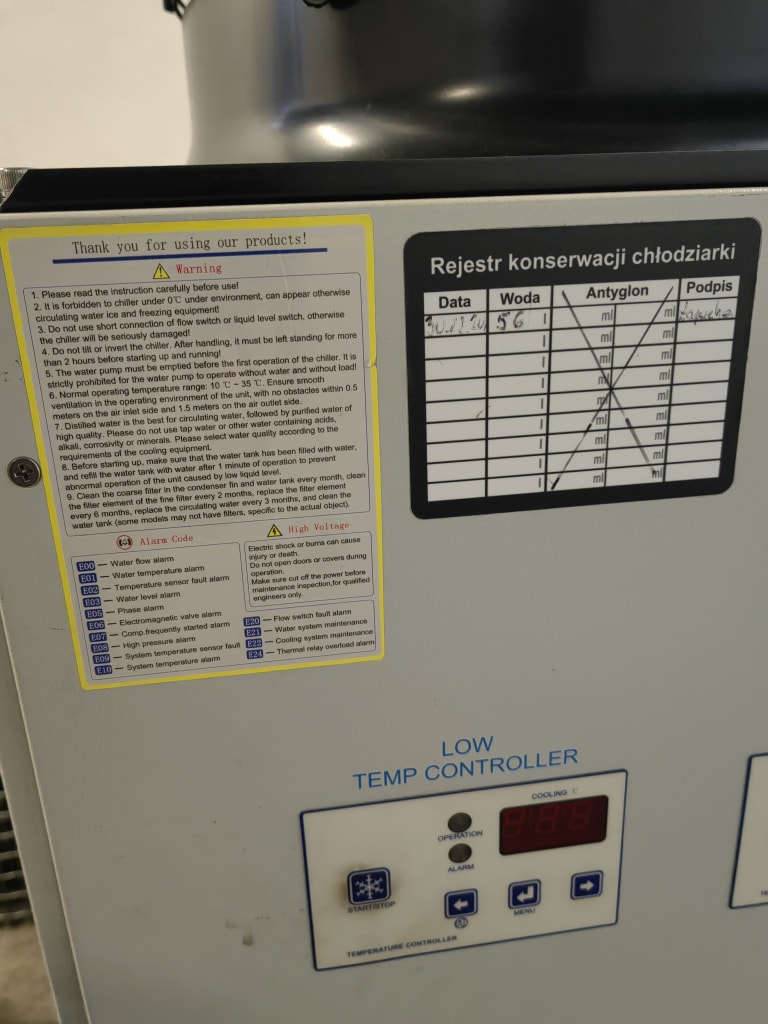

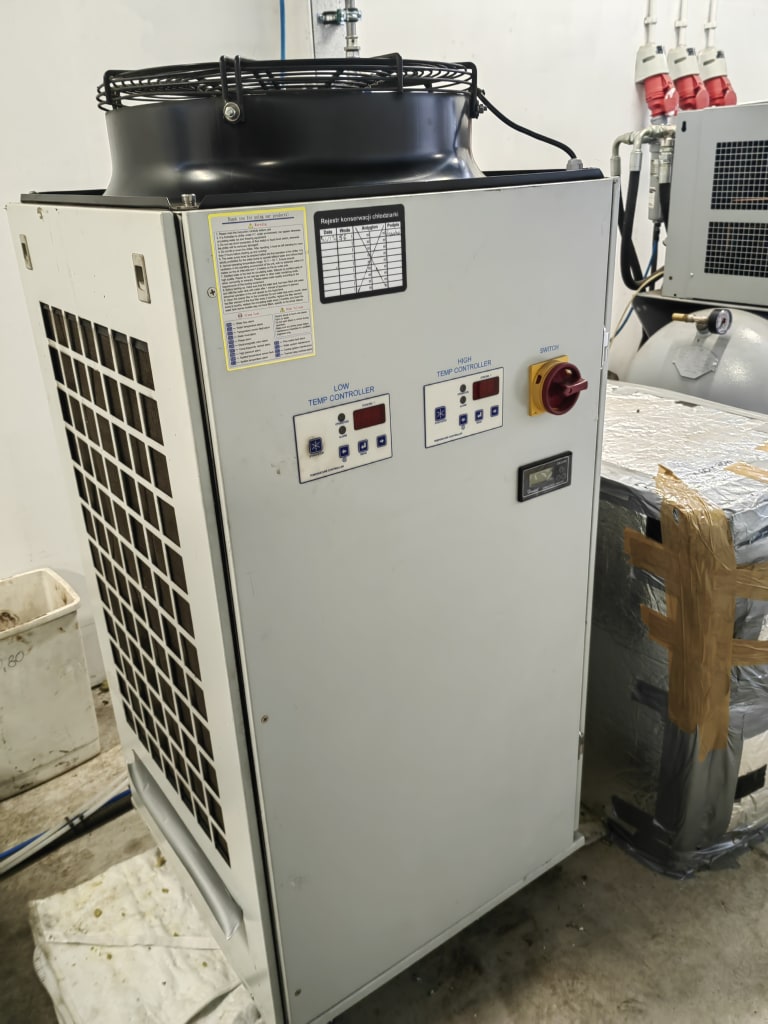

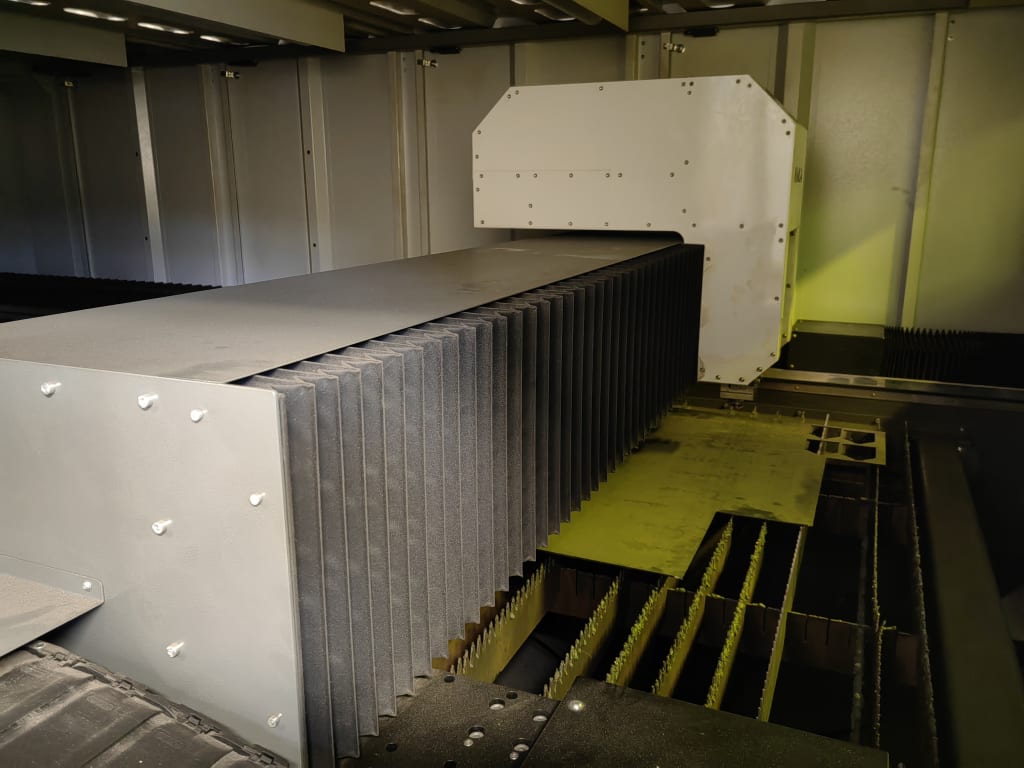

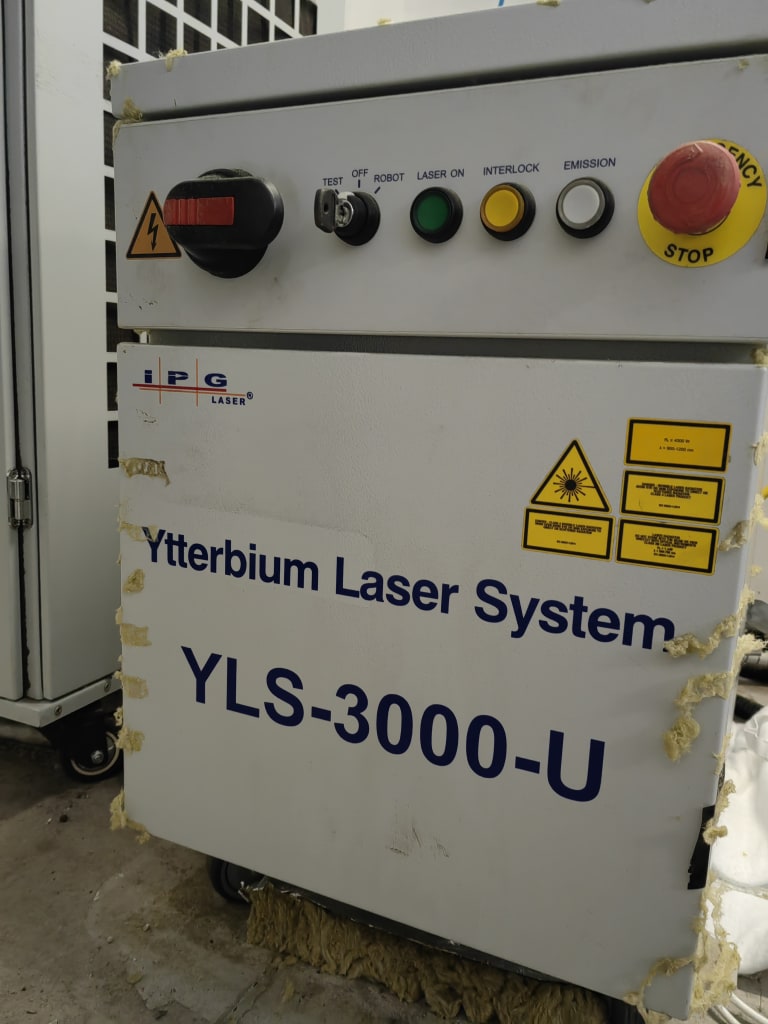

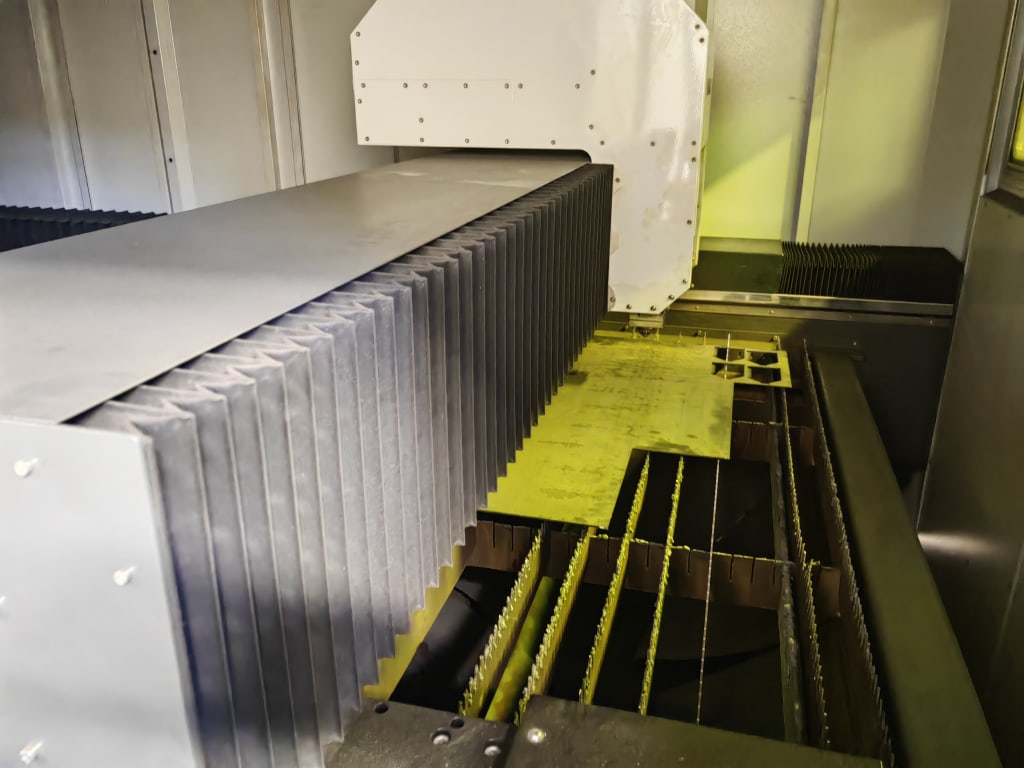

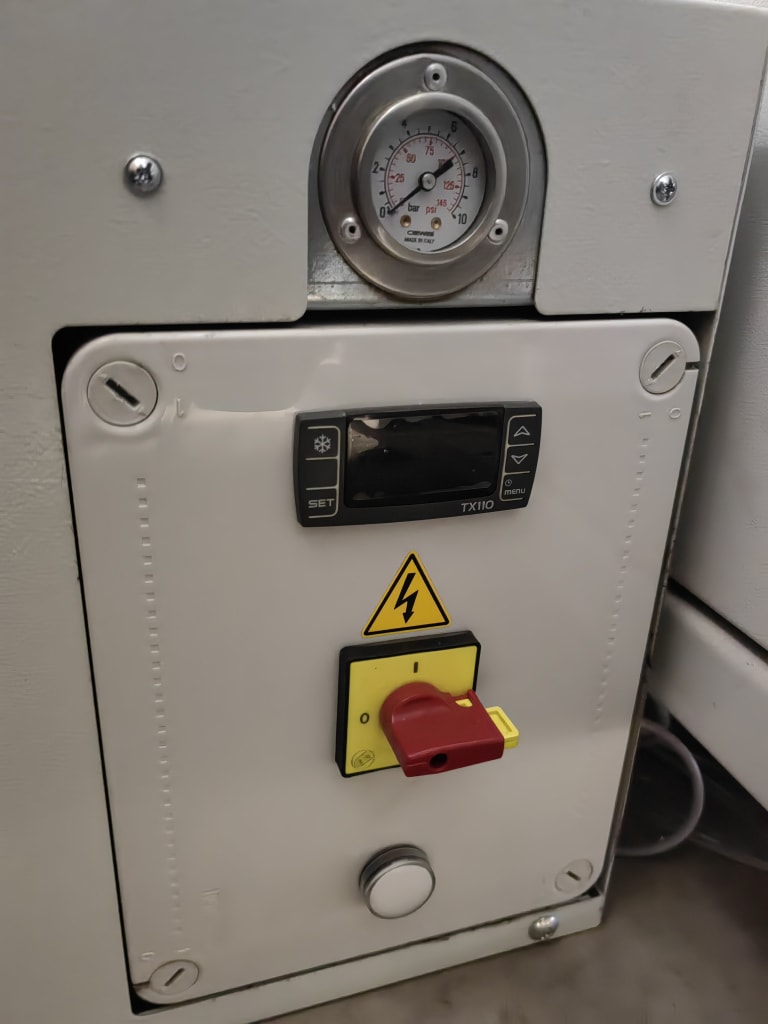

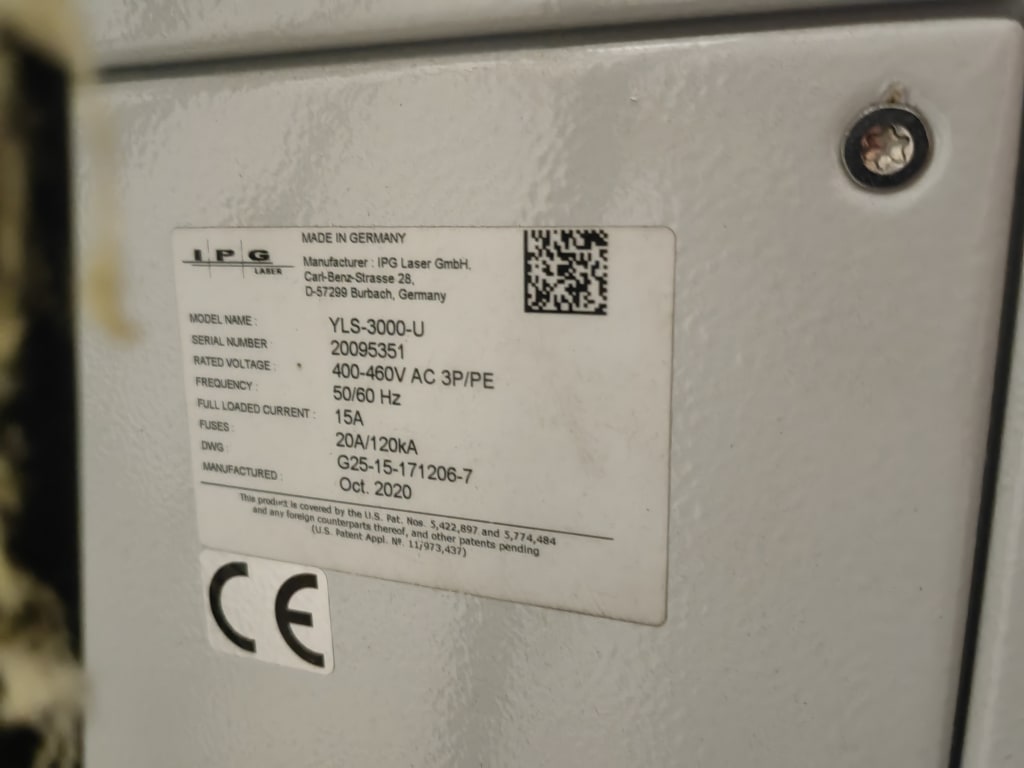

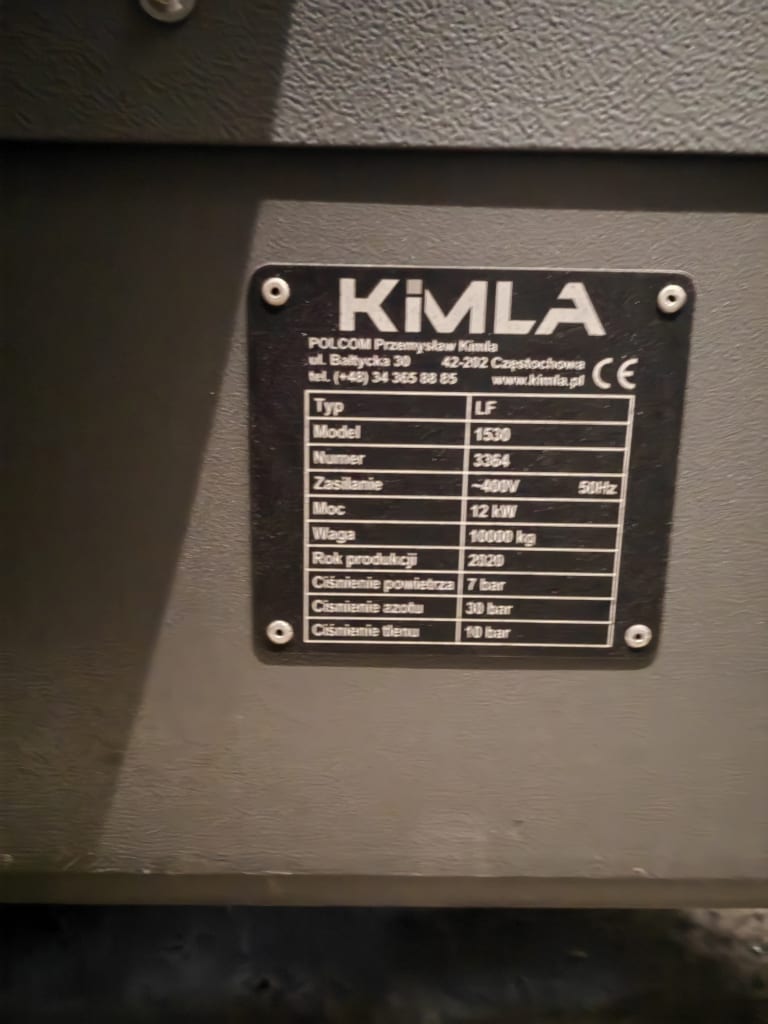

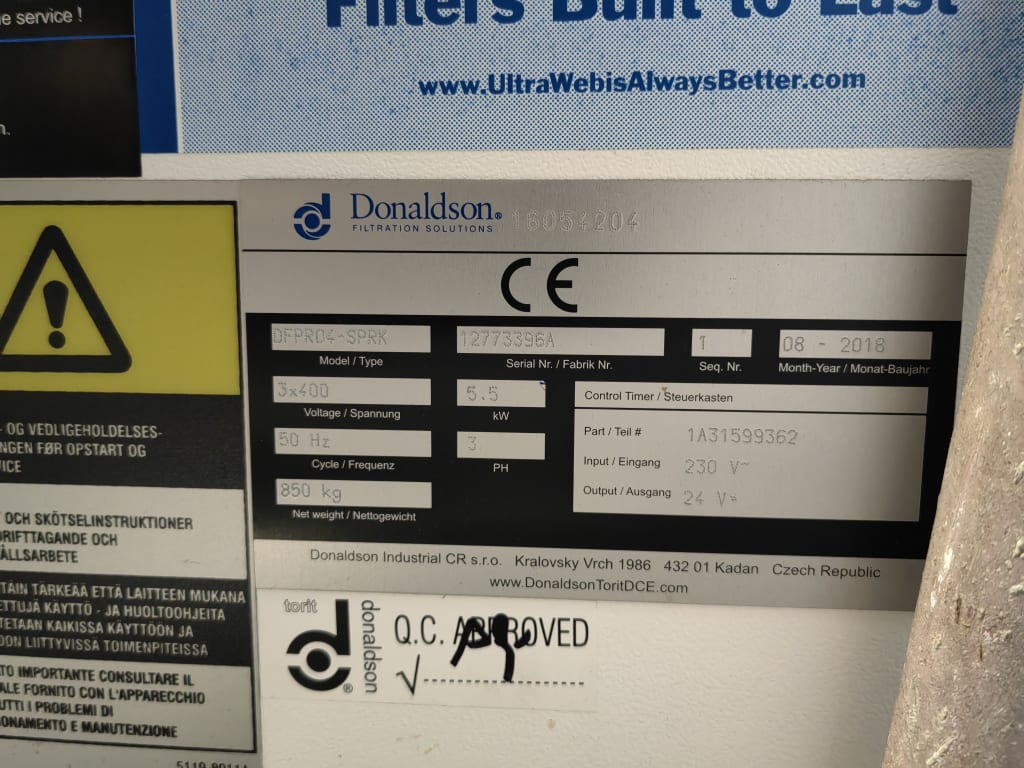

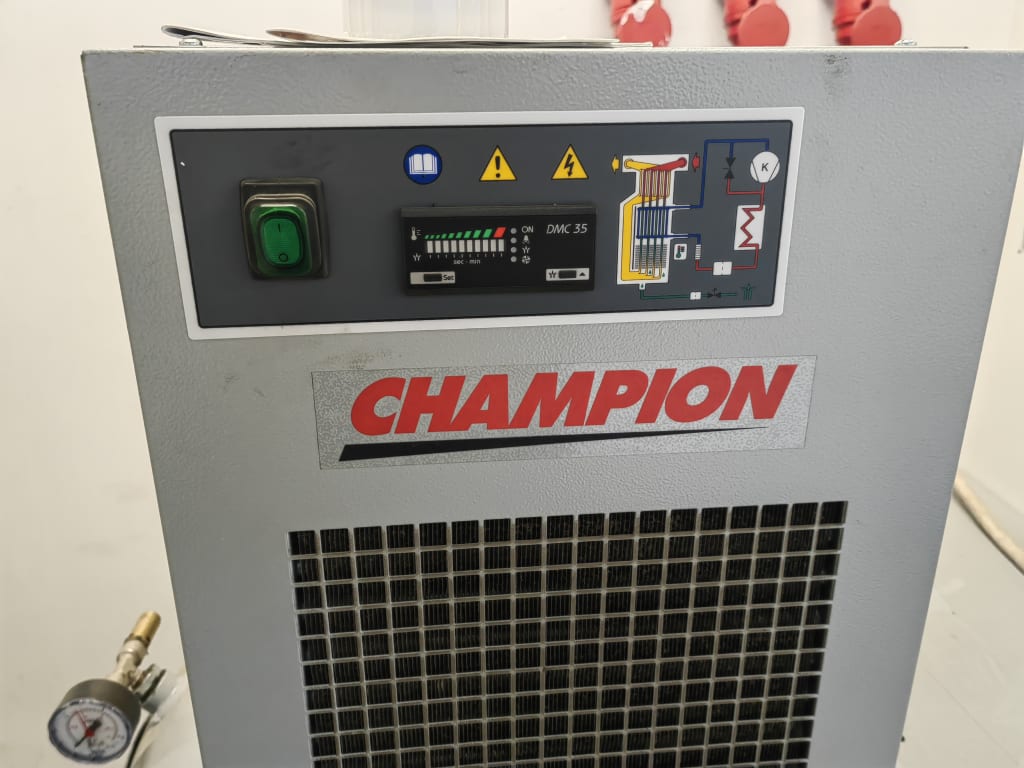

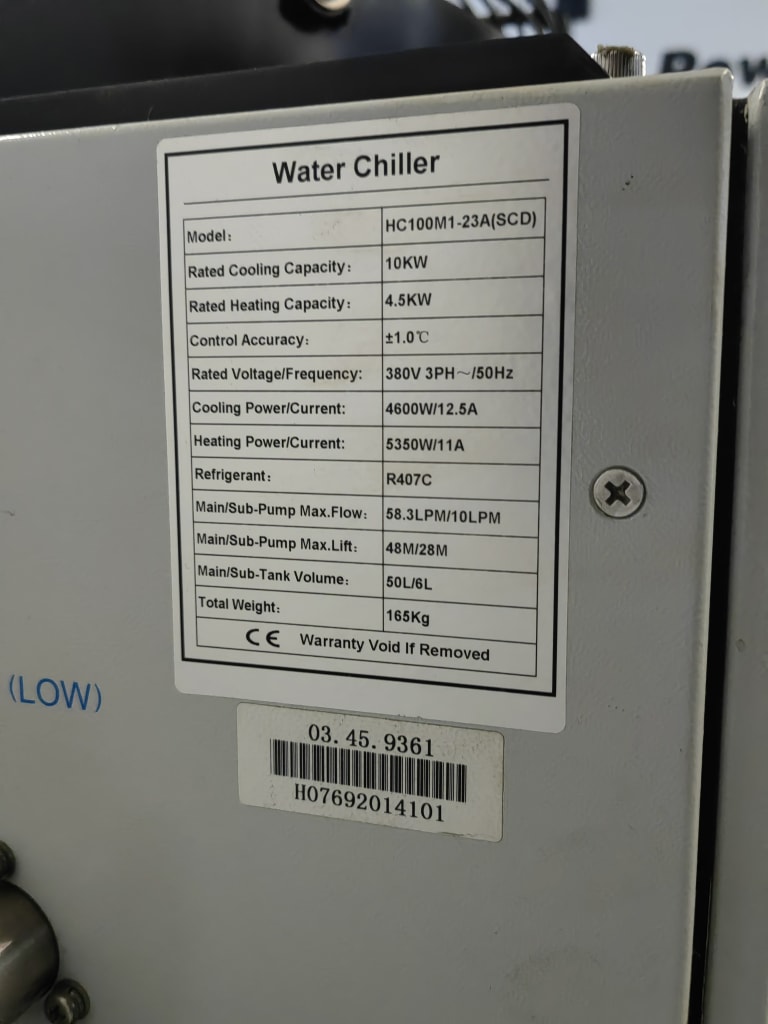

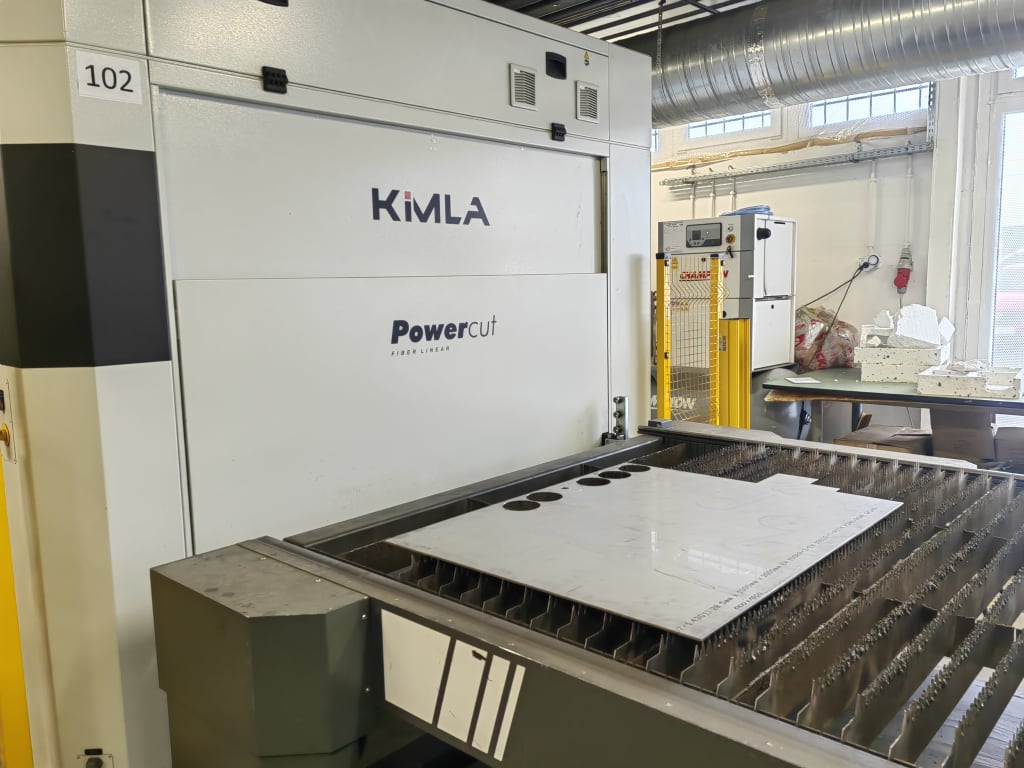

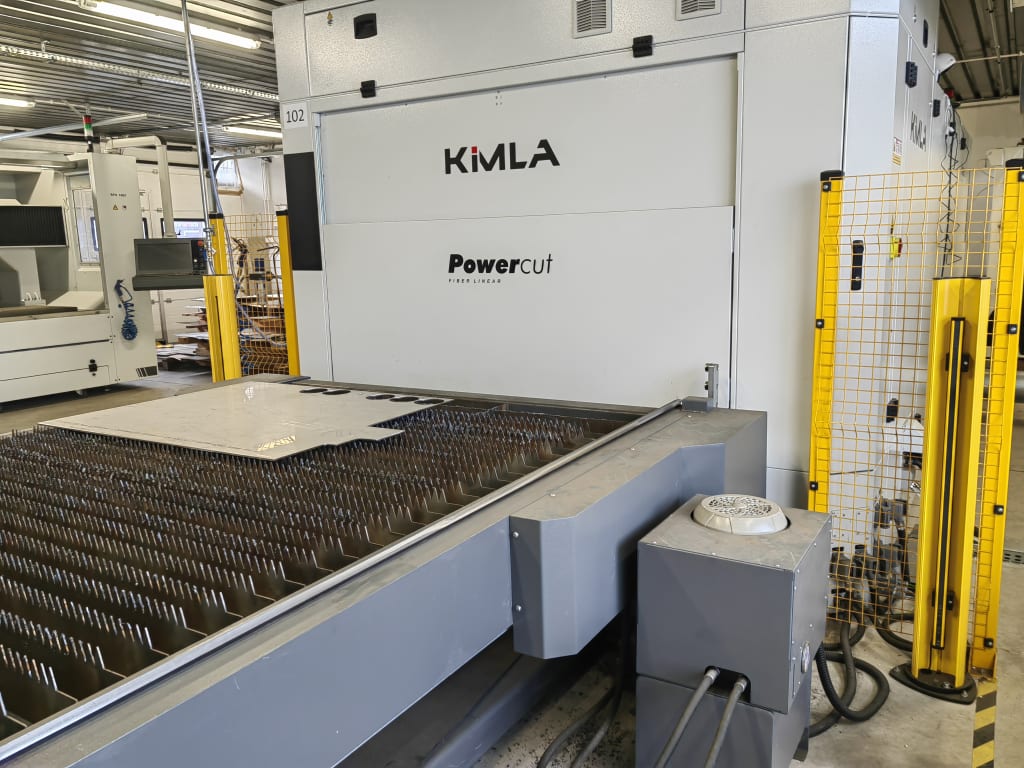

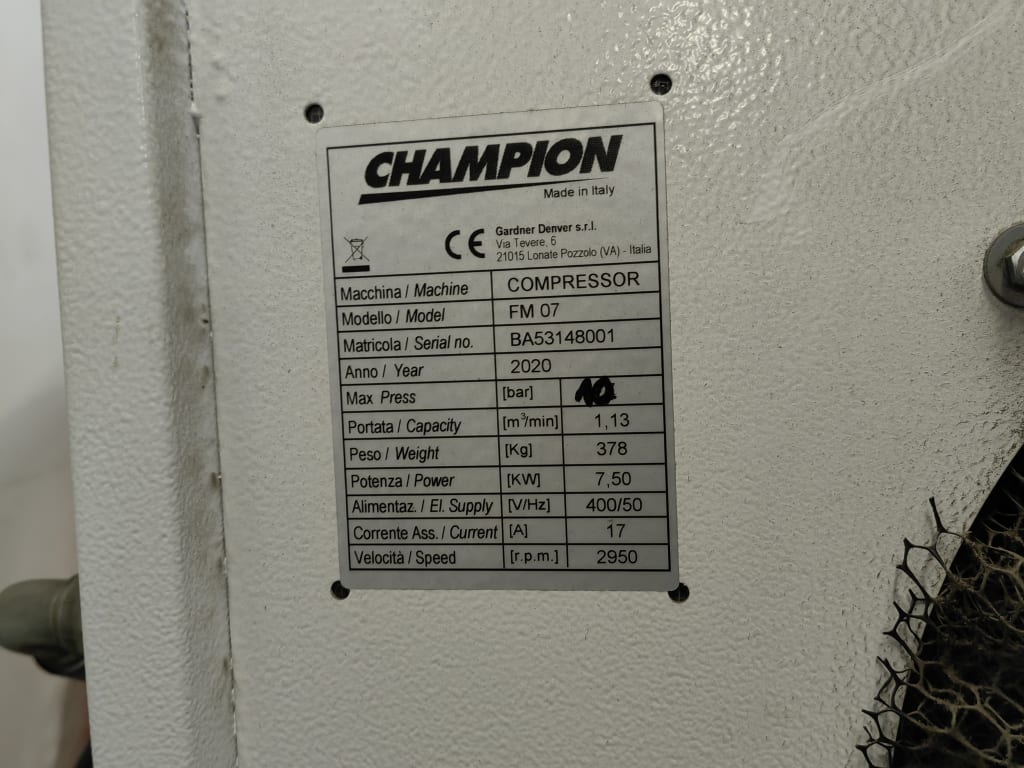

Working travel: 1600 x 3100 x 120 mm, Sheet dimensions: 3000 x 1500 mm, Sheet weight: 900 kg, Machine S/No: 3364 (2020), Laser power: 3kW Fiber, Laser source: IPG YLS 3000-U, Source S/No: 20095351, Donaldson DFPRO4- SPRK Fume, Year: 2018, HC100M1-23A Water Chiller, (2020) Champion FM07 Compressor

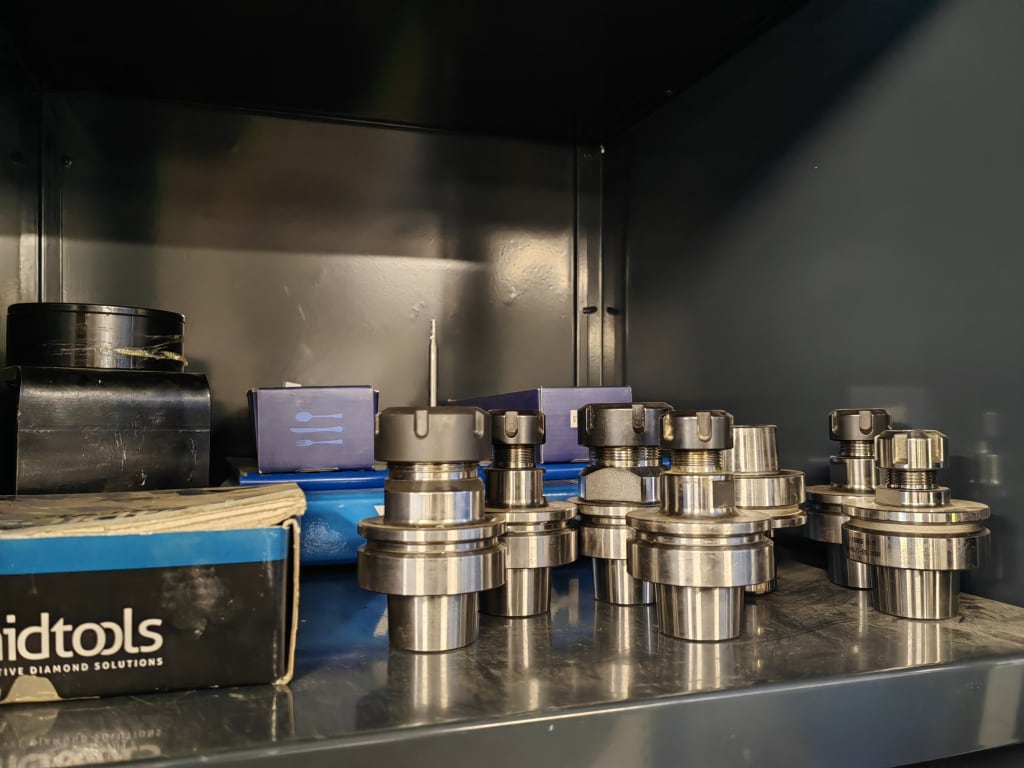

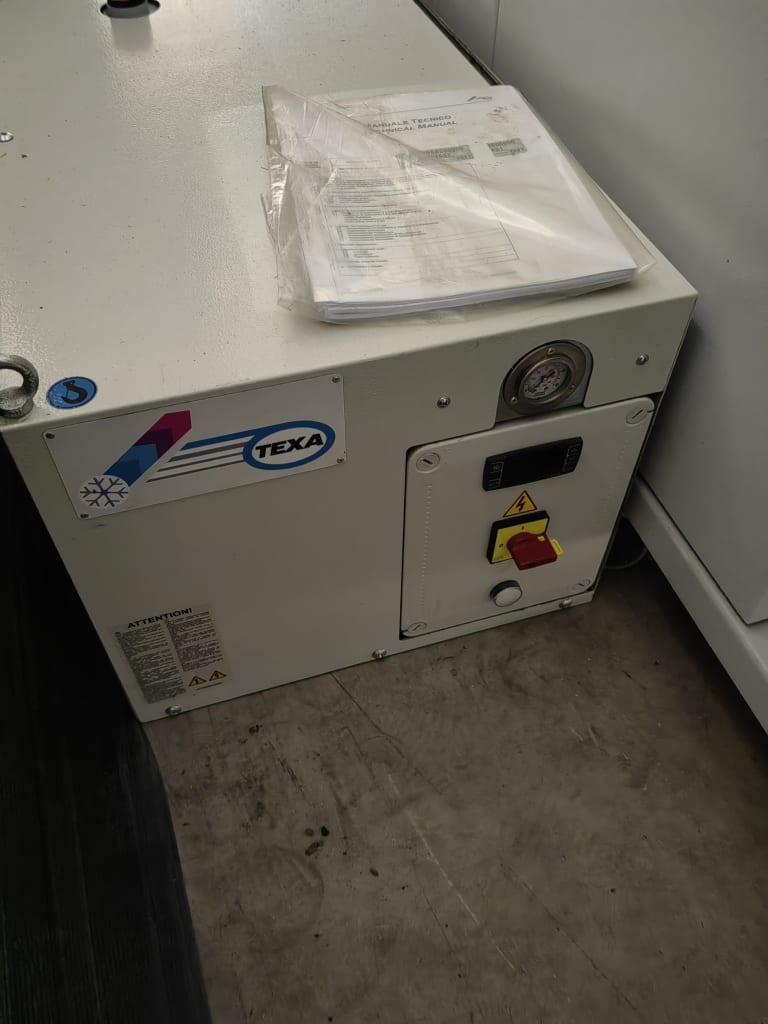

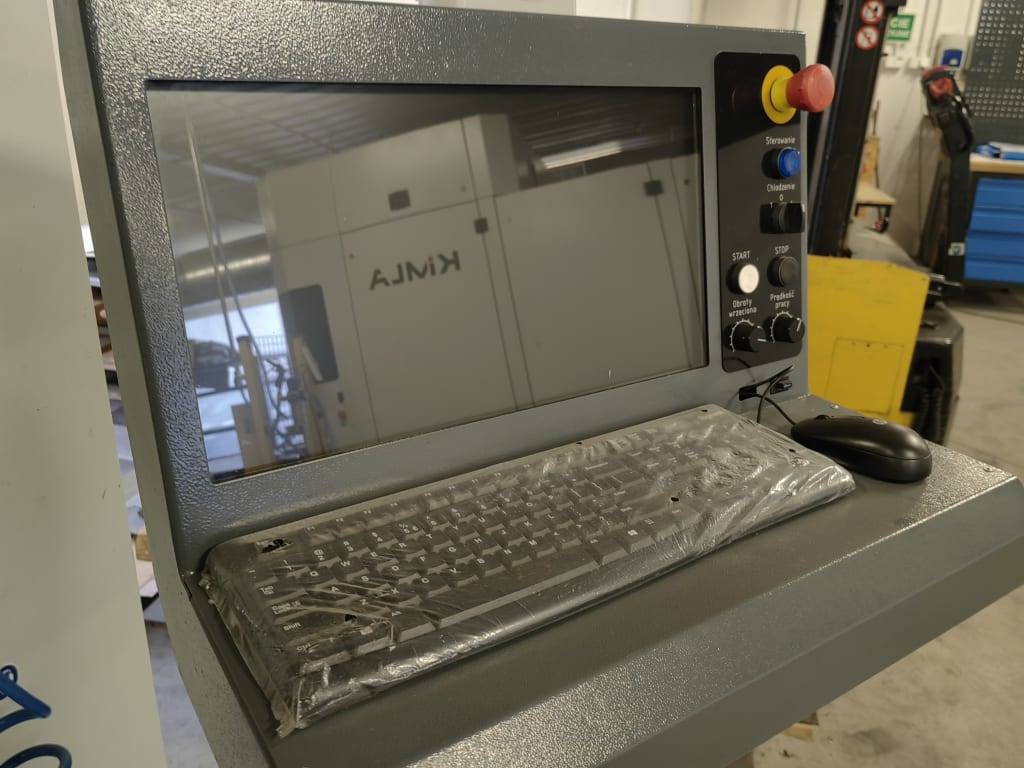

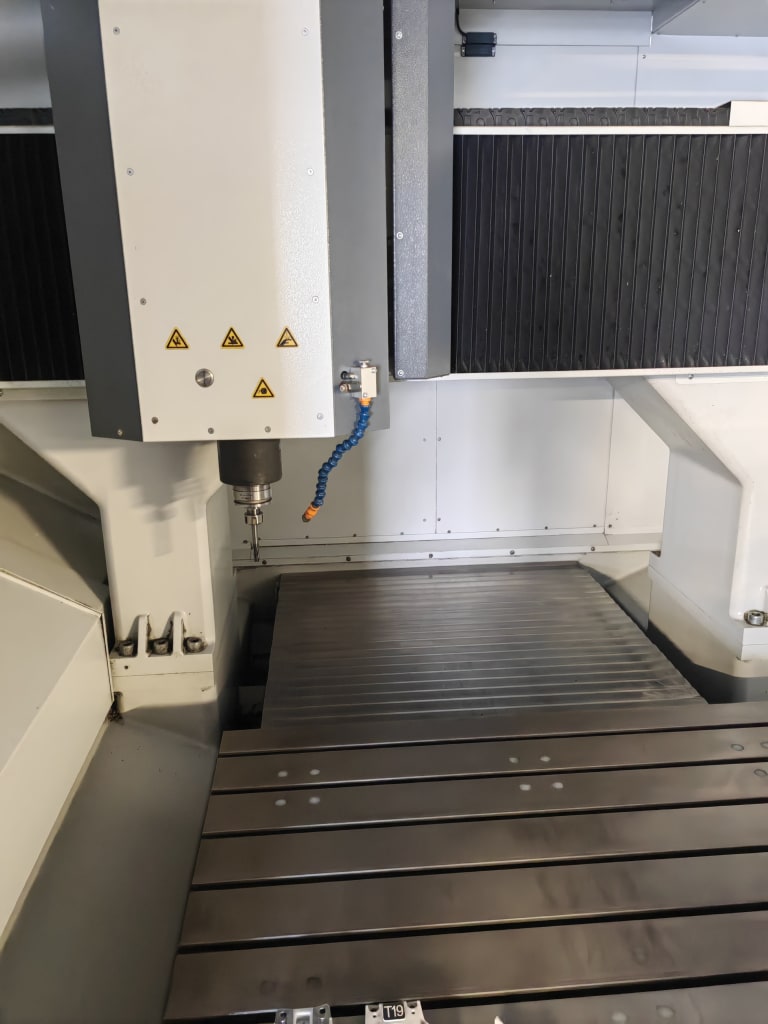

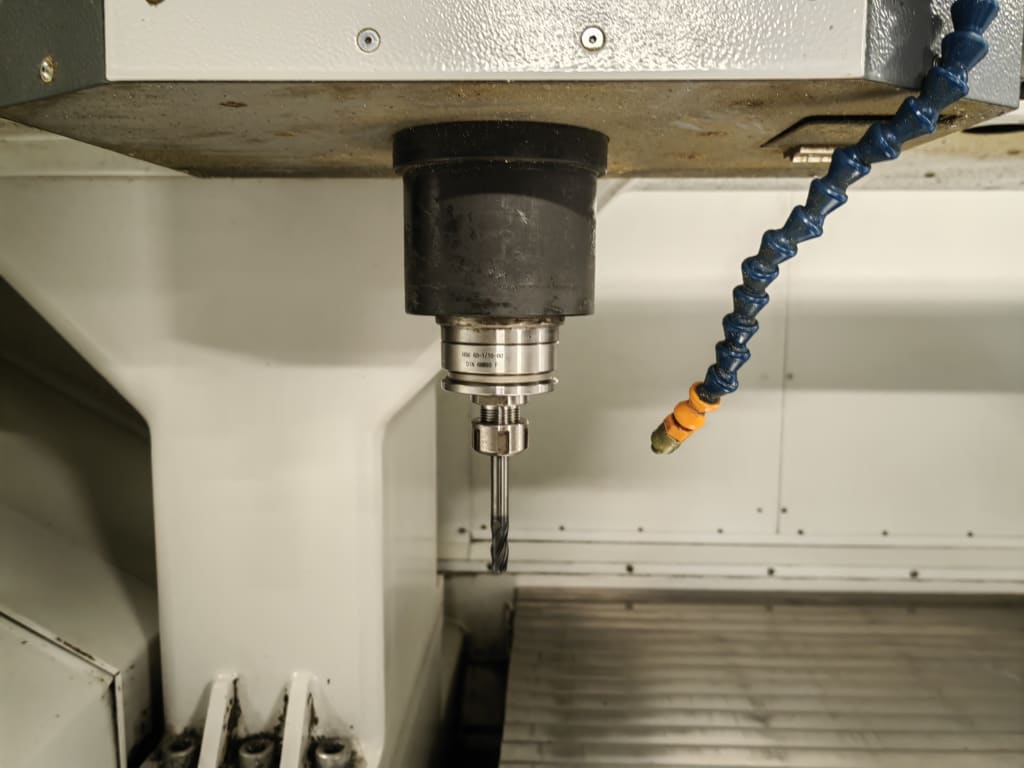

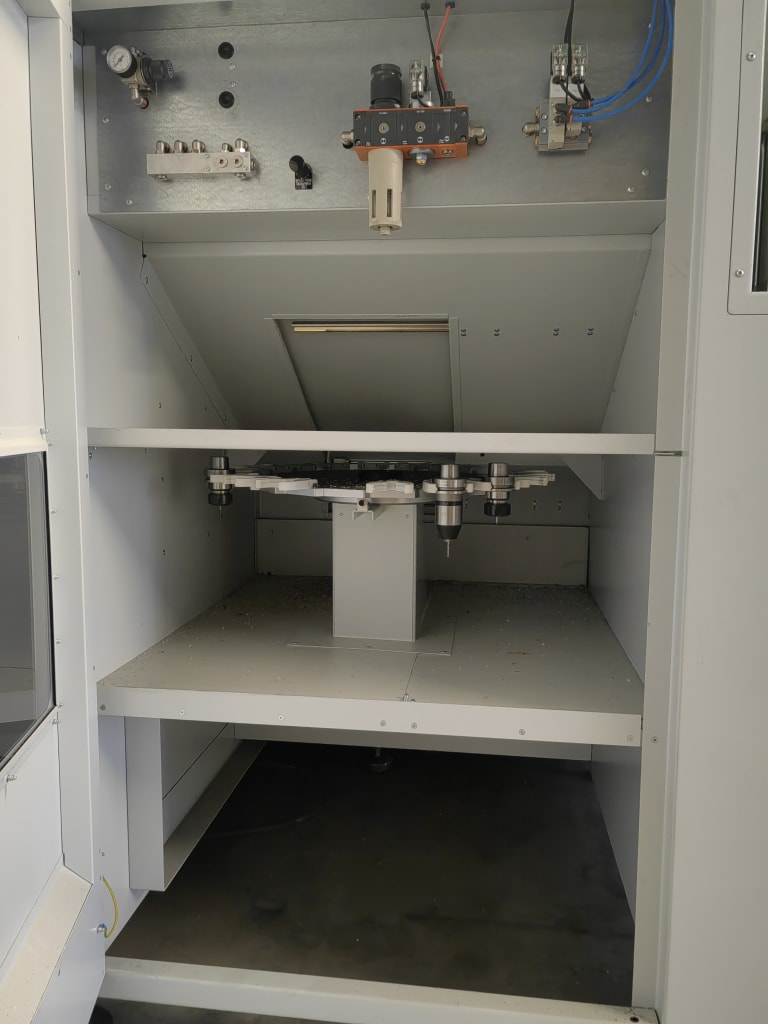

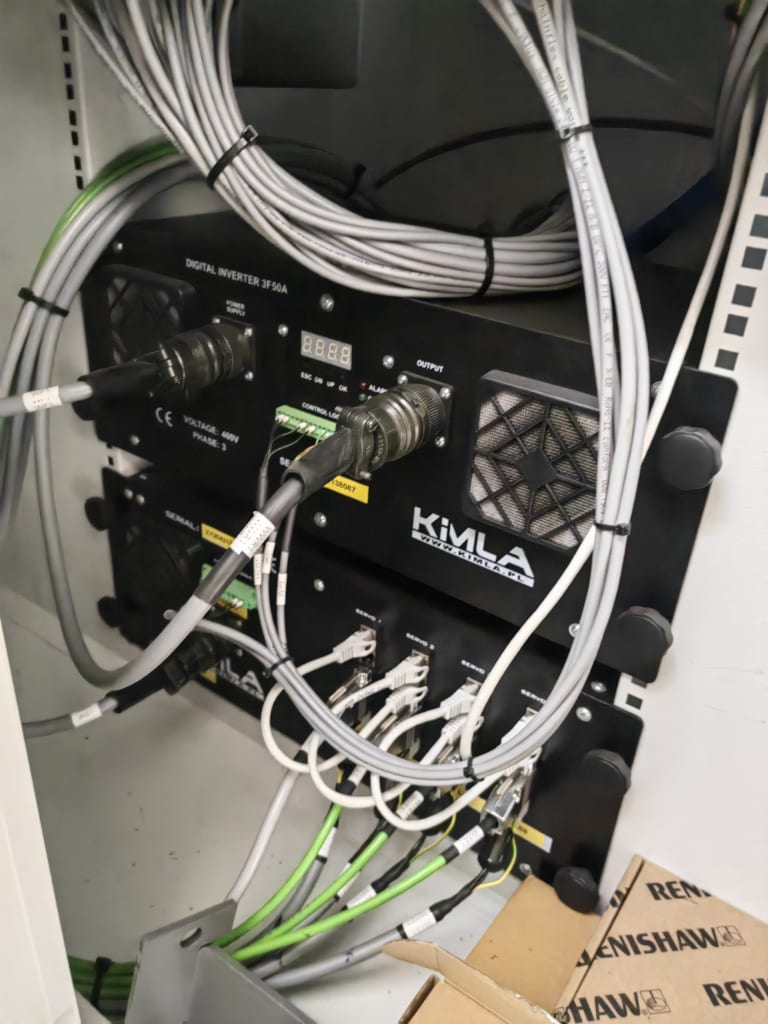

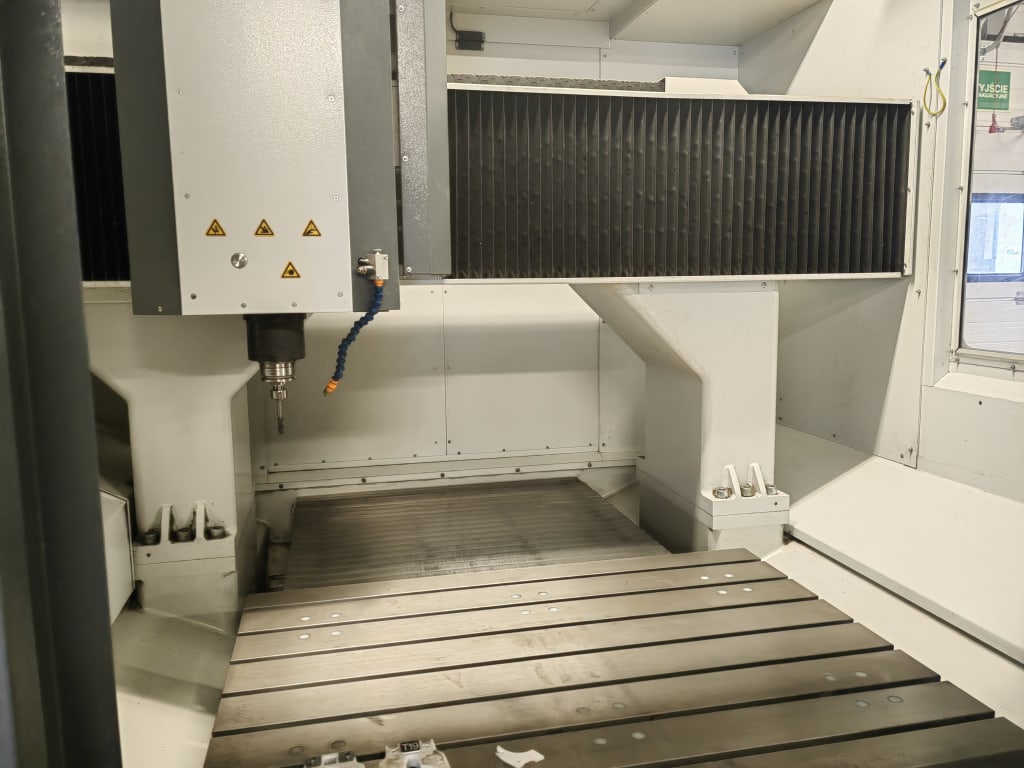

Table: 1000 x 750 mm, Working travel: 1000/700/300 mm, Spindle rpm: 24000 rpm, Spindle power: 19 kW, Tool chuck: HSK63F, Tools magazine: 20 pieces, Control: CNC, S/No: 3626 (2021), Machine weight: 5600 kg,

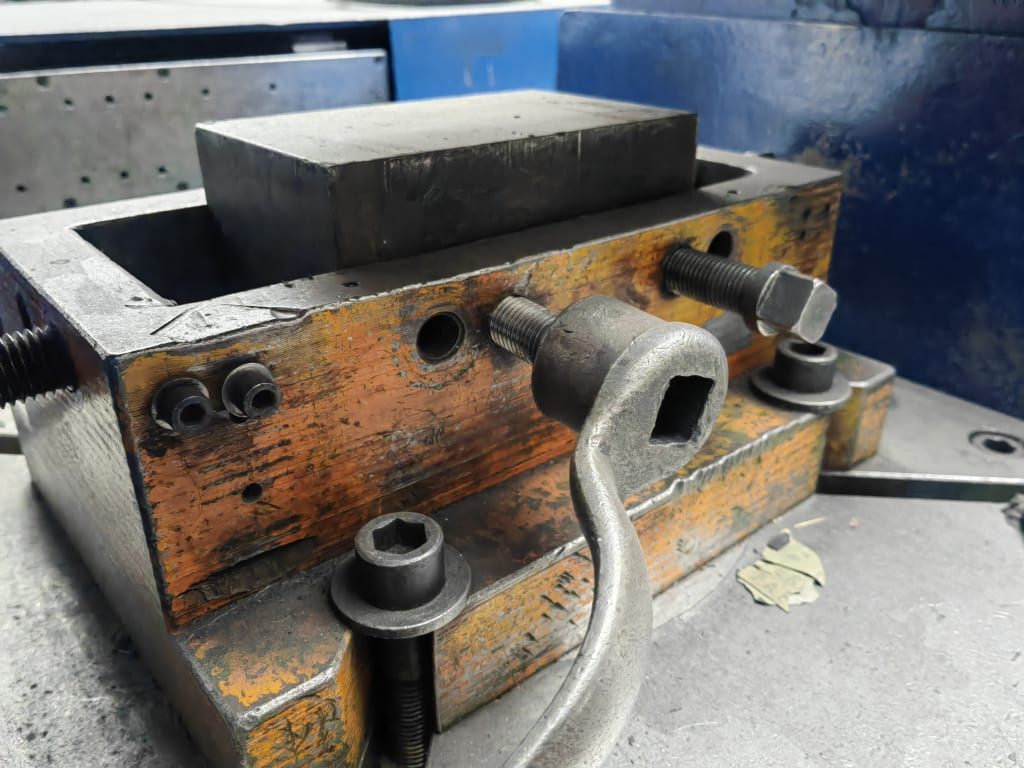

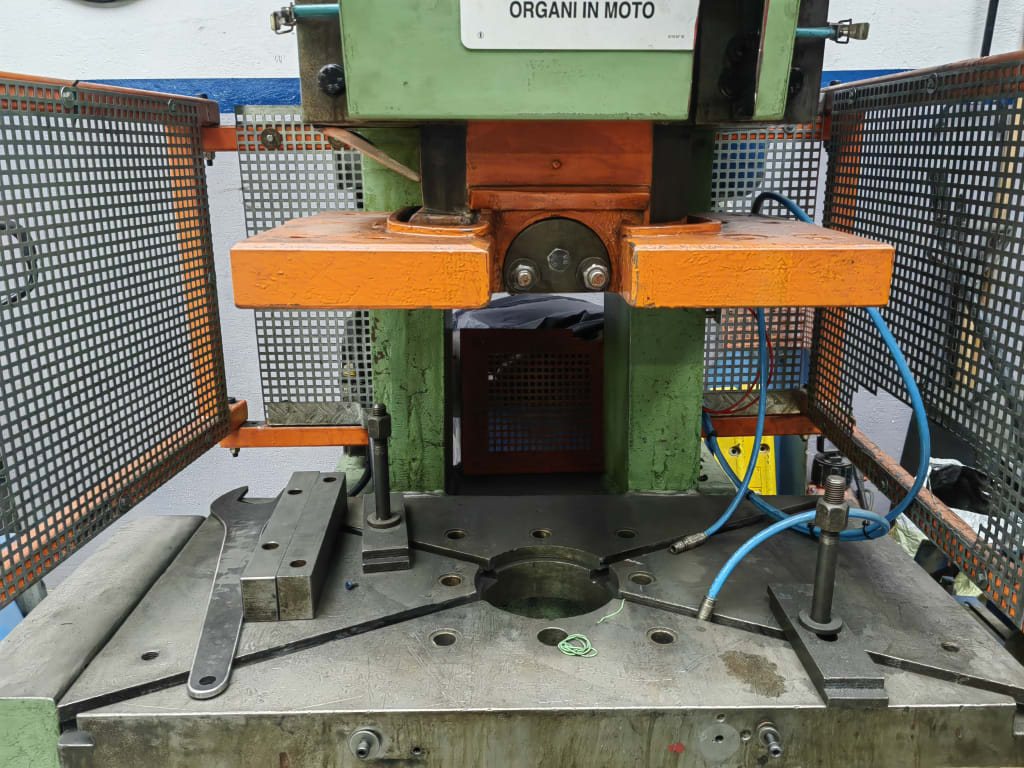

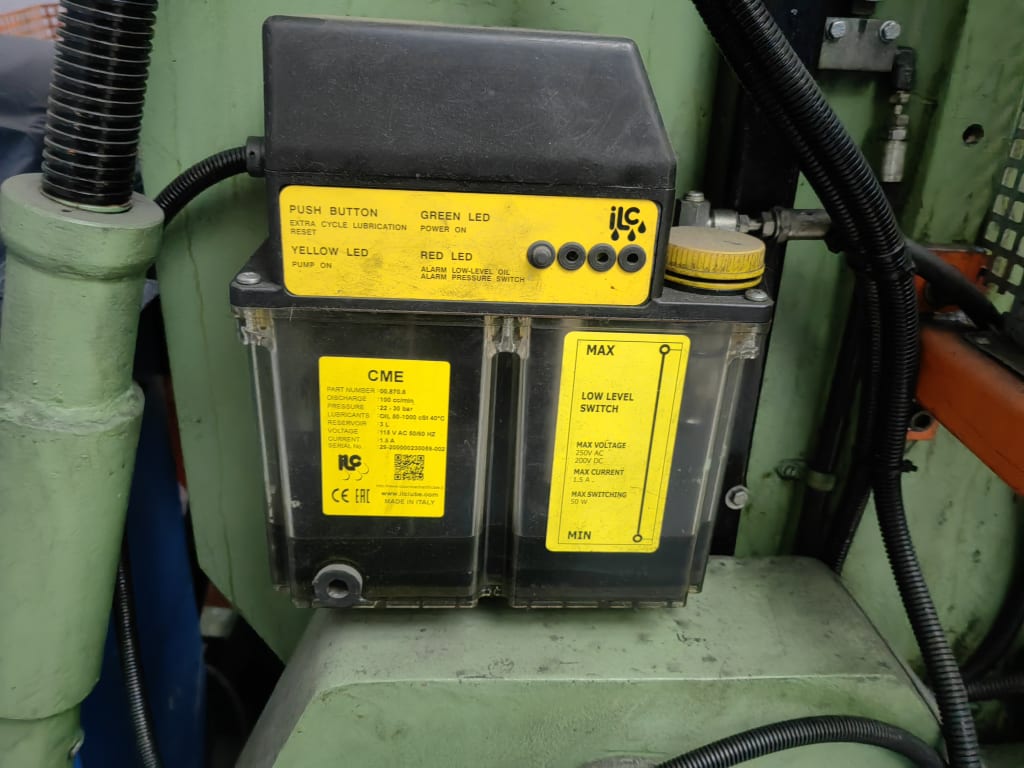

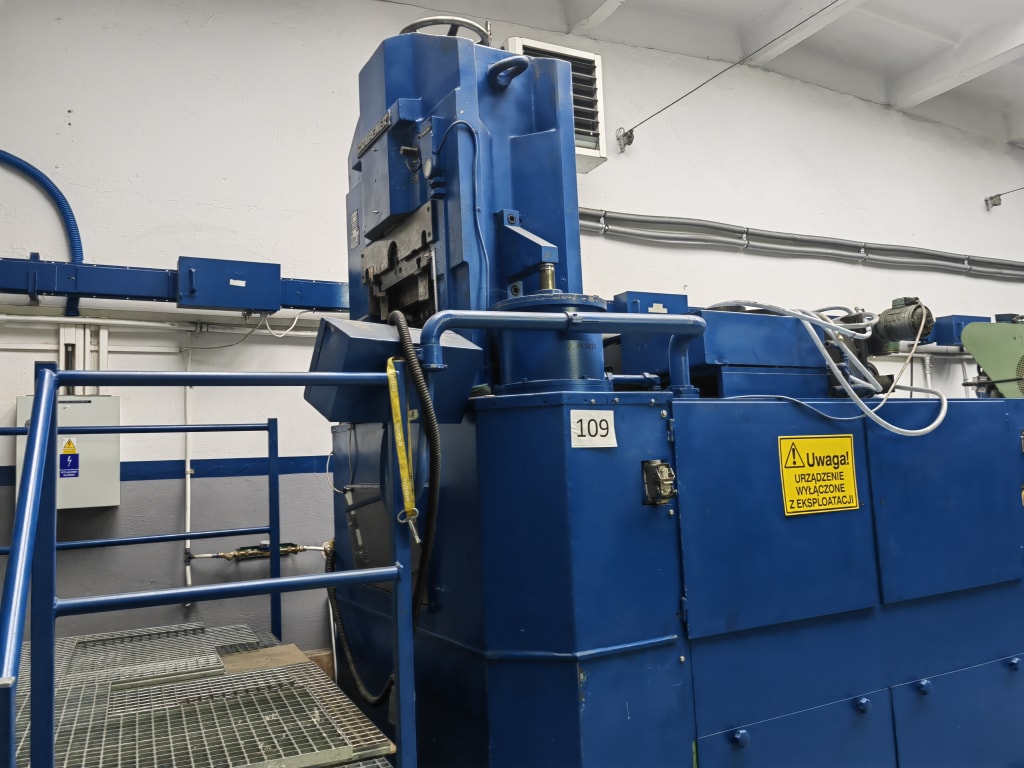

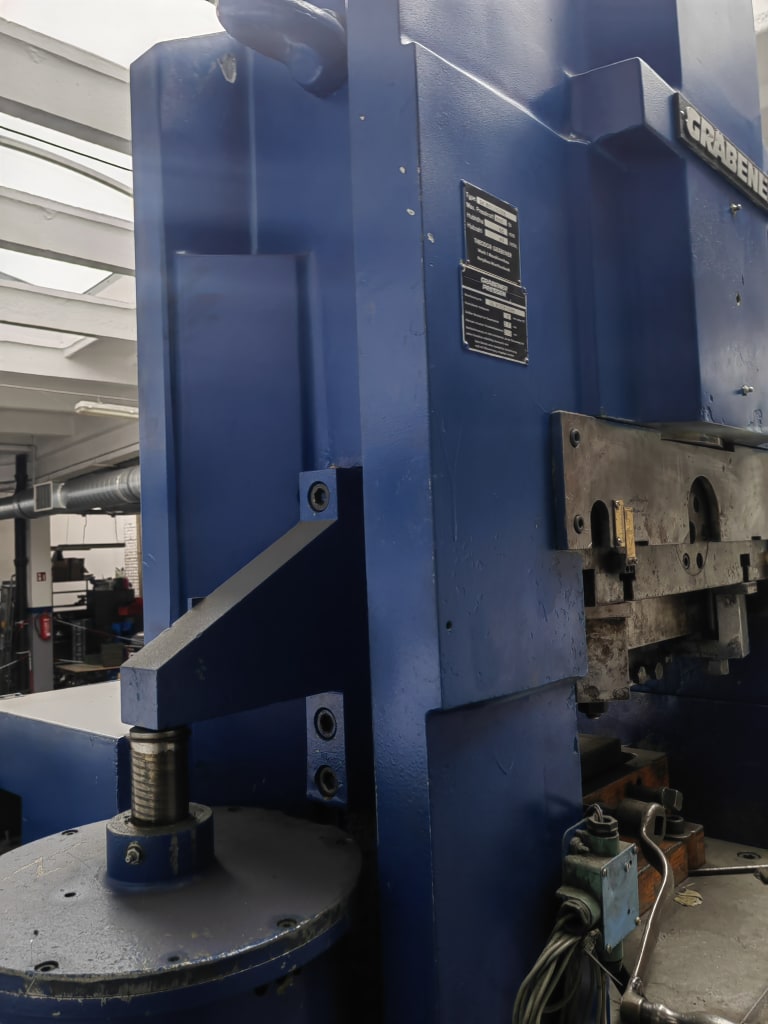

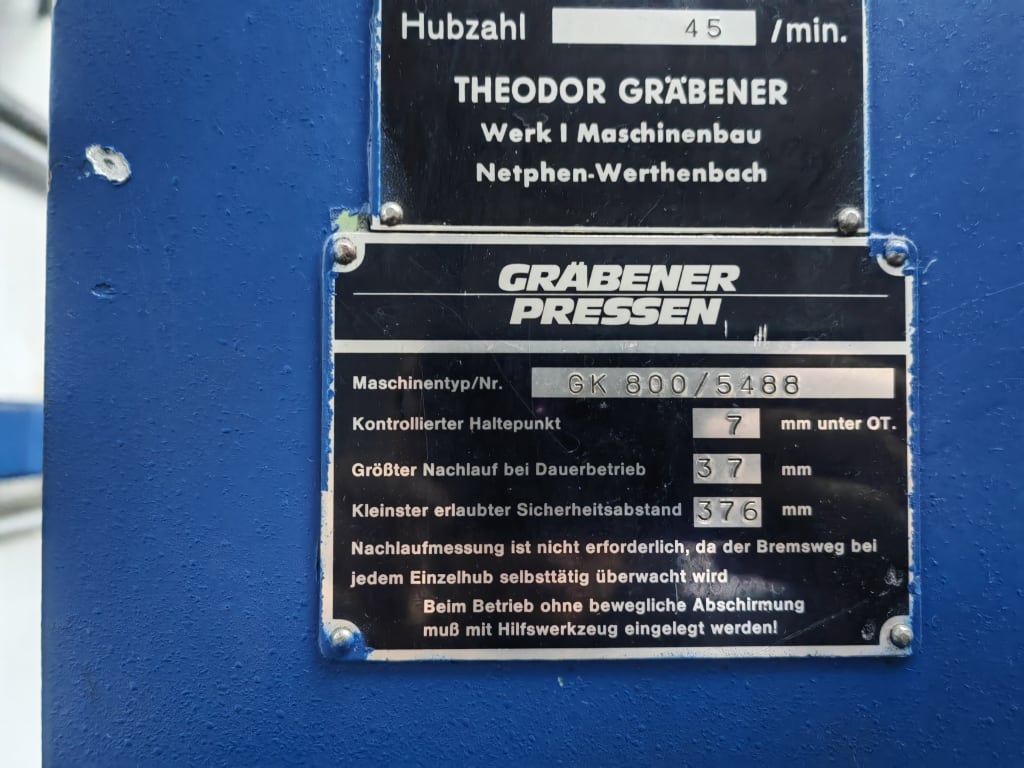

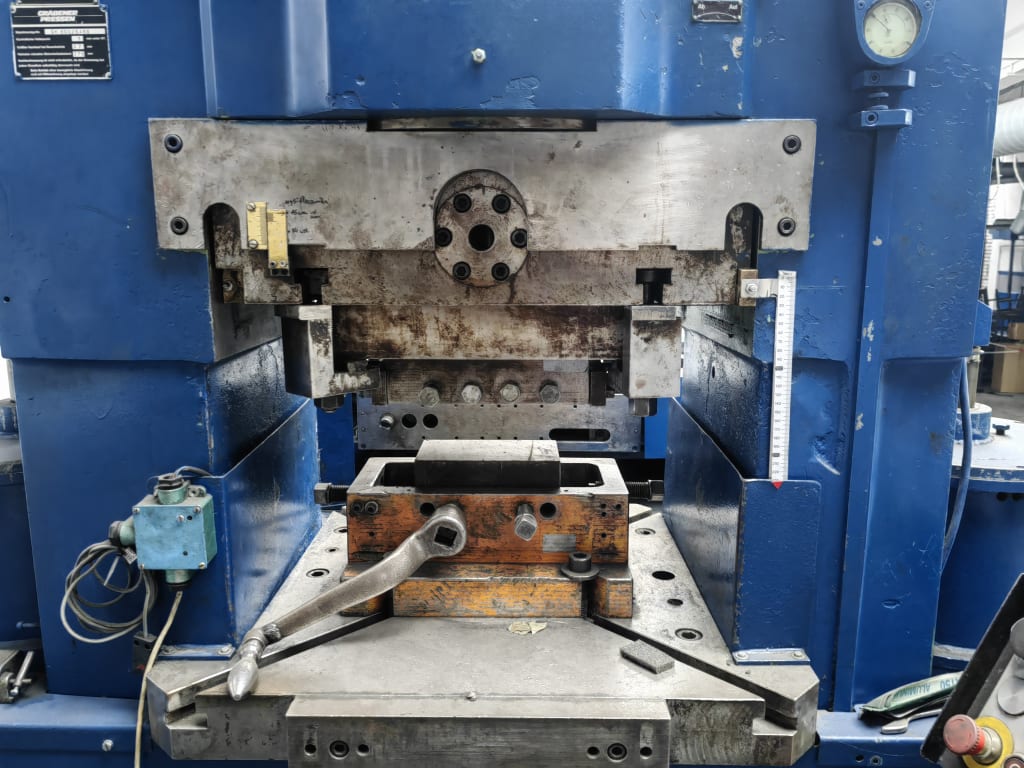

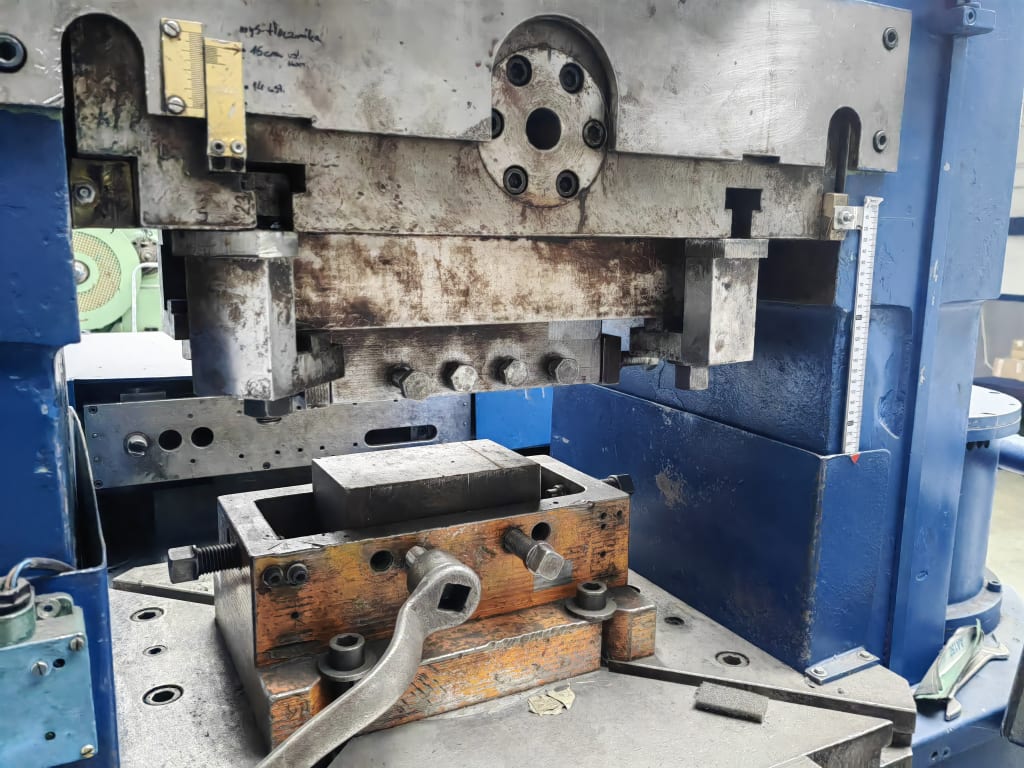

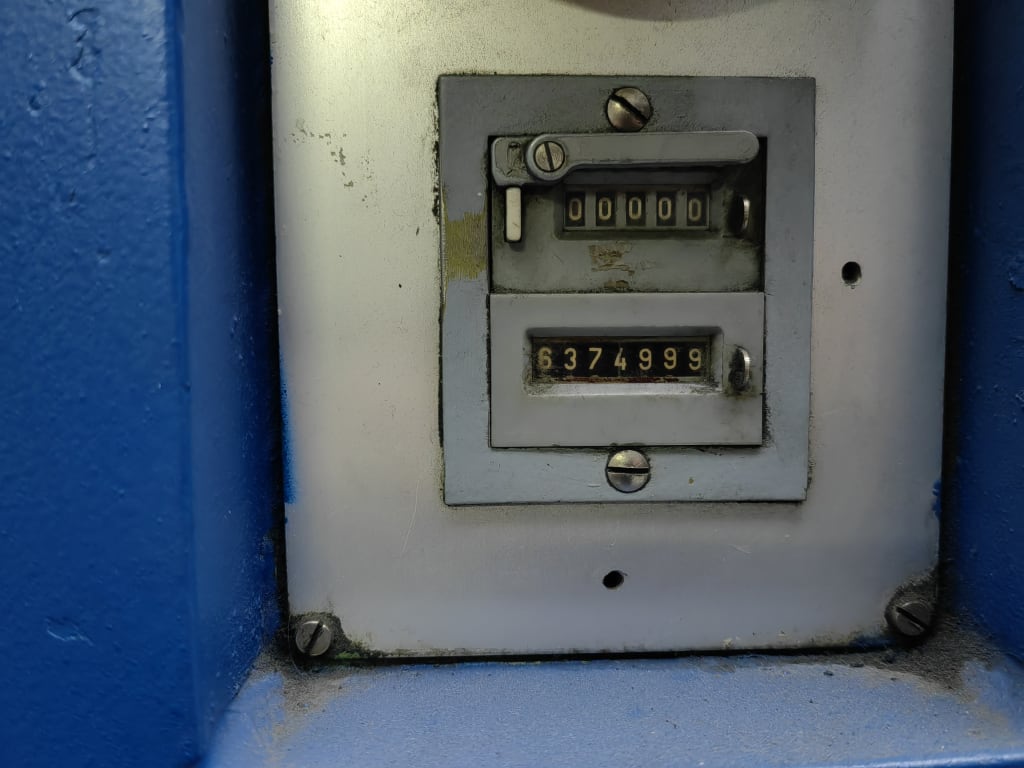

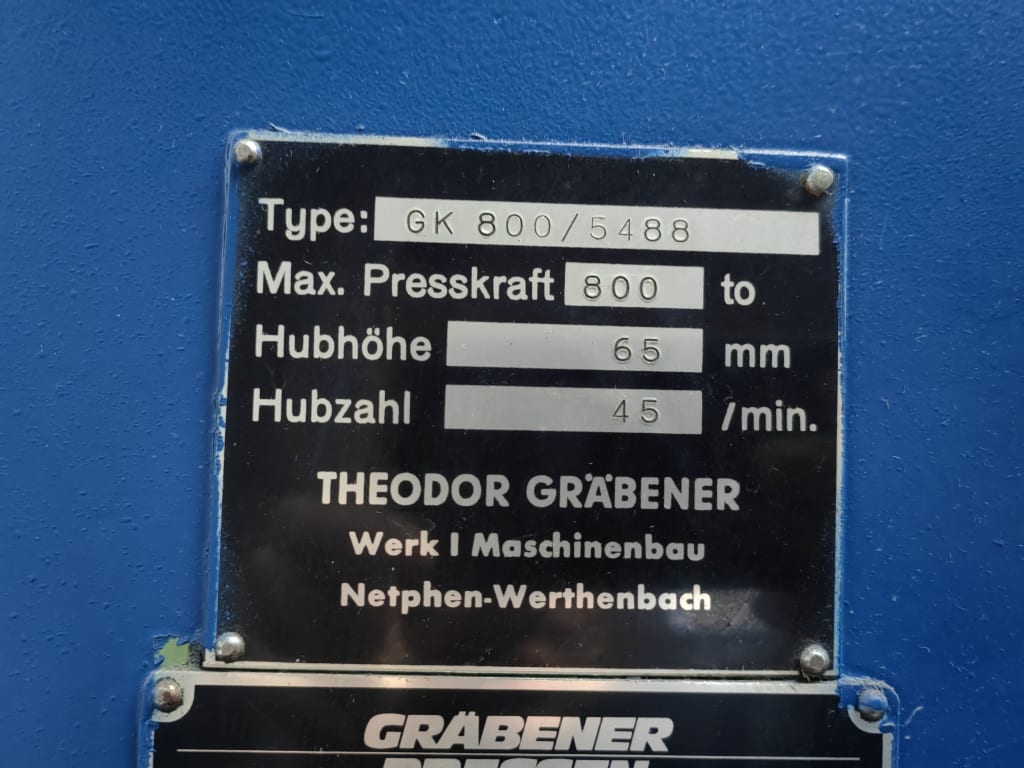

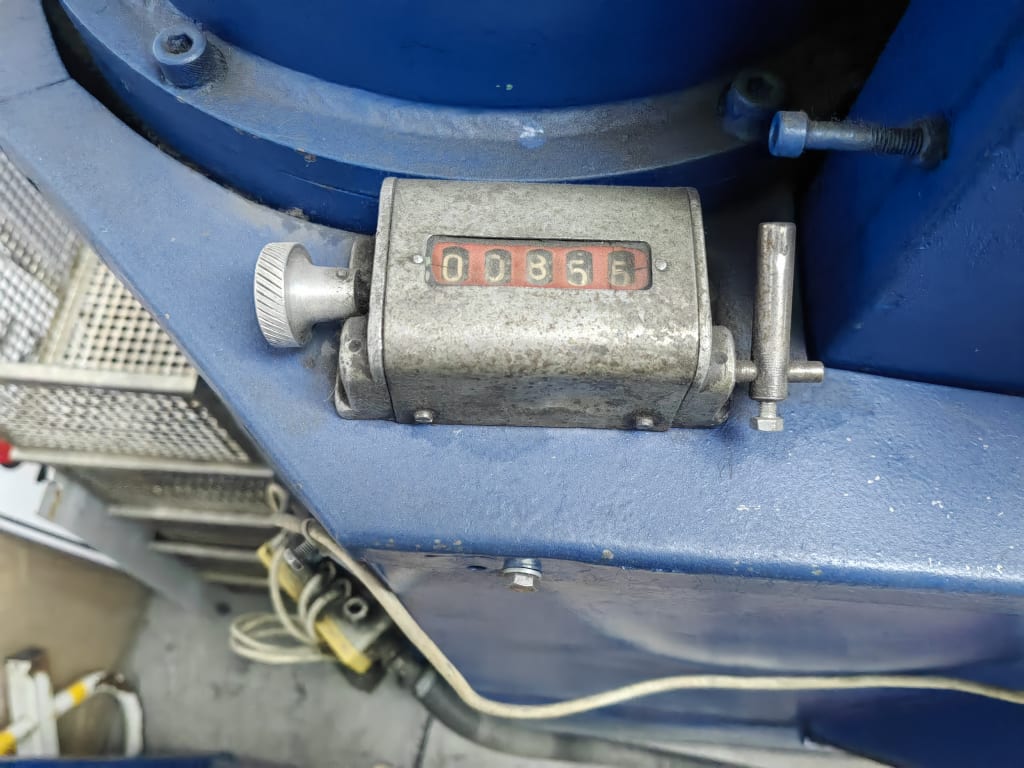

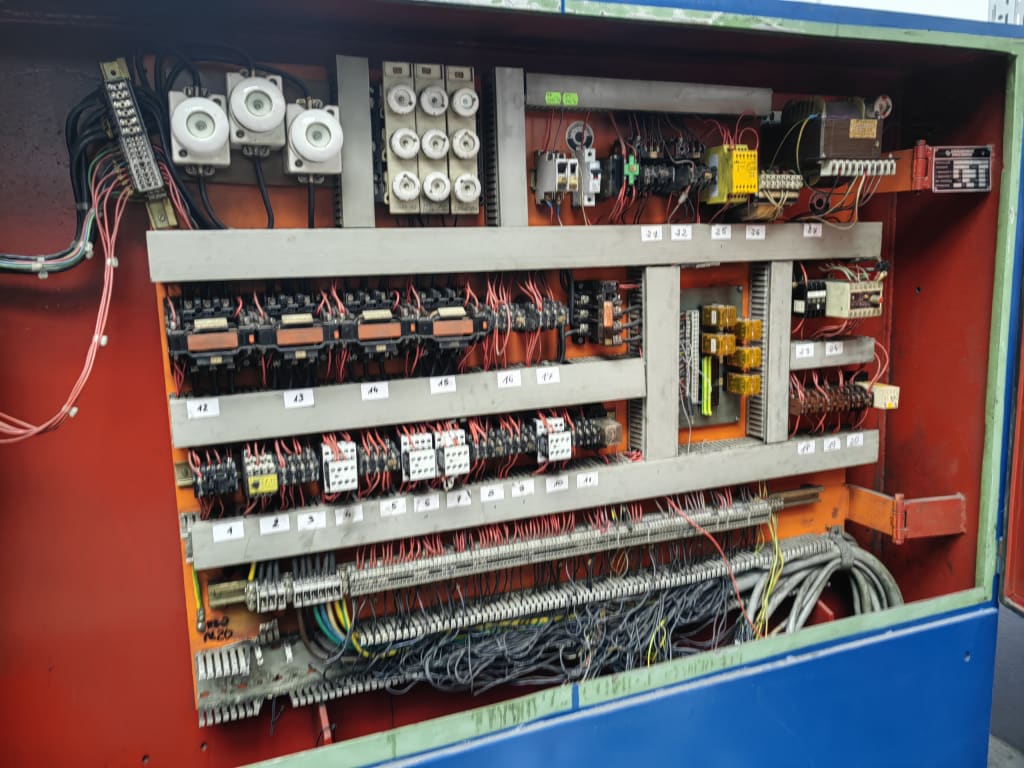

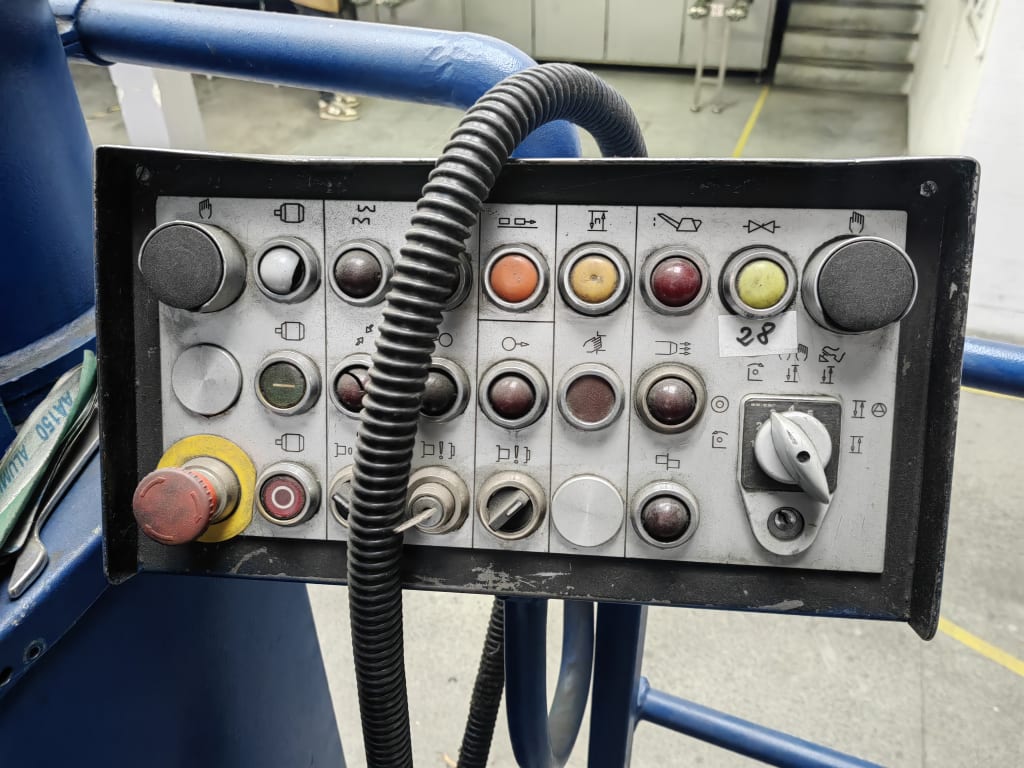

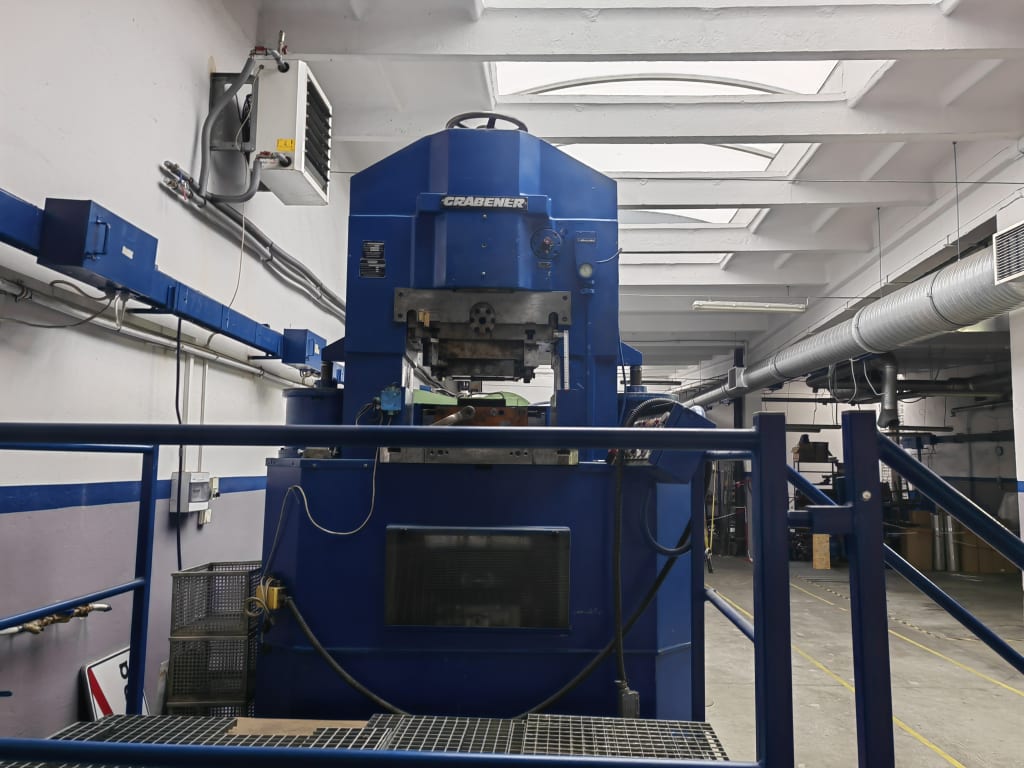

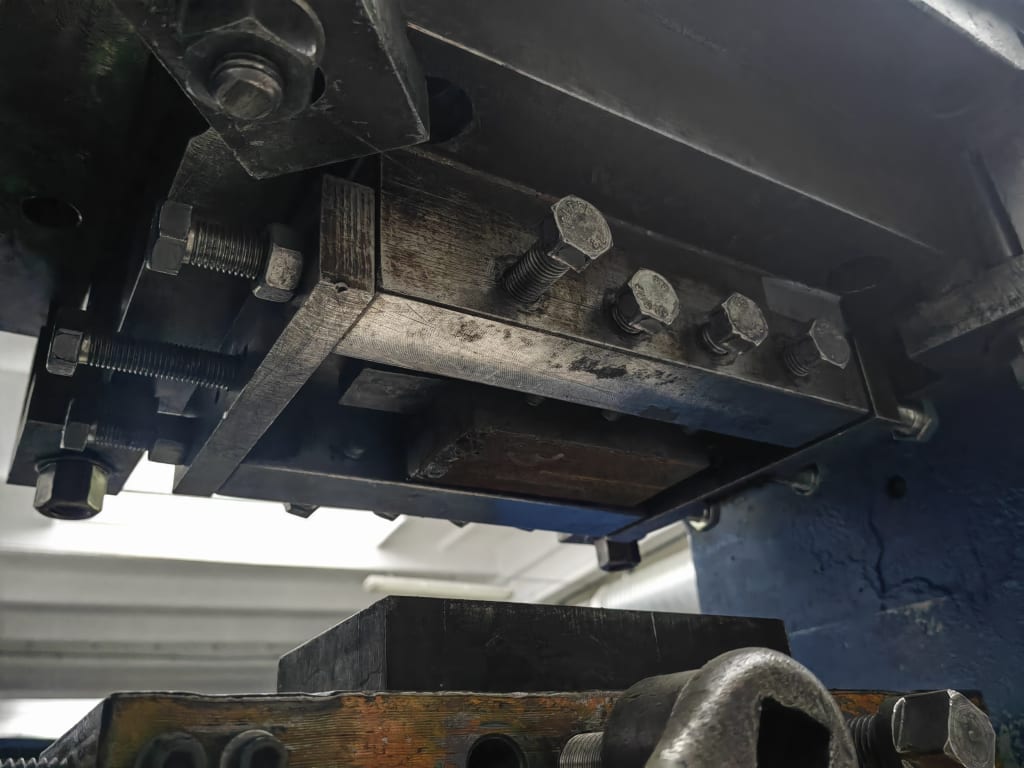

Force: 800 tons, Stroke: 65 mm, Stroke rate: 45 stroke/min, Table: 590 x 650 mm, Slider: 590 x 450 mm, Adjustment: 50mm, Dimensions: 2600 x 1800 x 3100 mm, Weight approx. 18 ton, Note: In 2022 done new electrical schemes, S/No: 5488 (1977)

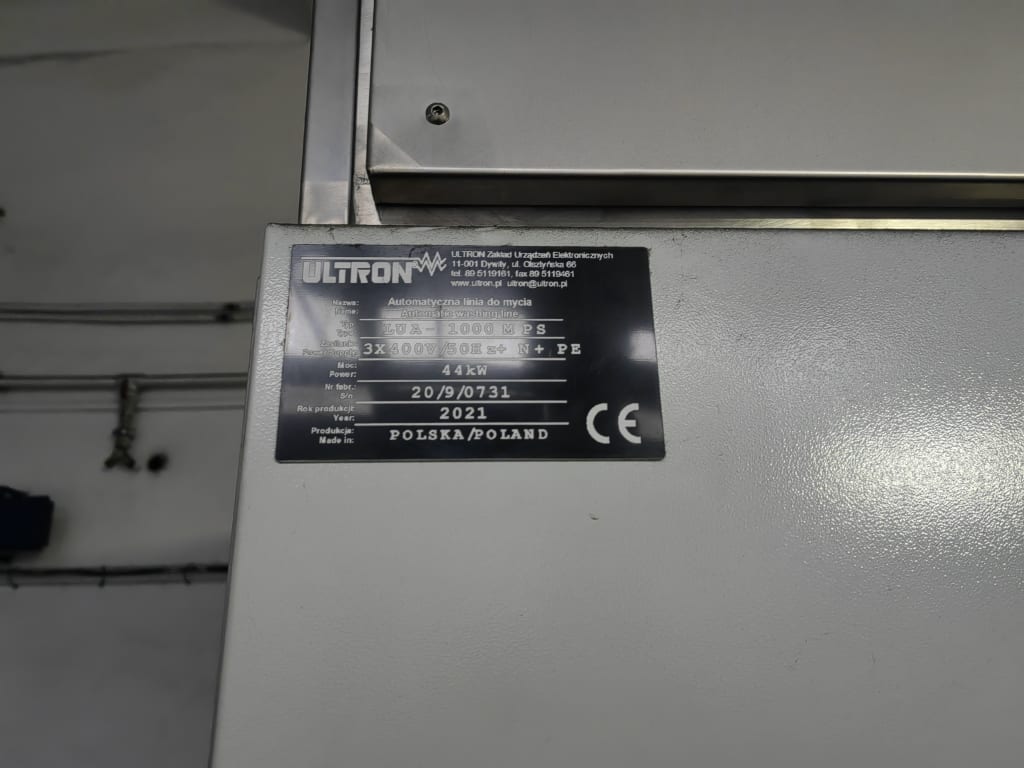

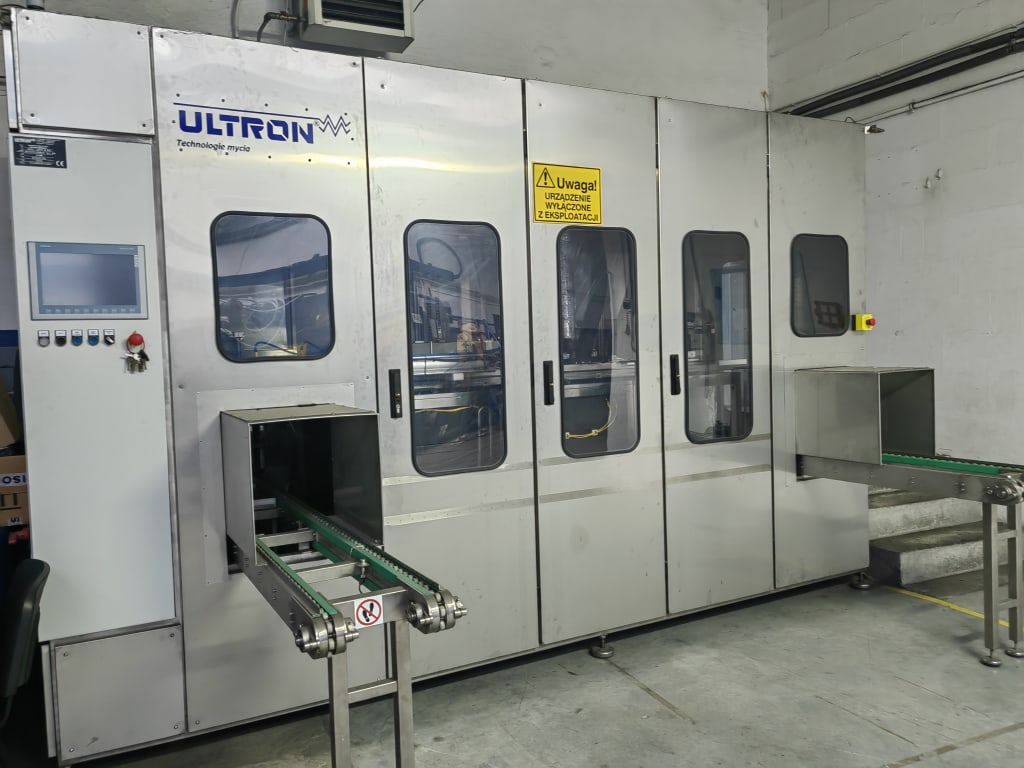

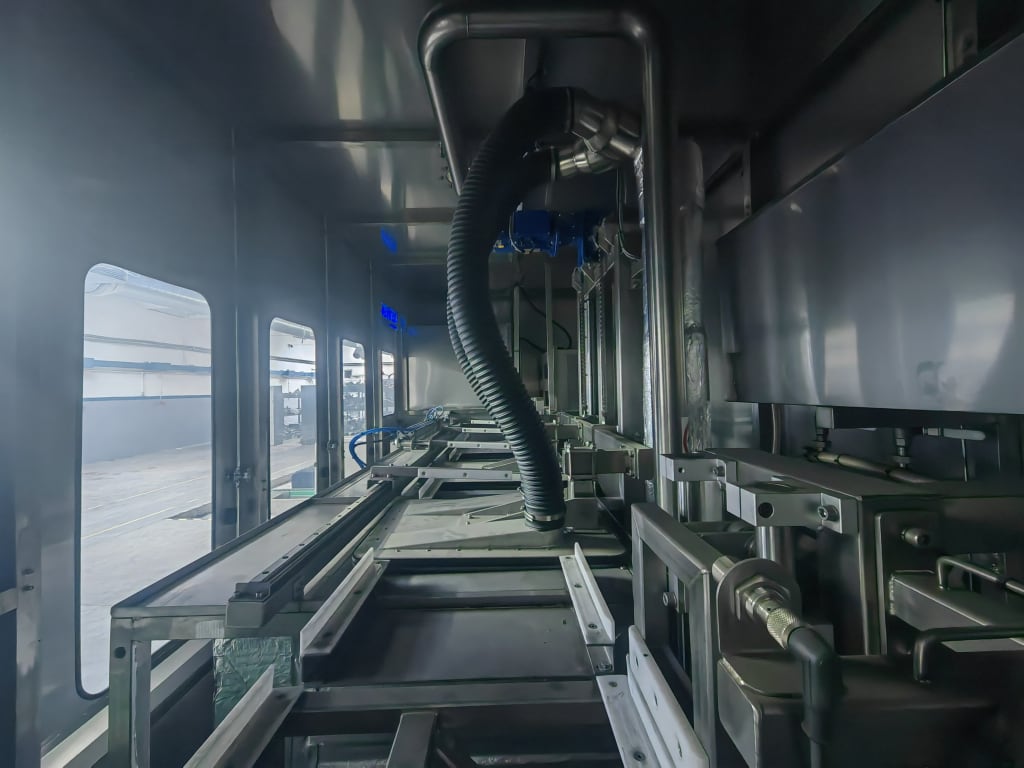

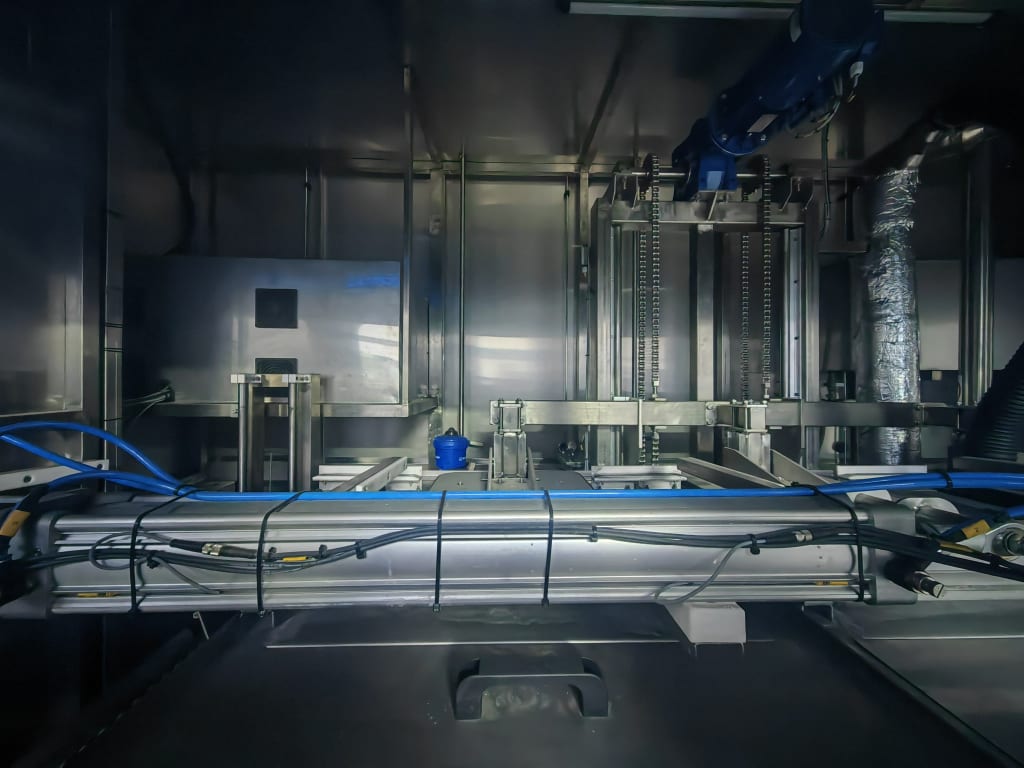

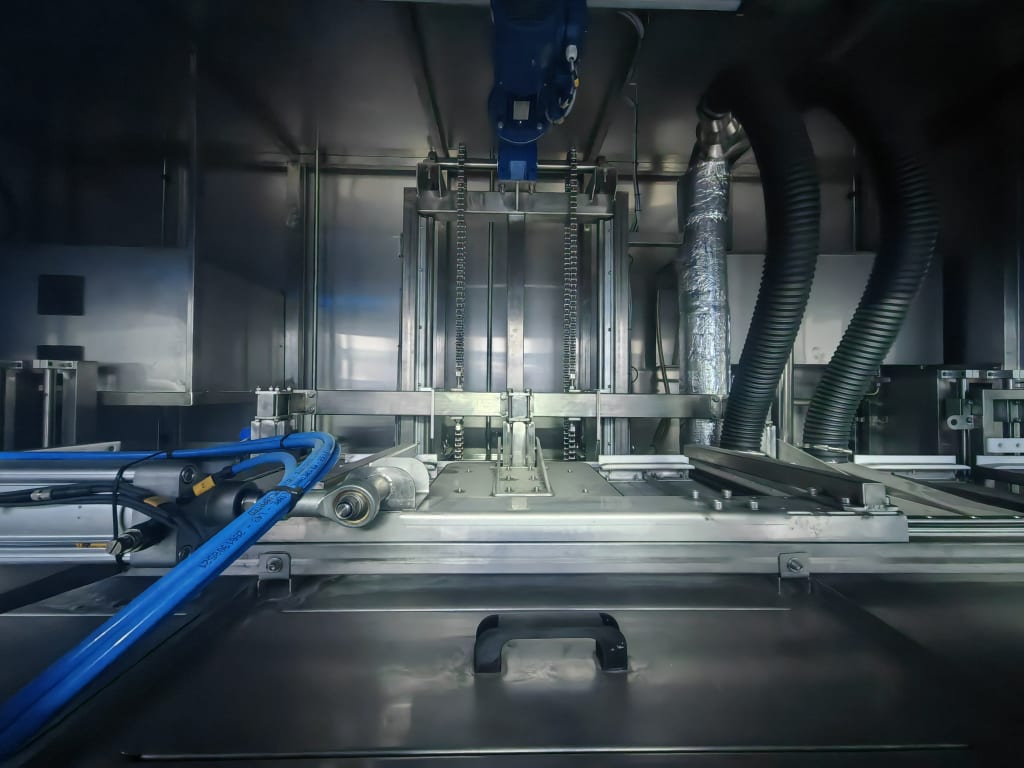

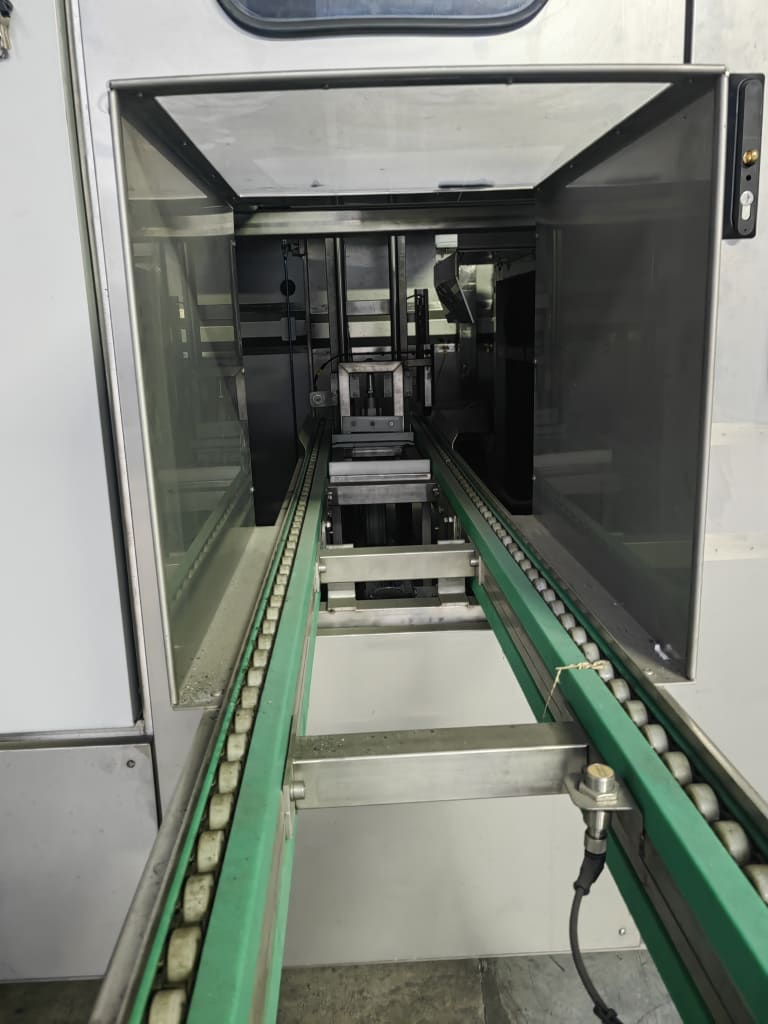

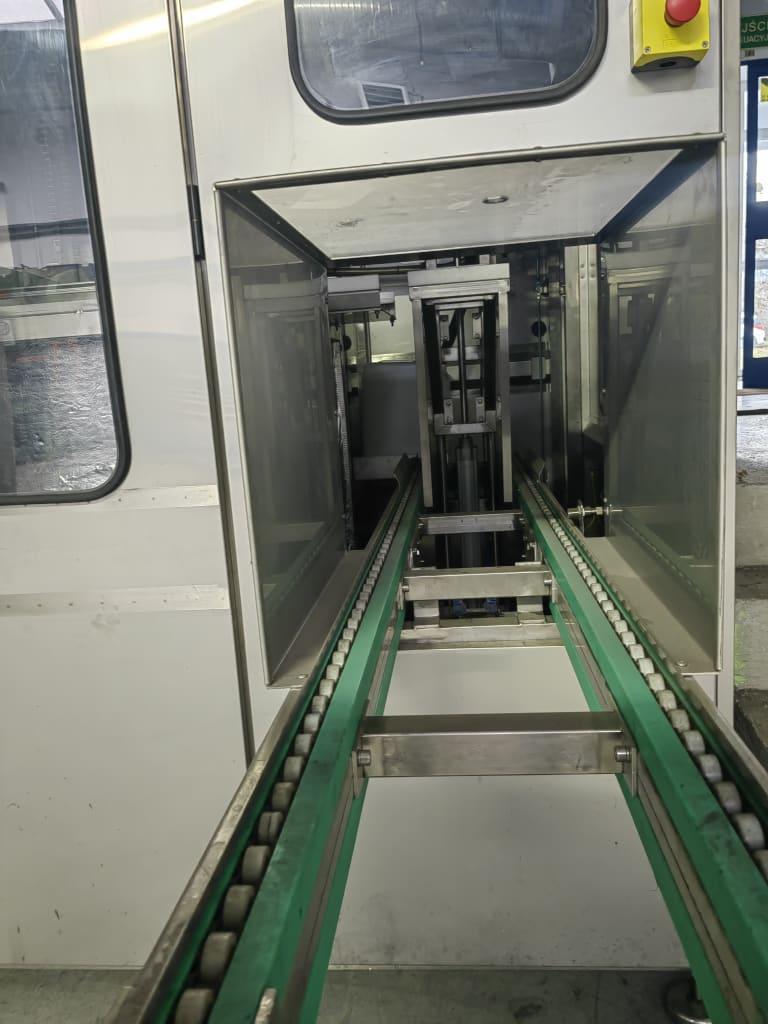

Outside/Inside basket dimensions: length 437/400 mm, width 306/300 mm, height 253/250 mm, Max weight of material in basket: 50 kg, Tub quantity: 3 pieces, Number of flooded tubs: 2, Total capacity of one tub: ~270 l, Ultrasonic frequency: 21.5 kHz, Washing temperature range: up to 80˚C, Rinsing temperature range: up to 80˚C, Drying temperature range: up to 90˚C, Washing heater power W1: 10.0 kW, Rinsing heater power W2: 10.0 kW, Dryer heater power W3: 12.0 kW, Ultrasonic power W1: 10 kW, Ultrasonic power W2: 10 kW, Rated power: 55 kW, Equipment List: • Washing Tank (W1):- 4 bath heaters, - Bath temperature sensor, - 4 ultrasonic panels, - Hydraulic fittings with valves, - Fluid level sensors, - Surface flushing system, - Sludge trap, - Thermal and acoustic insulation, - Automatic cover, - Grease and light contaminant trap, - Bypass filtration system, - Sloped bottom, - Oil separator, - Agitation system, - Manual filling valve + dispenser, • Demi Rinsing Tank (W2): - 4 bath heaters, - Bath temperature sensor, - Hydraulic fittings with valves, - Fluid level sensors, - Surface flushing system, - Sludge trap, - Thermal and acoustic insulation, - Automatic cover, - Grease and light contaminant trap, - Bypass filtration system, - Sloped bottom, - Agitation system, - Manual valve filling, • Drying tank (W3): - 6 heating elements, - air temperature sensor, - thermal insulation, - automatic cover, - agitation system. S/No: 20/9/0731 (2021)

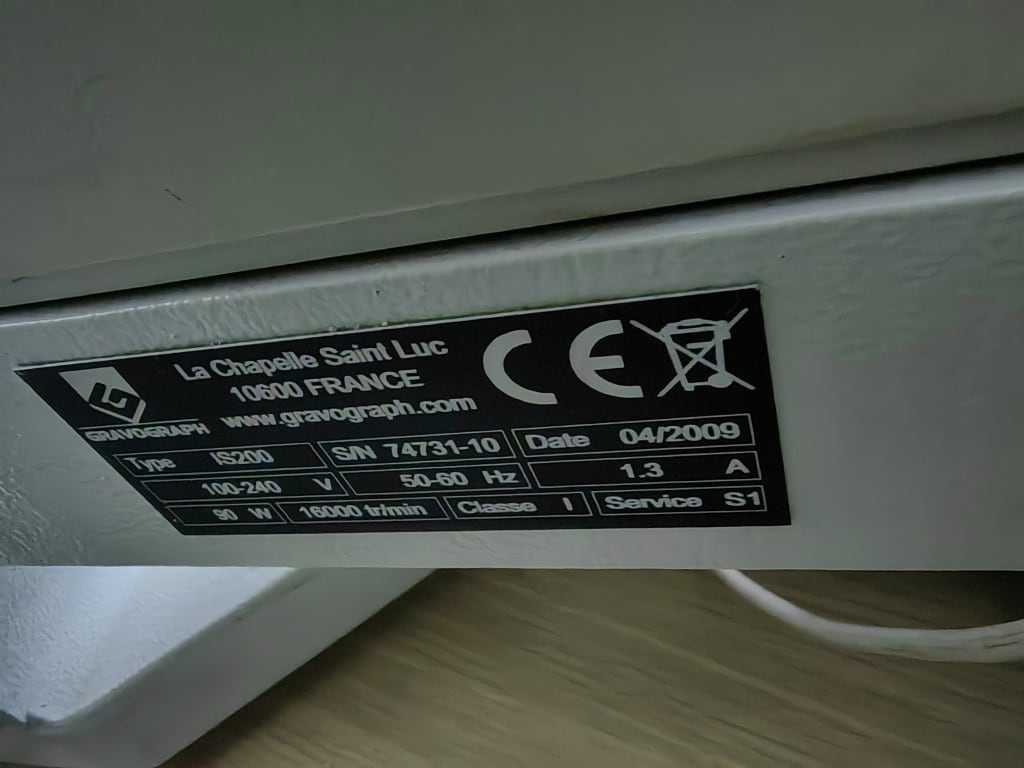

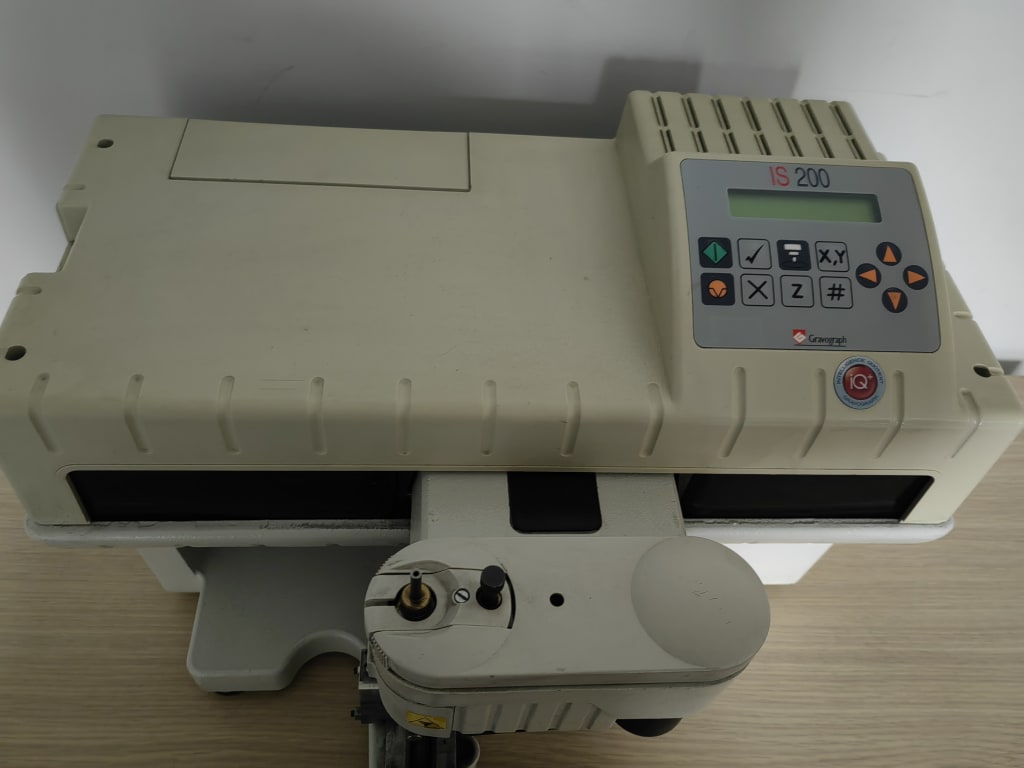

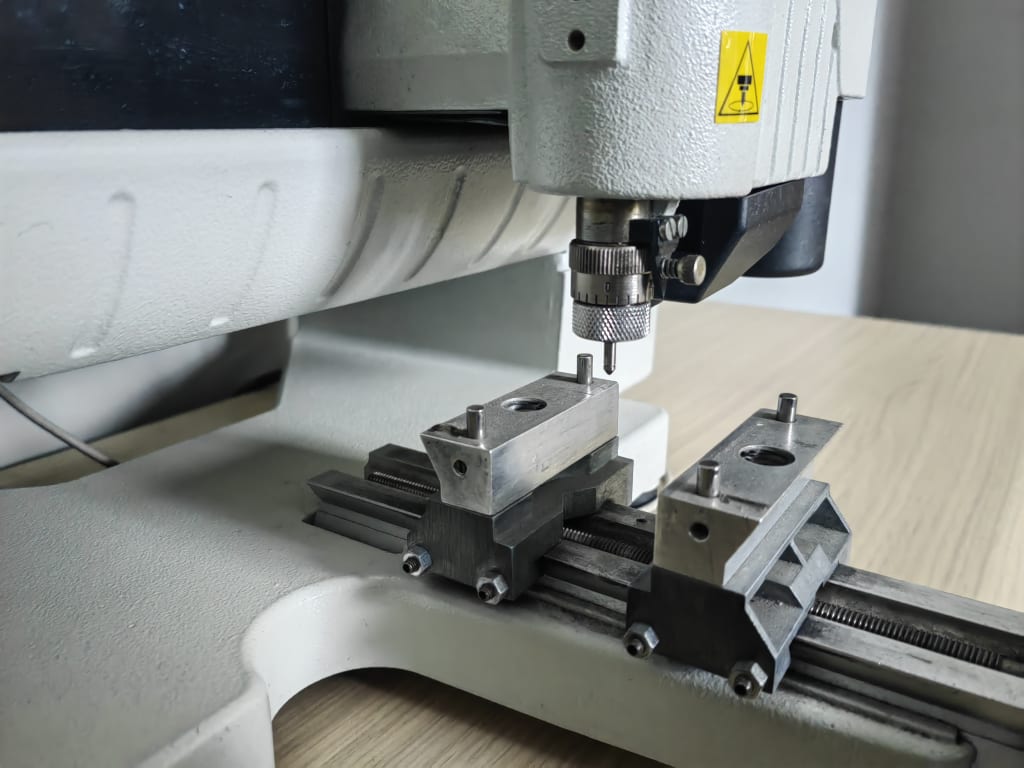

Working space: 225 x 80 mm, Maximum length of the engraved workpiece: unlimited, Maximum opening and jaw opening: 140 mm, Jaw height: 16 mm, Gauge between spindle and jaws: 14 mm, Standard spindle: Rotary type, loaded from the top, Diameter: 4.36 mm, Maximum rotation speed: 17,000 rpm, Spindle feed speed: Engraving unit (passive mode): 27 mm/s, Engraving unit: 25 mm/s, Spindle feed: Z axis: 15 mm, Dimensions: 500 x 455 x 295 mm, Weight: 20 kg, S/No: 74731-10 (2009)

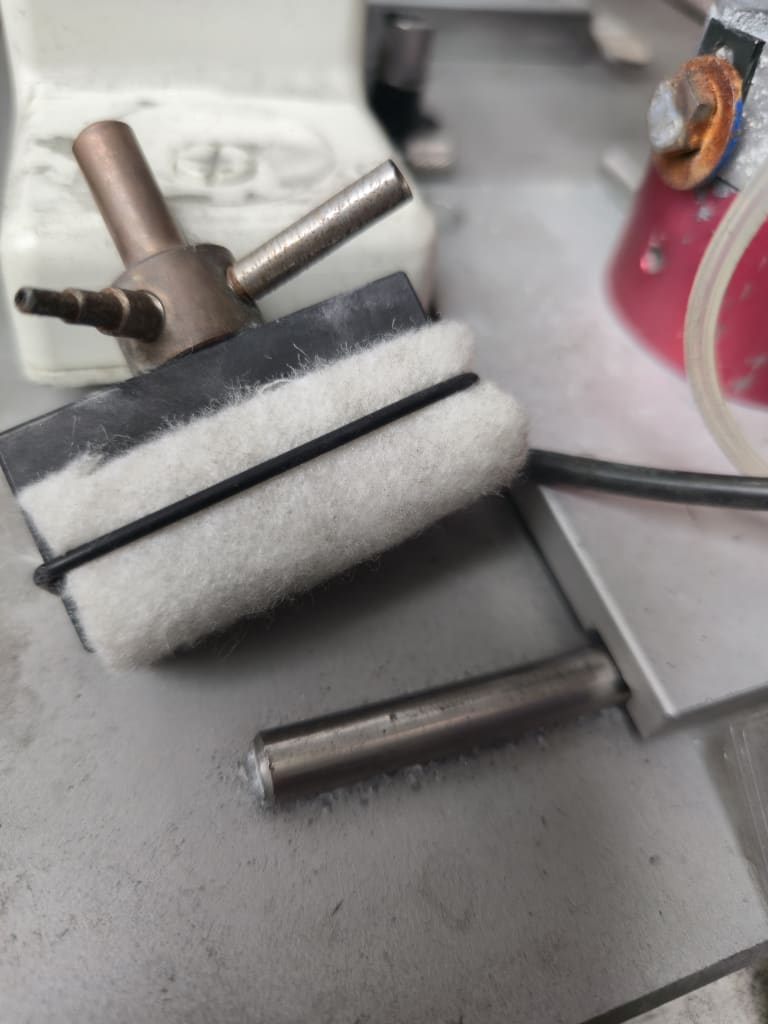

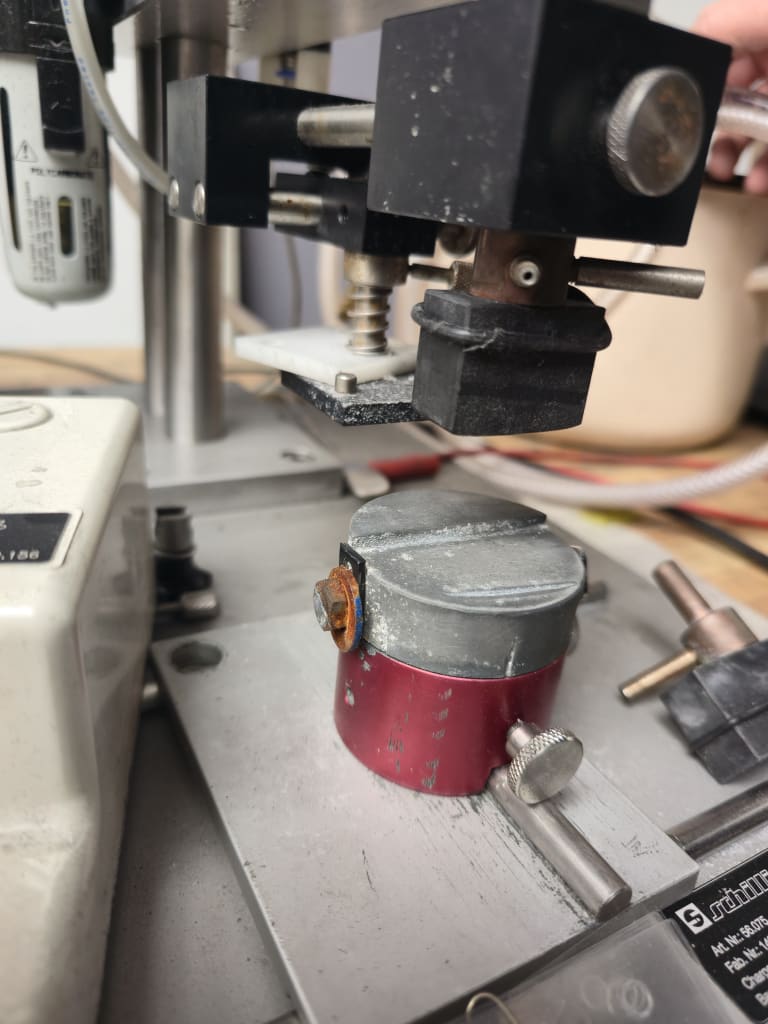

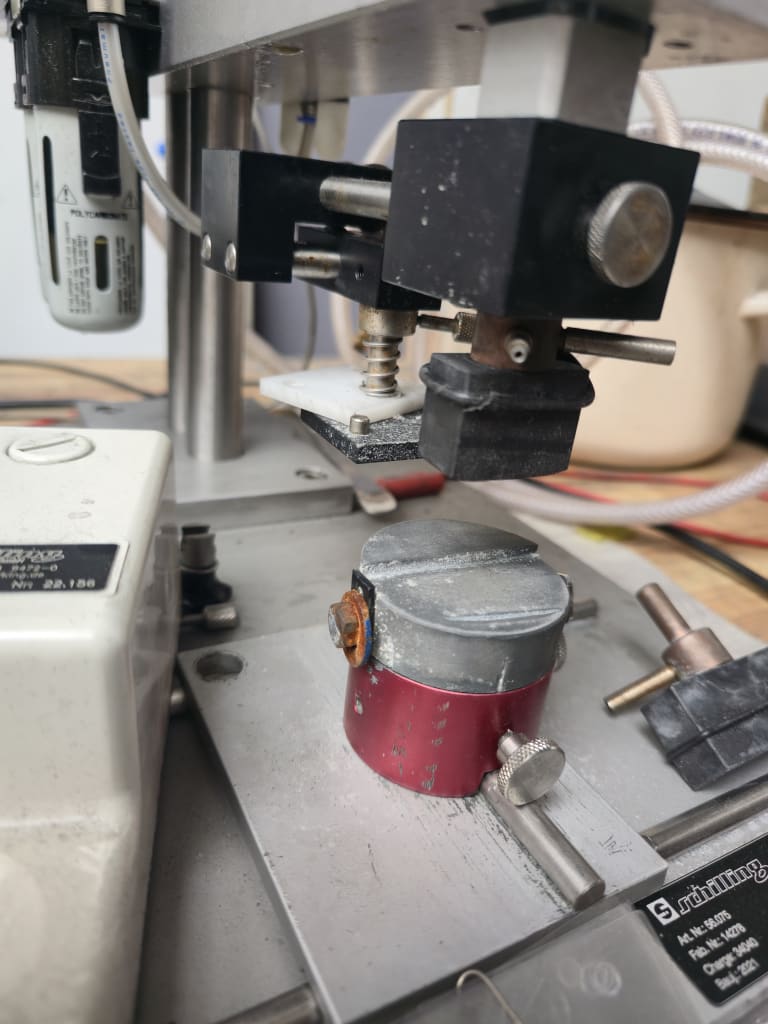

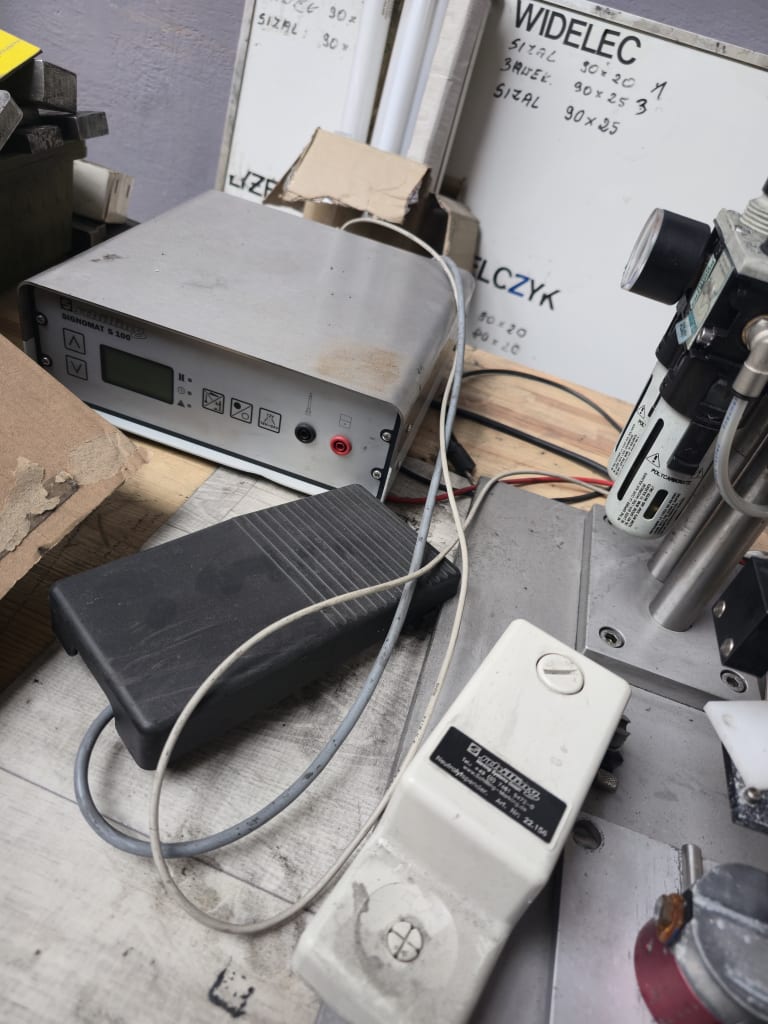

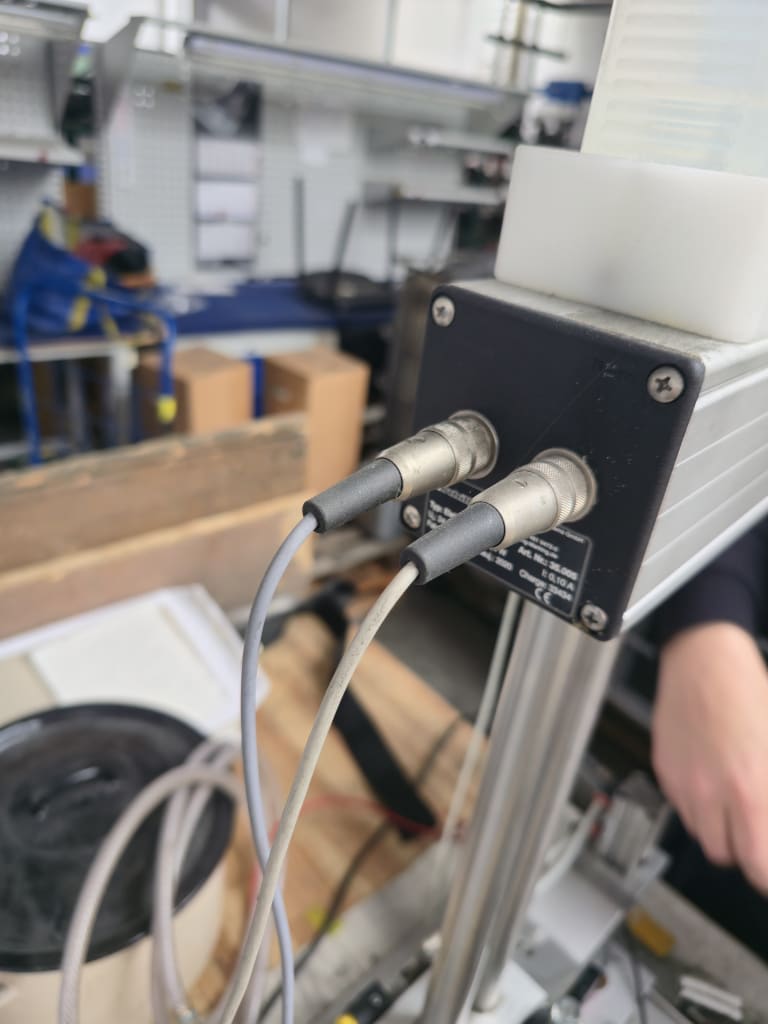

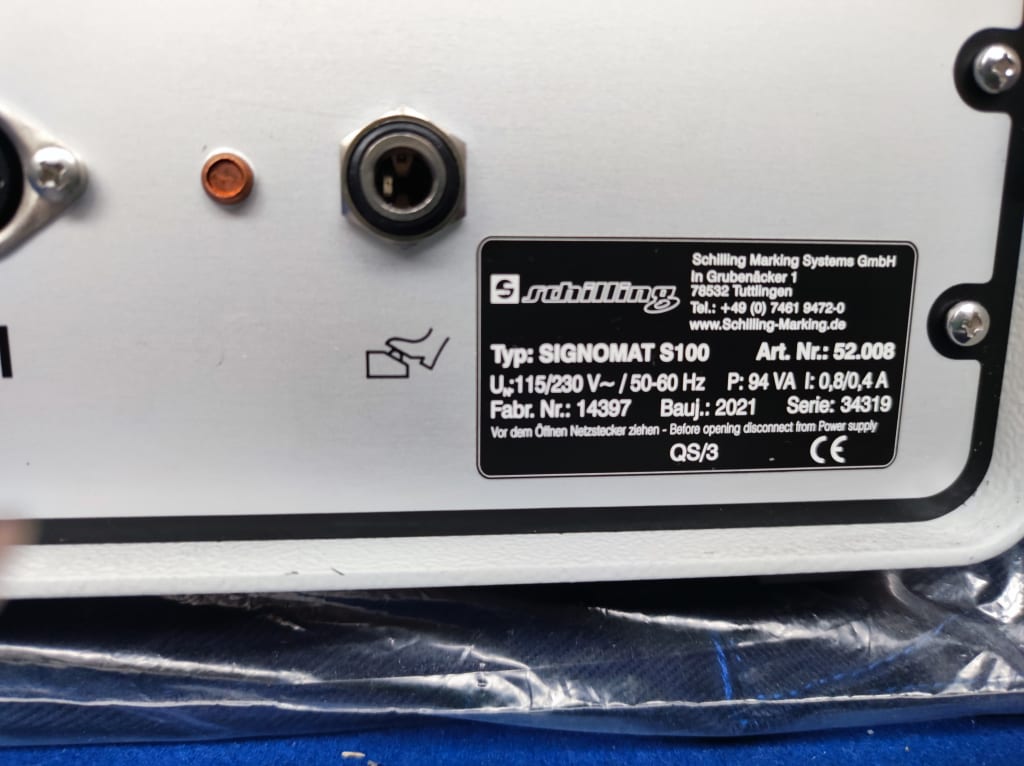

Dimensions: 265 x 95 x 275 mm, Mains voltage: 115/230 V 50/60 Hz (automatic recognition), Marking voltage: 12 V / 18 V / 24 V, Marking current: 3,9 A, Current types: dark or light, Output: 100 VA, Weight: 4,4 kg, Noise level: 20 dB, Operation modes: - manual stamp with automatic start-up, - manual marking together with a foot switch, - pneumatic stroke started by a foot switch, S/No: 14397 (2021)
