Late Model CNC Machines, Manual Machine Tools, Grinding Equipment & Workshop Assets – Surplus to Requirements
Starts: 13 February 2026 at 15:00 GMT
Ends: 24 March 2026 at 15:00 GMT
Featuring 2020 Doosan DEM 4000 CNC Vertical Machining Centre, 2021 XYZ CT52 LR CNC Slant Bed Lathe, Schneeberger Gemini DMR 5-Axis CNC Tool Grinding Machine, Manual machines, Grinders, Inspection, and workshop equipment. Please see the sale information section for any additional fees that may be applicable upon purchasing an item. NOTE: Vendor to approve all closing bids prior to Apex final invoicing.
Share:
Showing 15 of 15 lots
- LOT 1
![site]()

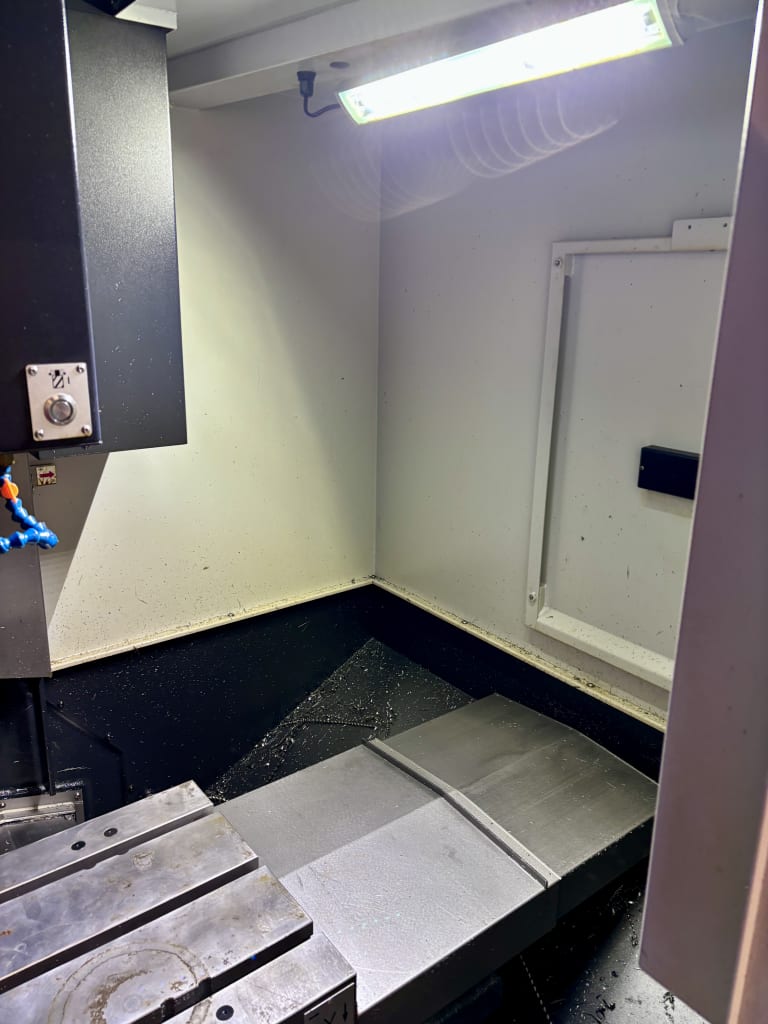

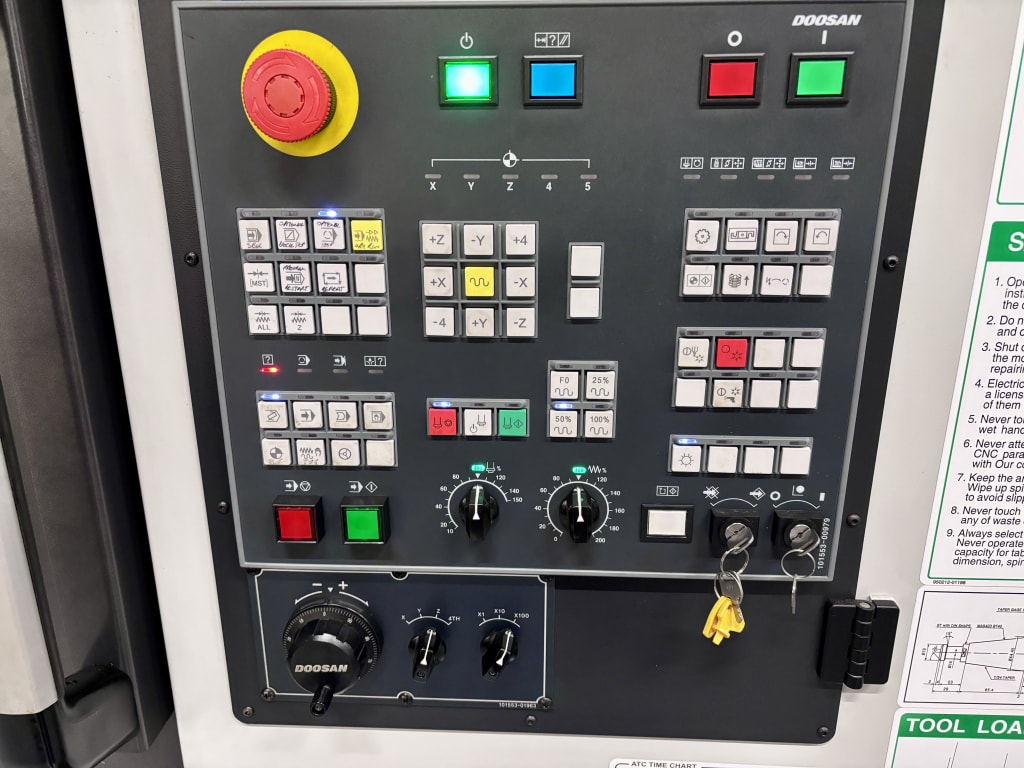

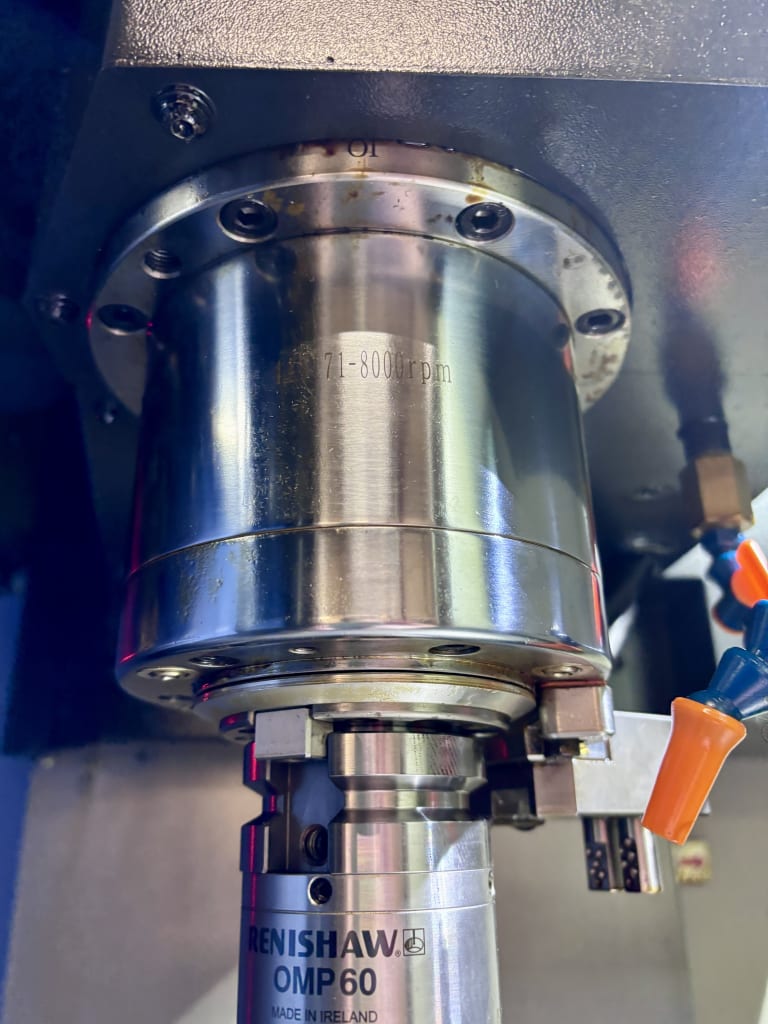

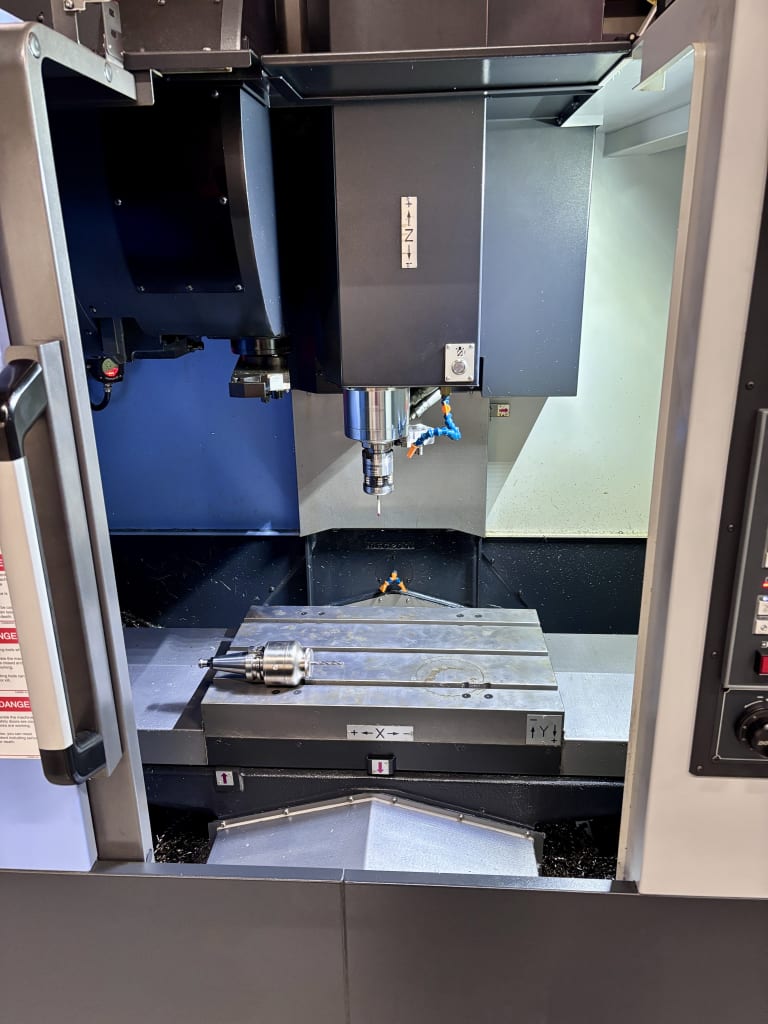

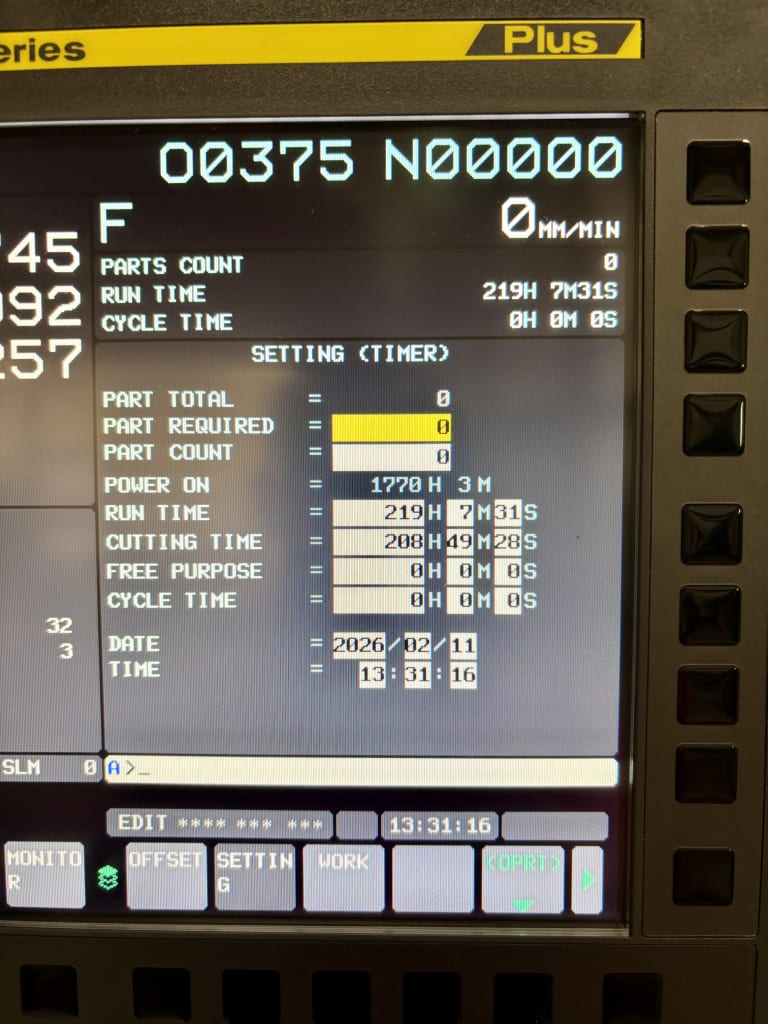

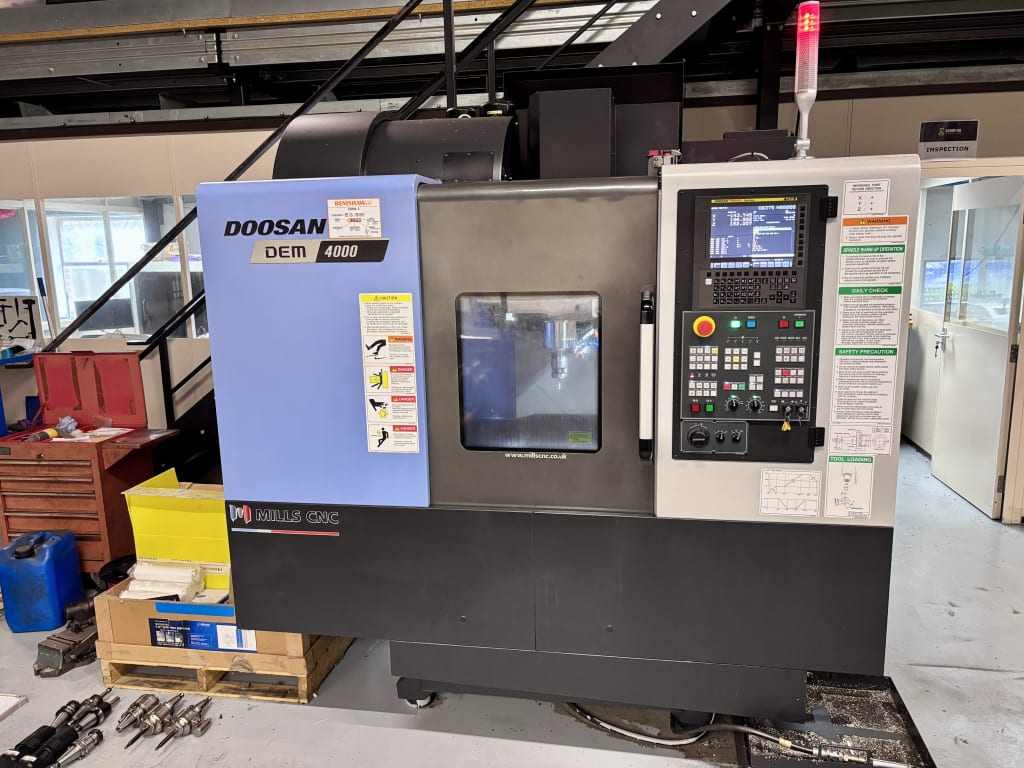

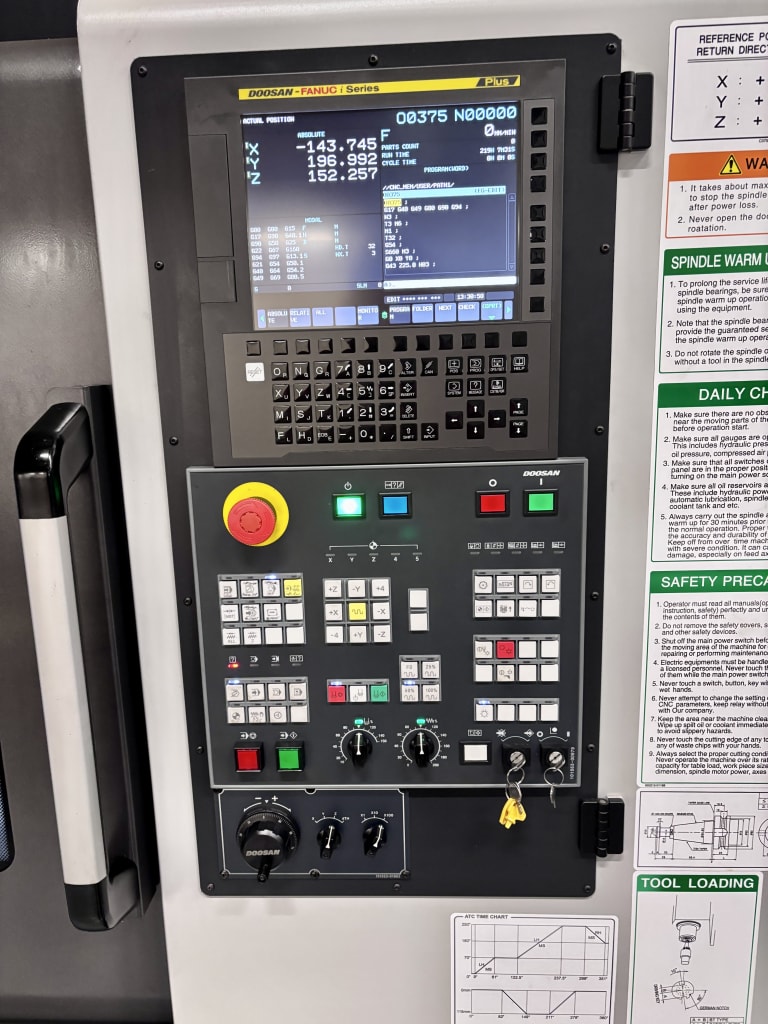

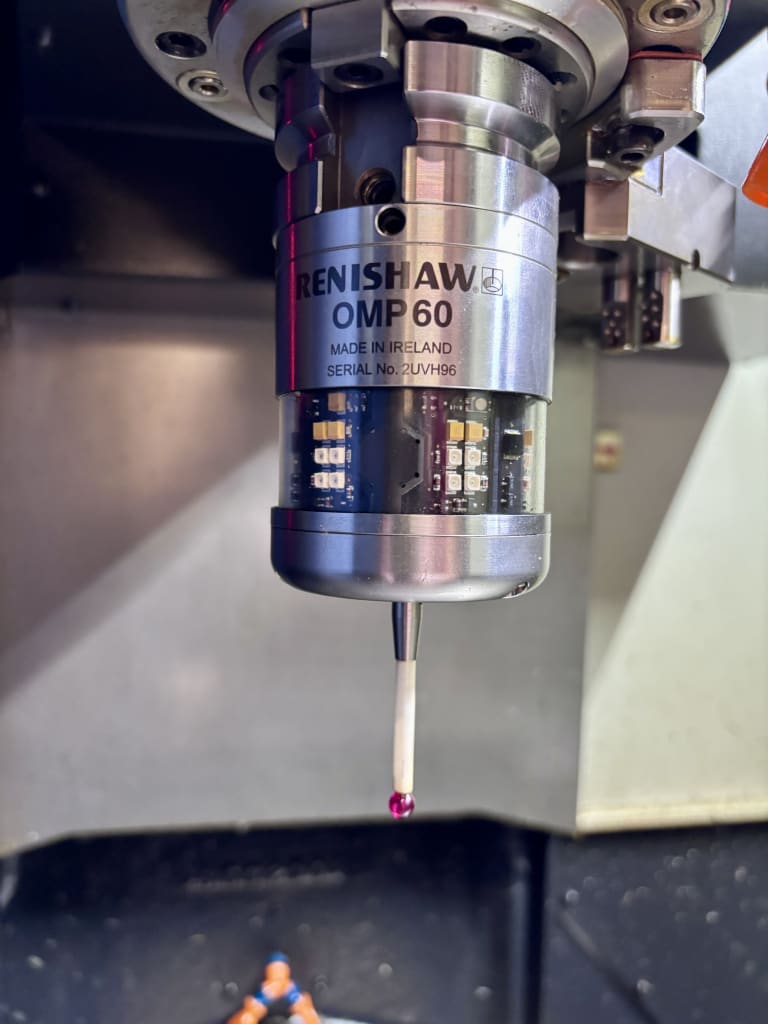

2020 Doosan DEM 4000 CNC Vertical Machining Centre With Doosan-Fanuc i Series Plus Control

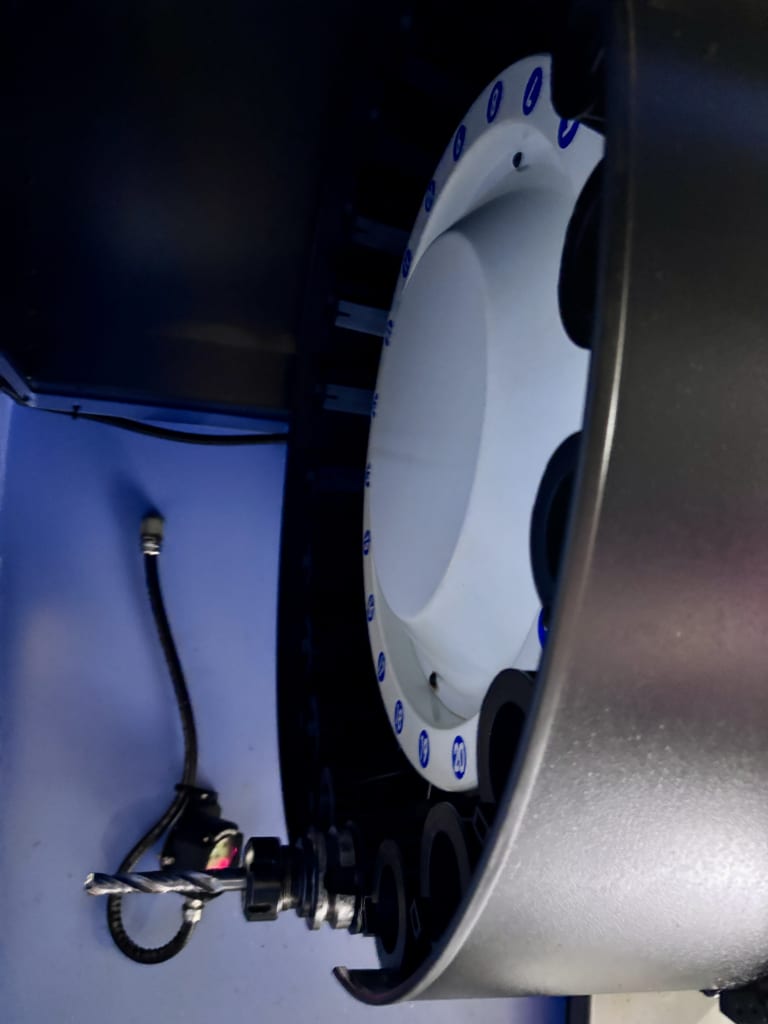

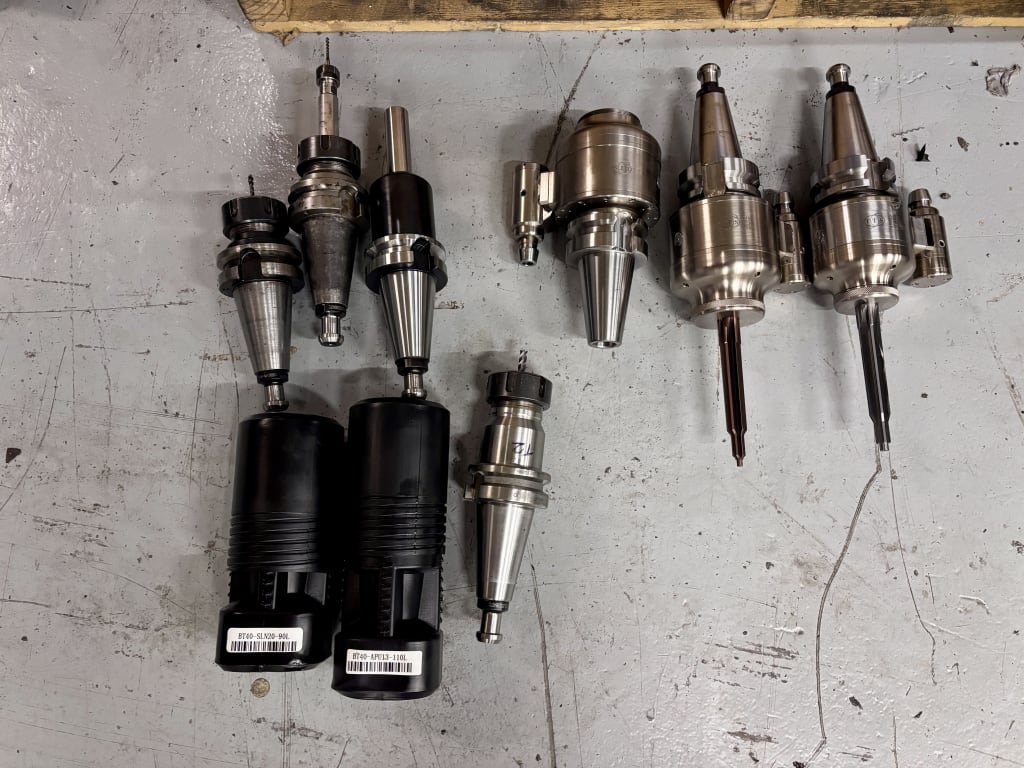

Table Dimension 650 x 400mm (3 'T' Slots). Maximum Table Load 400kg. Distance From Spindle To Table 120-570mm. Axis Travel 'X'=550mm, 'Y'=400mm, 'Z'=450mm. Rapid Traverse 'X'=24m/min, 'Y'=24m/min, 'Z'=24m/min. Maximum Cutting Feed 12,000mm/min. Maximum Spindle Speed 8,000rpm (7.5kW Motor), Maximum Spindle Torque 47.7Nm. 20 Position ATC. Spindle Taper BT40. Maximum Tool Ø80mm, Maximum Tool Length 300mm, Maximum Tool Weight 8kg. S/No. MV0137-000084 (2020). - LOT 2
![site]()

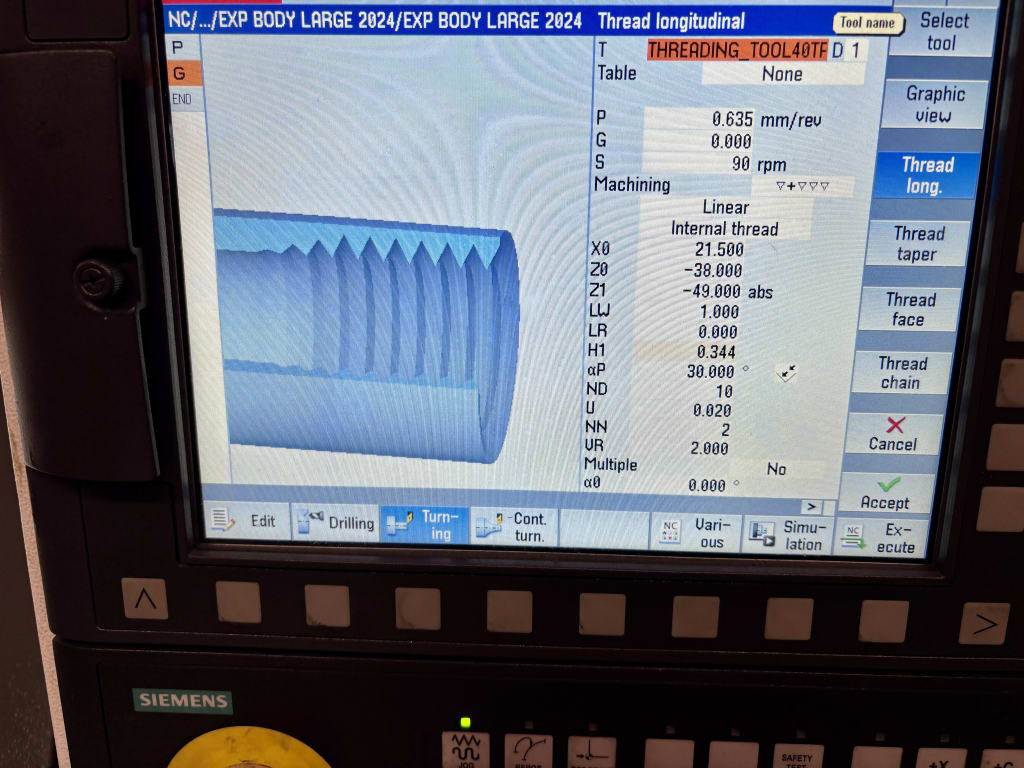

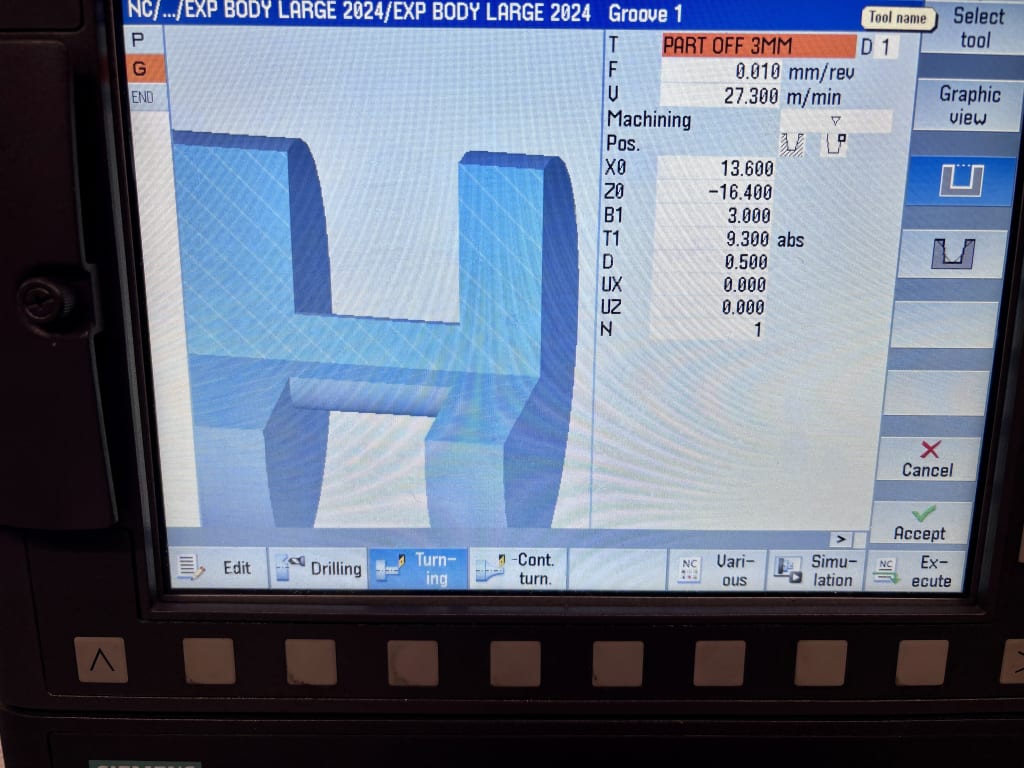

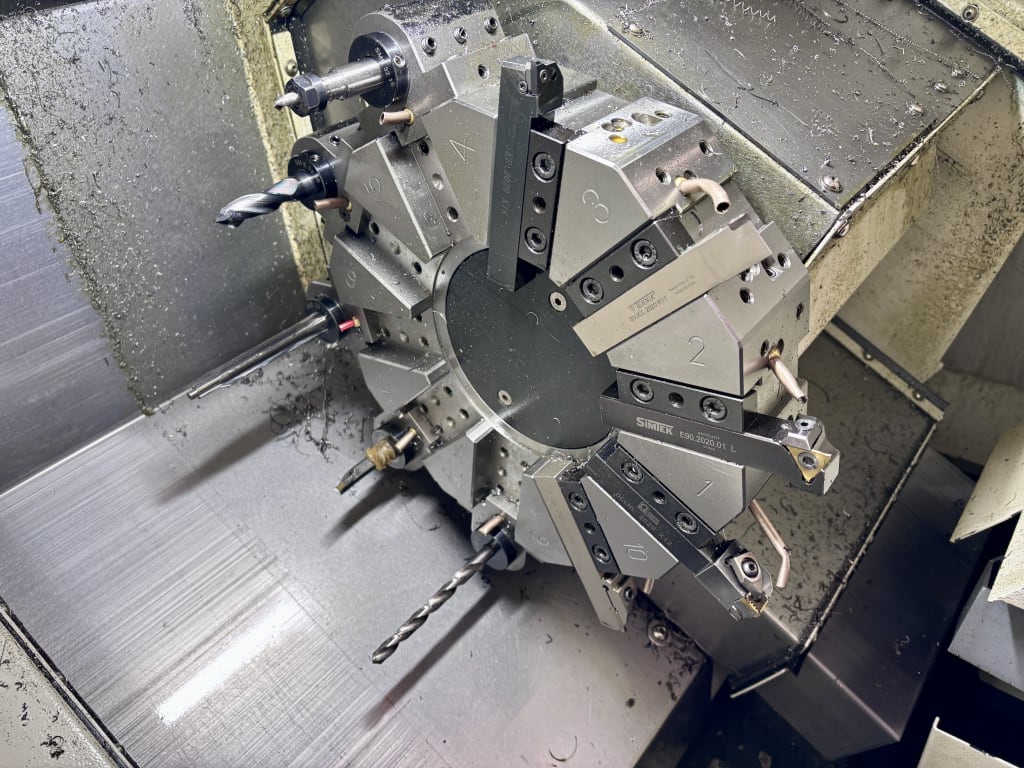

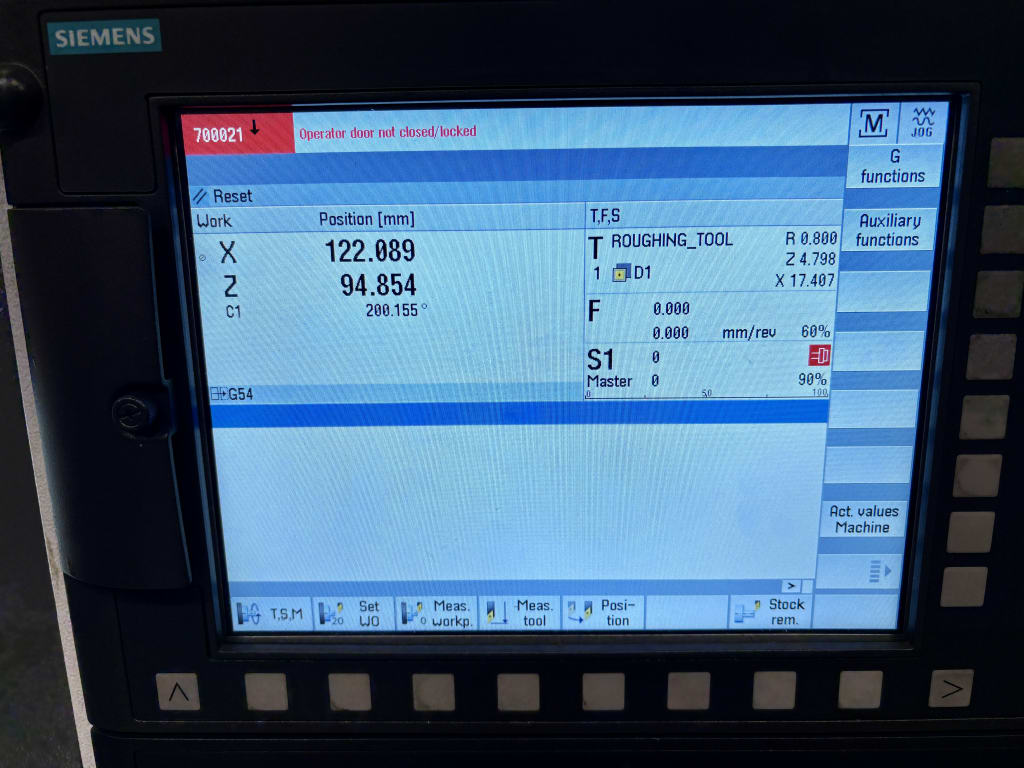

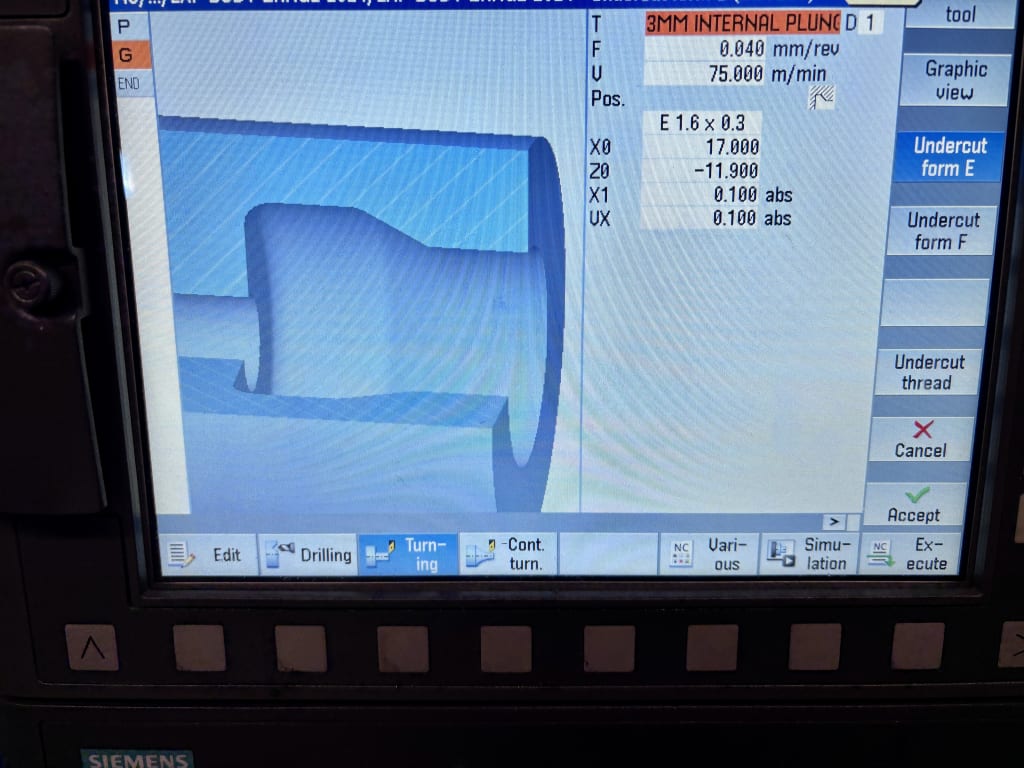

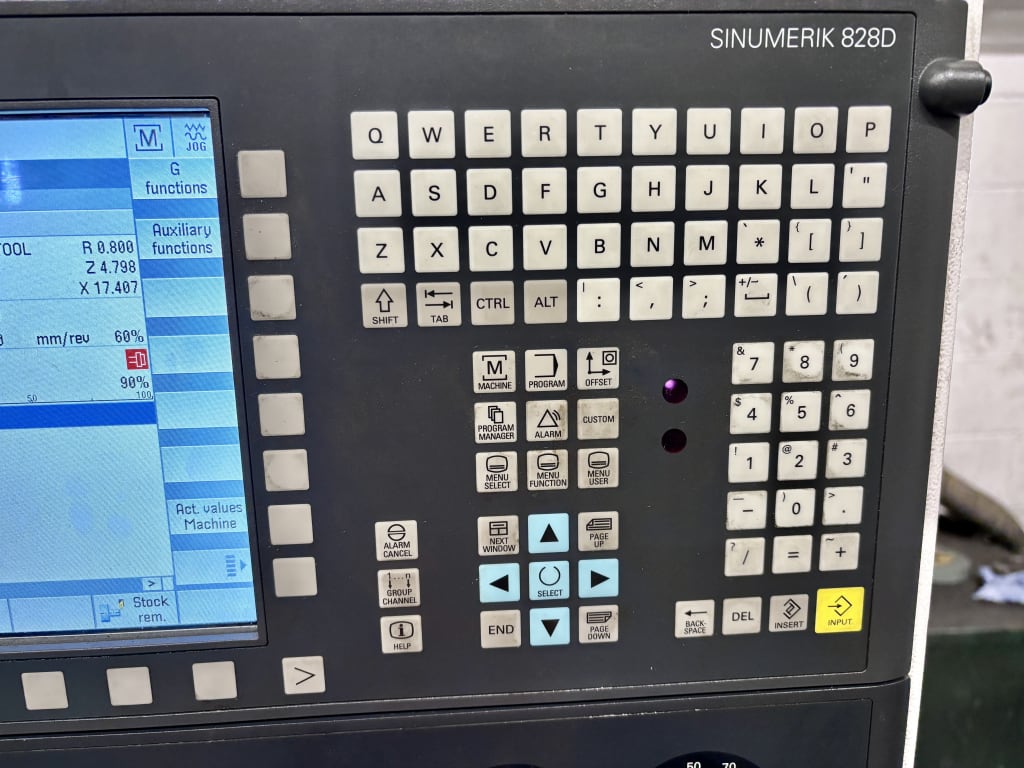

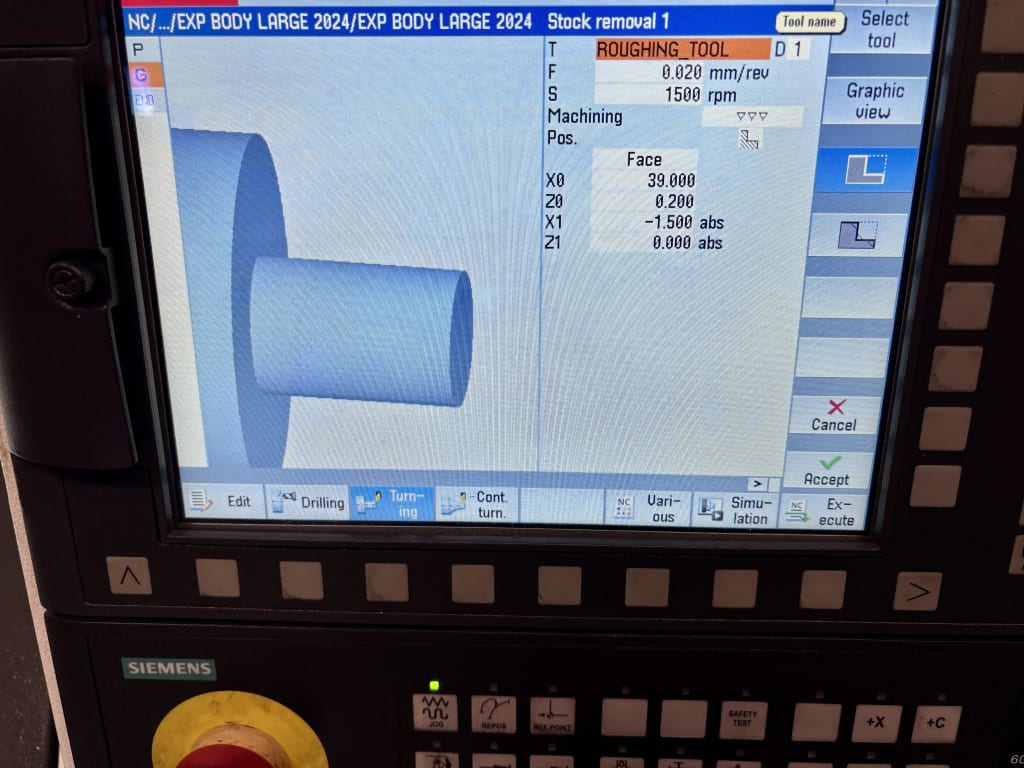

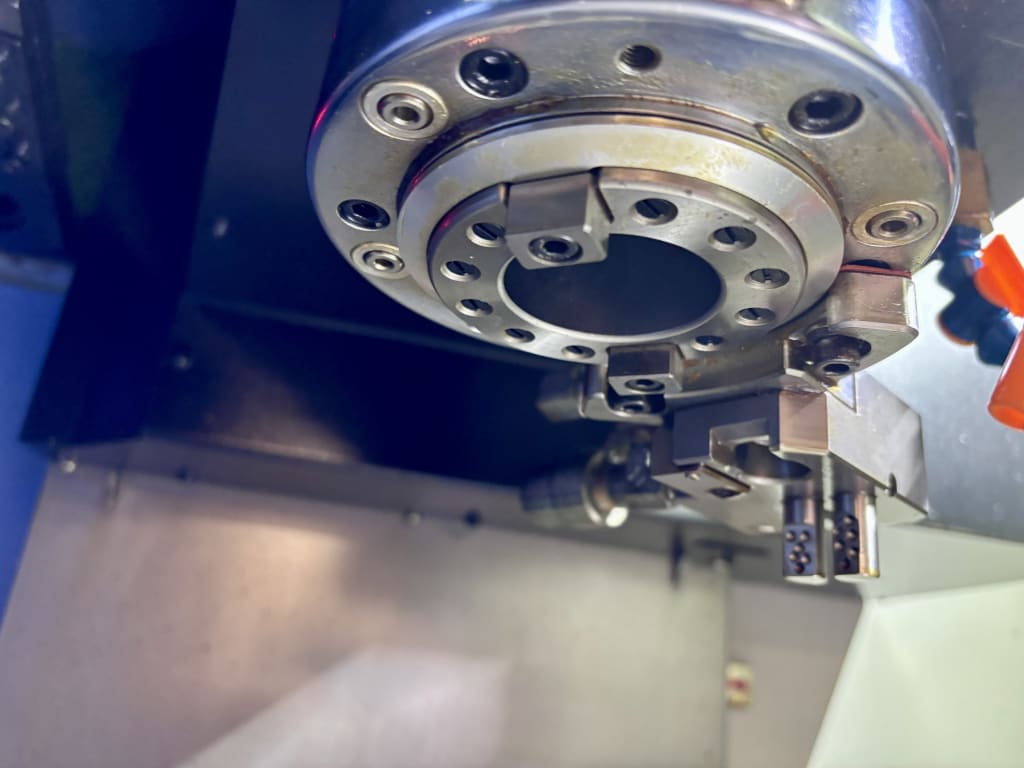

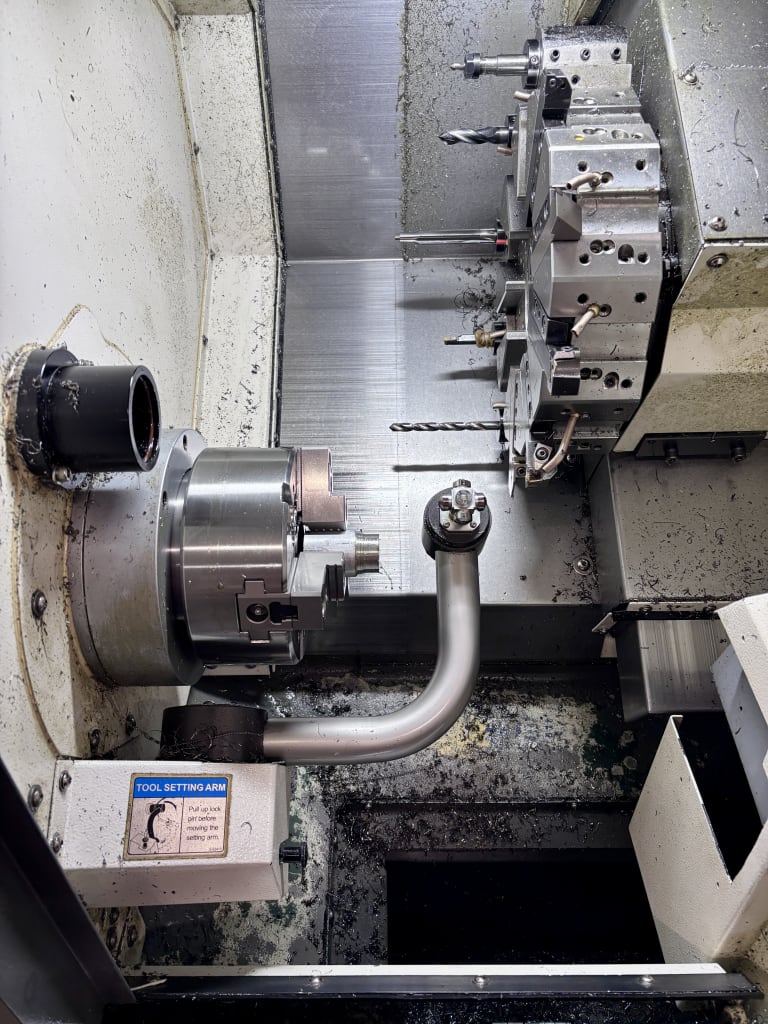

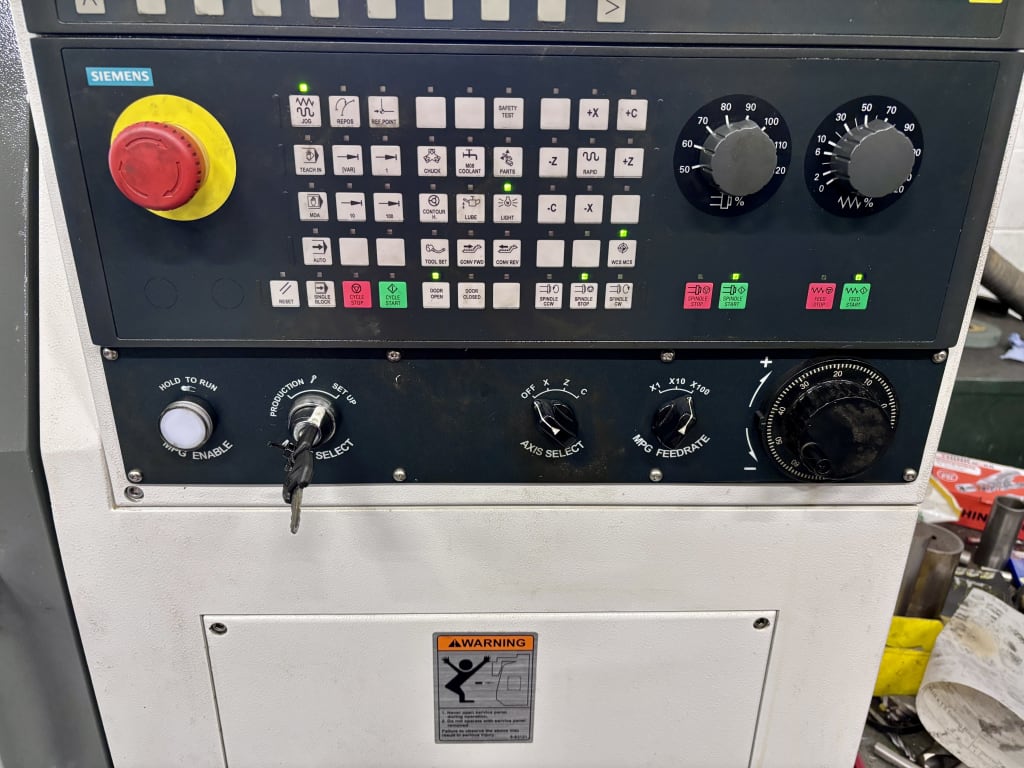

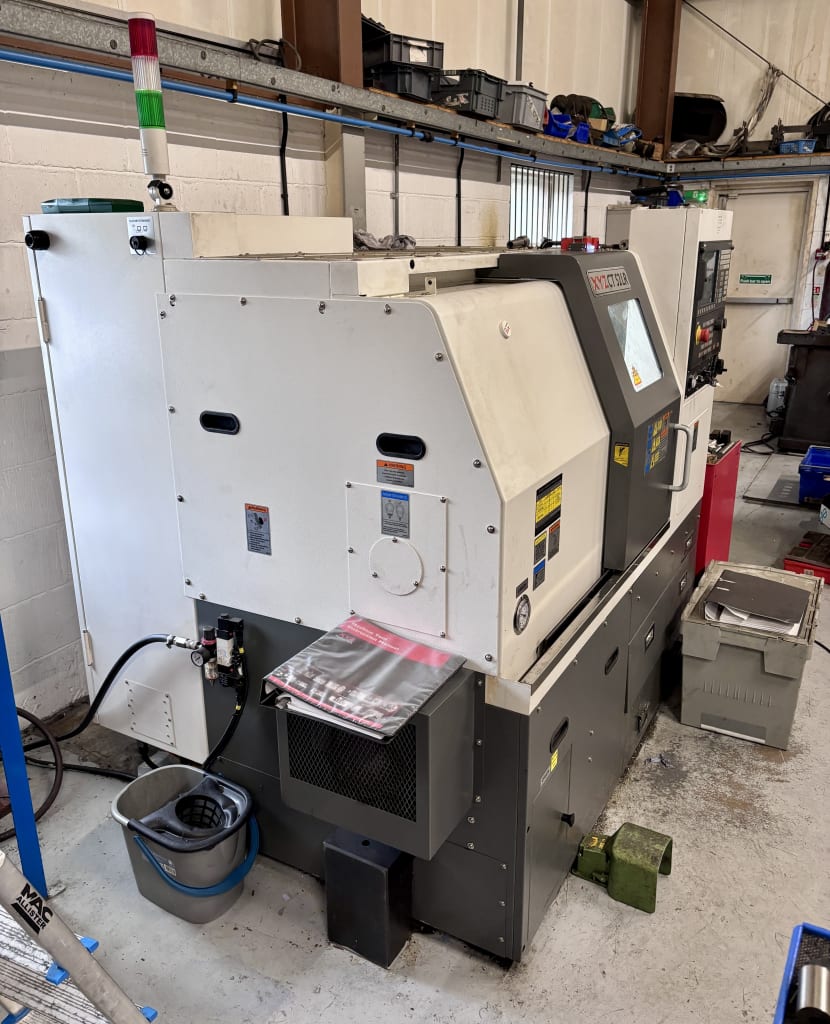

2021 XYZ CT52 LR CNC Slant Bed Lathe With Siemens 828D (Shopturn) Control

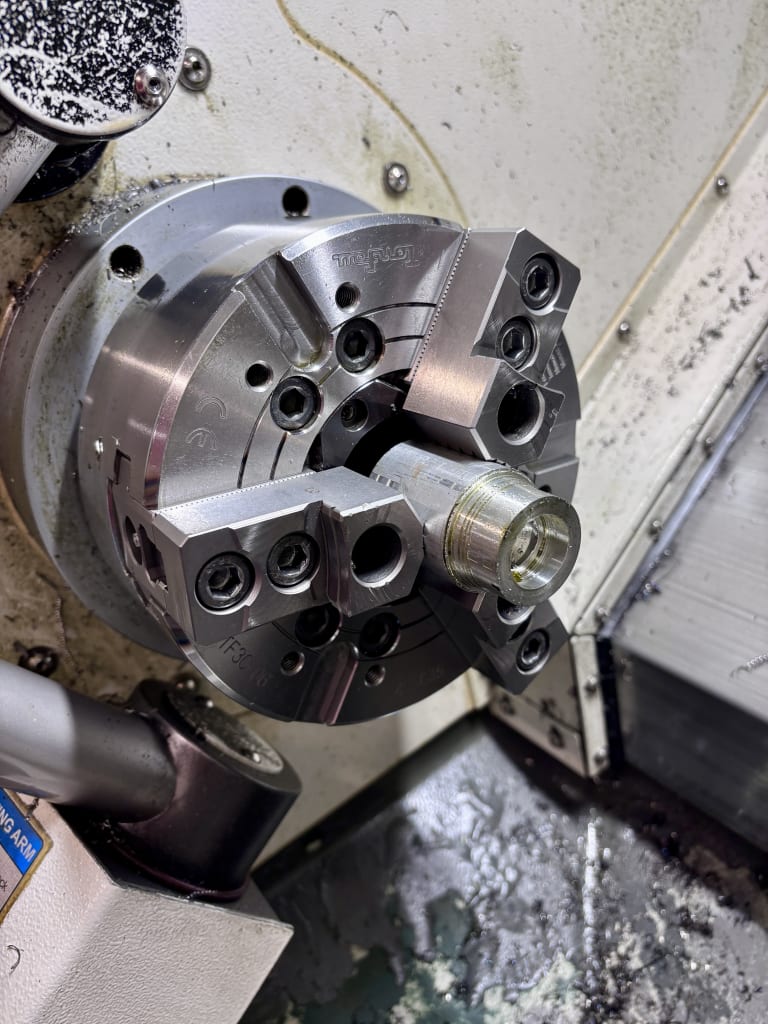

Ø170mm 3 Jaw Power Chuck. Maximum Swing Ø300mm. Maximum Swing Over Cross Slide Ø220mm. Maximum Turning Ø180mm. Maximum Turning Length 300mm. Axis Travel 'X'=165mm, 'Z'=315mm. Maximum Cutting Feedrate 'X & Z'= 20m/min. Spindle Bore Ø61mm. Bar Capacity Ø52mm. Maximum Spindle Speed 4,500rpm (7.5kW Motor). Tailstock Quill Ø60mm, Quill Travel 90mm. 10 Station Turret. Turning Tool Shank 20 x 20mm. Boring Bar Holder Ø30mm. S/No. STR00107 (2021). - LOT 3
![site]()

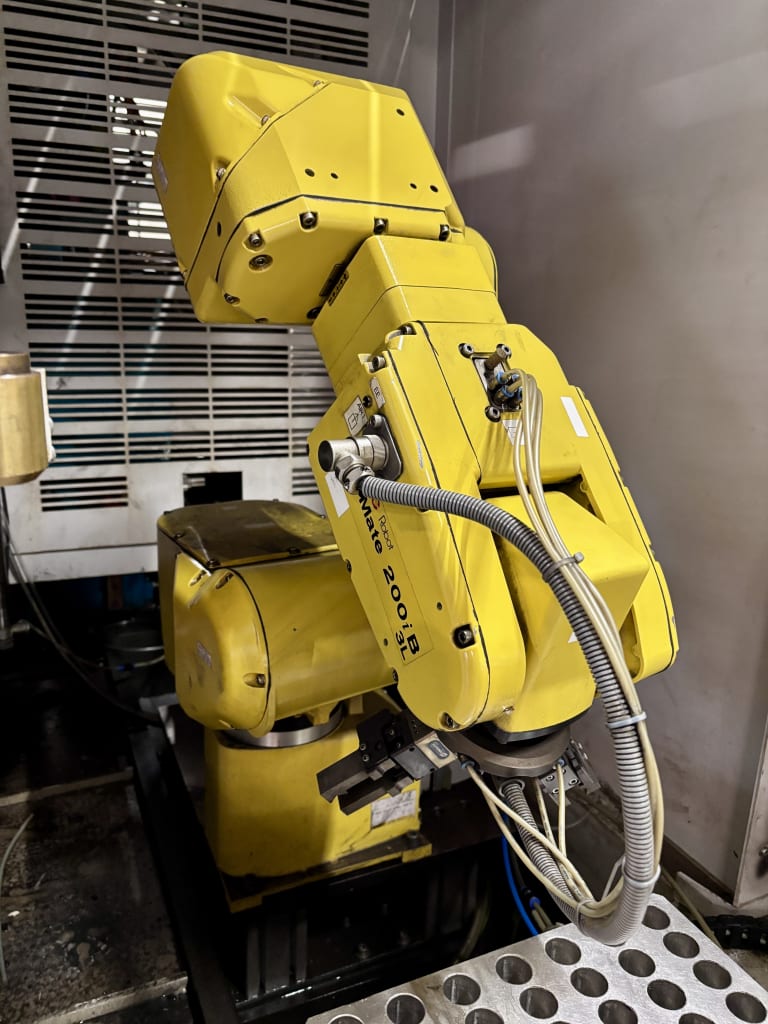

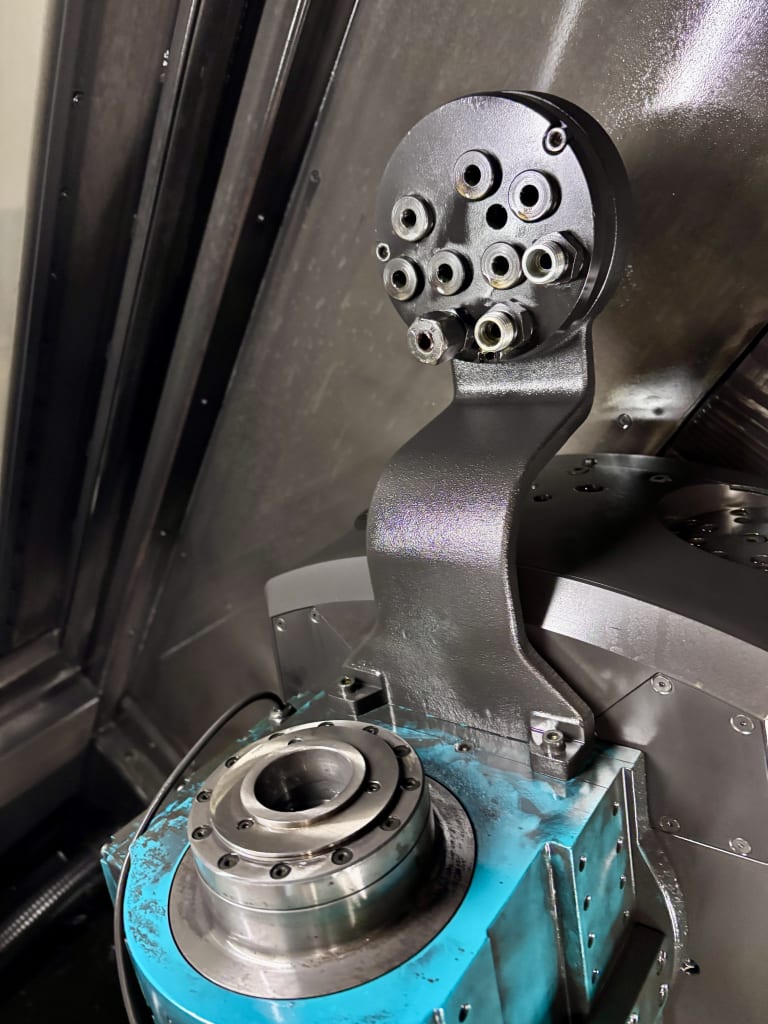

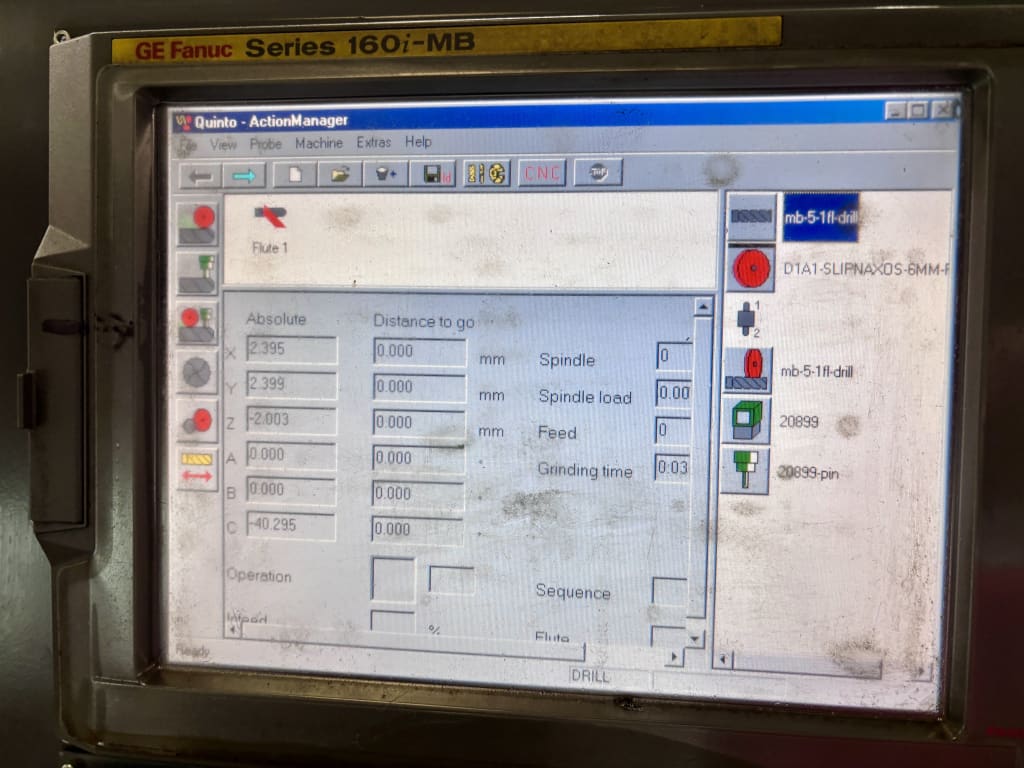

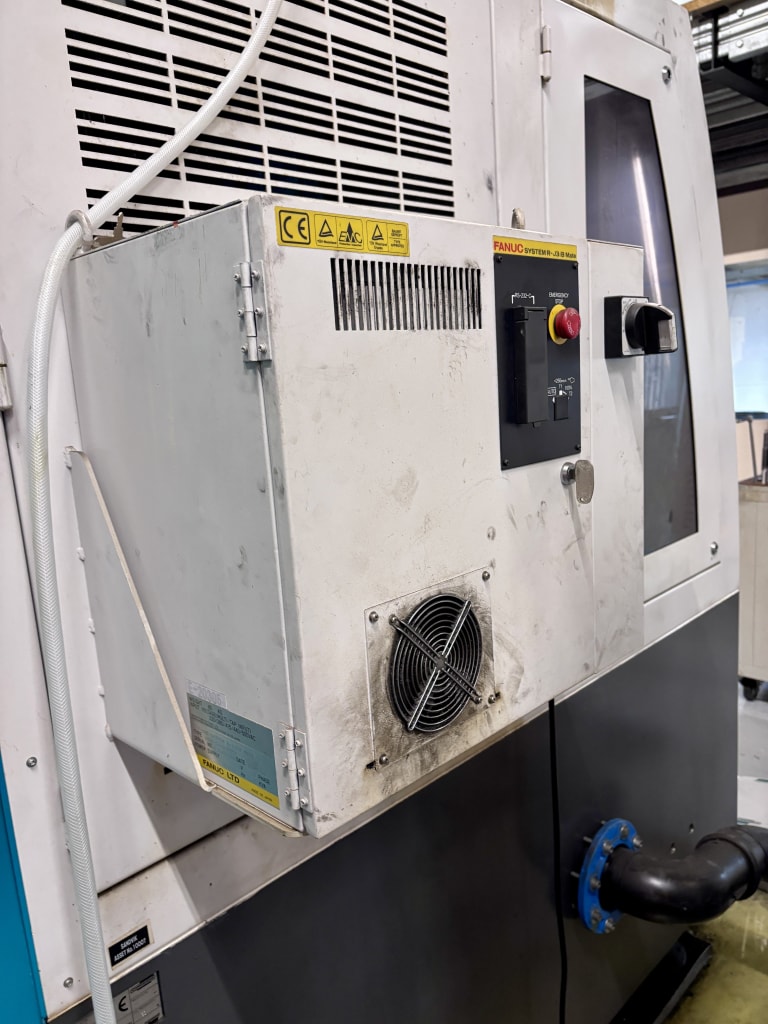

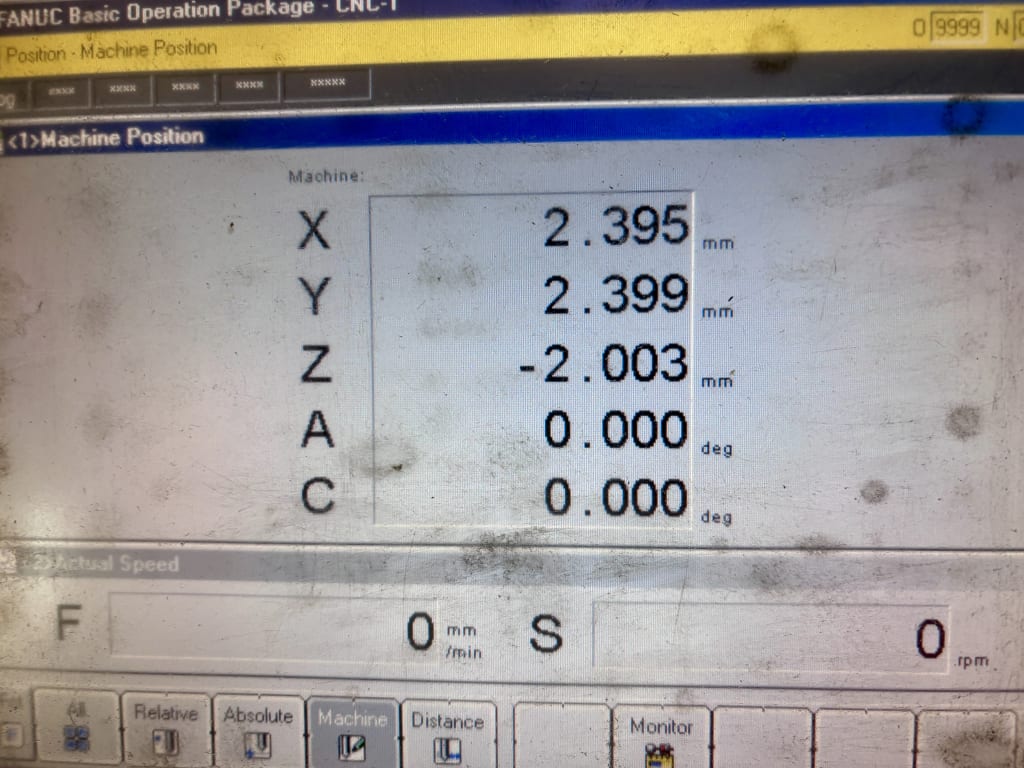

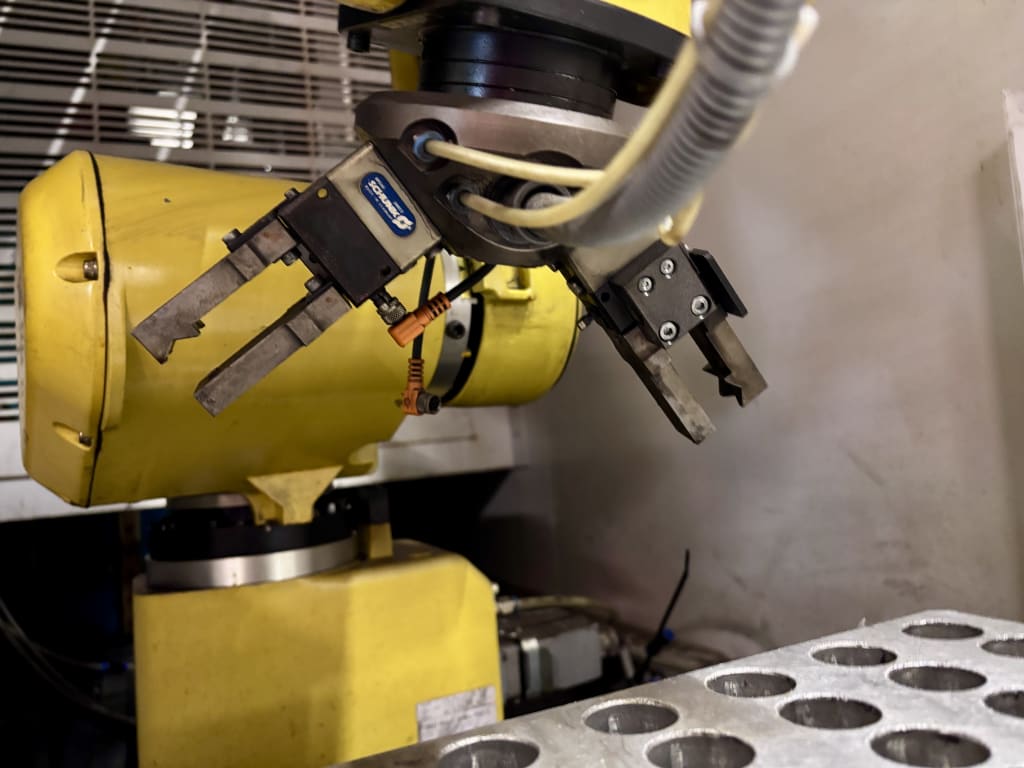

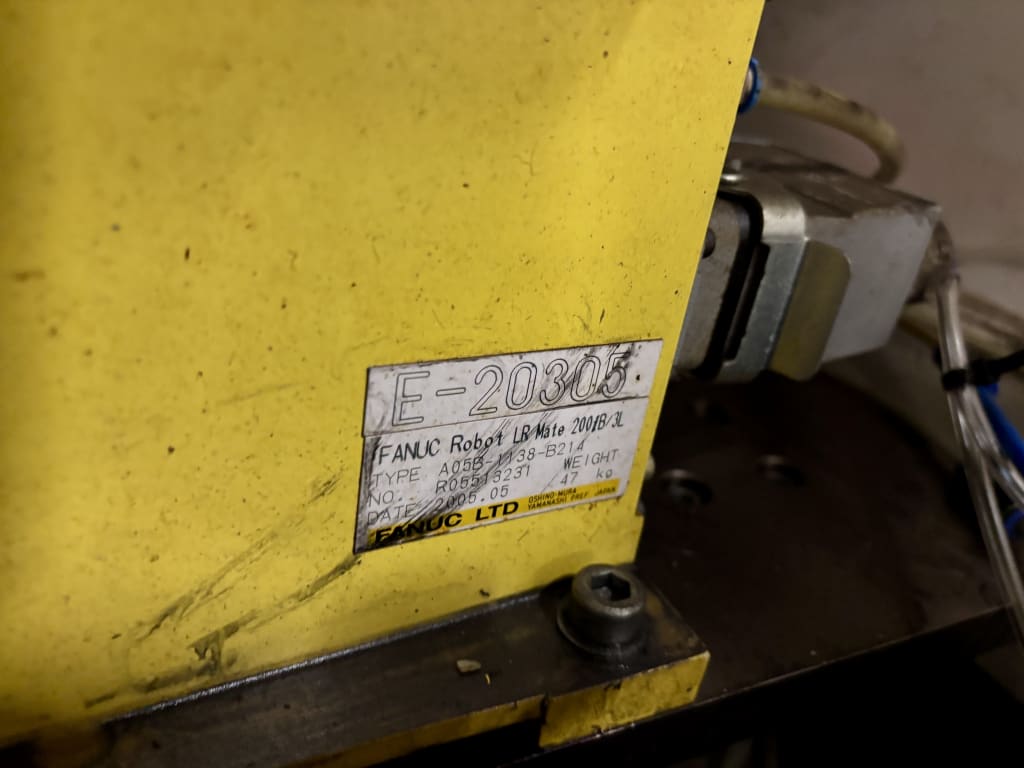

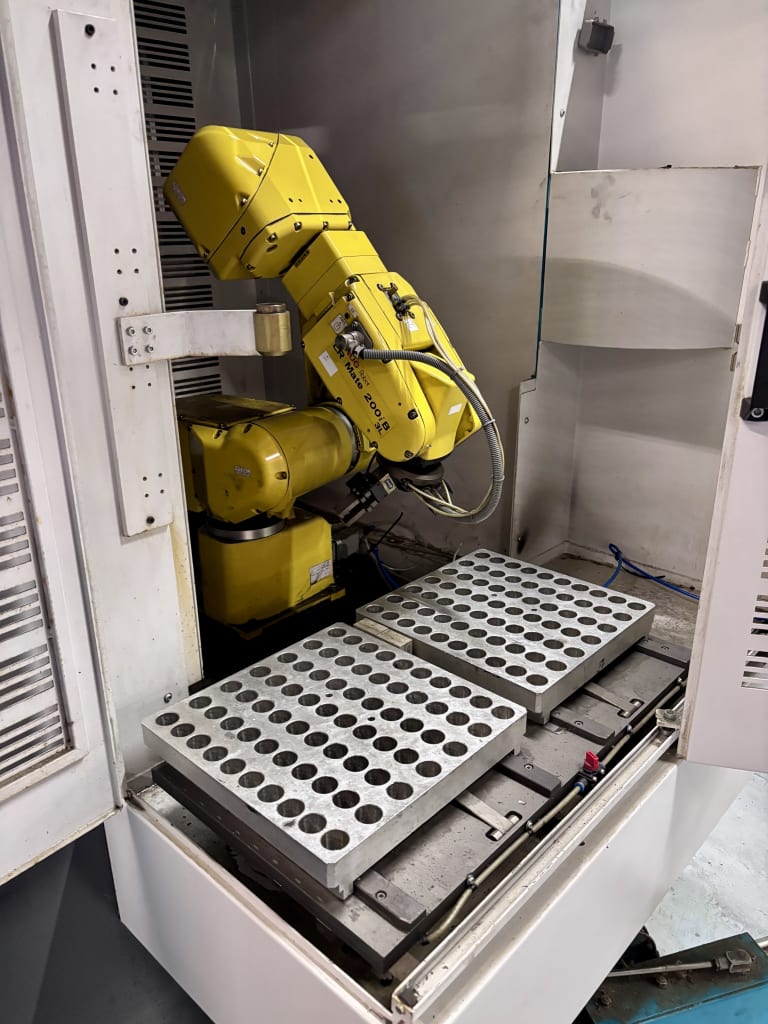

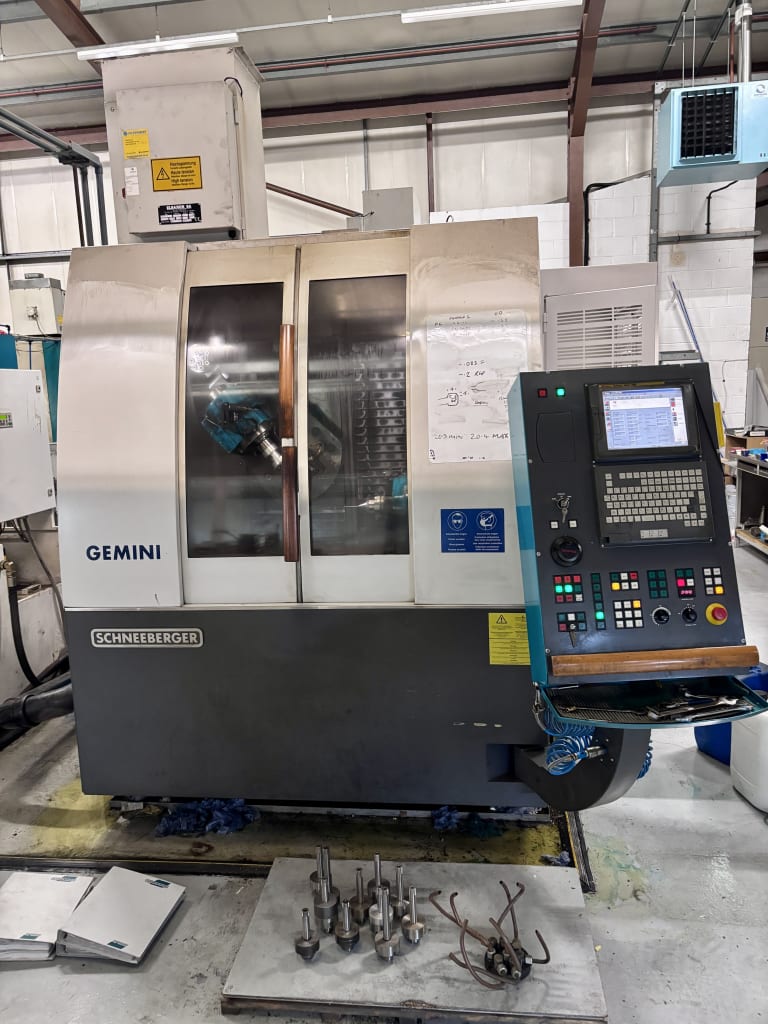

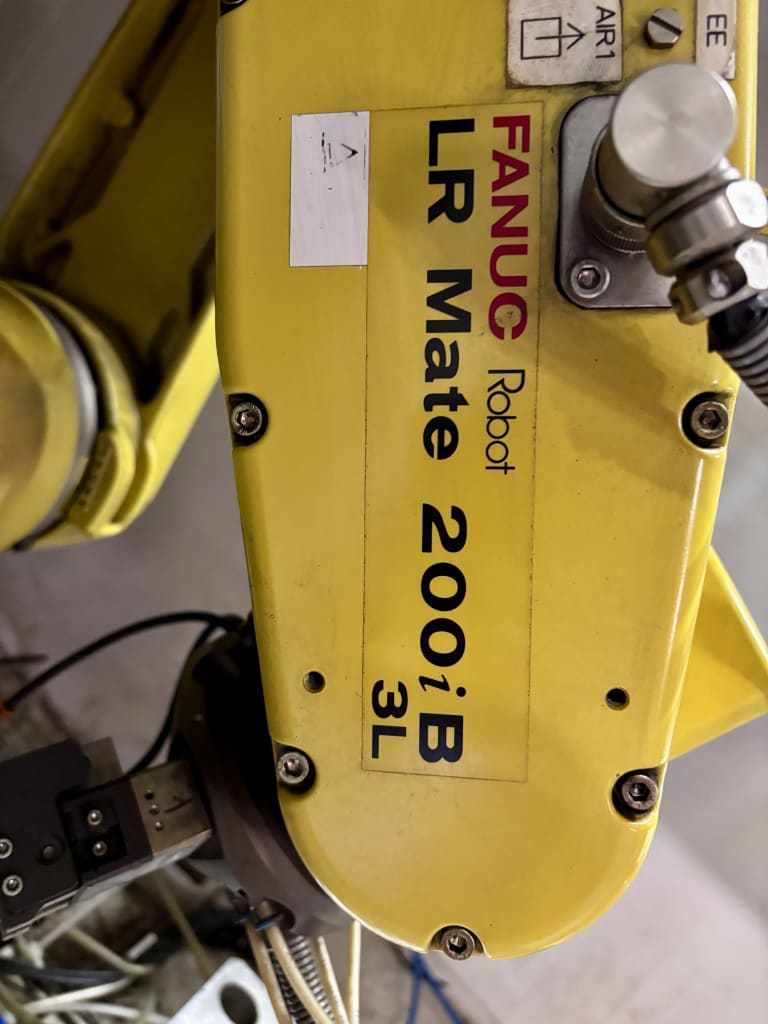

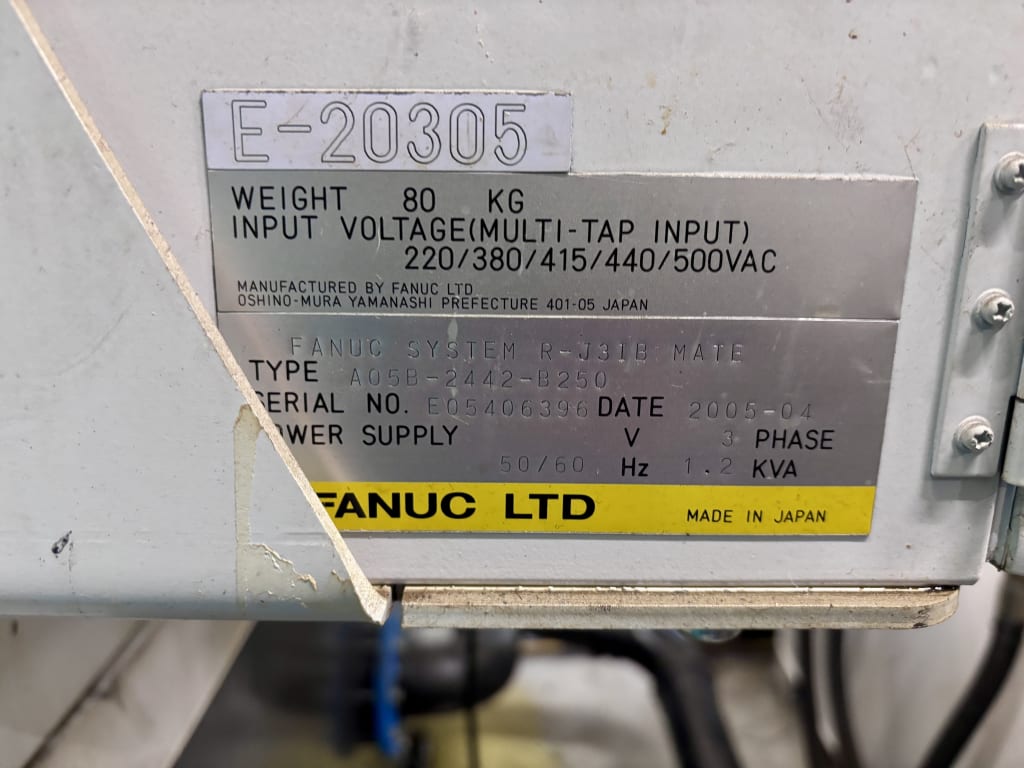

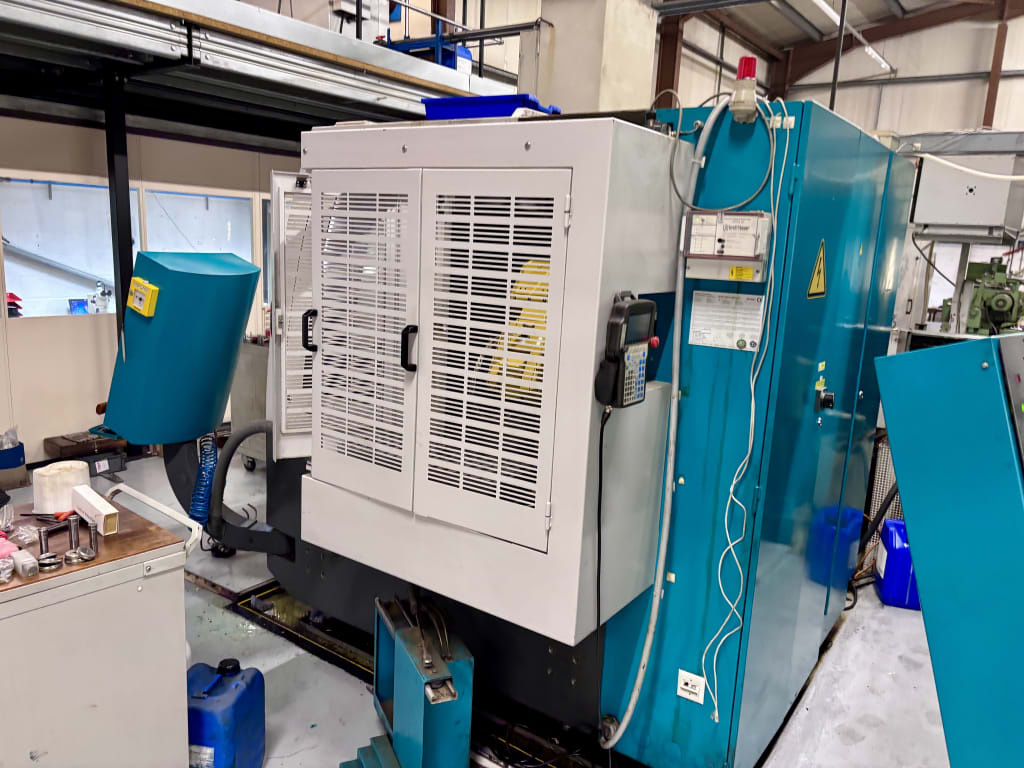

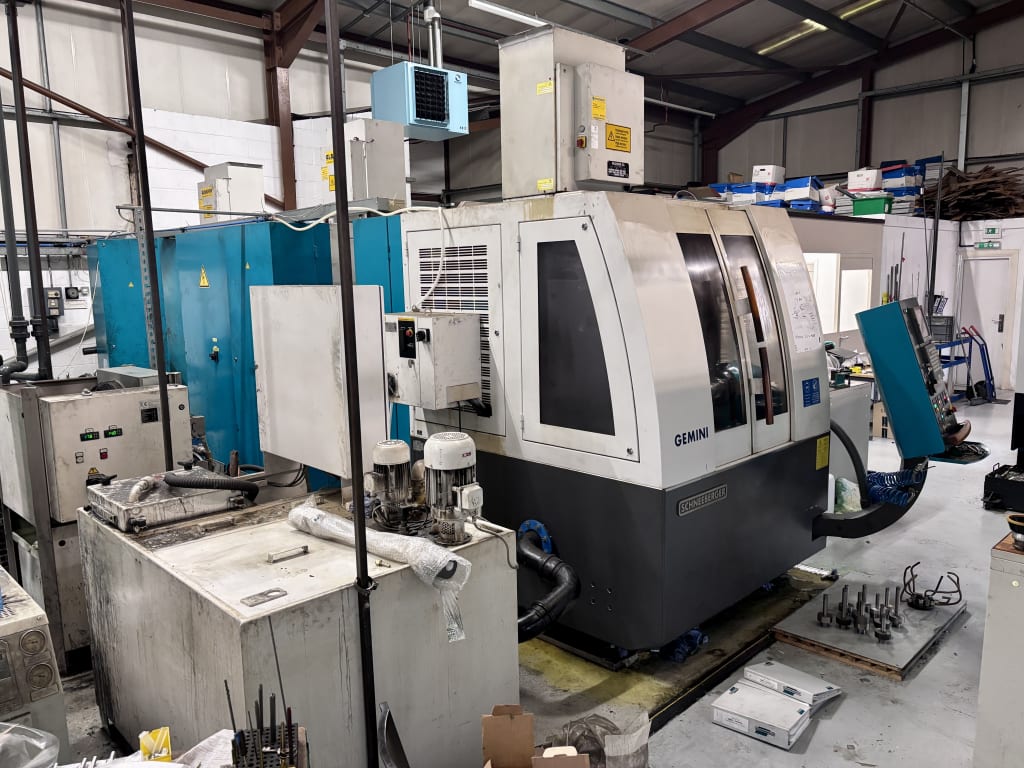

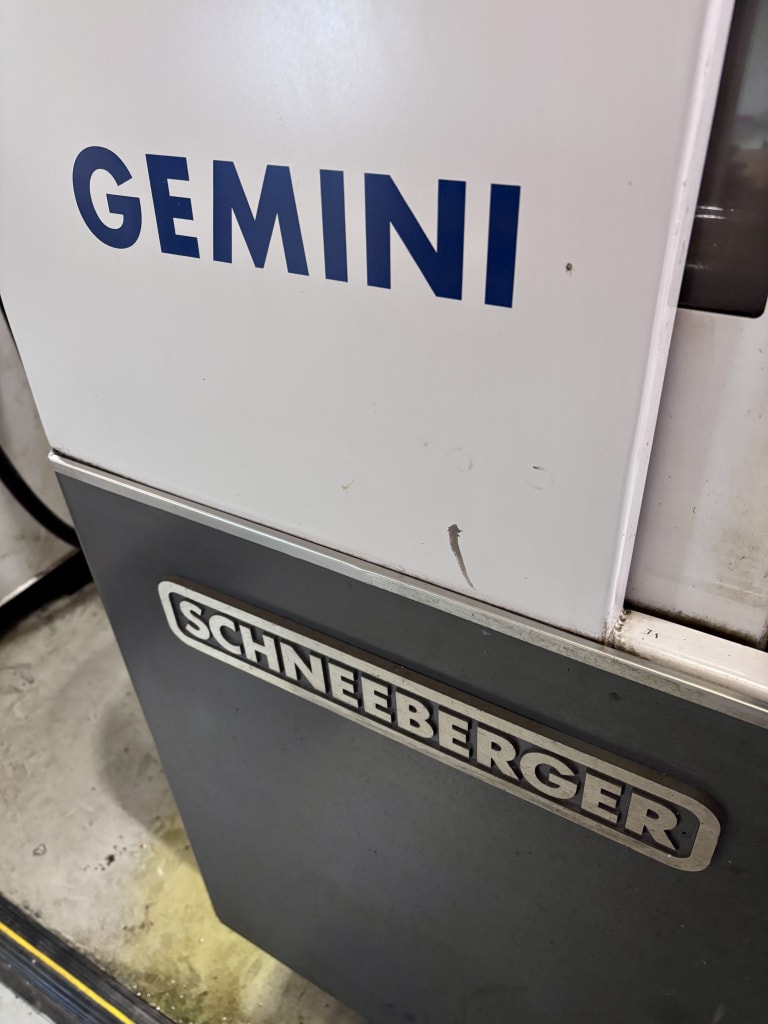

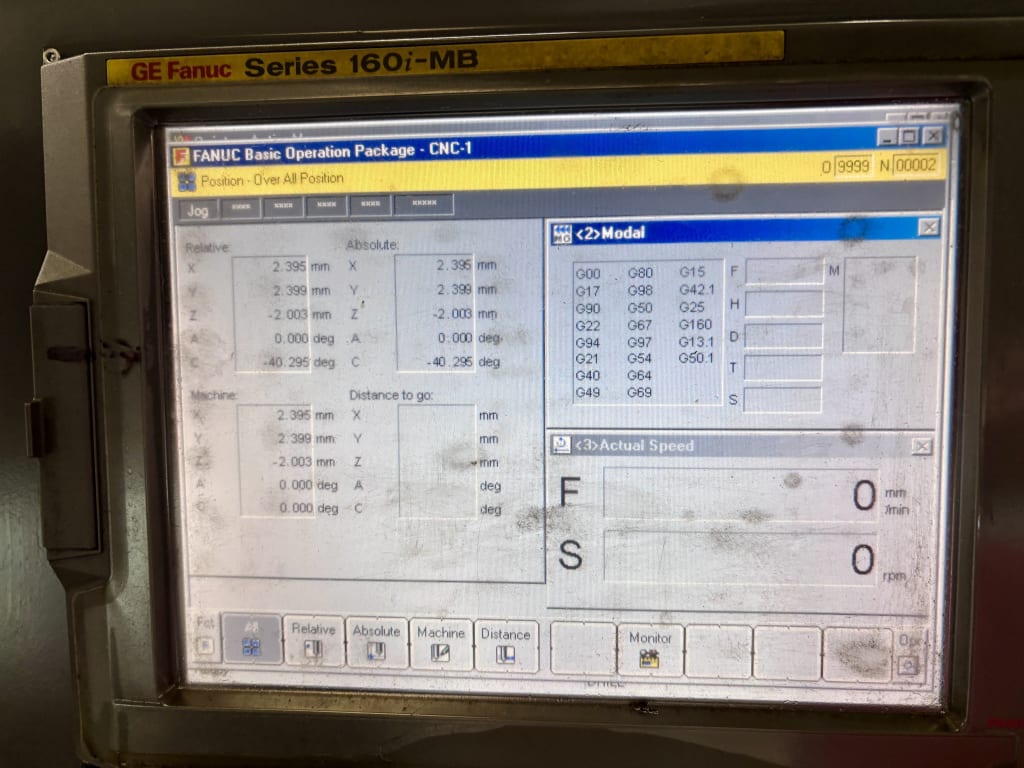

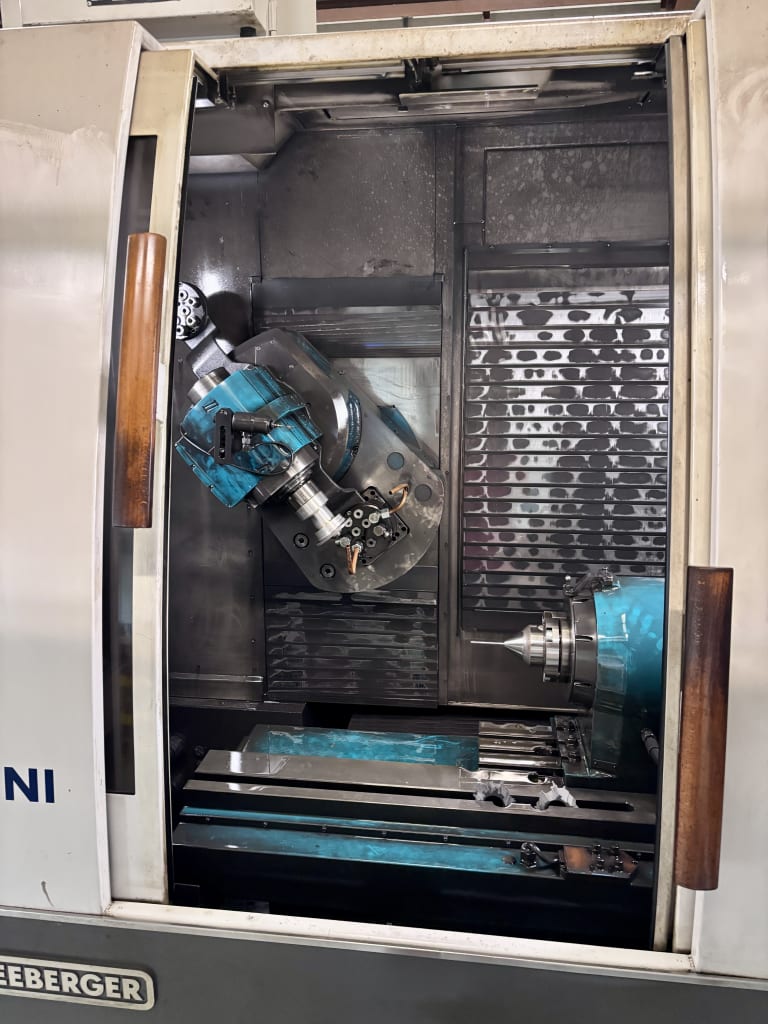

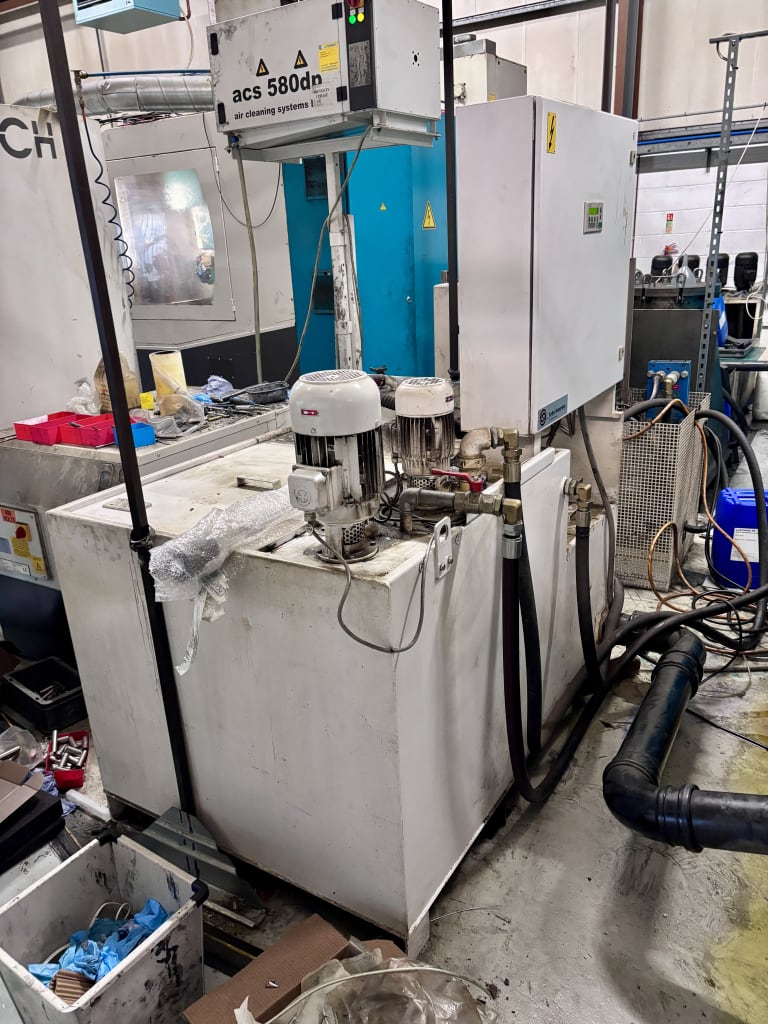

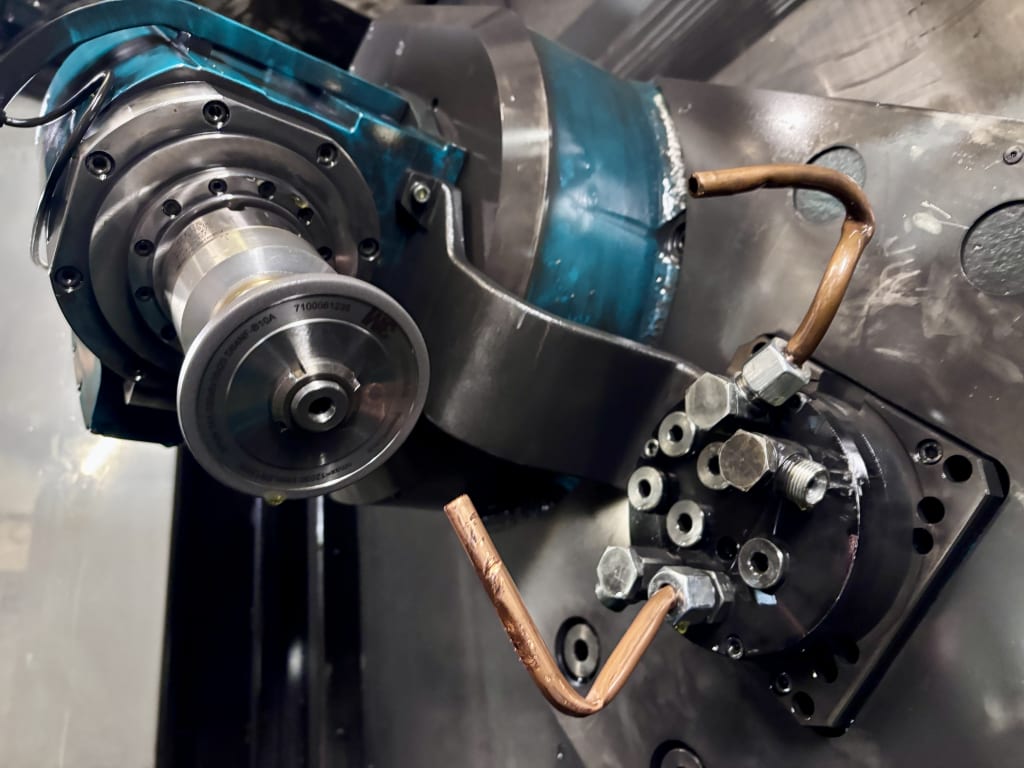

Schneeberger Gemini DMR 5-Axis CNC Tool Grinding Machine With GE Fanuc Series 160i-MB & Fanuc LR Mate 200i B 3L Robot Loading Cell

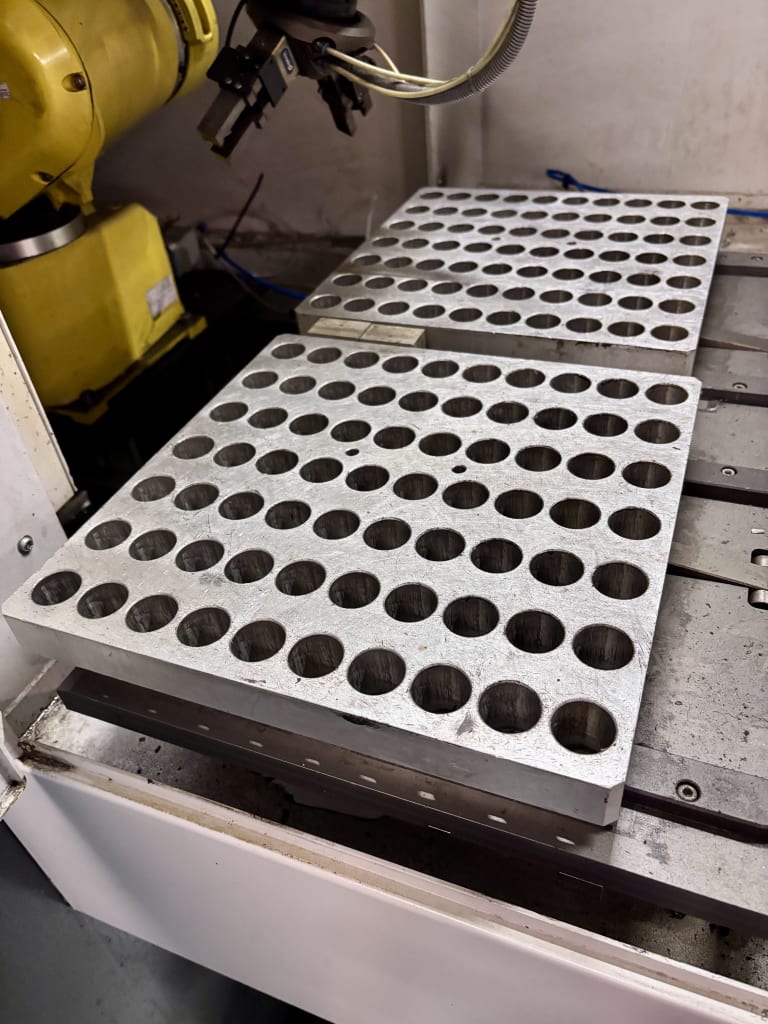

Centre Height 210mm. Table Length 500mm. Table Width 145mm. Axis Travel 'X'=380mm, 'Y'=300mm, 'Z'=280mm, 'A'=360°(Grinding Head Rotation), 'C'=210° (Tool Rotation). Maximum Grinding Ø240mm. Grinding Wheel Ø50-250mm. Spindle Taper HSK 50. Grinding Spindle Speed Range (Stepless) 50-10,000rpm (9kW Motor). Rapid Feeds Longitudinal 20m/min, Cross 5m/min, Vertical 20m/min. Voltage 50 Hz 3x 400V. S/No. 61 DMR (2006). Fanuc LR Mate 200i B 3L Robot with Skunk Grippers & Pendant Control. Maximum Load Of Robot 3kg, Maximum Reach 700mm, Repeatability 0.04mm. S/No. R05513231 (2005). Controller RJ3iB Mate S/No.E05406396 (2005). 140 Position Part Location Blocks. - LOT 4
![site]()

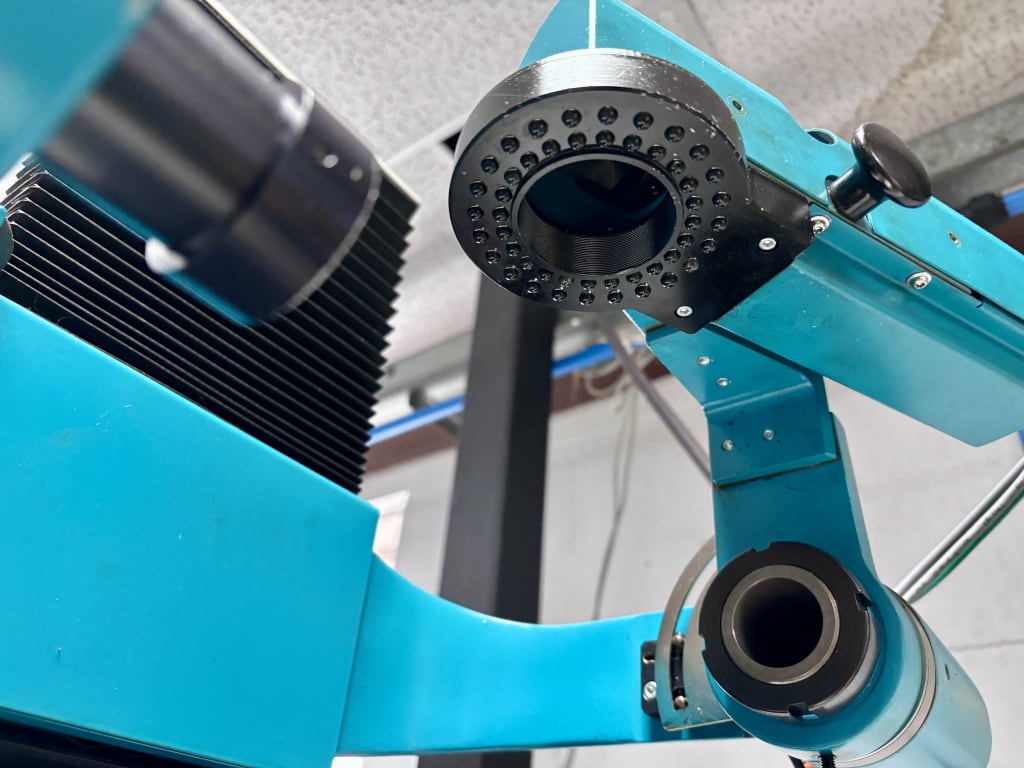

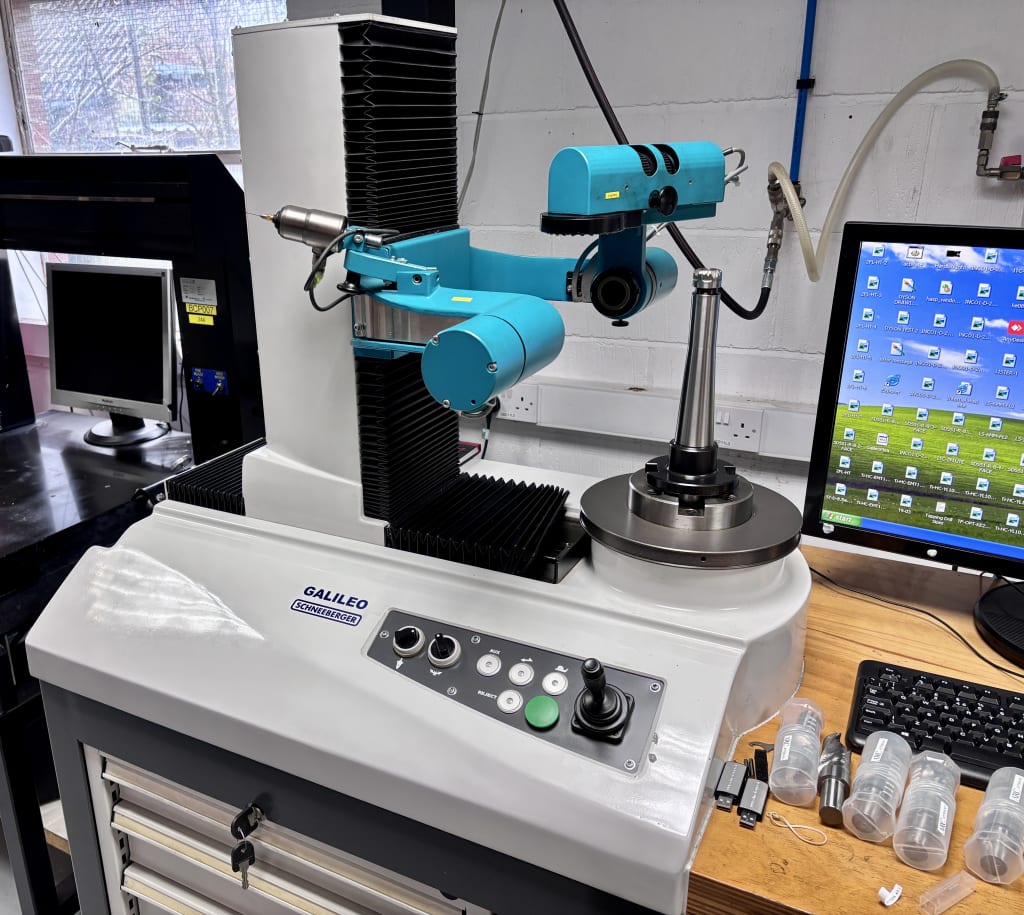

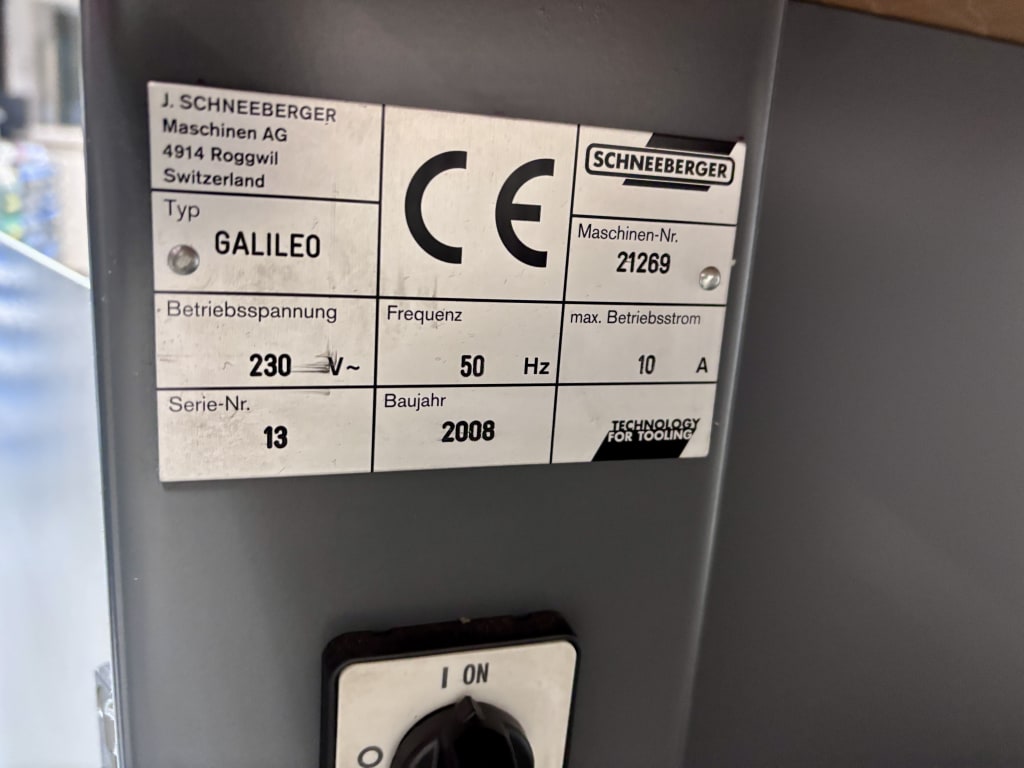

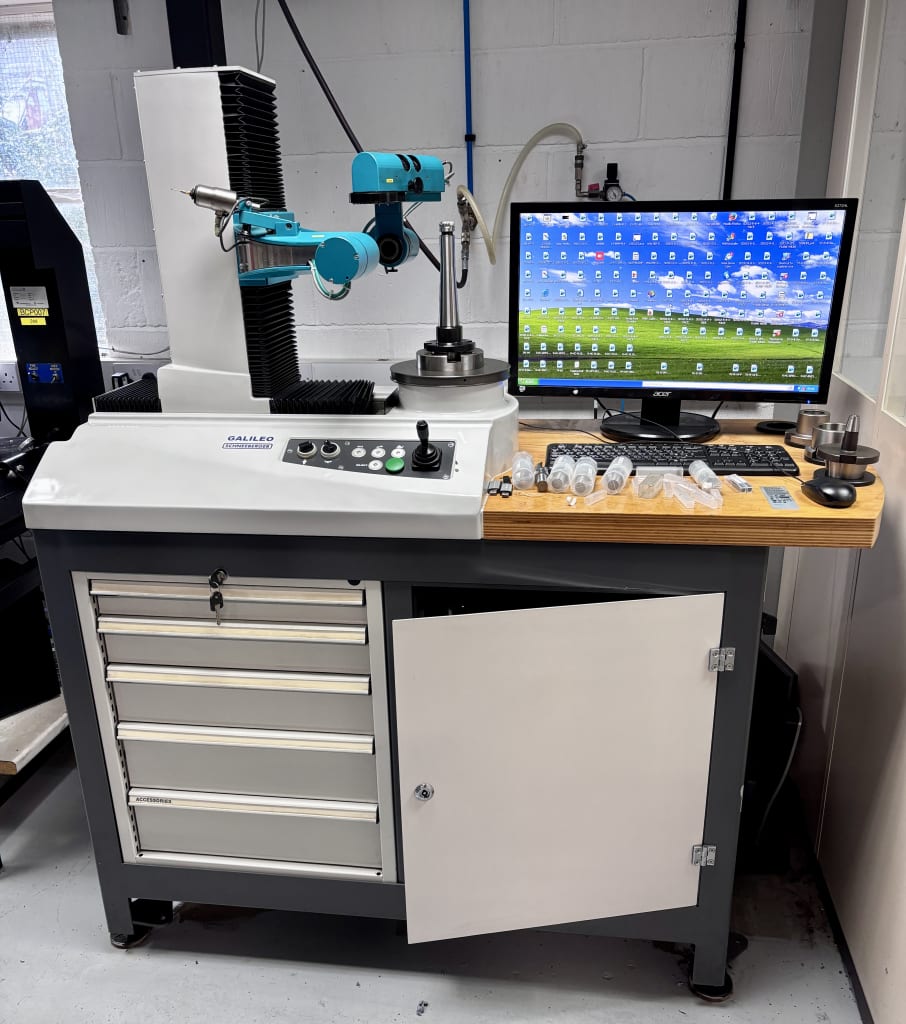

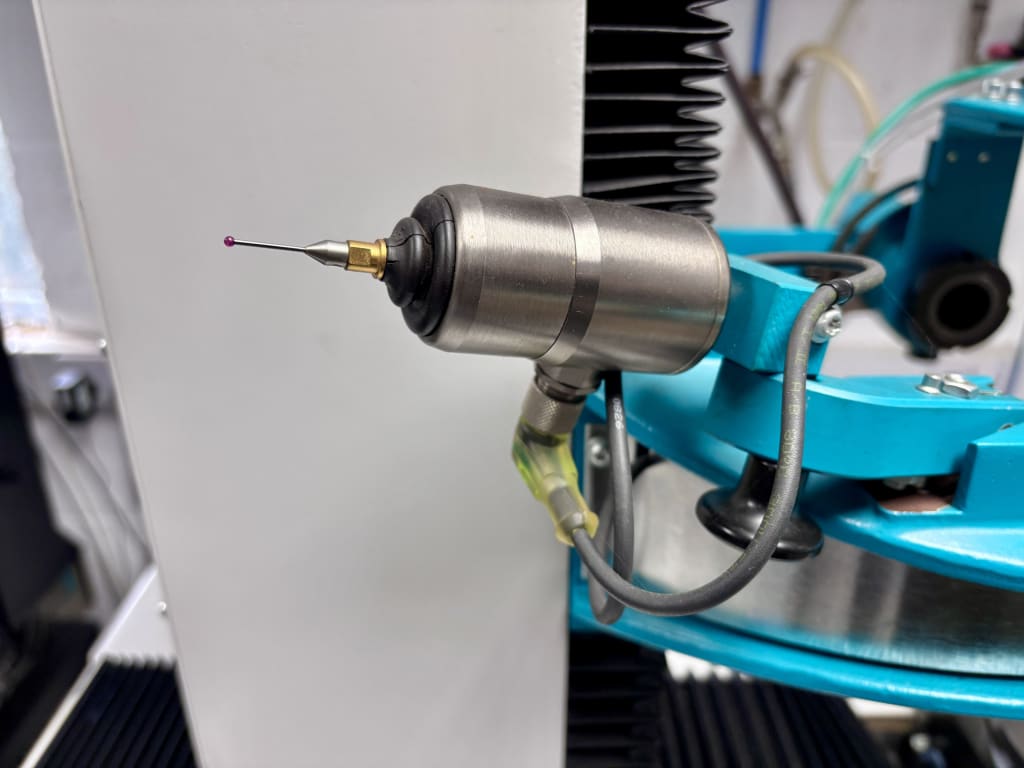

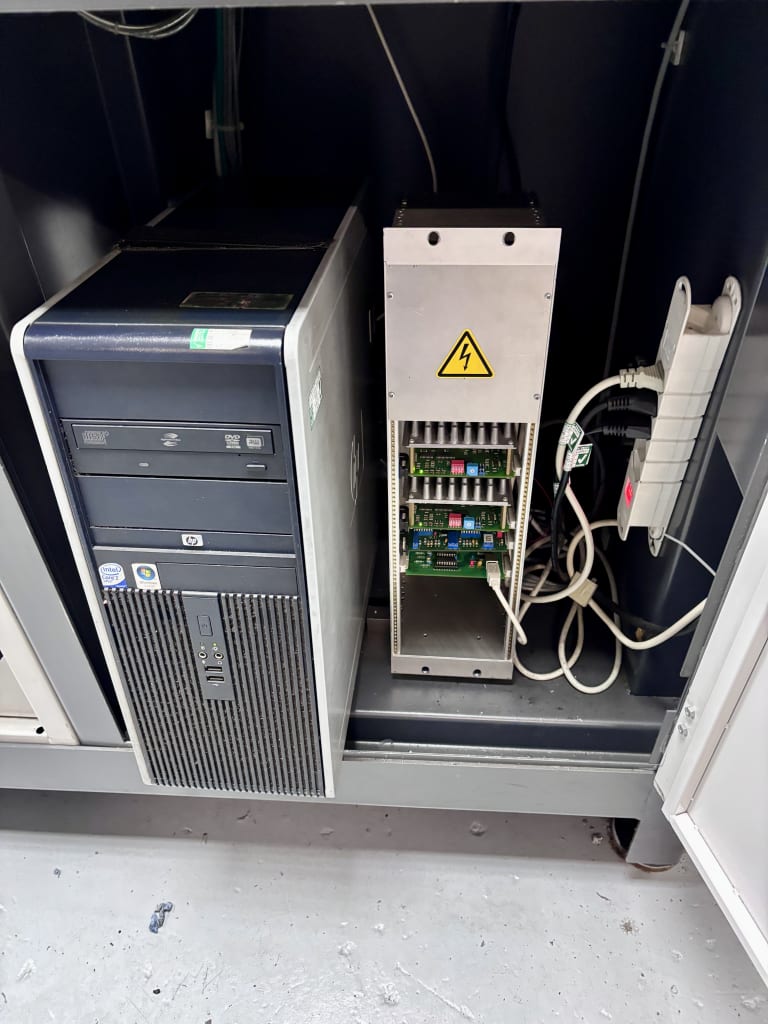

Schneeberger Galileo 3 Axis Camera Measuring Machine
Axis Travel 'X'=300mm (Vertical Column) Resolution 0.001mm, 'Z'=250mm (Longitudinal Column) Resolution 0.001mm, 'A'=Free Rotary Motion, ISO 50, Resolution 0.0001°. Voltage 230V. S/No. 13 (2008). - LOT 5
![site]()

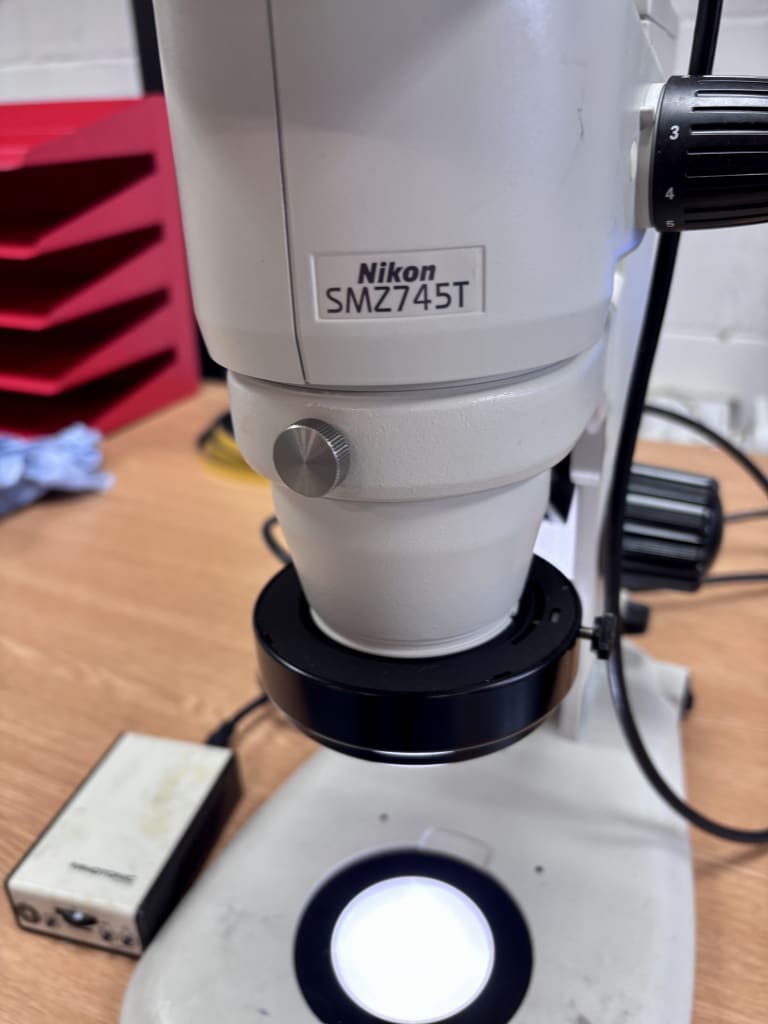

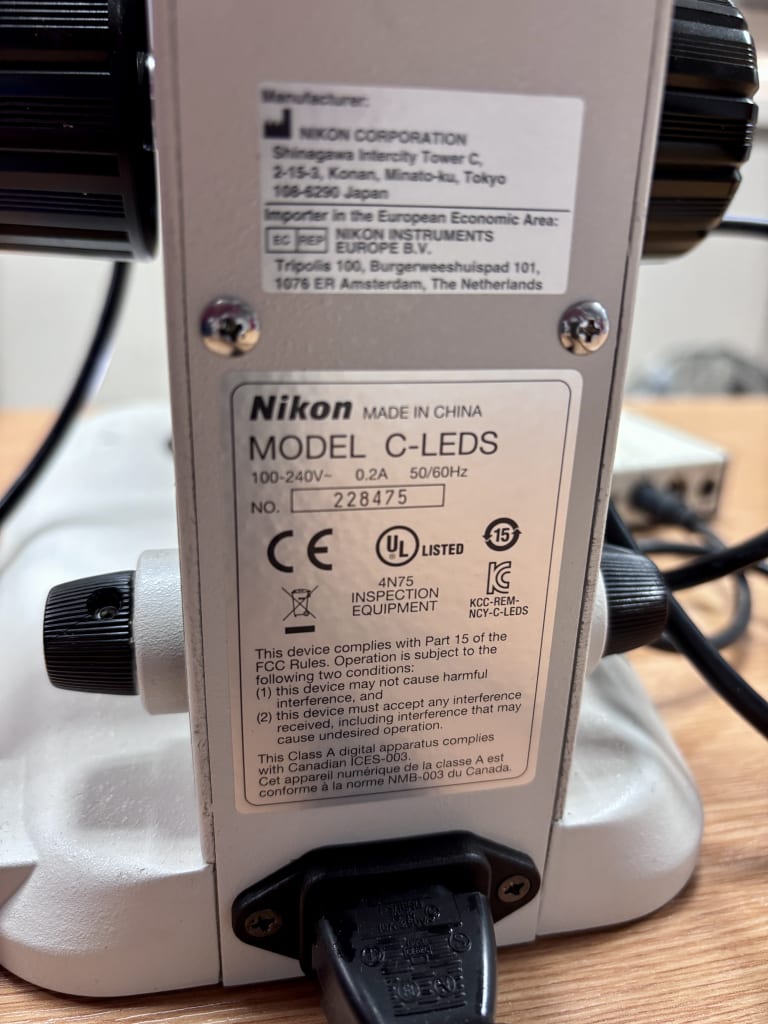

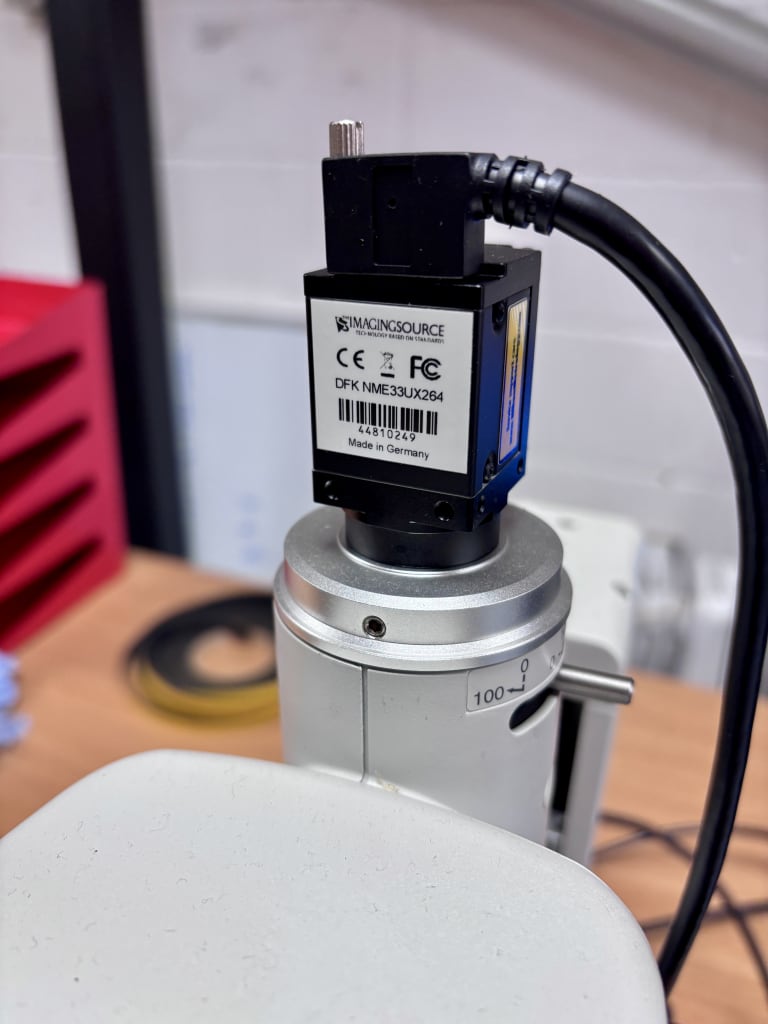

Nikon SMZ745T Stereo Zoom Microscope With Dell Latitude E5440 Laptop With Software
Total Magnification 3.35-300x (Depending On Eyepiece & Auxiliary Objective Used). Eyepiece Inclination 45°. Interpupillary Distance Adjustment 52-75mm. Zoom Range 0.67-5x. Zoom Ratio 7.5:1. Working Distance 115mm (Standard). S/No. 228475. - LOT 6
![site]()

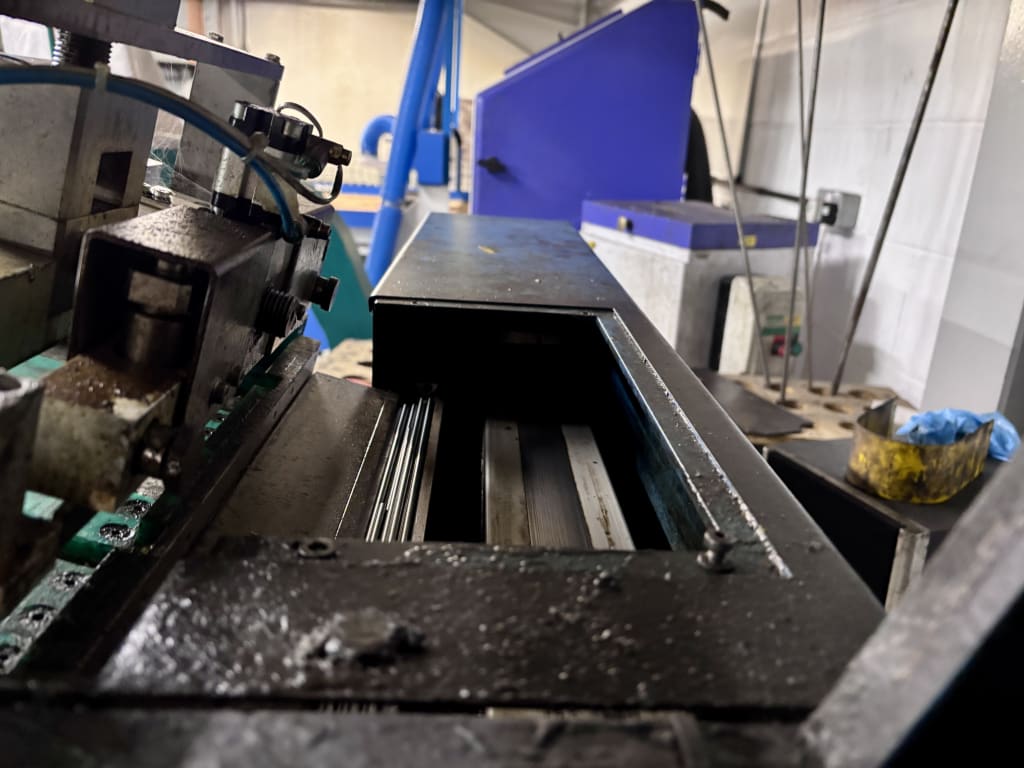

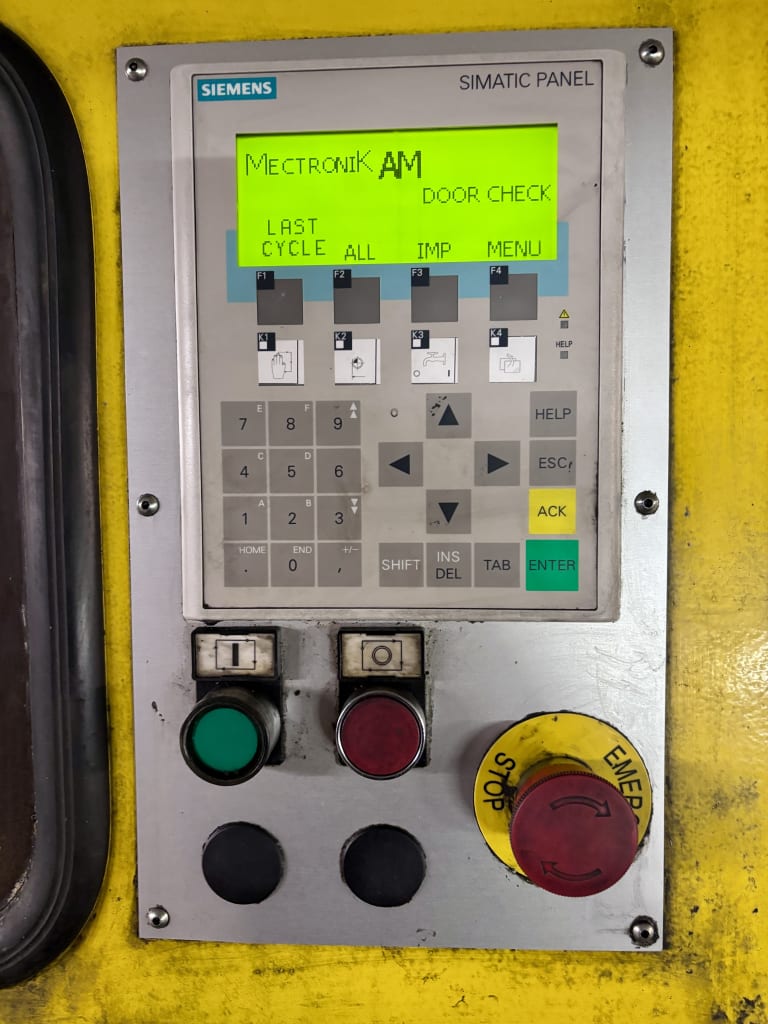

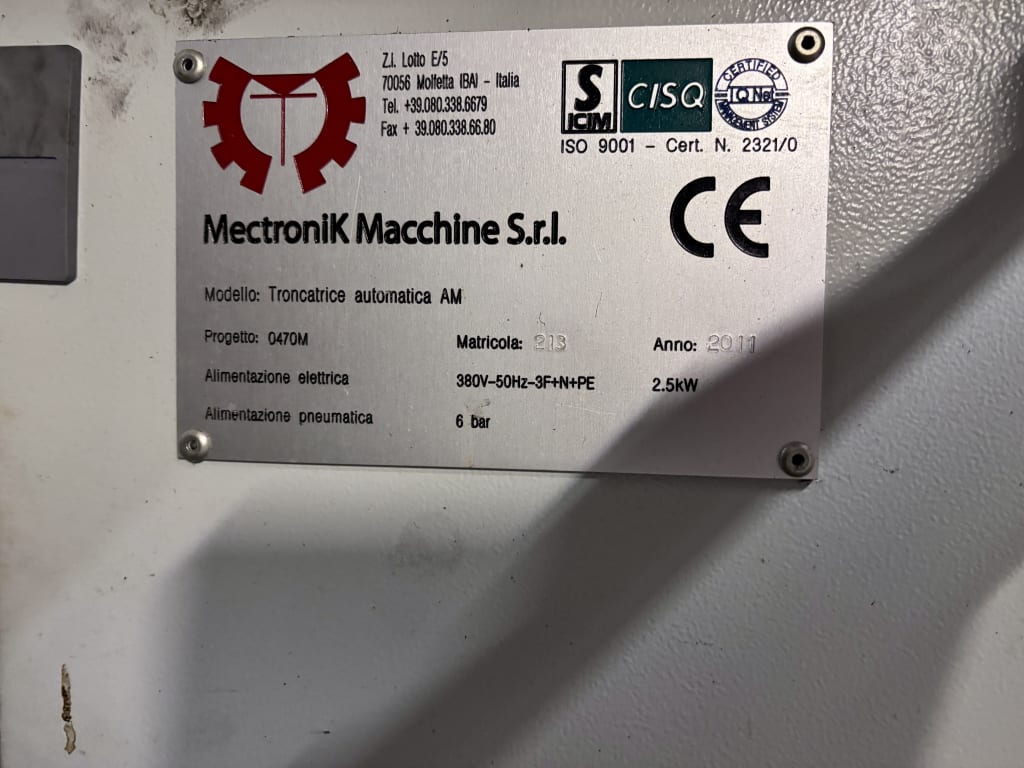

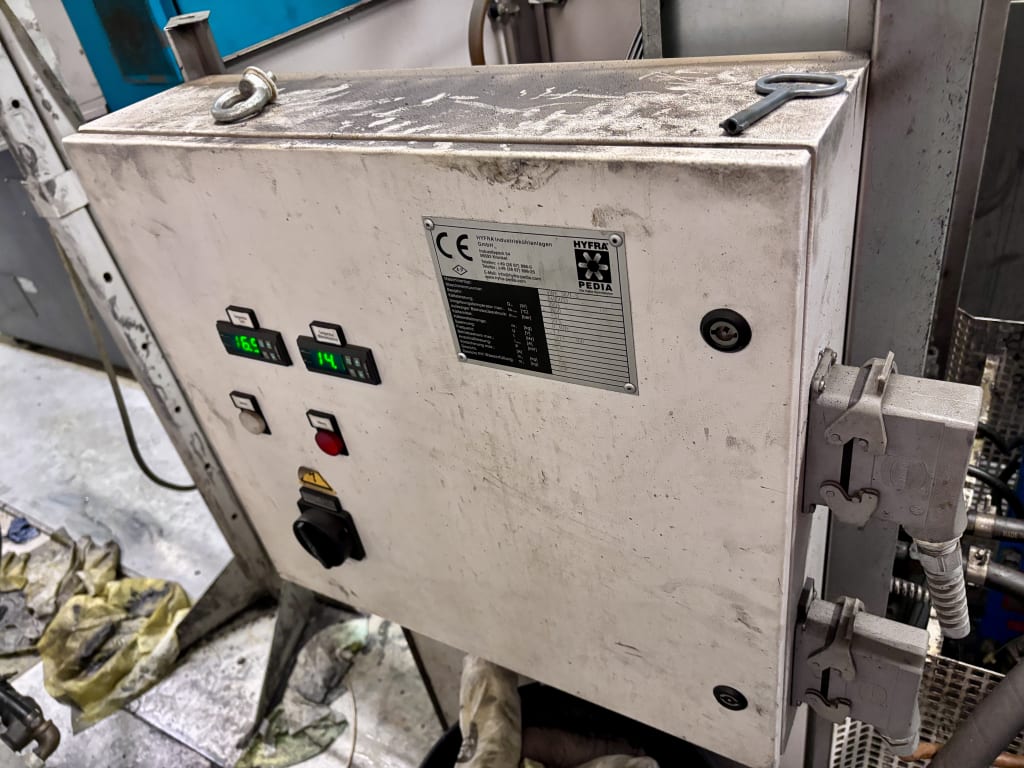

Mectronik Macchine Automatic Abrasive Cut Off Saw With Parts Feeder/Loader With Siemens Simatic Panel HMI

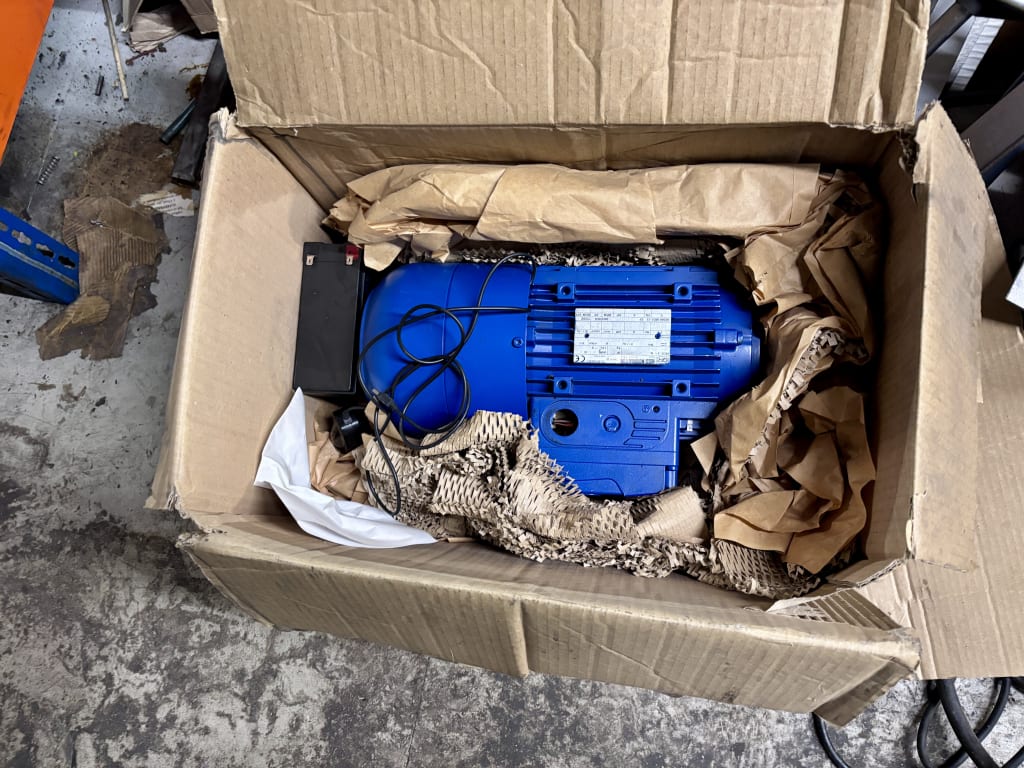

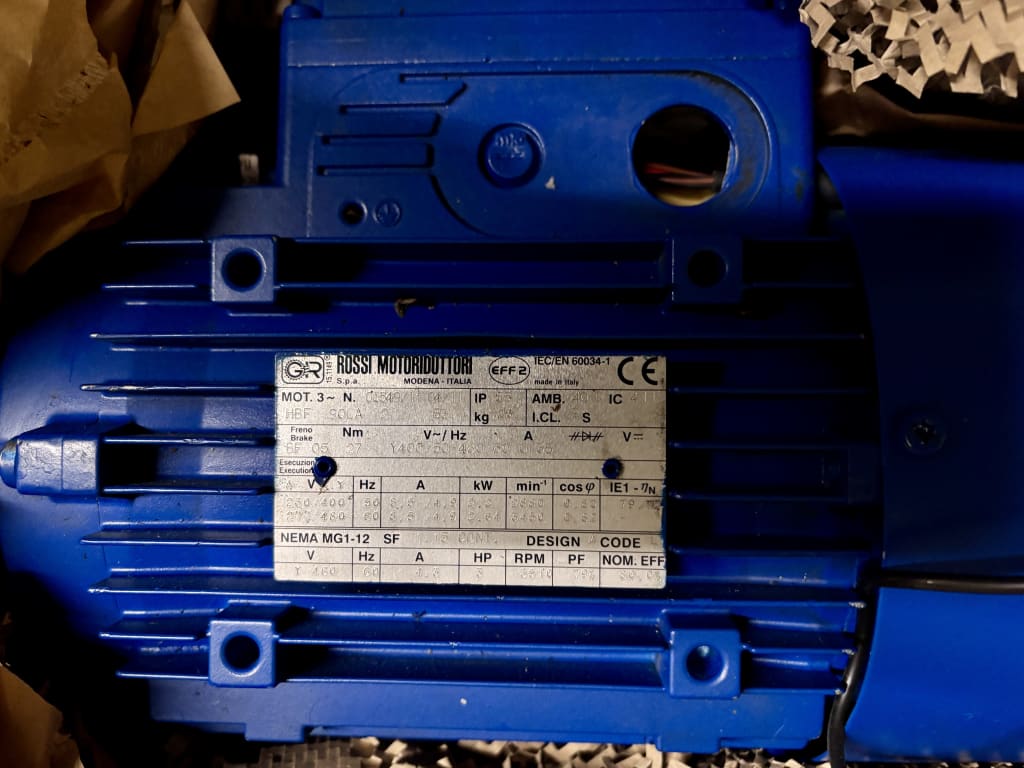

Motor Power 2.5kW. With Filtermist Xcel 2 FX2000 Mist Extraction Unit & Spare Unused Rossi Motorduttori Motor. S/No. 213 (2011). Needs attention.
- LOT 7
![site]()

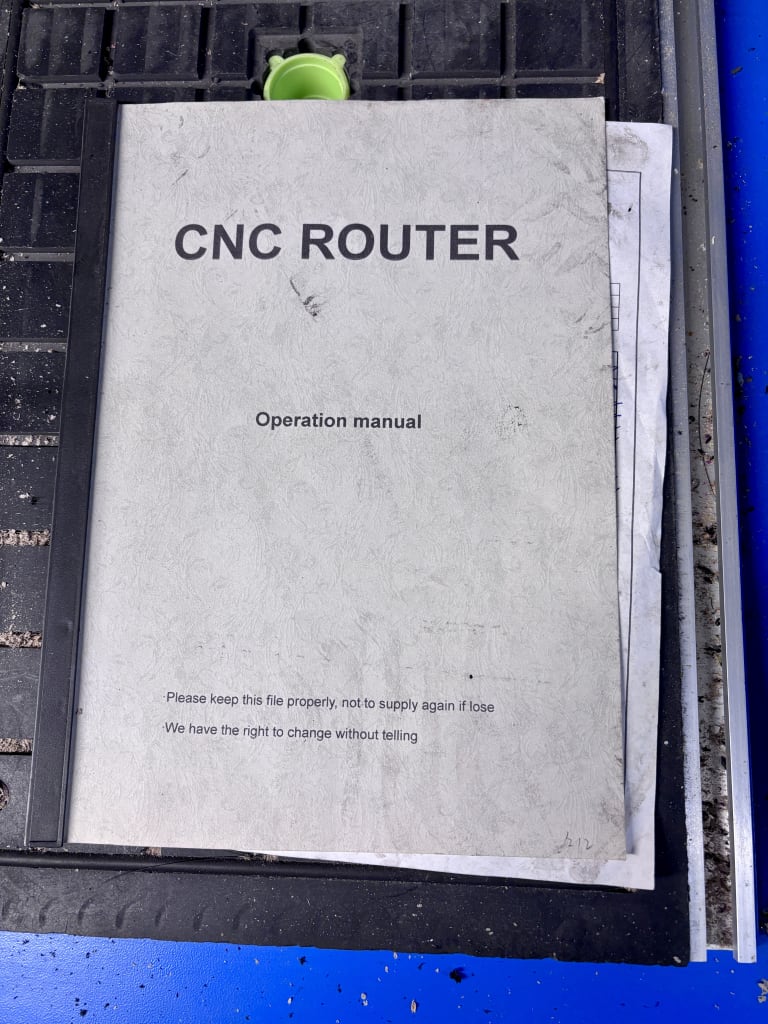

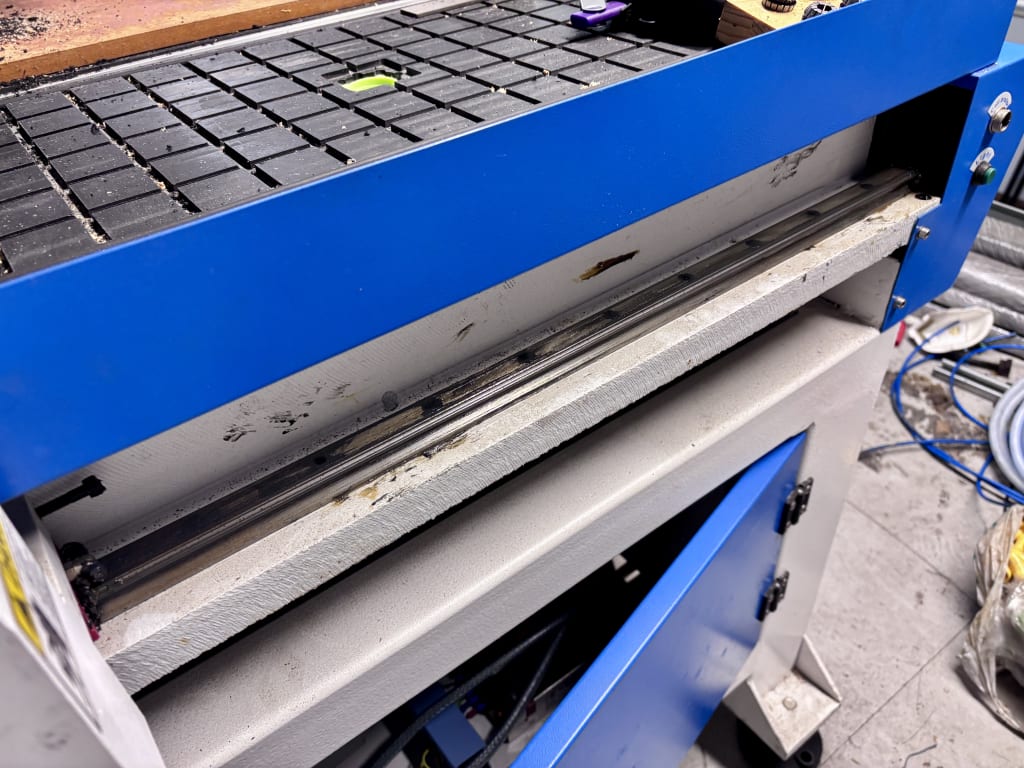

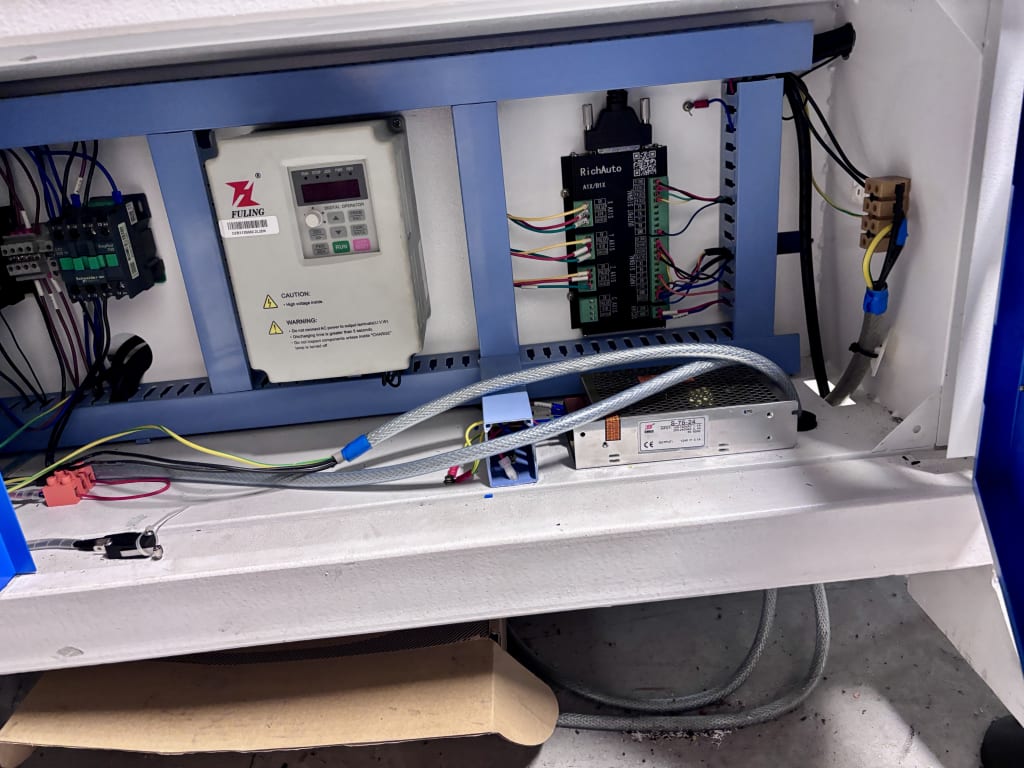

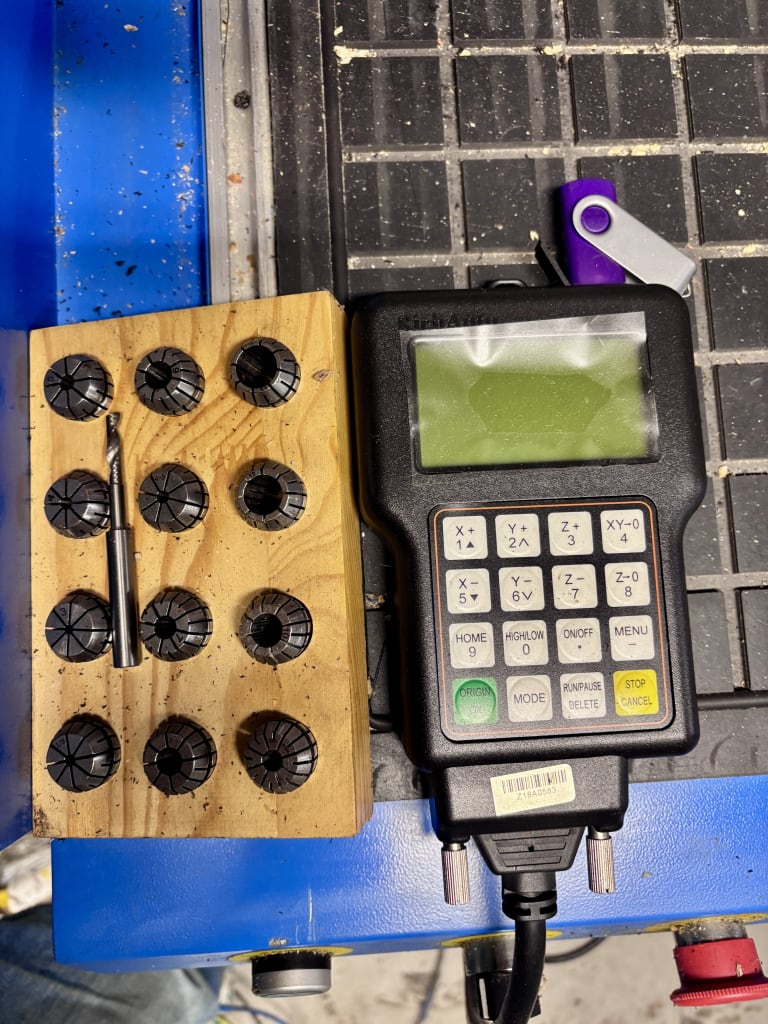

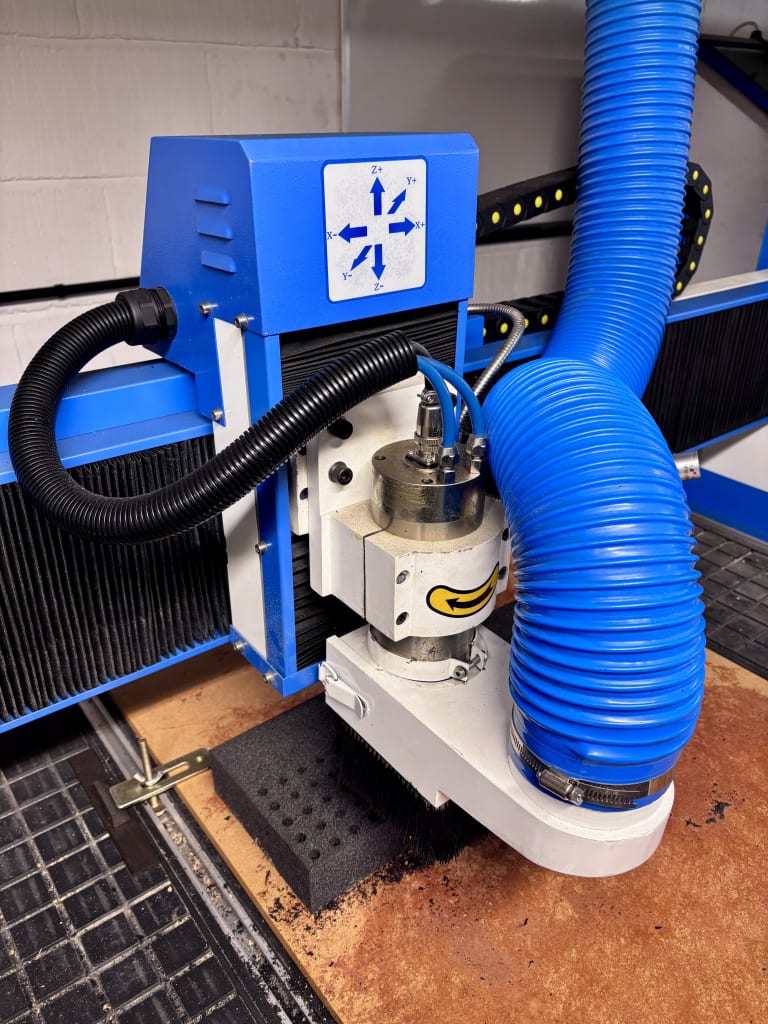

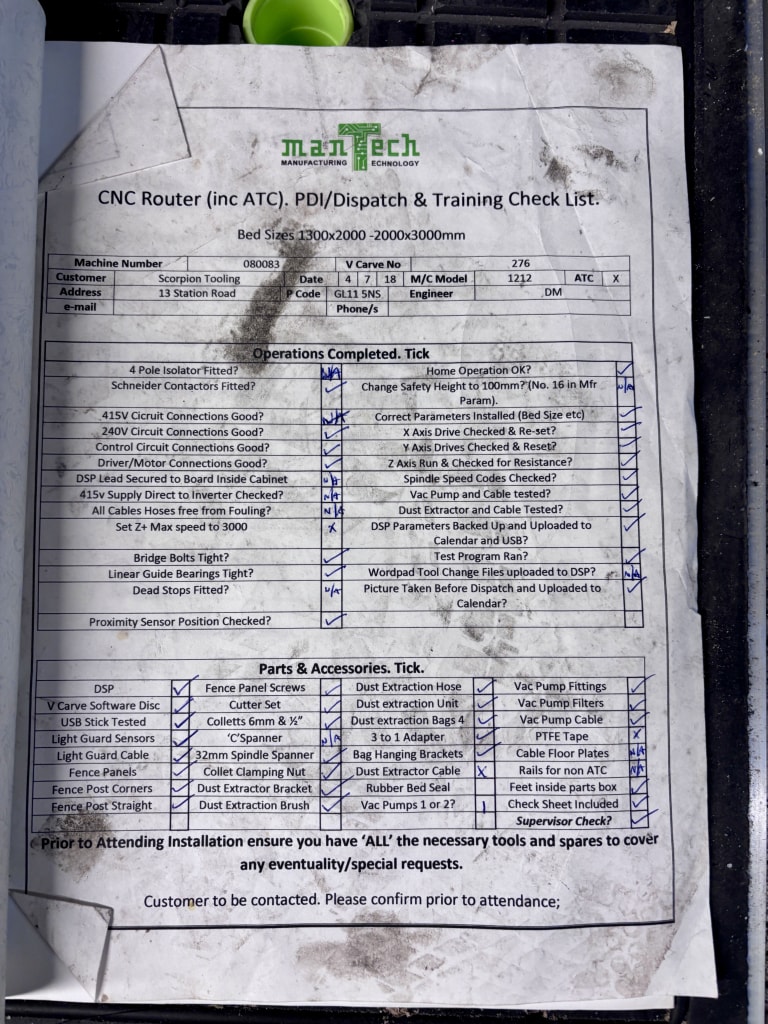

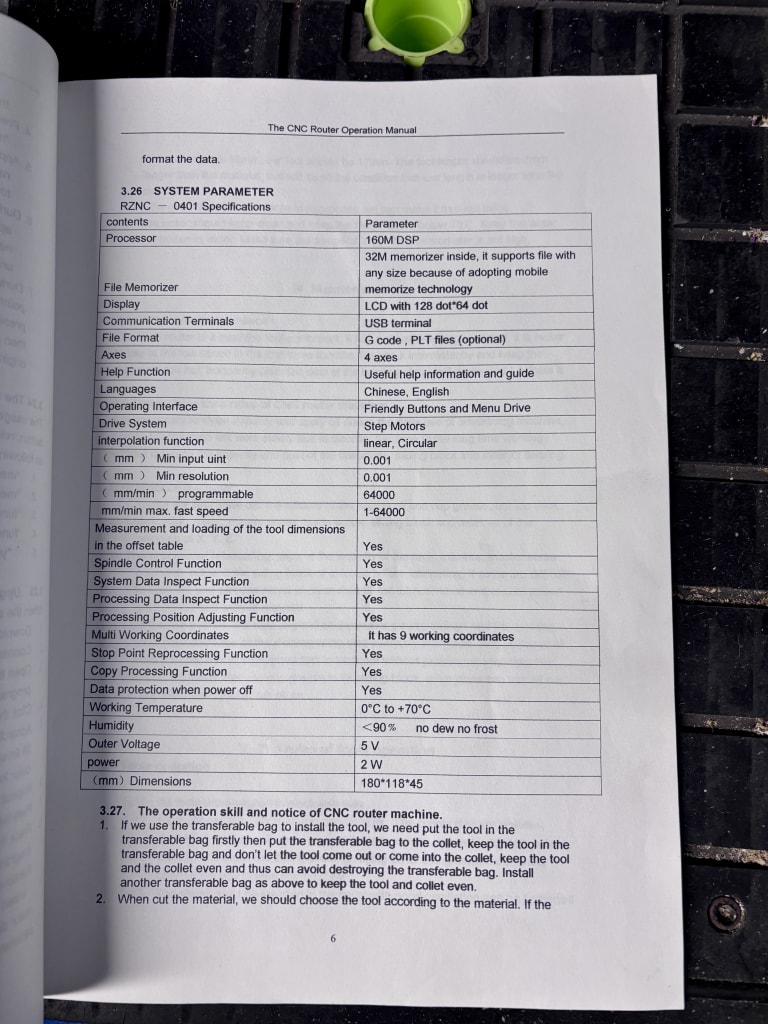

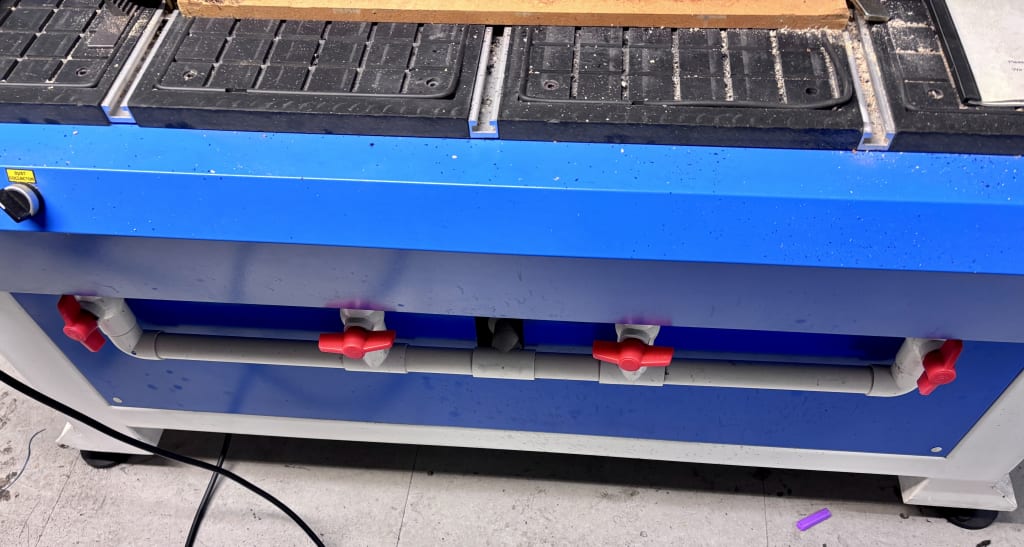

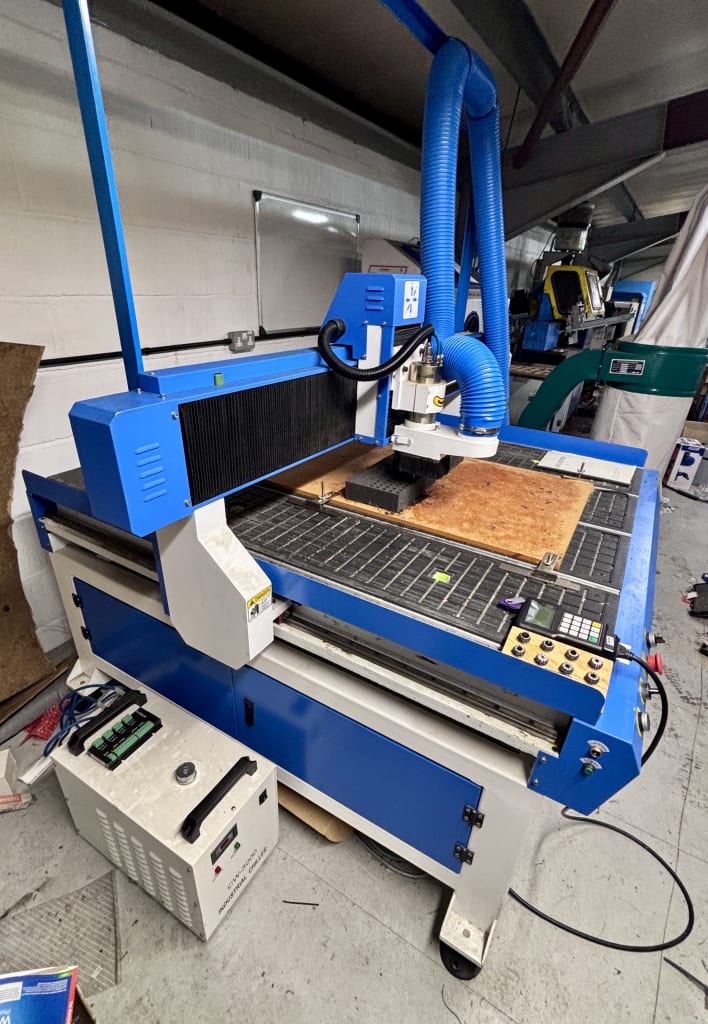

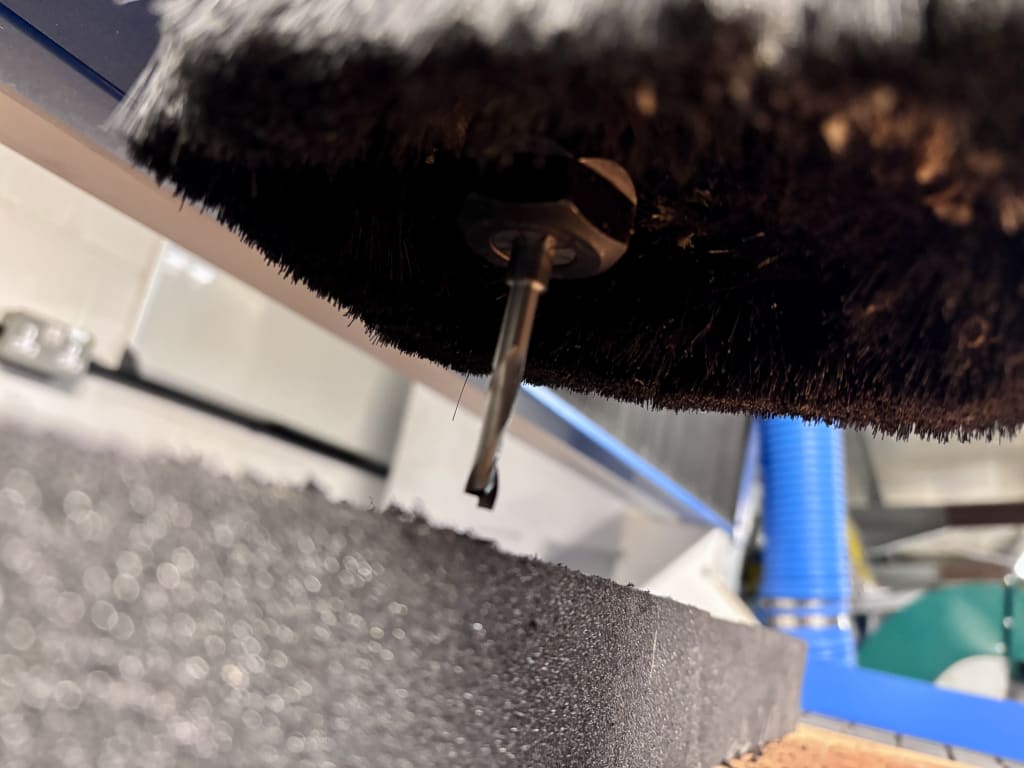

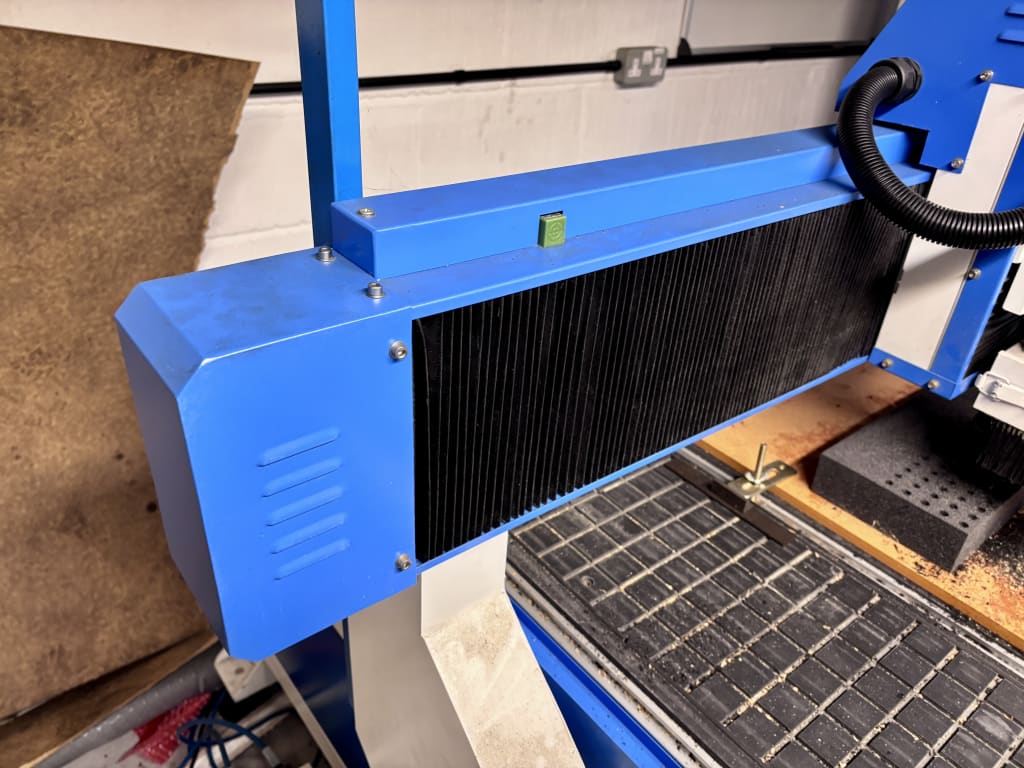

Jindiao JD1212 CNC Router
Table Dimension 1,250 x 1,500mm. Axis Travel 'X'=1,200mm, 'Y'=1,200mm, 'Z'=150mm. Maximum Spindle Speed 3,000rpm. Spindle Power 4.4kW. S/No. 0800083 (2018). - LOT 8
![site]()

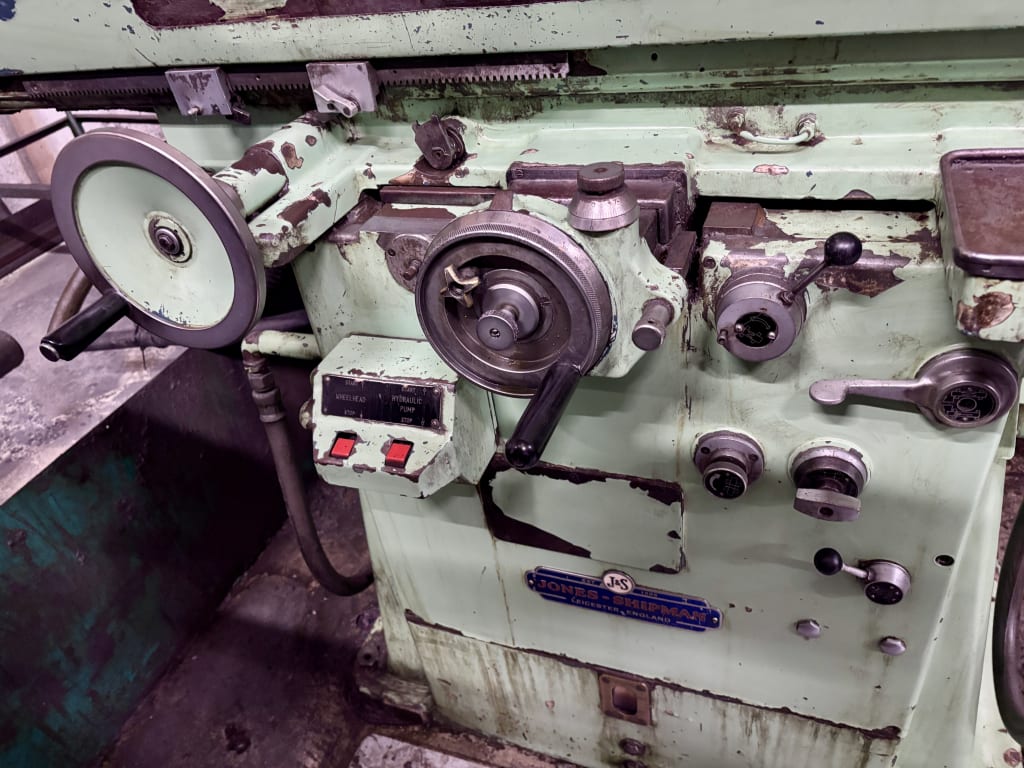

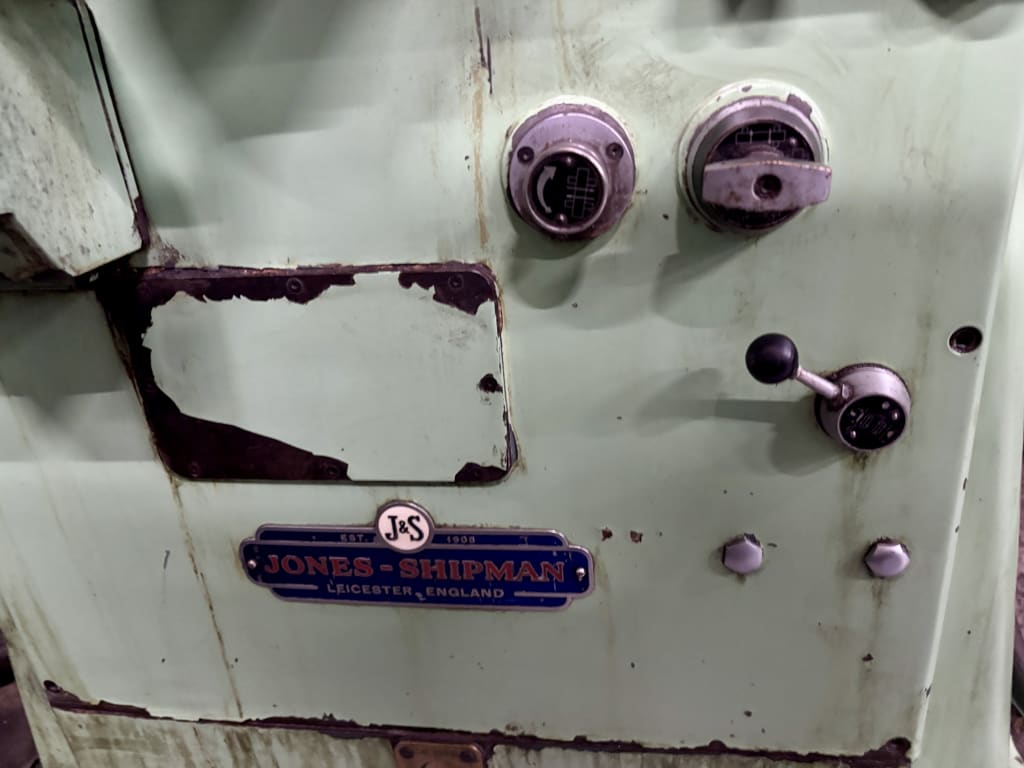

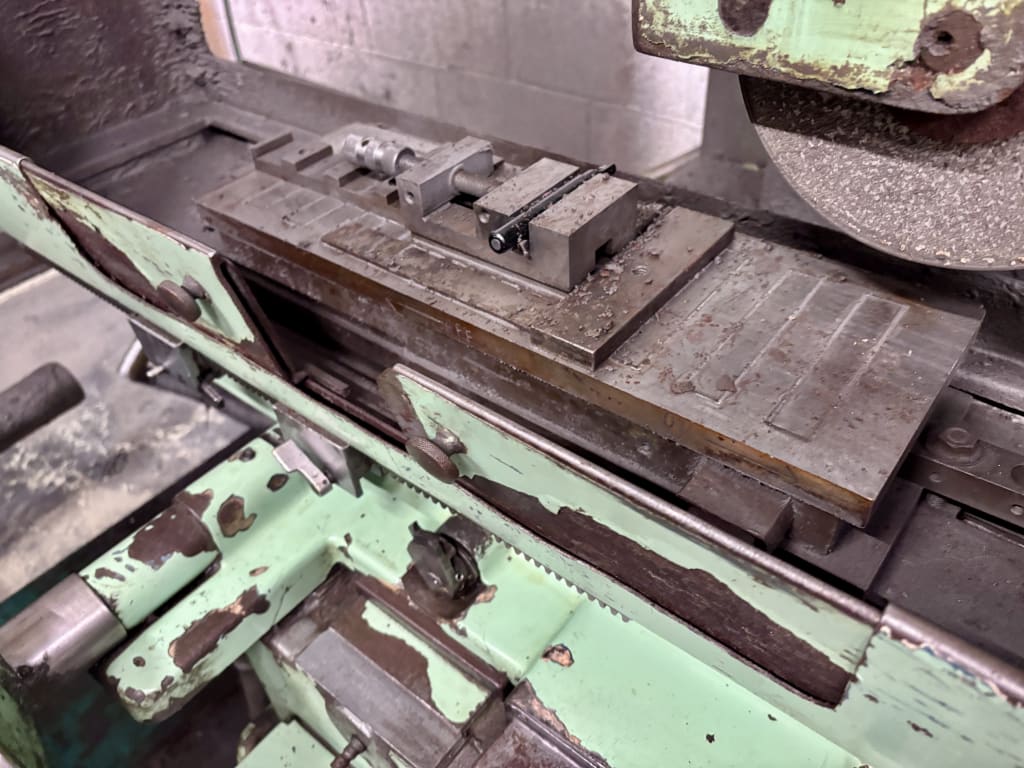

Jones & Shipman 540 Surface Grinder
Working Surface Of Table 457 x 152mm. Longitudinal Table Traverse 483mm. Cross Table Travel 168mm. Vertical Movement Of Wheel Head 280mm. Maximum Wheel Speed 3,000rpm (1.5kW Motor). Wheel Dimension Ø180 x 13 x Ø31.75mm. Power Rise & Fall. Magnetic Chuck Dimension 460 x 150mm. With Coolant Pump. - LOT 9
![site]()

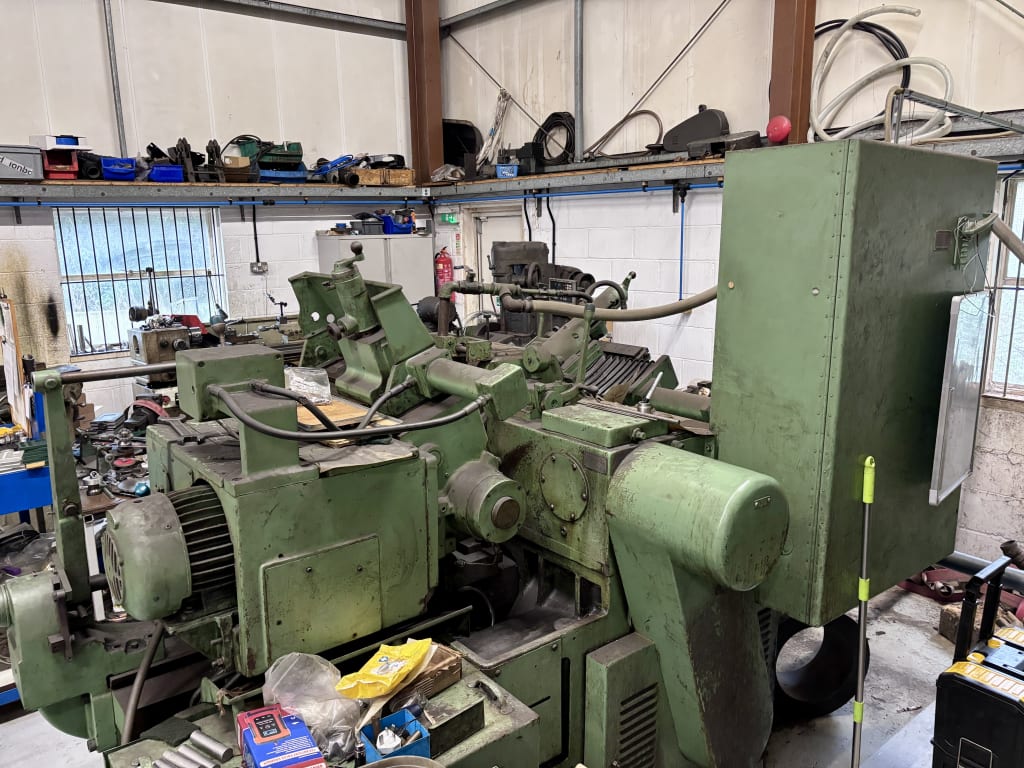

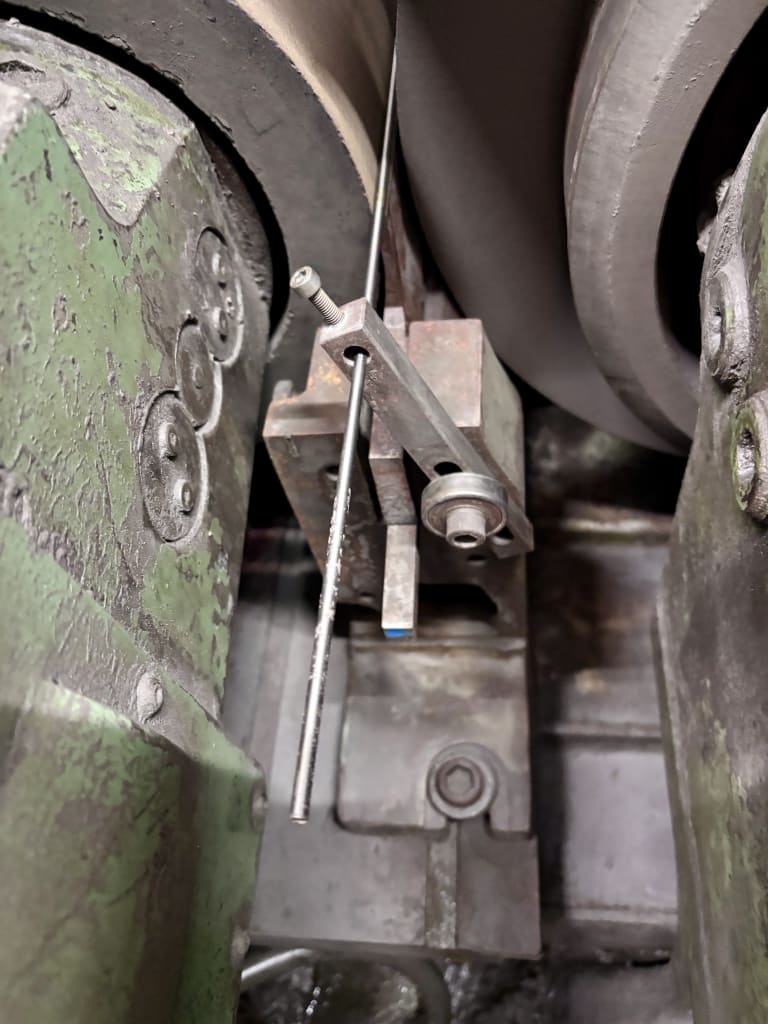

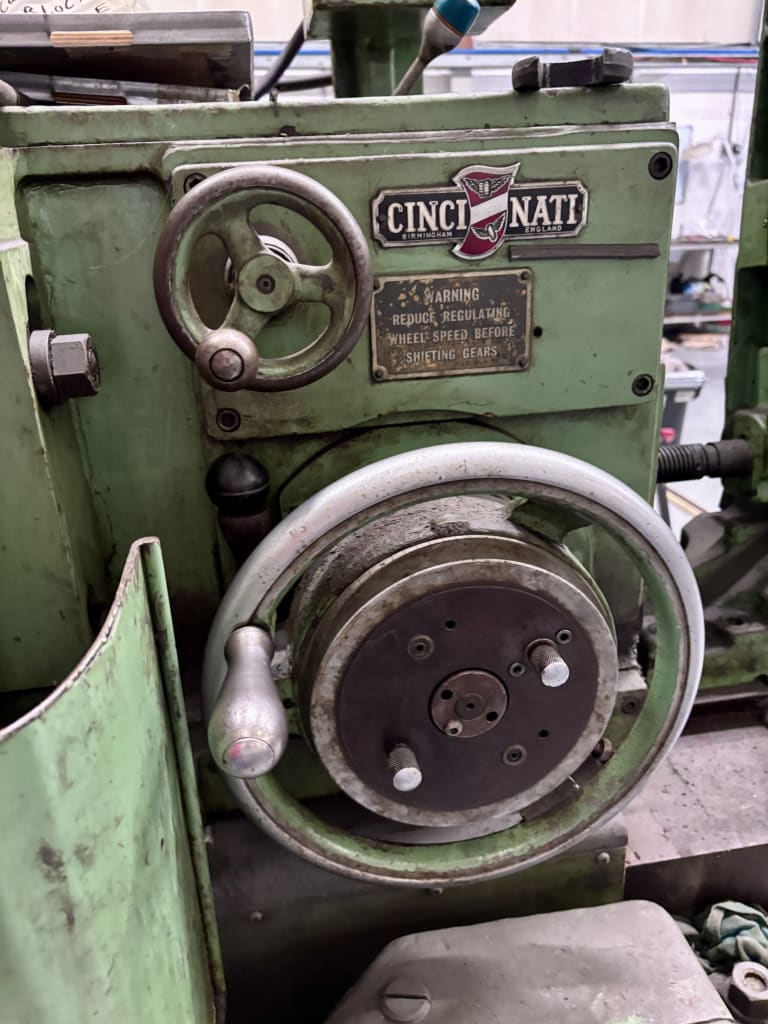

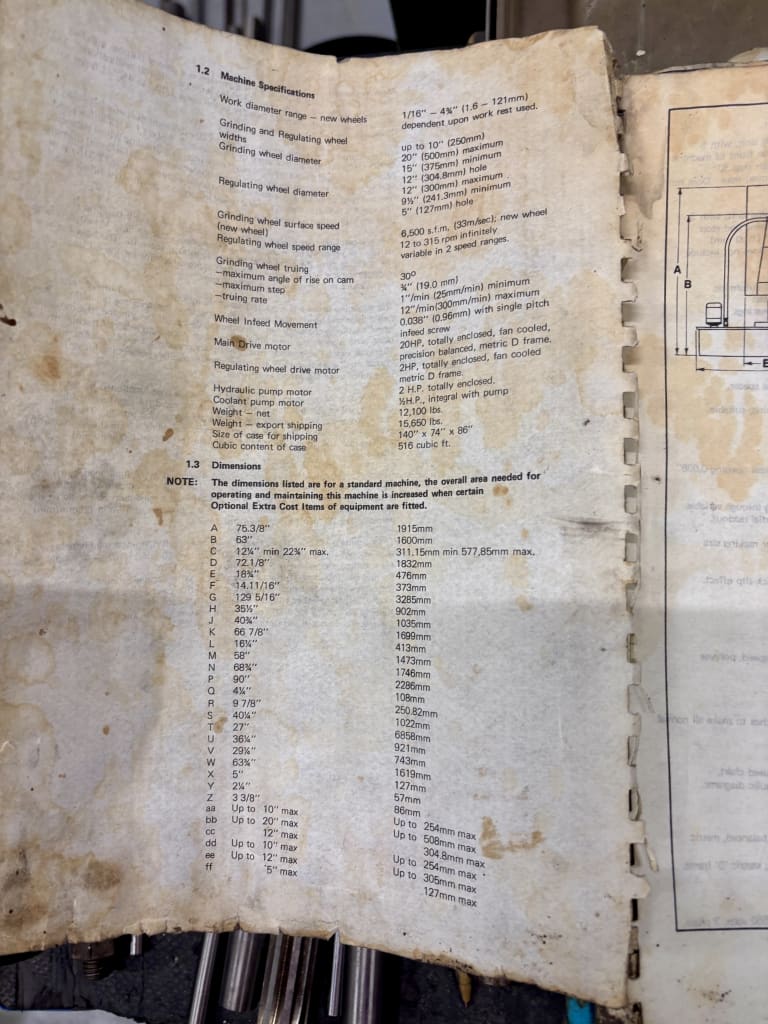

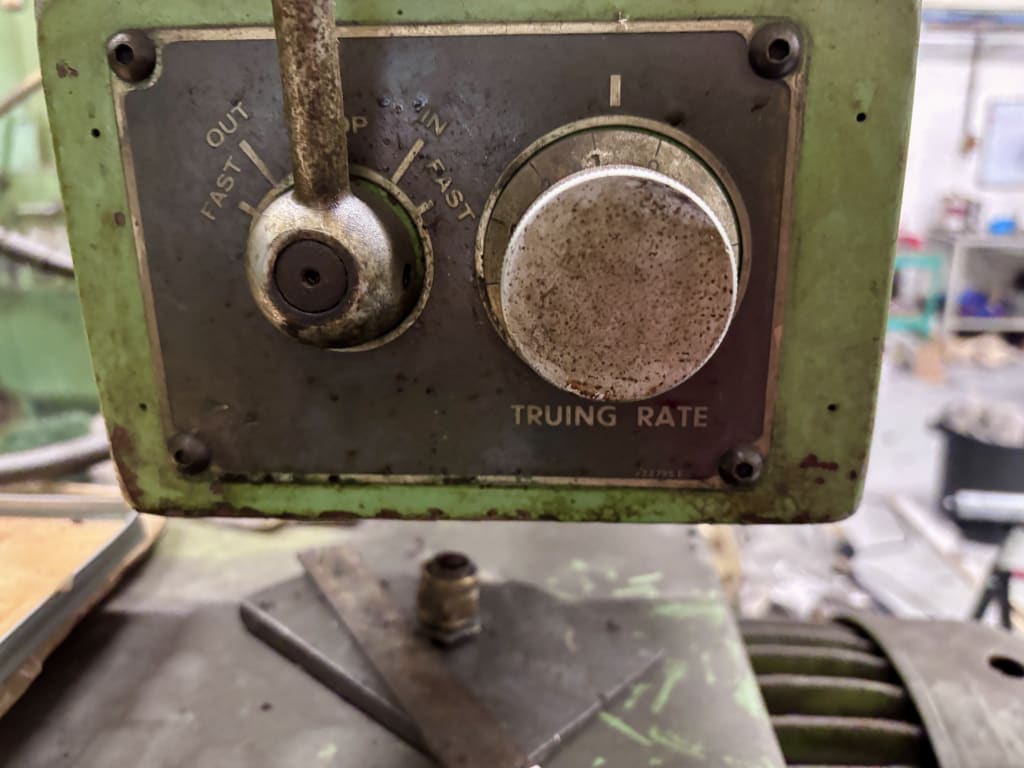

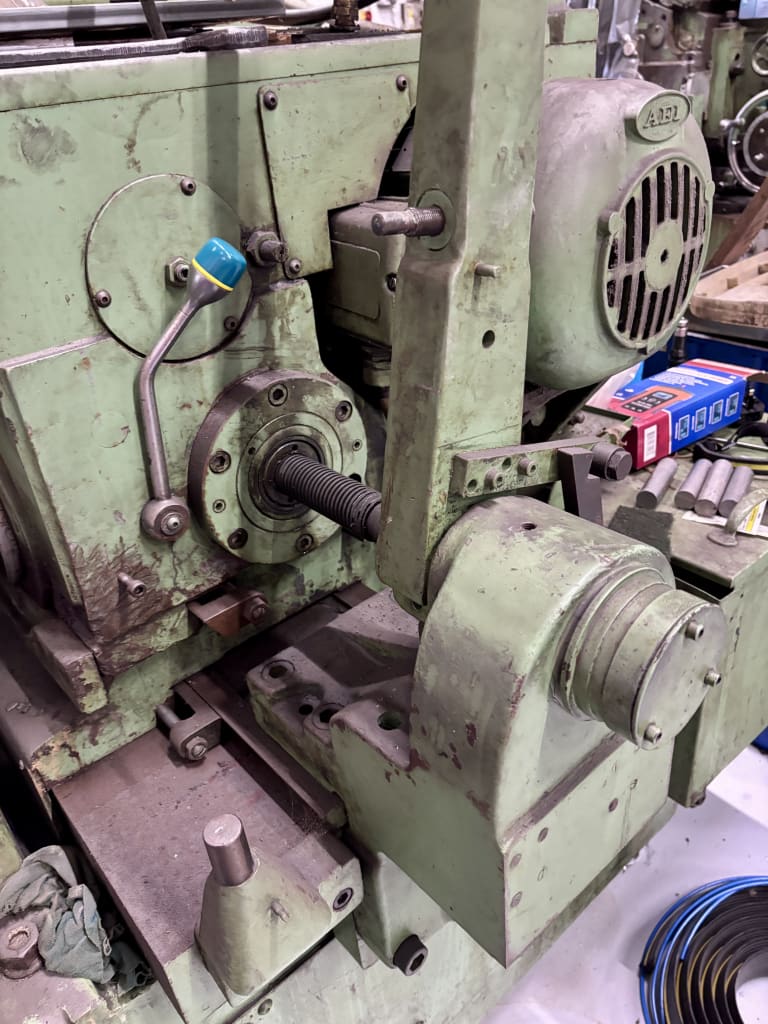

Cincinnati Milacron 2-LR Centreless Grinder
Work Capacity Ø1.6-121mm. Wheel Dimension Ø20 x 8". Maximum Speed 1,240rpm. Filmatic Bearing System. S/No. 24142. - LOT 10
![site]()

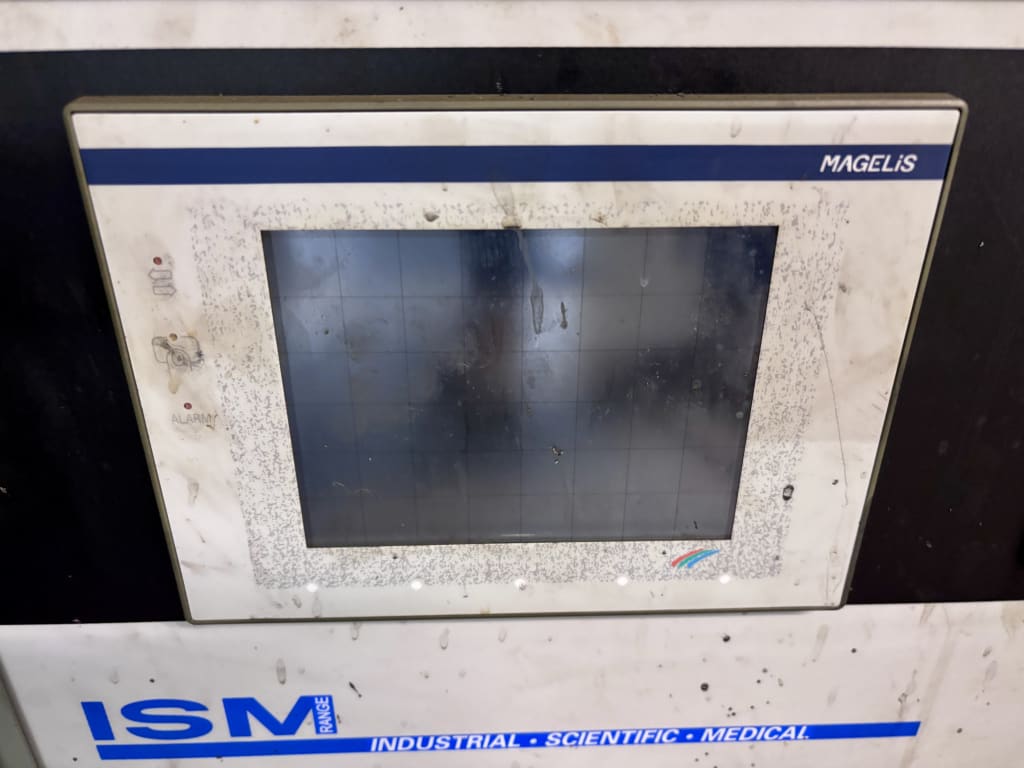

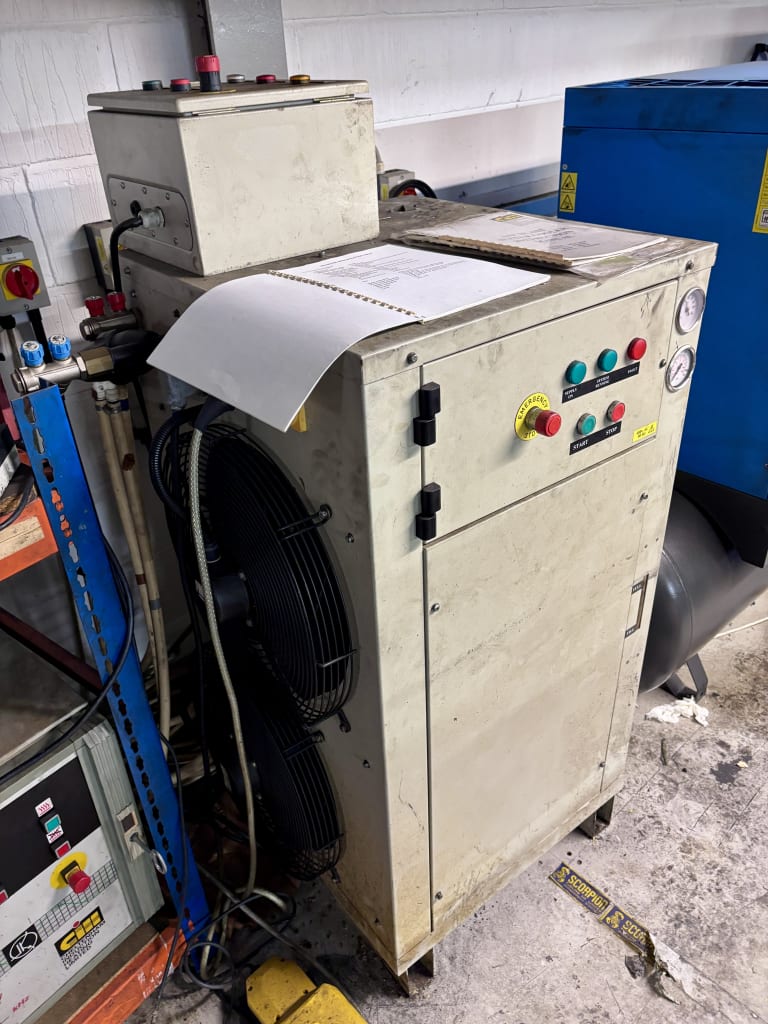

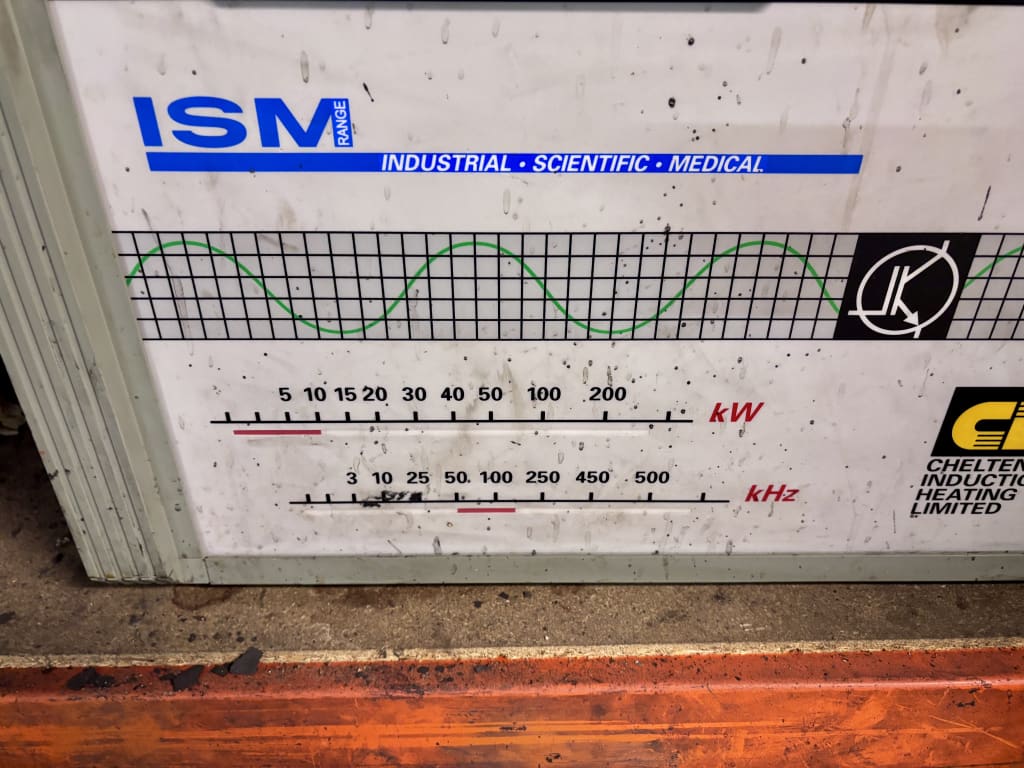

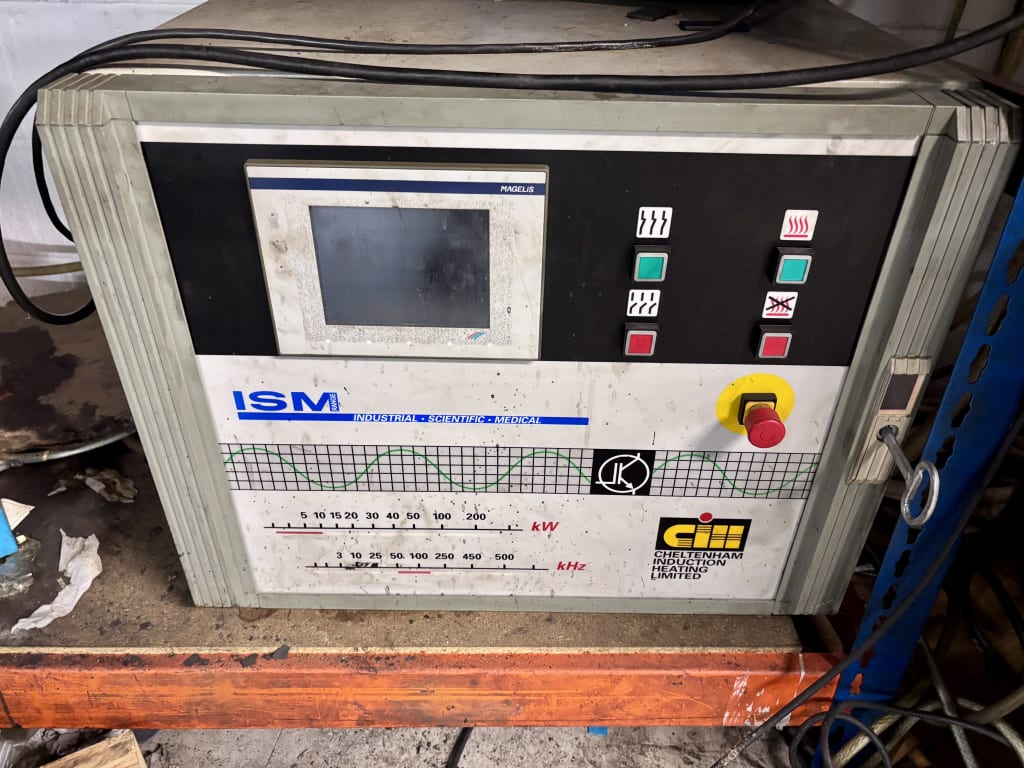

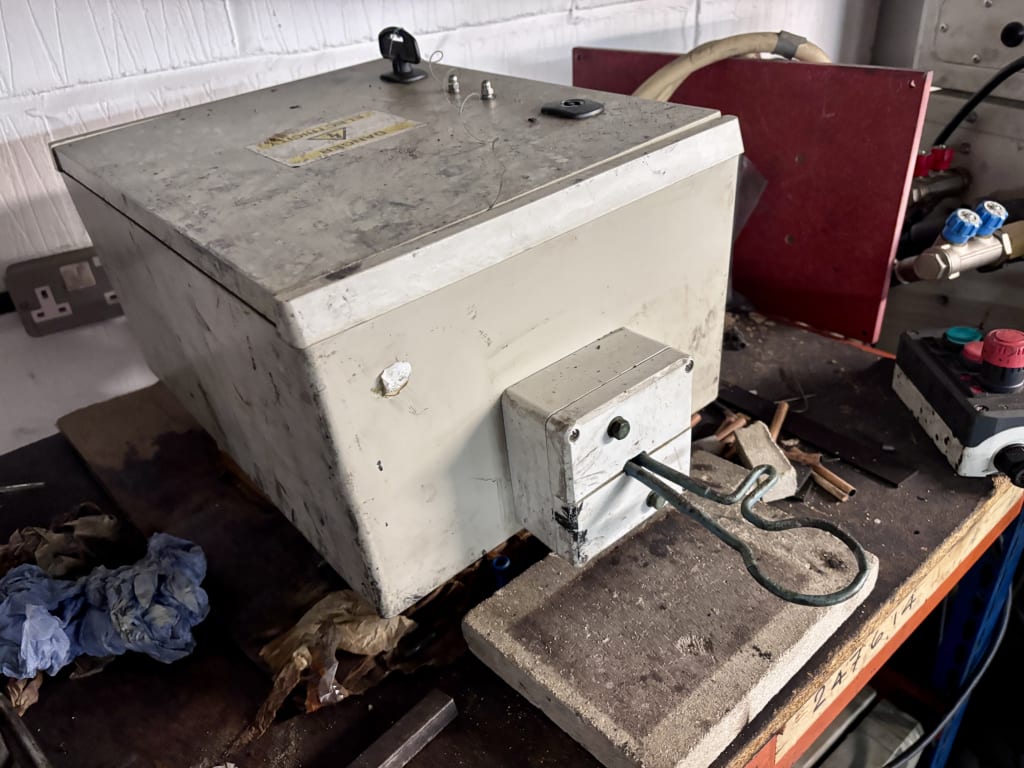

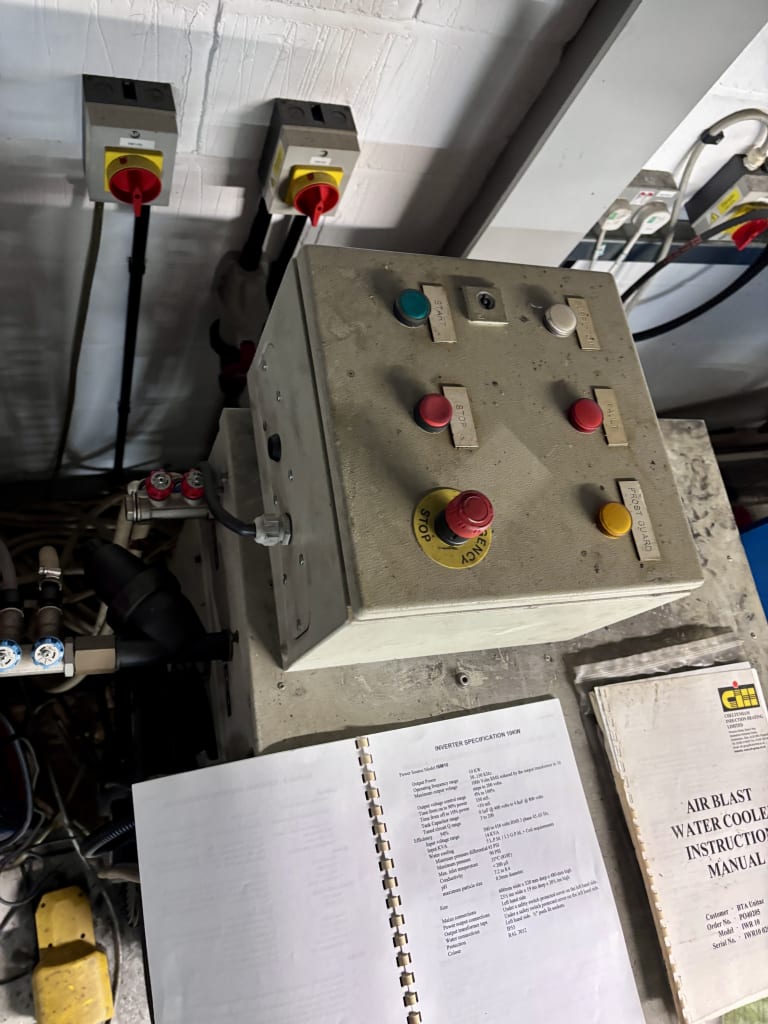

Cheltenham Induction Heating Ltd ISM HF 10 High Frequency Solid State Induction Heater With Air Blast Water Cooler

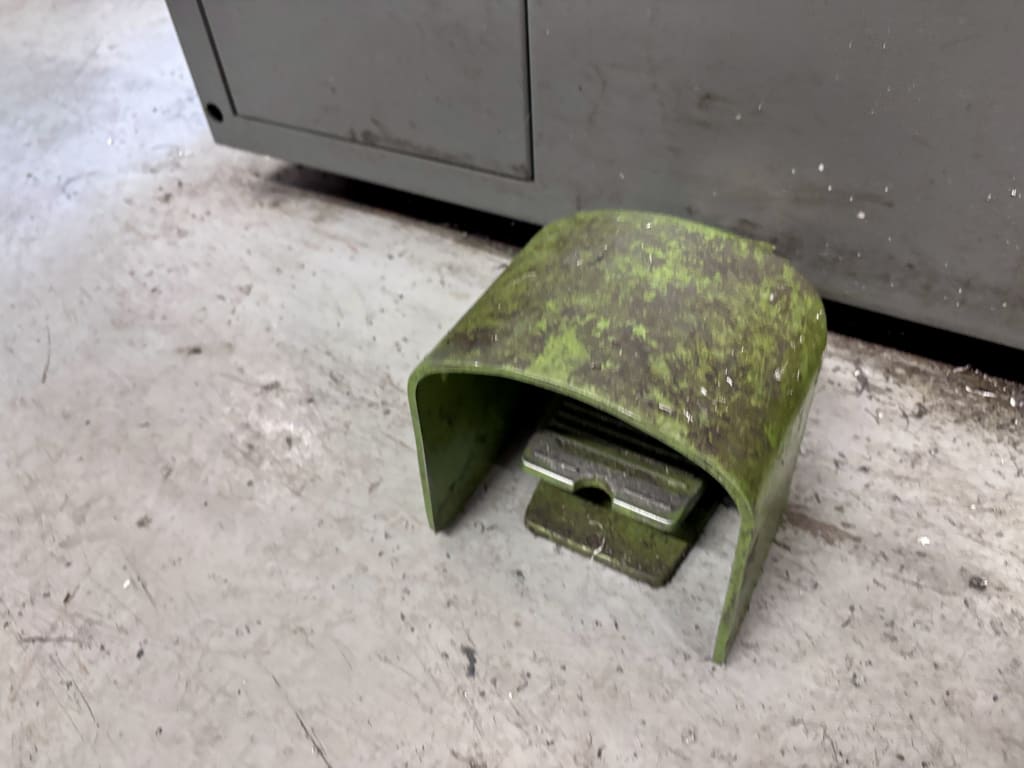

Output Power 10kW. Maximum 15KVA. Voltage 415V. With Pendant Control & Foot Switch. S/No. ISMHF200103 (2004). Needs attention.
- LOT 11
![site]()

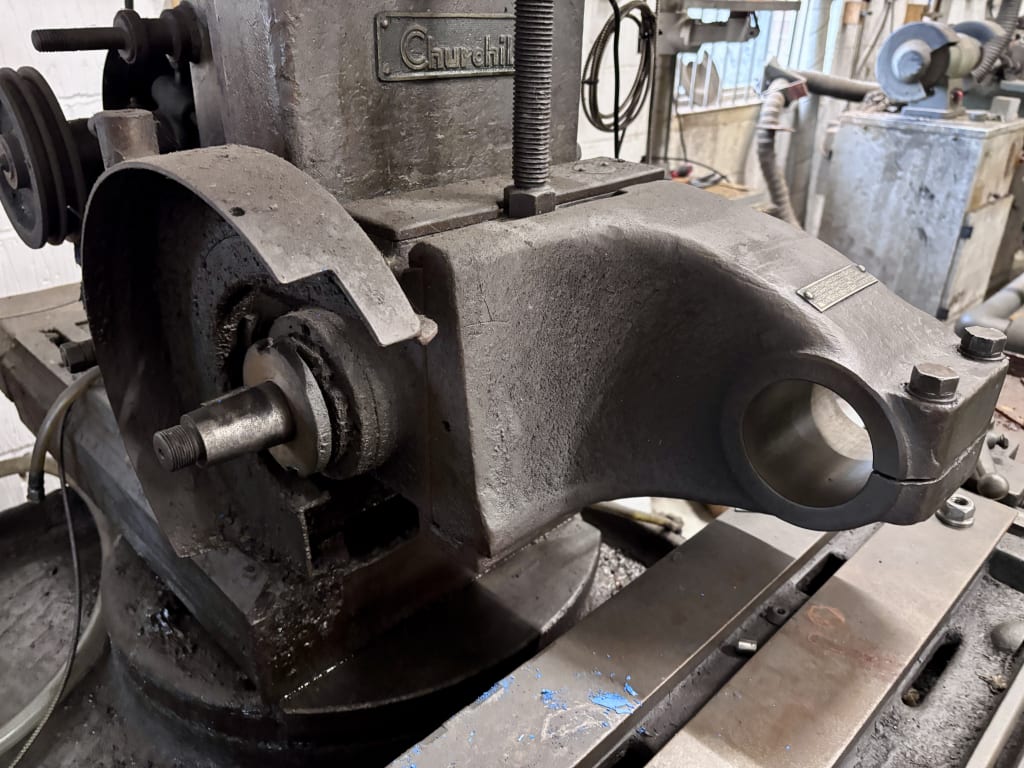

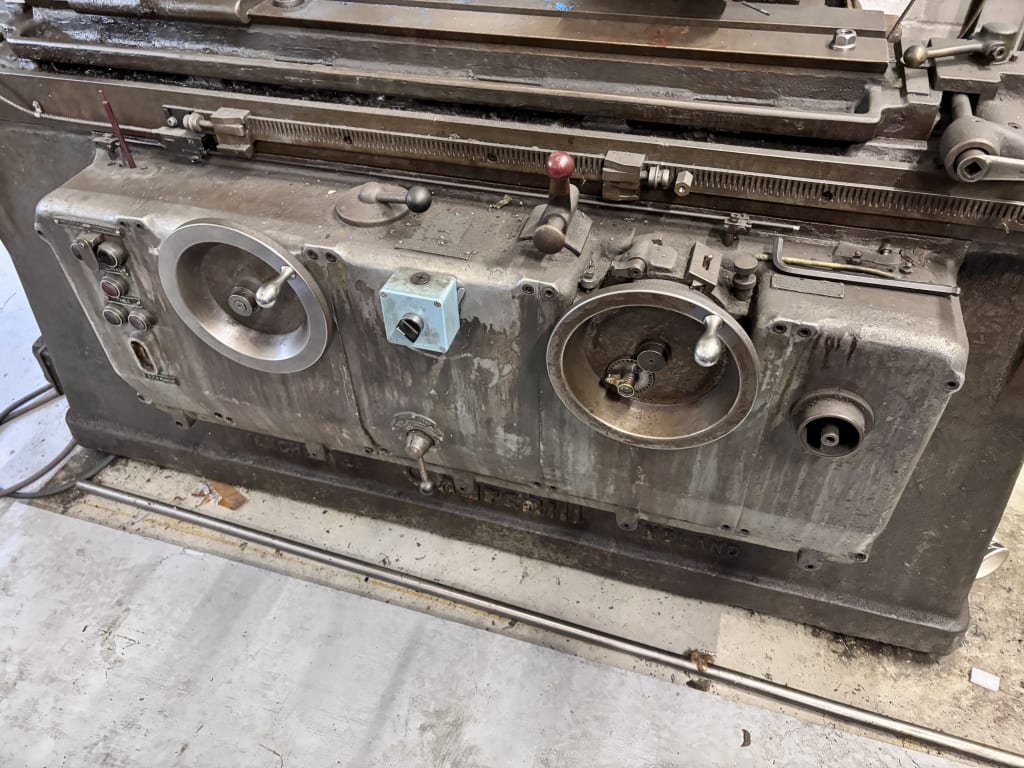

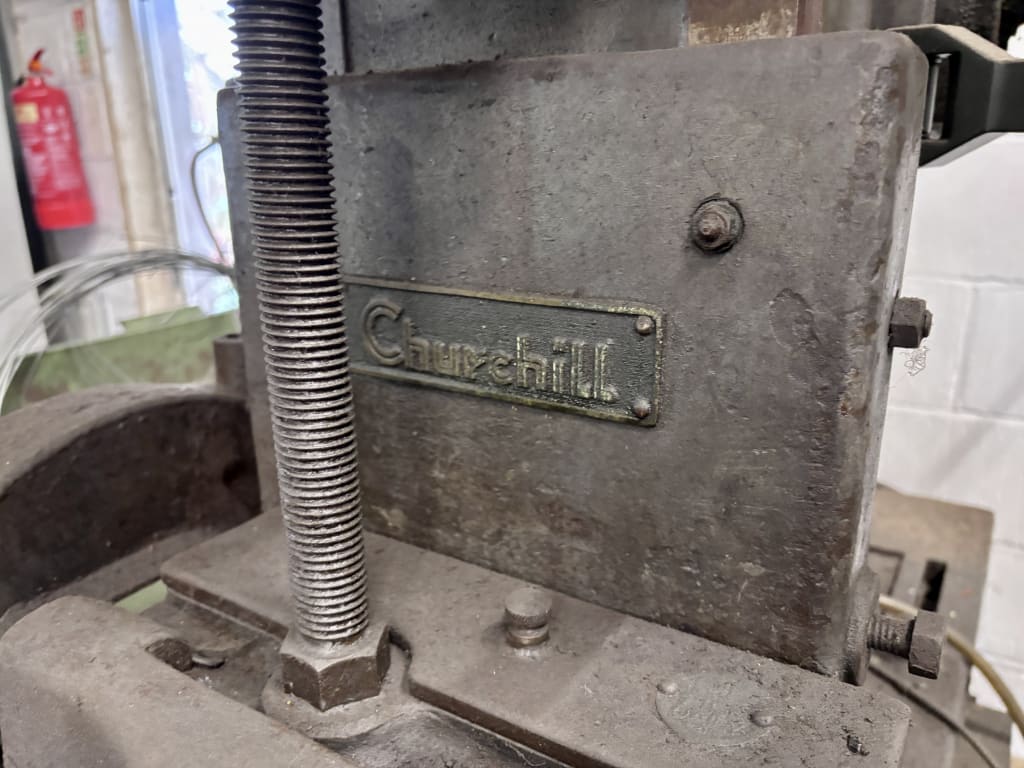

Churchill PBW Universal Grinding Machine With Newall B60 2 Axis DRO
Bed Dimension 1,200 x 125mm. Swing Over Bed Ø330mm. Distance Between Centres 914mm. With Manual. - LOT 12
![site]()

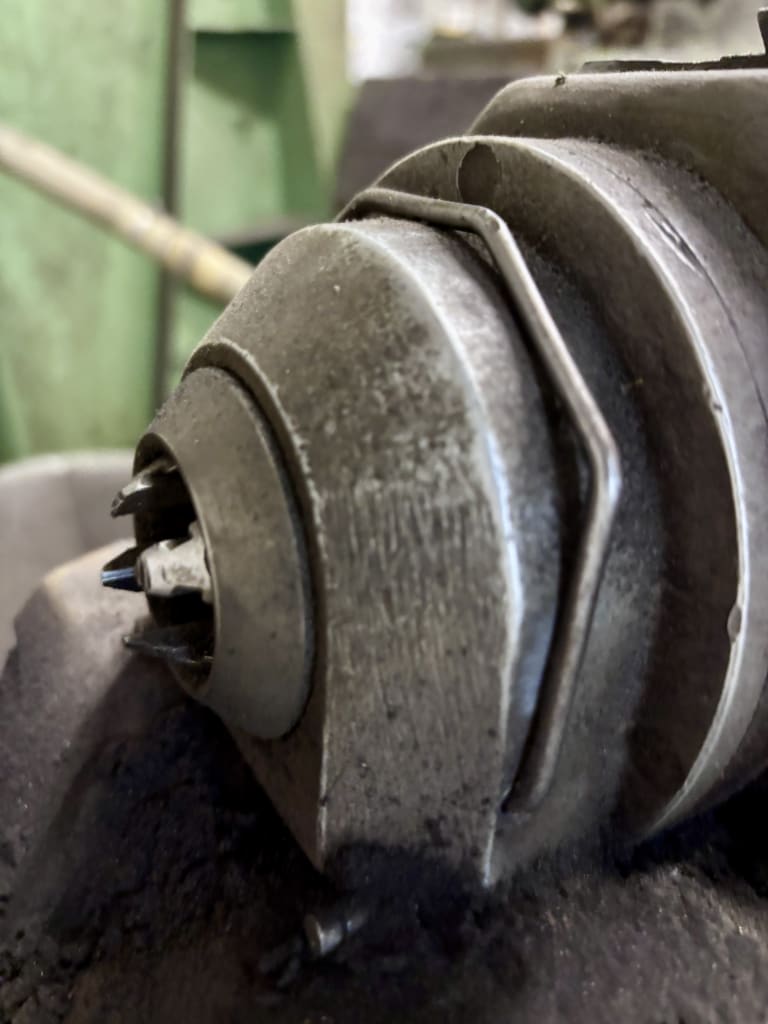

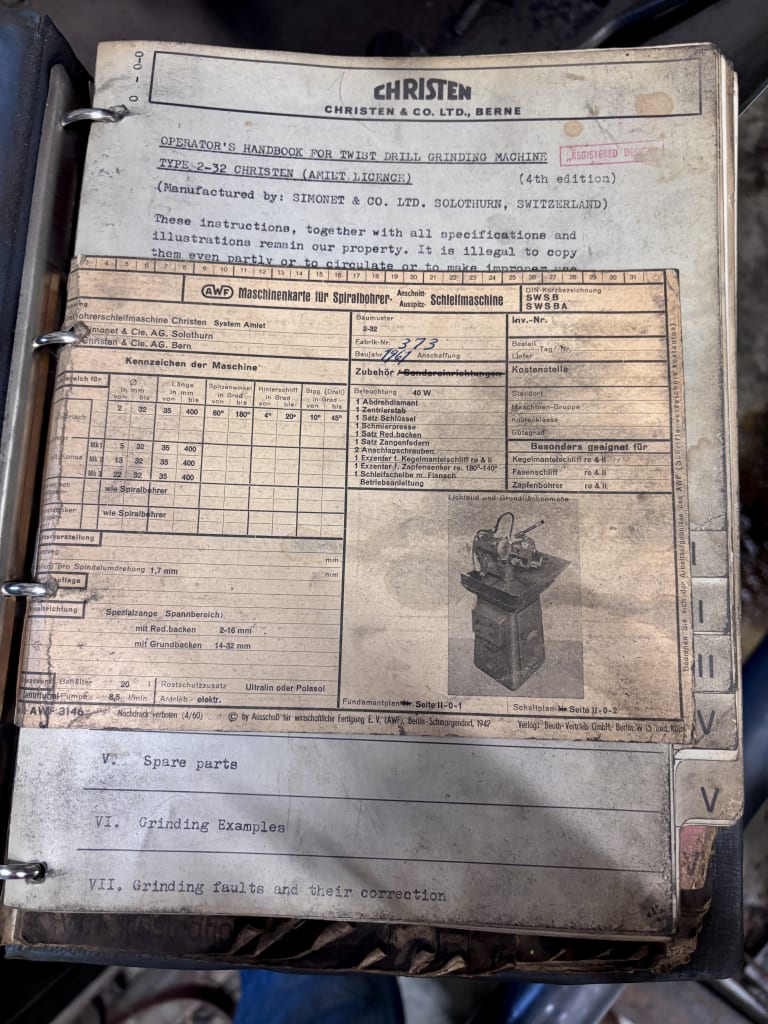

Christen 2-32 Twist Drill Grinding Machine
Grinding Capacity Ø2-32mm. Point Angle Variation 60-180°. With Manual. S/No. 373. - LOT 13
![site]()

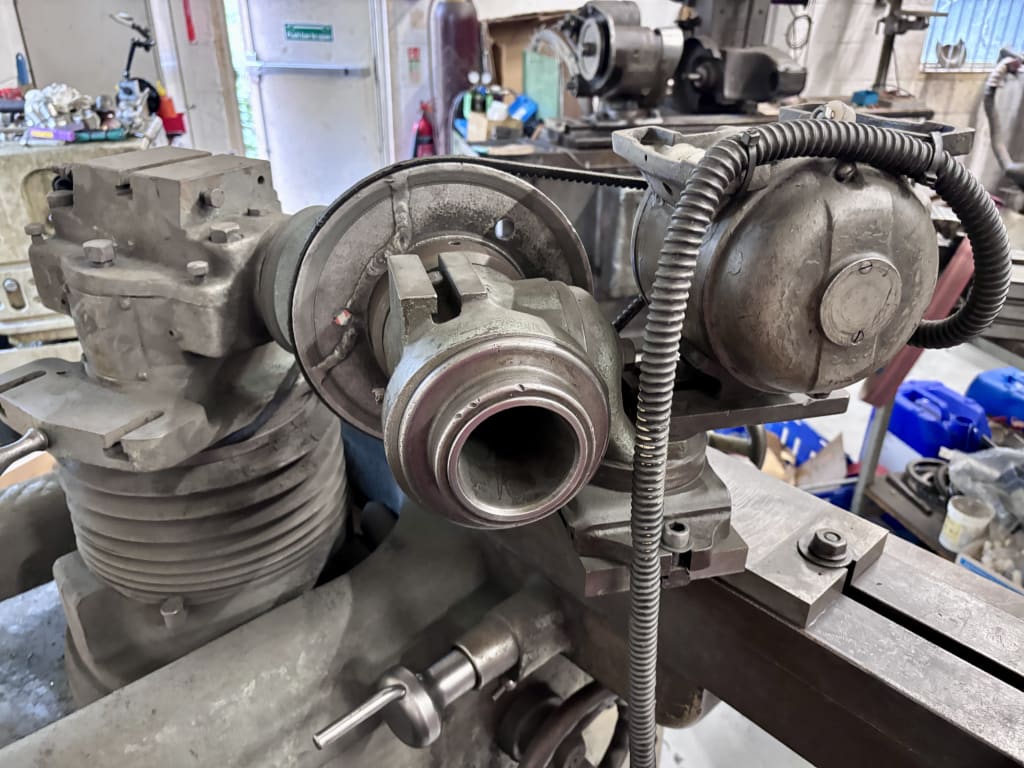

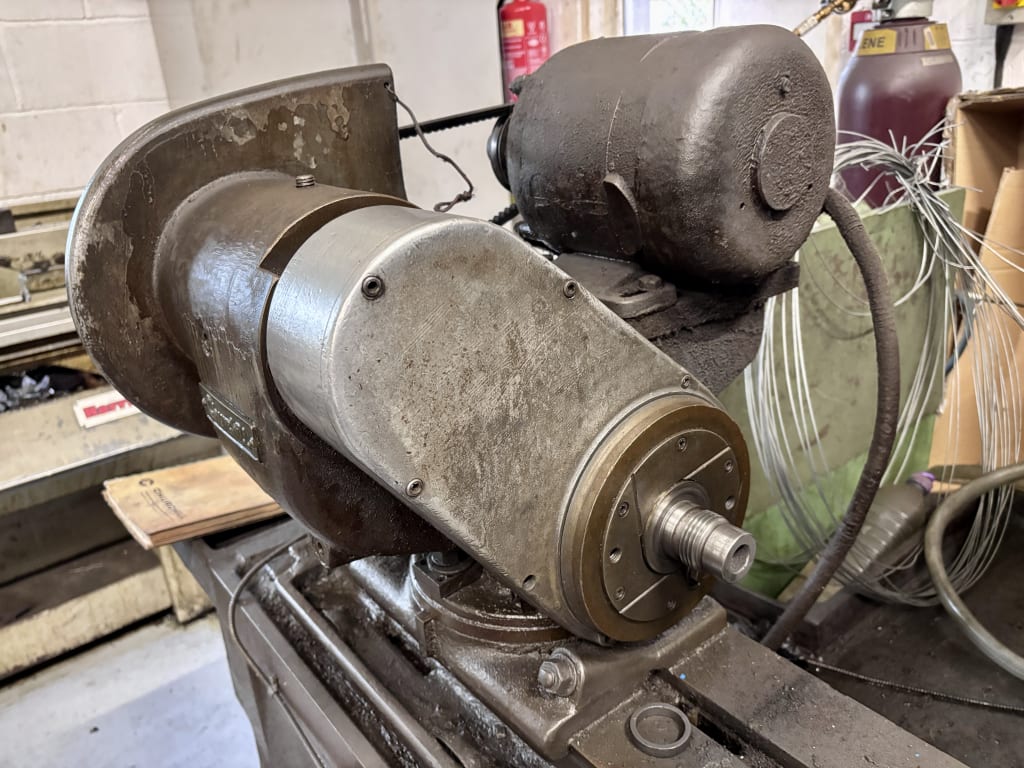

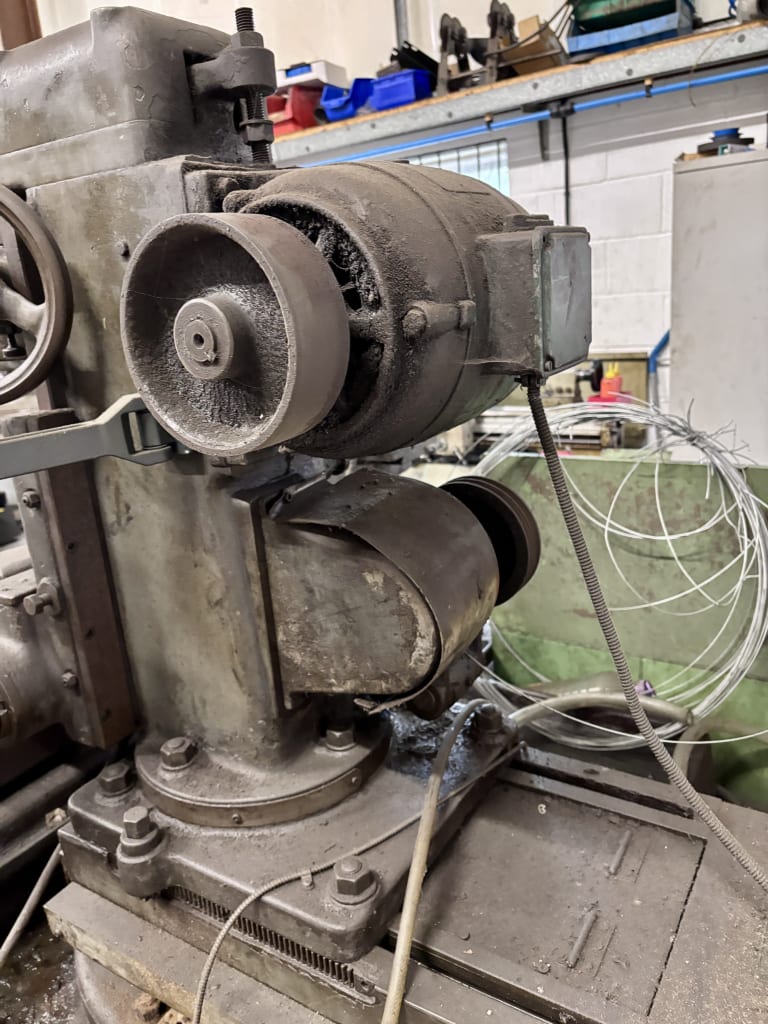

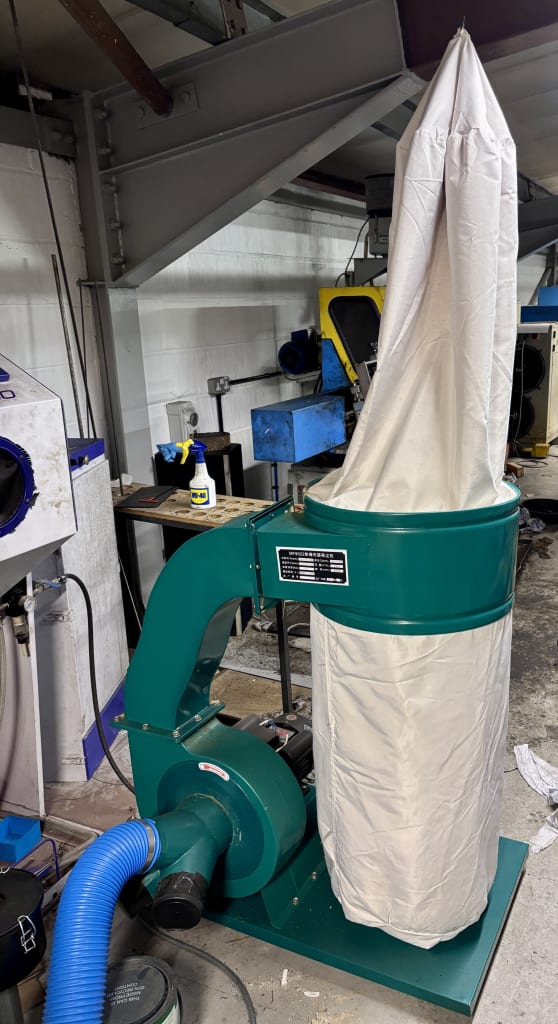

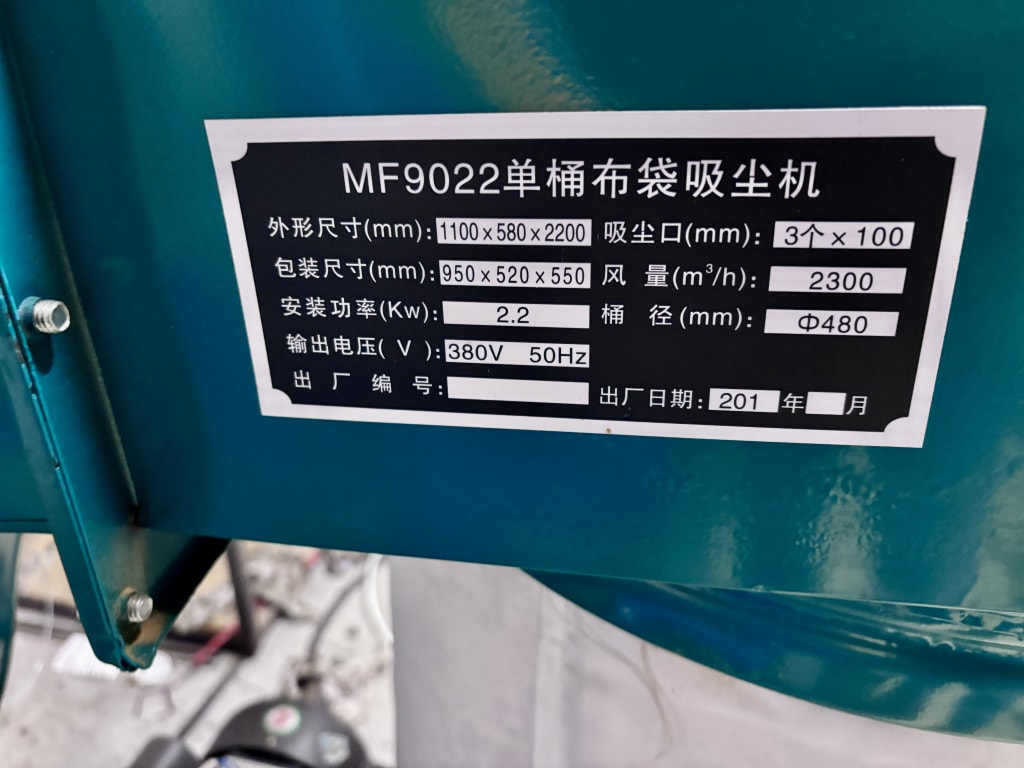

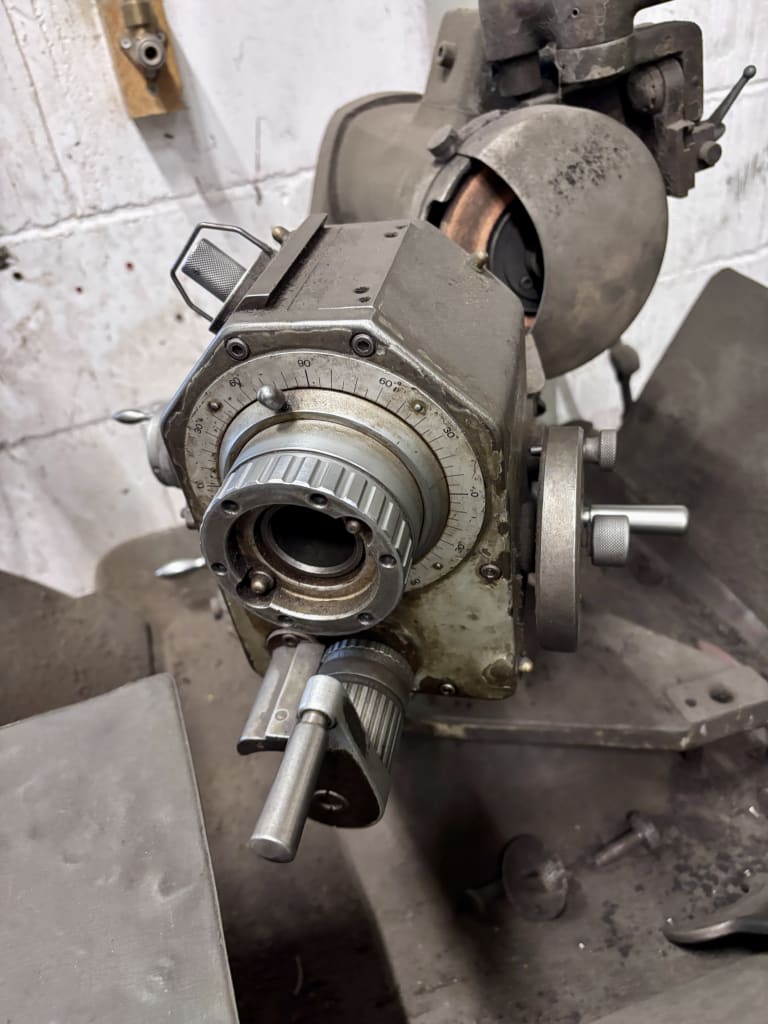

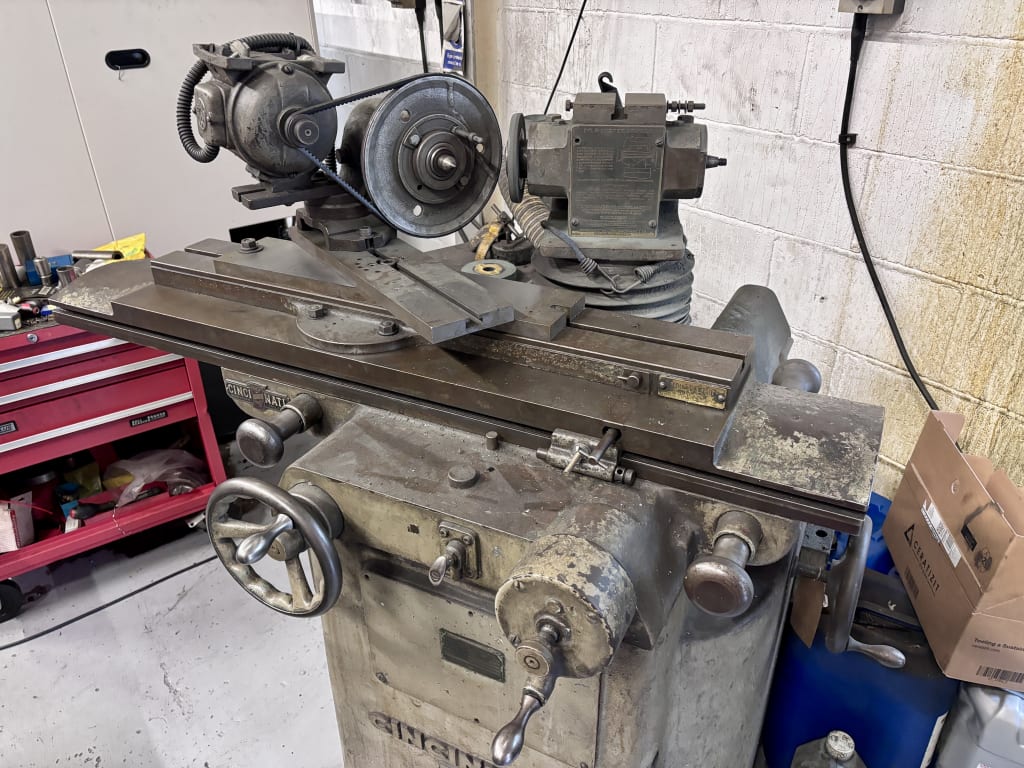

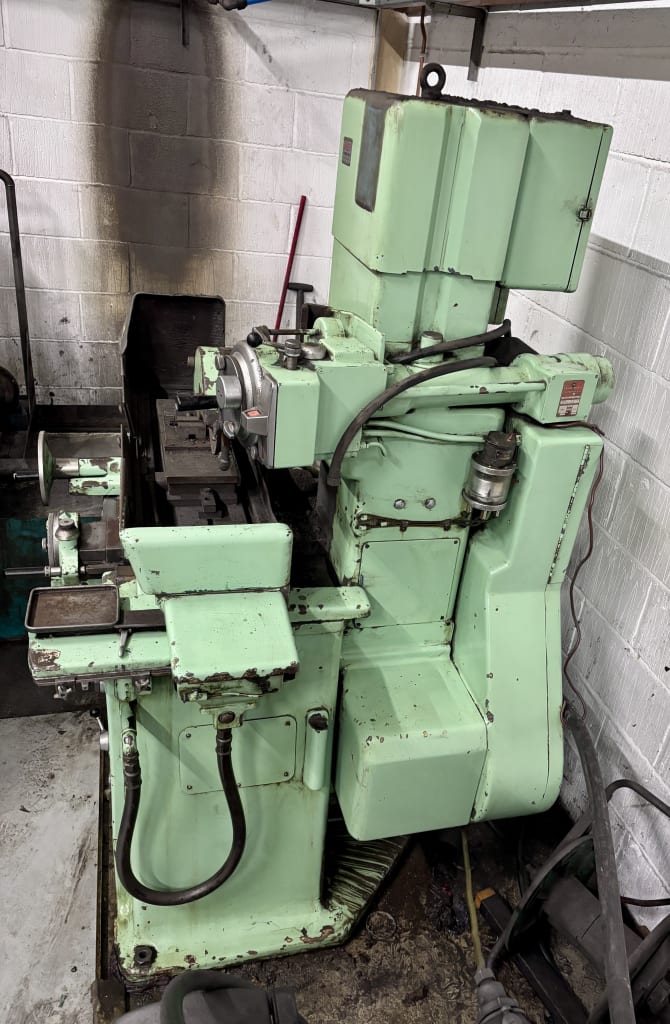

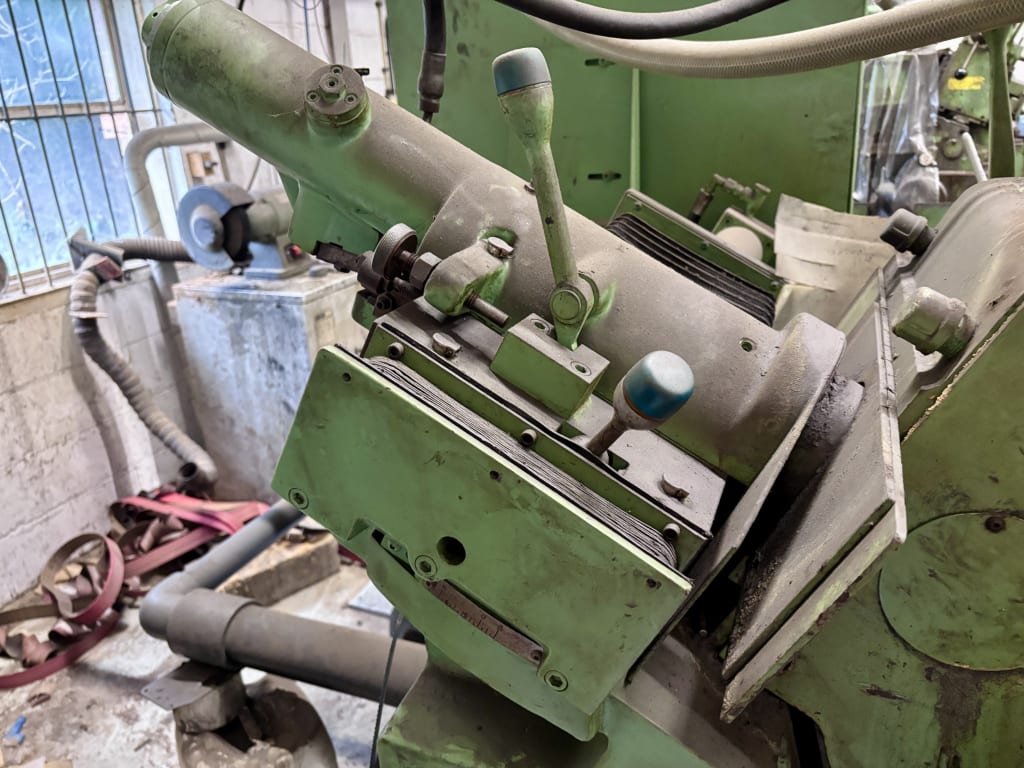

Cincinnati No.2 Tool Cutter Grinder With Dust Extraction Unit
Table Dimension 1,000 x 130mm (1 'T' Slot). Cross Slide Dimension 500 x 125mm. Swing Over Table Ø267mm. Wheel Speeds 2,800, 3,800 & 5,965rpm. - LOT 14
![site]()

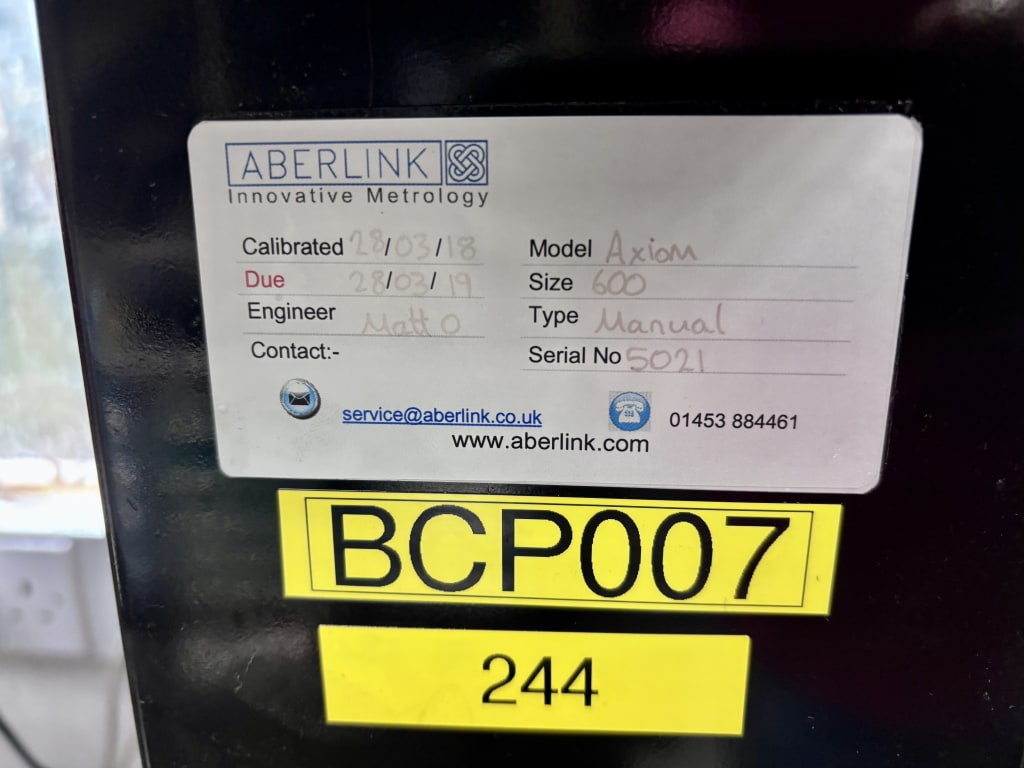

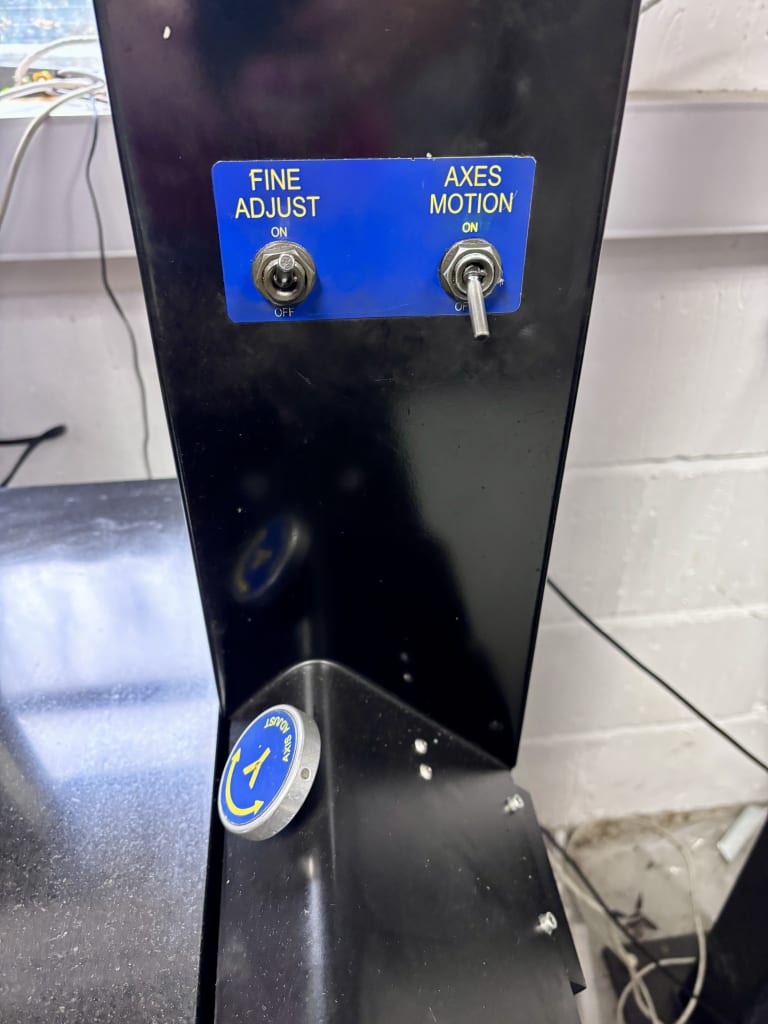

Axiom 600 Manual Co-Ordinate Measuring Machine (CMM)

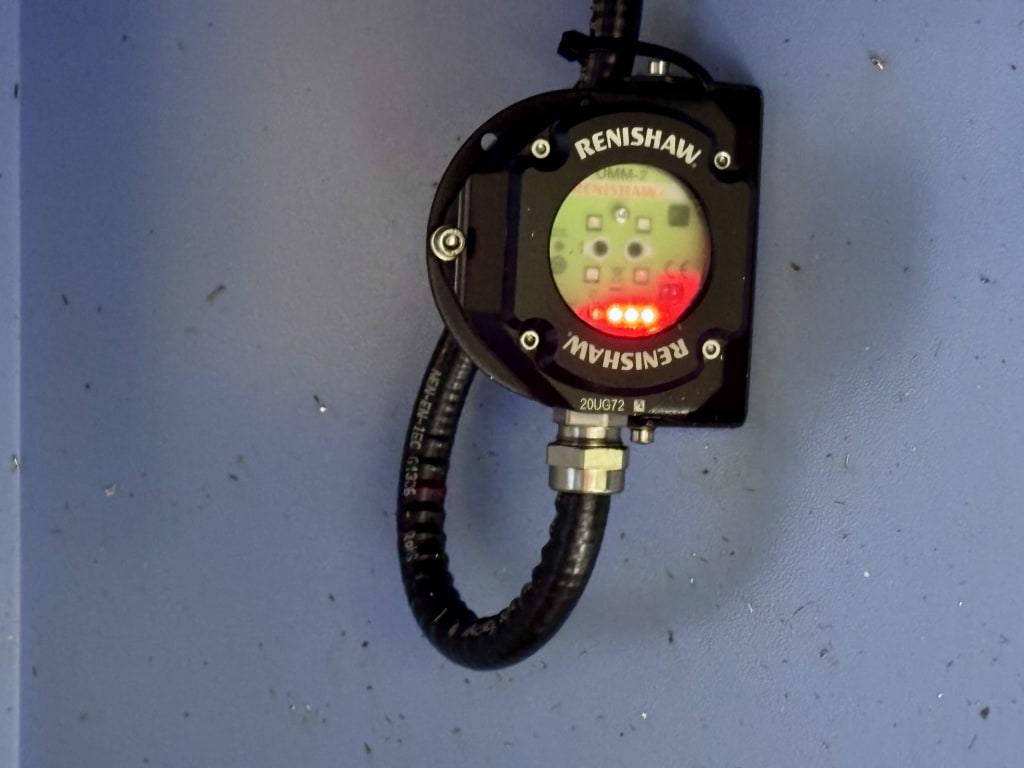

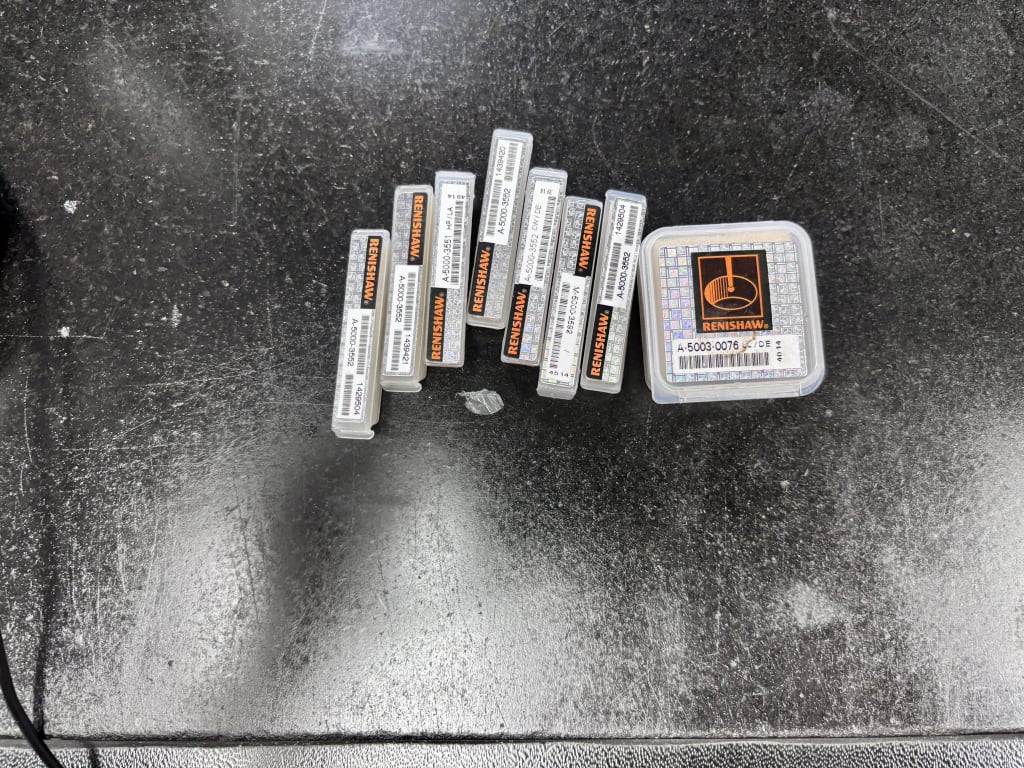

Table Dimension 855 x 700mm. Distance Between Columns 670mm. Height Under Bridge 490. With Renishaw MIP Probe Head. S/No. 5021. Note: Needs Attention.
